Product Details

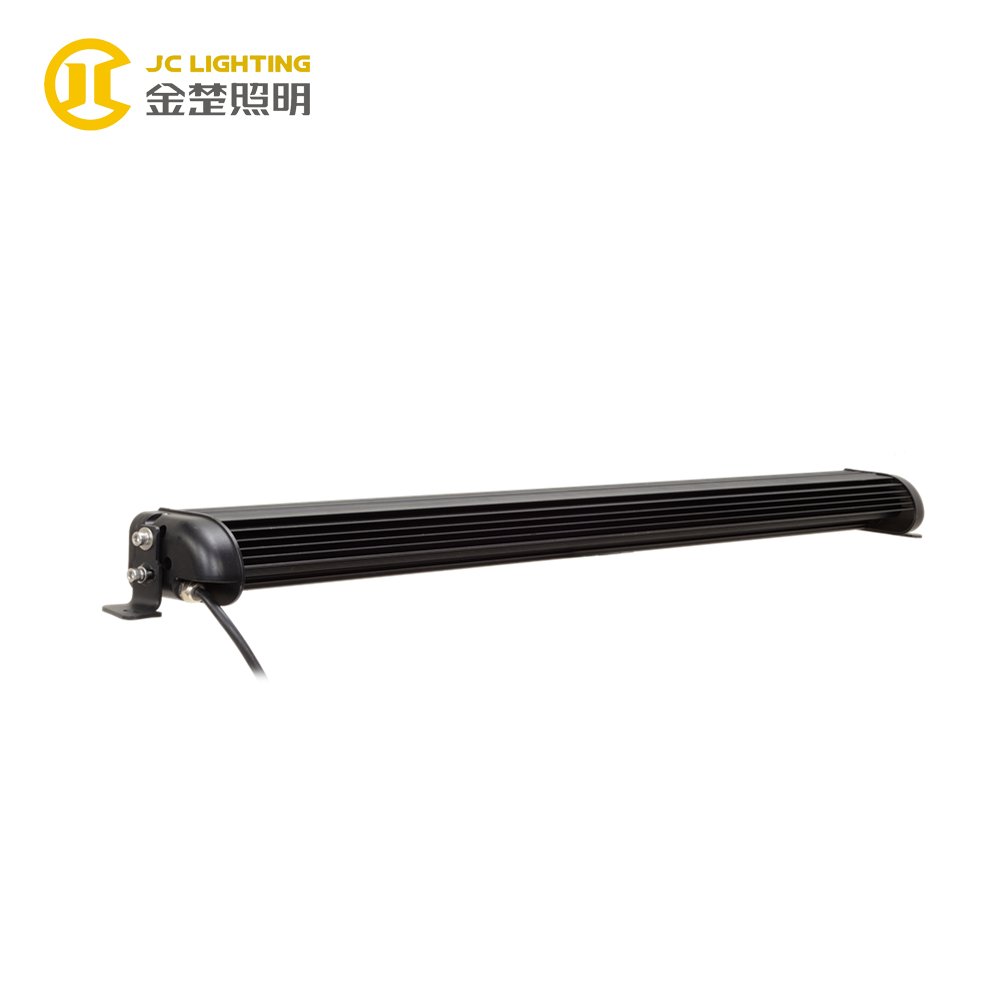

| Model | JC10118S-240W |
| Watt | 240W |
| Voltage | 9~60V DC |
| LED | 24* 10W Cree XM-L2 LED |
| Material | Die-cast aluminum housing, PC lens |

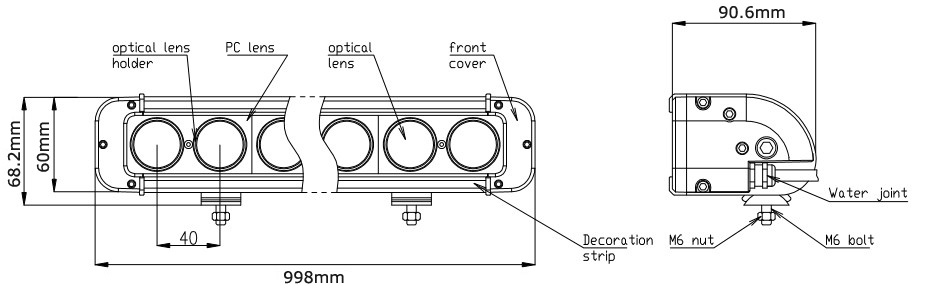

| Size | 998*60*90 mm (39 inch) |
| Raw Lumens | 20640 LM |
| Optional Beam | Spot/Flood/Combo |
| Dustproof & Waterproof Rating | IP67 |
| Color Temperature | 6000K |
| Working Environment | -40°C~+80°C |
| Certificates | CE, RoHS, IP67, EMC |
| Warranty | 1 year |
| Life Time | More than 30,000 hours |
If you are looking for similar power LED light, JC10118B-240W and JC10218D-240W are recommended.
For the whole series of 10W LED light bar, please check here: JC10118S series.
JC10118S LED Light Bar Series
| MODEL | INCH | LED (PCS) | WATT | RAW LUMENS | EFFECTIVE LUMENS | SIZE (MM) | AMPS /12V | INPUT VOLTS | QTY/CTN |
| JC10118S-20W | 5" | 2 | 20W | 1720LM | 1290LM | 118*60*90 | 1.25 | 9-60V | 20 |
| JC10118S-40W | 8" | 4 | 40W | 3440LM | 2580LM | 118*60*90 | 2.5 | 9-60V | 10 |
| JC10118S-60W | 11" | 6 | 60W | 5160LM | 3870LM | 278*60*90 | 3.75 | 9-60V | 10 |
| JC10118S-100W | 17" | 10 | 100W | 8600LM | 6450LM | 438*60*90 | 6.25 | 9-60V | 6 |
| JC10118S-120W | 20" | 12 | 120W | 10320LM | 7740LM | 518*60*90 | 7.5 | 9-60V | 6 |
| JC10118S-180W | 30" | 18 | 180W | 15480LM | 11610LM | 758*60*90 | 11.25 | 9-60V | 6 |
| JC10118S-240W | 39" | 24 | 240W | 20640LM | 15480LM | 998*60*90 | 15 | 9-60V | 4 |
| JC10118S-260W | 42" | 26 | 260W | 22360LM | 16770LM | 1078*60*90 | 16.25 | 9-60V | 4 |
| JC10118S-300W | 49" | 30 | 300W | 25800LM | 19350LM | 1238*60*90 | 18.75 | 9-60V | 2 |

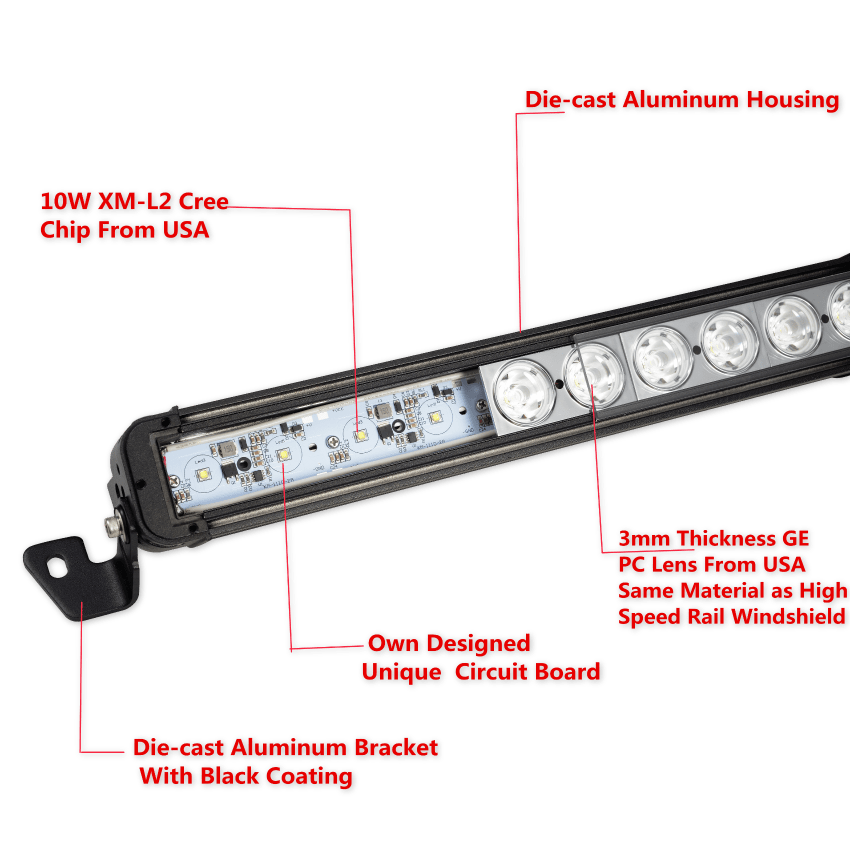

> Single row 240W LED light bar uses Cree LED chip.
> 3mm GE PC lens from USA, same material as high speed rail windshield.
> Vertical fins maximize heat dissipation, advanced heat sink designed to prolong the life of the LEDs.
> The 39 inch LED light bar output of LED light bar 240W is simply phenomenal. They produce a mass of clean white daylight (6000K).
> Two types of mounting brackets for optional: bottom mounting bracket and side mounting bracket. The bracket is easy to install.
> 1 year warranty, CE, RoHS, IP67, EMC approved.
PS: Cree LED light bar 240W support OEM, ODM!
