Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: KCD1-5-111

Max. Current:: 10A

Max. Voltage:: 250VAC

Mechanical Life:: 10000 Cycles

Item Number:: KCD1-5-111

Button Color:: Black/White/Transparent Red/Yellow/Green/Blue

Function:: OFF-(ON)

Contact Configuration:: SPST

Rating:: 6A 250VAC/10A 125VAC

Contact Resistance:: 35mΩ max

Insulation Resistance:: 500 VDC100MΩ

Dielectric Strength:: 1500VAC 1 minute

Electrical Life:: 100,000 cycles

Certification::: CE, CQC, SGS

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 28X28X15 cm

Gross weight per batch:: 1.0 kg

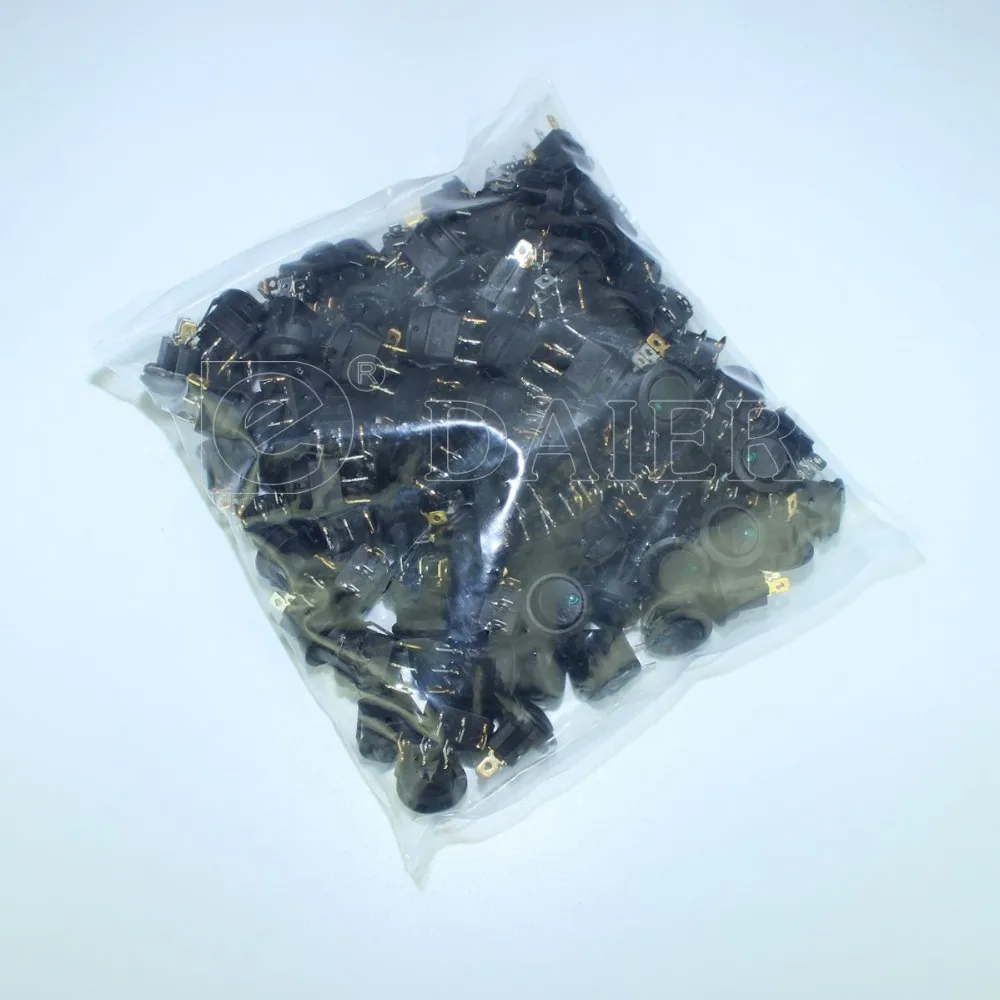

Package Type:: 100PCS Per Bag of KCD1 Series SPST Round Momentary Taiheng Rocker Switches

Picture Example:

Lead Time:

Quantity(Piece)	1 - 100000	>100000
Est. Time(days)	10	To be negotiated

Our adventage

Product Description

Product Name	KCD1 Series SPST Round Momentary Taiheng Rocker Switches
Rating	6A 250VAC/10A 125VAC
Funtion	OFF-(ON) Round Momentary Taiheng Rocker Switches
Material	Nylon 66
Contact Configuration	SPST
Housing Color	Standard Black and White and Gray
Button Color	Black/White/Transparent Red/Yellow/Green/Blue
OEM or ODM	Available

Products Show

KCD1-5-111 ROCKER SWITCH

Daier KCD1-5-111 miniature rocker switch offer a high switching current in a compact design.

It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.

KCD1-5-111ROCKER SWITCH

They have high quality for long life at heavy loads and industry-standard mounting dimensions.

This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
