Product Details

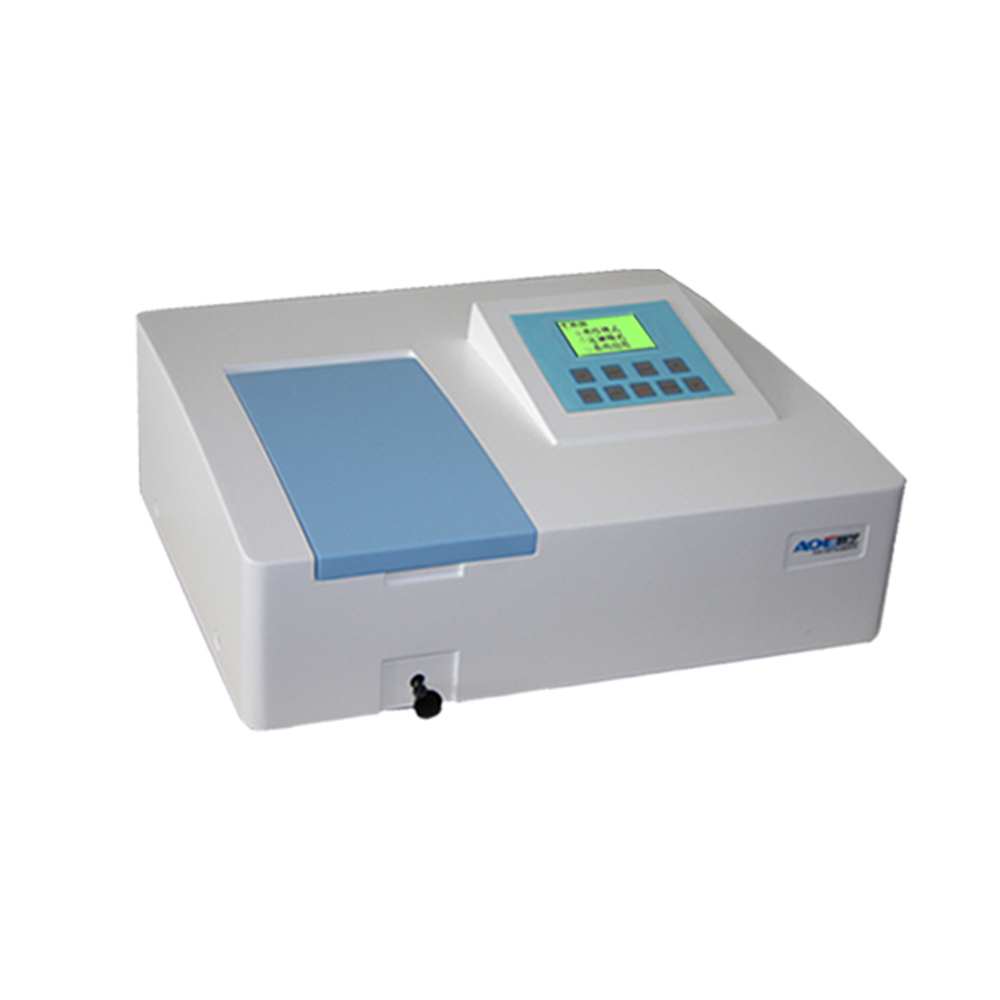

Lab and Medical Organic chemistry UV/VIS Spectrophometer with Imported & Environmental Deuterium lamp
Spectrophotometers are widely used for Organic chemistry,Inorganic chemistry,Life sciences,foods, Medicine and health,Agriculture,Geology,Metallurgy and Environment etc.fields.
Features:
Large LCD screen (128*64 Dots)
Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
High-class grating , wholly hermetic light path design, ensures the super low stray light
Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
Pre-aligned design ensures the user can change lamps conveniently
Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
With Si02 coating optical mirror, reducing the pollution from outside fully
Optional PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics
Widely used for Organic chemistry, Inorganic chemistry, Life sciences, food, Medicine and health, Agriculture, Geology, Metallurgy and Environment etc. fields
Basic Fuctions:
1. Photometry
Test Abs., Transmittance by fixed wavelength
2. Quantitative
a. C Mode: EstablishC=K*A curve, test sample concentration
b. F Mode: Establish A=K1*C+K0, test sample concentration
c. Display and save curve, test data (V-1200,UV-1200).
Model | BK-UV1000 | BK-V1000 | BK-UV1200 | BK-V1200 | |||
Optical System | Single Beam, Grating1200 lines/mm | ||||||
Wavelength Range | 200-1020nm | 325-1000nm | 200-1020nm | 320-1020nm | |||
Spectral Bandwidth | 4nm | ||||||
Wavelength Accuracy | ±1.8nm | ±1.5nm | |||||
Wavelength Repeatability | ≤0.5nm | ||||||
Photometric Accuracy | ± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.5% T (0-100% T) | ||||||
Photometric Repeatability | 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs),≤0.2% T (0-100% T) | ||||||
Stray Light | ≤0.1 % T @ 360nm; 220nm | ≤0.2% T @ 360nm | |||||
Stability | ± 0.001A / h @ 500nm | ||||||
Noise | ± 0.001A | ||||||
Display | 128*64 Dots LCD | ||||||
Photometric Mode | T, A, C, E | ||||||
Photometric Range | 0-200%T,-0.301~3.0A | ||||||
Detector | Silicon Photodiode | ||||||
Light Source | Deuterium Lamp, Tungsten Lamp | ||||||
Input | Membrane Keypad | ||||||
Standard Accesseries | 10mm glass cuvette *4 units 10mm quartz cuvette *2 units | 10mm glass uvette *4 units | 10mm glass cuvette *4 units 10mm quartz cuvette *2 units | 10mm glass uvette *4 units | |||
Power Supply | 110V/220±10% ,60/50Hz | ||||||
Packing Size(mm) | 560*430*320 | 560*430*320 | 560*430*320 | 560*430*320 | |||
Gross Weight(kg) | 12 | 11.5 | 12 | 11.5 | |||
BIOBASE is a professional manufactuter of laboratary since 1999. Our main products are Biosafety Cabinet(I, II, III), Laminar Flow Cabinet, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave and Incabutor. We have more than 1000 eployees and 20000 square meters production base. Our output reaches 10000 units per year. Pursuing the highest quality is the tenet of BIOBASE. We hope everyboy will enjoy BIOBASE service to keep away from the infectious disease.
