Product Overviews

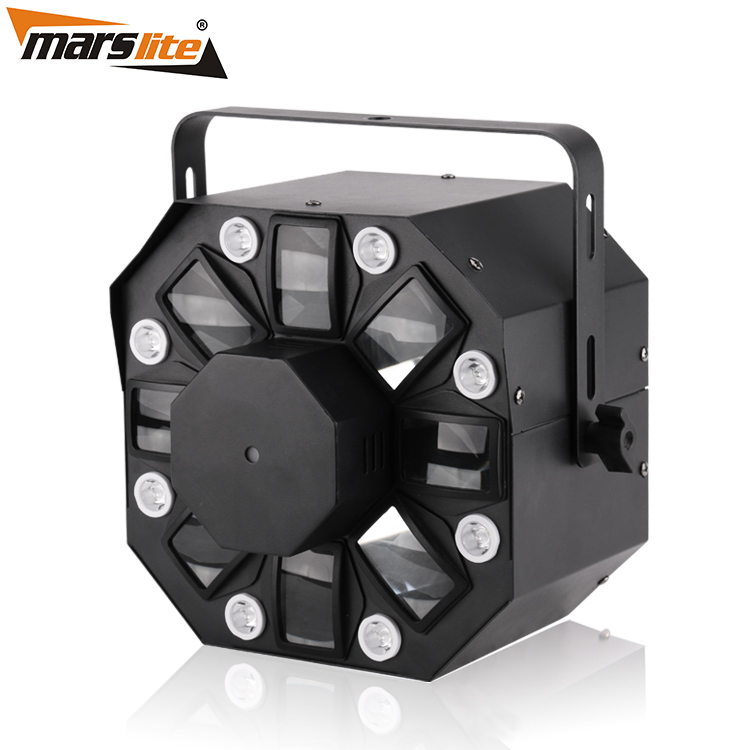

MS-ML08 8pcs 1W White LED + 5pcs 3W R/G/B/W/A LED + Laser R=150MW, G= 50MW
◪The ML08 light sources – six 5W hex-LEDs, 8pcs 1W white LEDs and a red and green laser – to give users a Moonflower/Strobe/Laser combo effect that creates new levels of pure lighting excitement for audiences.
◪While users zap their crowds with razor-sharp red and green laser beams, the colored Moonflower effects powered by the hex-LEDs fill the dance-floor with unique color and movement, and the intense bursts of white strobe light add a club-style atmosphere, no matter what the venue.
◪users zap their crowds with razor-sharp red and green laser beams, the colored Moonflower effects powered by the hex-LEDs fill the dance-floor with unique color and movement, and the intense bursts of white strobe light add a club-style atmosphere, no matter what the venue.
◪Small clubs, lounges and bars bound by a strict budget can also utilize the varied effects of the Stinger without breaking the bank.
Technical Data
LIGHT SOURCE: | LEDs: 8pcs 1W White LED, 5pcs 3W R/G/B/A LED, laser R=150mw, G=50mw |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 350 | |
POWER SUPPLY: | Power consumption: Max. 30W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 1CH/22CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
BODY: | Housing: Metals, black or white optional baking finished |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:29.5*22.5*28.5cm | |
N.W.: 2.6kg | |
G.W.:3kg | |
Packing Size:31*29*31CM |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
