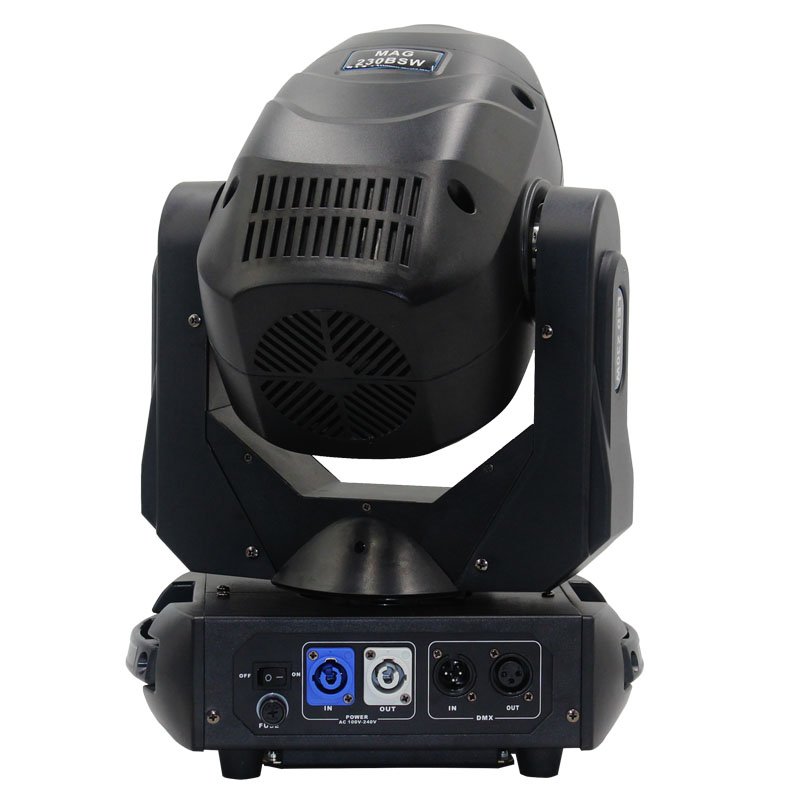

     LED 230W Moving head light beam spot wash

MAG-230SBW is a super bright led moving head light with  230W LED source,

projected from a compact tiny body it can produce output brighter than tradit-

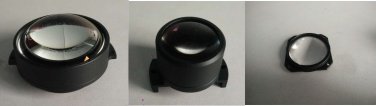

ional discharge 1200W unit . The efficient optical system provides a sharp cutting

edge of the spot wihout any shadows.Effect features including saturated colors,

fixed gobo wheel , rotating gobo wheel with replaceable positions and  real index-

ing feature, rotating prism wheel with 6-faced linear , 8-faced prism and frost .

motorized focus, full range dimmer. various strobe effect . Brightness. efficiency

 and compactness are what MAG-230SBW stands for. Small unit gives you nice

 perfomance.

  Small unit gives you nice performance

★     SOURCE

◇ Light source: Advanced 230w led
◆ Led life: 60.000 hours
◇ Luminous Flux: 16200 lumen

◇ Ballast: switching mode power supply
◆ Max power consumption: 280W
◇ Powercon in and out
◆ Input voltage range: 100–240V, 50-60Hz

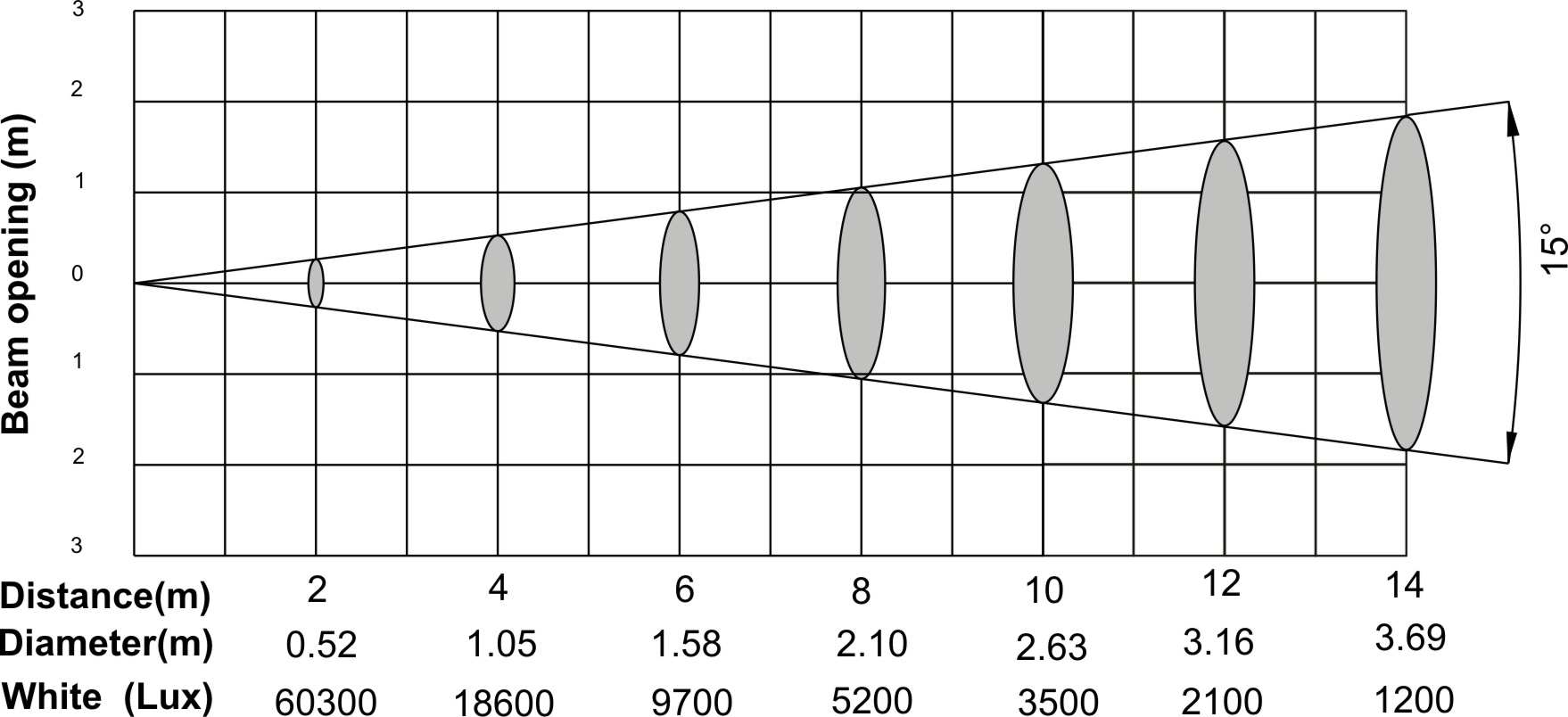

◇ Beam angle: 4-15°

X/Y
◇ Pan: 540°(2.3sec), Tilt: 265° (1.8 sec)
◆ 16-bit resolution
◇ Auto repositioning

◇ 7+open, bidirectional rainbow effect

◇ Outside ￠25.8mm, inside ￠21.5mm

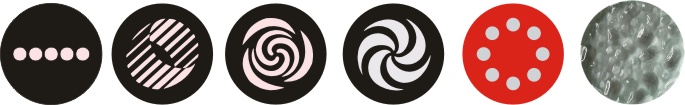

◆ 6+ open custom interchangeable  rotating gobo.  Real indexable and gobo  shaking

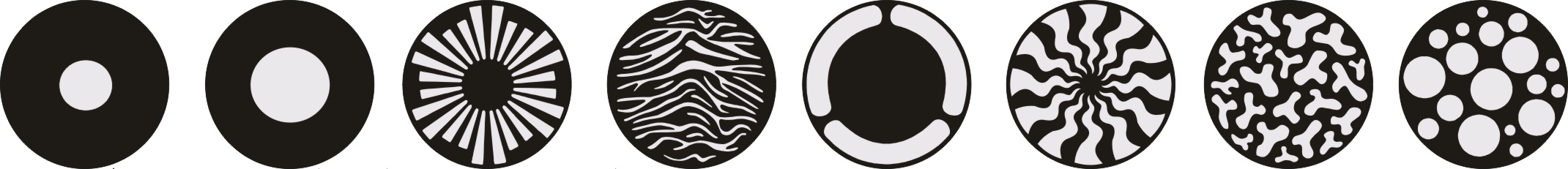

◇ 8+ open fixed gobos·

◆ Prism: 6-facet linear + 3/8-facet circular prism/frost

◇ Frost 8bit

◇ Motorized auto focus .8 bit or 16bit

◇ Full range 0-100% dimmer

◇ Strobe effect slow to fast
◆ Random strobe

◇ Indicate temperature info of lamp
◆ Fan speed auto change according to temperature

★     DIMENSION AND WEIGHT

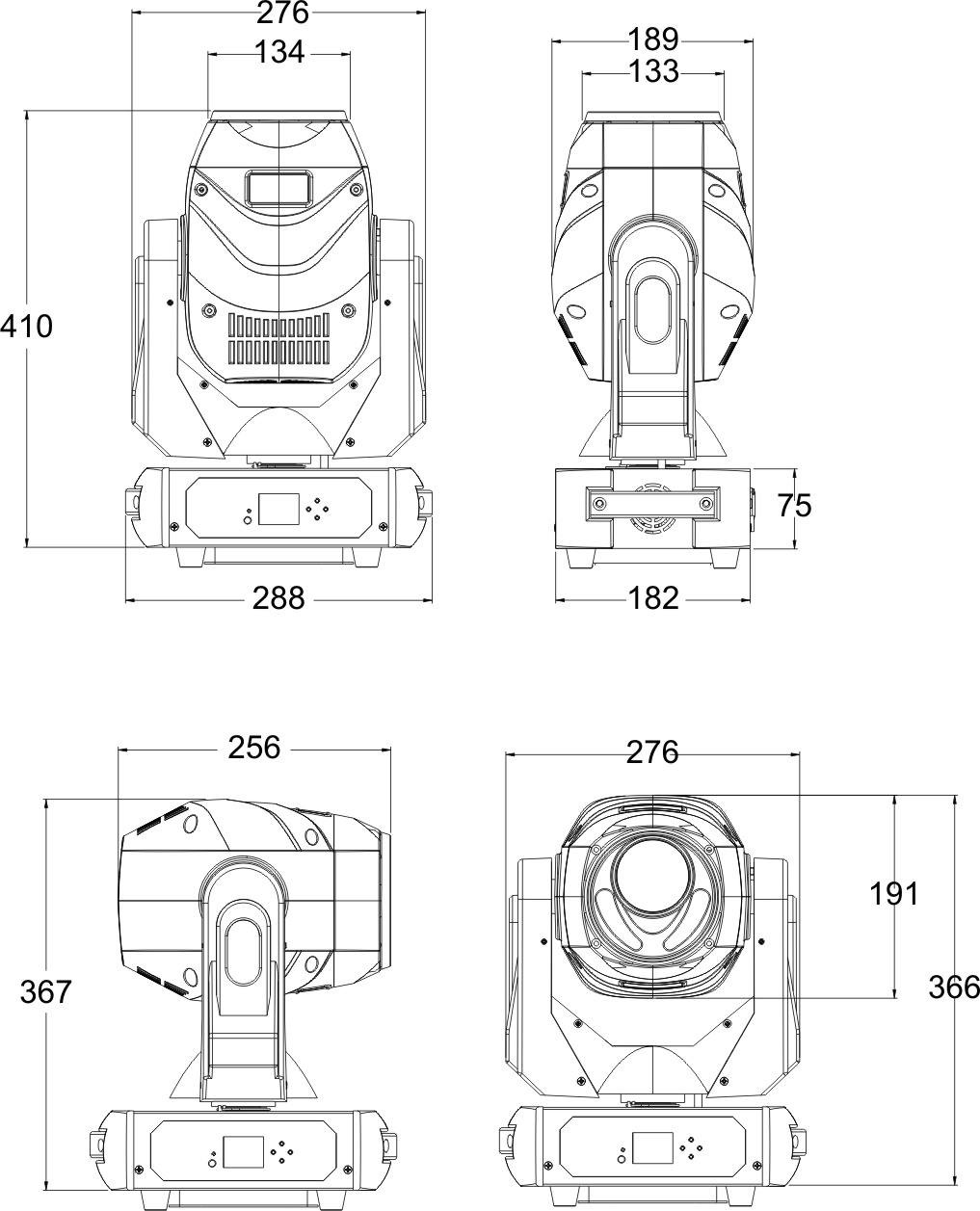

◇ Fixture Size :

◆ Net Weight: 12KG
◇ Gross Weight: 14KG

◇ Mounting points: 4 ¼-turn locks
◆ 2 x Omega brackets with ¼-turn quick locks
