Product Details
- Light Source:
- LED
- Input Voltage(V):
- 100-240V AC
- Lamp Luminous Flux(lm):
- 510
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Die-casting housing
- IP Rating:
- IP20
- Certification:
- CE, RoHS
- Model Number:
- MDL3 -007-AW-W-01
- Place of Origin:
- Guangdong, China
- Brand Name:
- Signcomplex
- Beam angle:
- 28°40°55°
- CCT:
- 5000K
- Certificates:
- CE ROHS DALI
- Power:
- 5W/7W/9W
- Application:
- office, cabinet, restaurant, shop and corridor, etc
- PF:
- >0.9
- Product name:
- down lighter for commercial
- item:
- 3" 4.5w 5w down lighter for commercial ceiling light fixtures china
- Item Type:
- Downlights
- Warranty(Years):
- 3 years
- CRI (Ra>):
- 80
- Color Temperature(CCT):
- Pure White
- Working Temperature(℃):
- -20 - +40
- Lamp Power(W):
- 7
- LED Light Source:
- COB ( Epistar )
- Lamp Luminous Efficiency(lm/w):
- 120
- Supply Ability:
- 500000 Piece/Pieces per Week we have stock for down lighter for commercial
- Packaging Details
- Inner Box Dimension:105*105*125mm
Carton Box Dimension:445*230*280MM(16pcs)
- Port
- Shenzhen and Hongkong
- Lead Time:
- Shipped in 15 days after payment

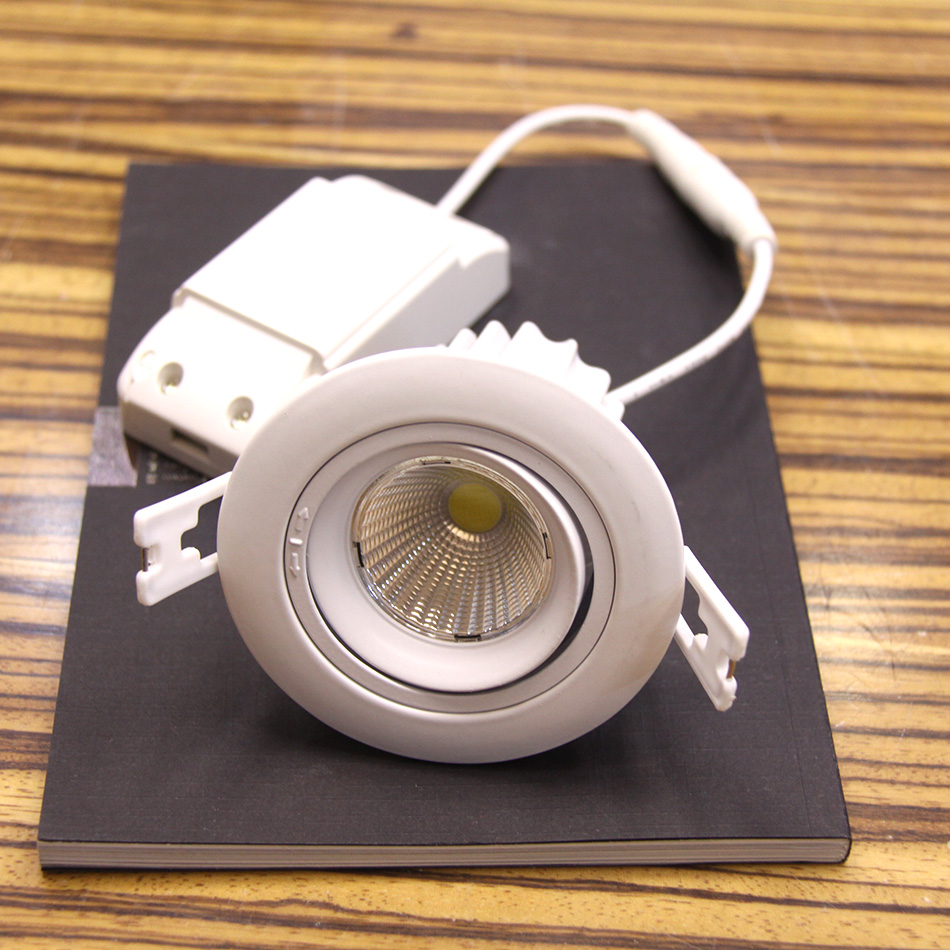

Led 3" 4.5w 5w down lighter for commercial ceiling light fixtures china
Description :

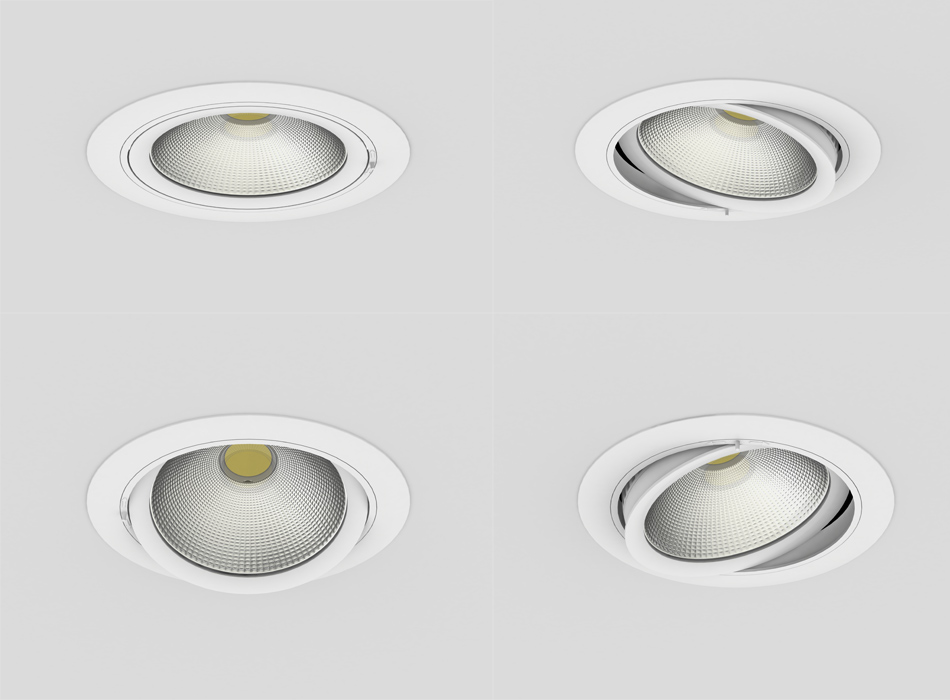

Luna 3" COB downlight is designed to replace halogen 35W, 50W downlight, delivering halogen-like warm white accent beam. The patented heat-sink design maintain perfect heat dissipation. It provides 3 types of beam angle for various accent beam demand, could fit most of halogen fittings in the market. With Signcomplex designed fitting it can be 358°horizontal and 30°vertical rotatable
Features :
1. Die-casting housing, distinctive design for better heat dissipation
2. Delivering halogen-like accent beam, uniform light distribution, no light circle or dot
3.One external driver make sure low heat, good performance.
Working at constant current so that LED functions stably and maintain long life time. Strain relief on both sides make sure cables never loose by strong strength
4. More choices of beam angle for various demands
5. The reflectors are interchangable, help reduce inventory cost.
6. Anti-glare optic design, UGR<19
7. Reliable light source, COB with Epistar chip
Specification:
Model # | CCT | LED Type | Lumen(lm) (±10%) | Beam angle | CRI | Power(W) (±10%) | Comparable Halogen Wattage | Voltage
(V) | PF |
MDL3 -005-AW-W-01 | 5000K | COB ( Epistar chip ) | 370 |
28°40°55°
|
>80
| 5W | 35W |
100-240V AC
|
>0.9
|
MDL3 -005-AW-NW-01 | 4000K | 400 | |||||||
MDL3 -005-AW-WW-01 | 3000K | 380 | |||||||
MDL3 -007- AW-W-01 | 5000K | 510 | 7W | 50W | |||||
MDL3 -007-AW-NW-01 | 4000K | 570 | |||||||
MDL3 -007-AW-WW-01 | 3000K | 500 | |||||||
MDL3 -009-AW-W-01 | 5000K | 780 | 9W | high light for special demand | |||||
MDL3 -009-AW-NW-01 | 4000K | 830 | |||||||
MDL3 -009-AW-WW-01 | 3000K | 750 |
Dimension:
Install drawing:
Package information:
C O B3"
Inner Box Dimension:105*105*125mm
Carton Box Dimension:445*230*280MM(16pcs)
Single Light Net Weight:0.28kg
Single Light Gross Weight:0.34kg
Carton Box Gross Weight:6.5kg
Application:
Both residential lighting and commercial lighting...
Production of flowsheet:
1) What are the best selling products in Signcomplex?
- tube
- panel lights
- LED strips
- spot and bulb
- controllers
2) What will be porducts Signcomplex develop for the next year?
Signcomplex is devoted to innovation in the lastest LED technlogy. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week. You can get the news after subscribing in our mail list.
3) What is the main market for Signcomplex?
We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.
4) What LEDs do you usually use for your LED products?
For high power LED luminaires we mainly use Cree and Edison LEDs, We use some Philips as well. we also consider to use more multi-chip LED brands like Bridgelux and Sharp, as the multi-chip technology will be intensively used by manufacturers.
5) What is Signcomplex lead time?
Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
6) Can Signcomplex do custom assembly or offer OEM product?
Signcomplex has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team. Because we have our own CNC processing machines we can quickly work out prototype for LED fixtures, especially for LED bulbs and spots. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Signcomplex engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Signcomplex design its products?
Yes, Signcomplex designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC/UL list possibility and reliability.
9) How to buy Signcomplex products?
In most case we sell directly to customers worldwide, however we have already set up distribution partners in those countries. For the details please refer to "Contact Us".
Customers in these countries can get Signcomplex products from the authorized distributors. In other countries and regions customers can directly contact Signcomplex sales team by writing to our email address or make a call. We will respond with quick service maximum within 12 hours.
10)Which kind of dimmer can be used on the Signcomplex dimmable lamps?
Please email for details!
