Product Overviews

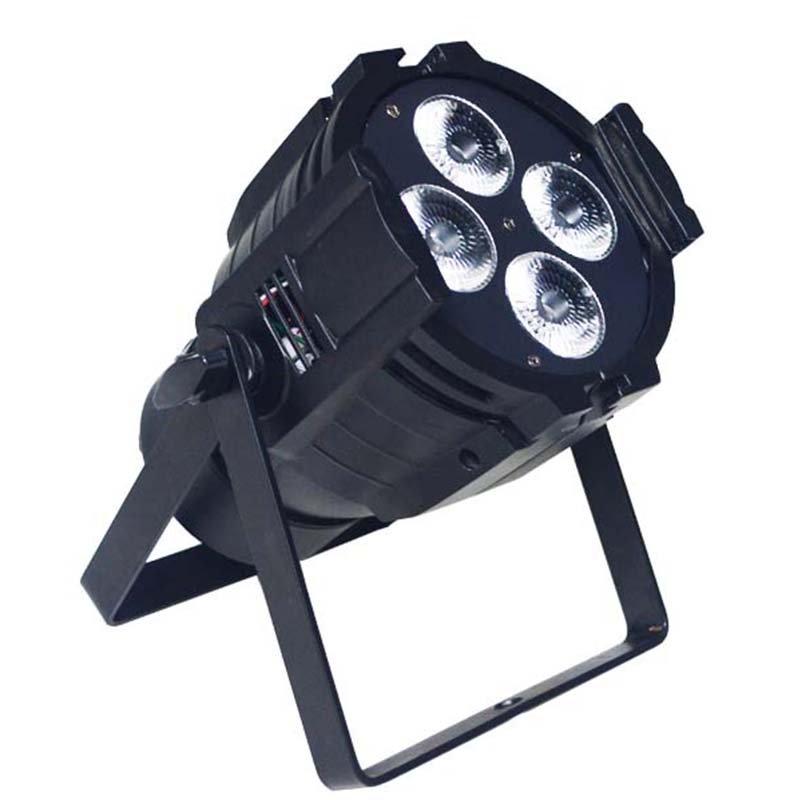

MS-CP40 4pcs RGBW or RGBA 4in1 10W LEDs
◪The 4pcs 10W RGBW or RGBA 4in1 led par light creates rich hues and smooth color mixing for stage or wall washing.
◪This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 70W.
◪Quad color change, dimmer, strobe, brightness control function.
◪Perfect for up-lighting, stage washing, and wall washing.
Technical Data
Name: | 4x10W RGBW 4IN1 led mini par can light led |
Type: | MS-CP40 |
LIGHT SOURCE: | LEDs: 4pcs RGBW or RGBA 4in1 10W LEDs |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 500mA | |
POWER SUPPLY: | Power consumption: Max. 70W |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Flicker free(refresh rate>4K Hz) |
Light output(full bright): 12070LUX@1m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 2CH, 3CH1, 3CH2, 4CH, 7CH | |
DMX data In/Out: XLR 3Pin (XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changeing macro, fade in & out macro | |
BODY: | Housing: Aluminium, black and white optional, baking finished |
COOLING & THERMAL MANAGEMENT: | Thermal management system ensures long life of LEDs |
| Entire casing as heat sink for LED source | |
Cooling: forced air convection, with one silent fan | |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Environment temp: -20℃-40℃ | |
Certificate: CE and RoHs | |
Light size:20*14*14cm | |
N.W.: 2.2kg | |
Packing:Carton box or flight case |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Test chart

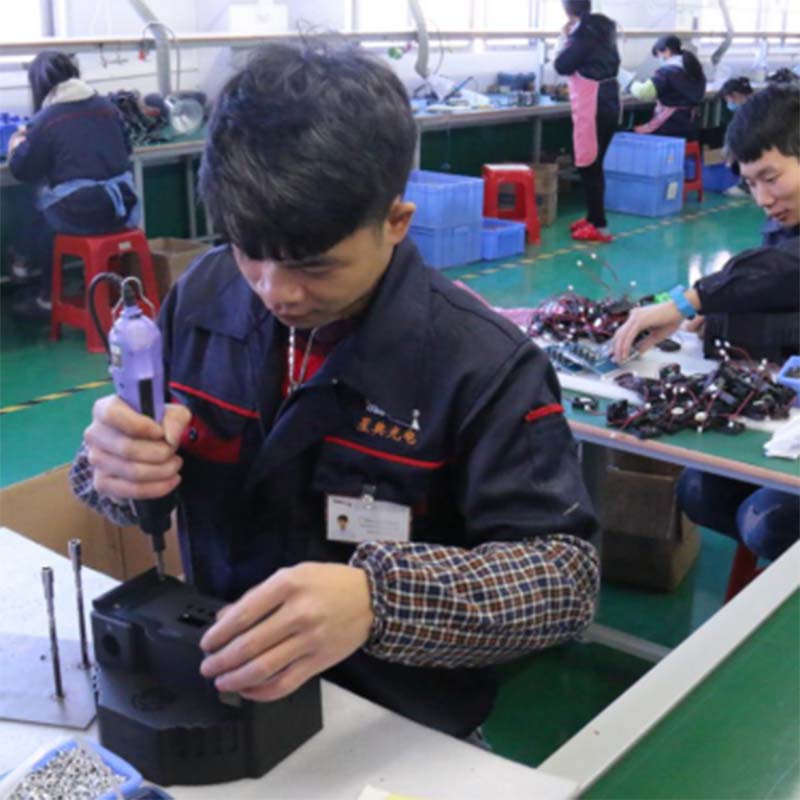

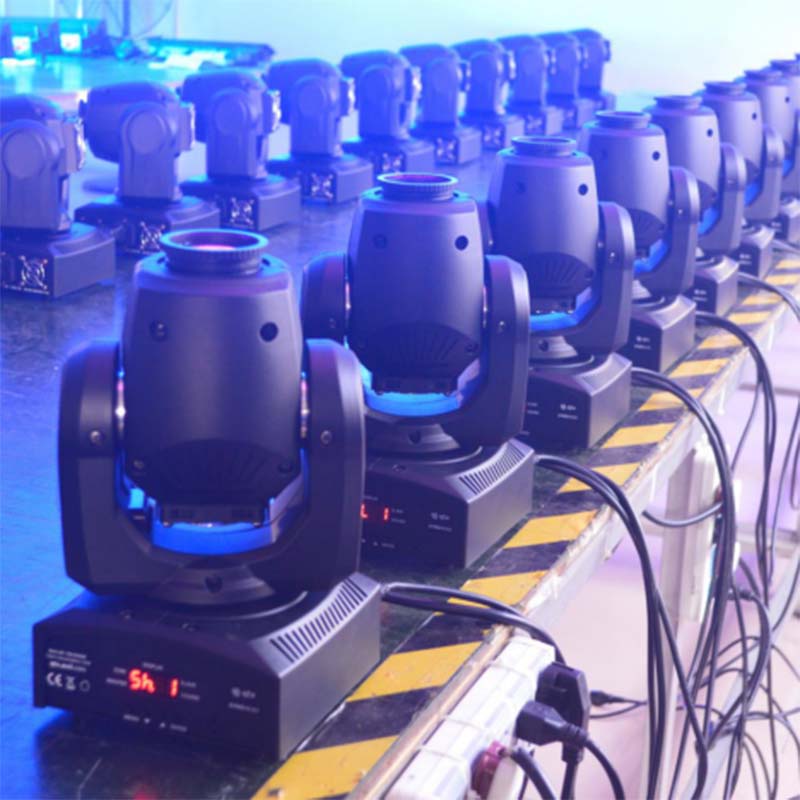

Production line

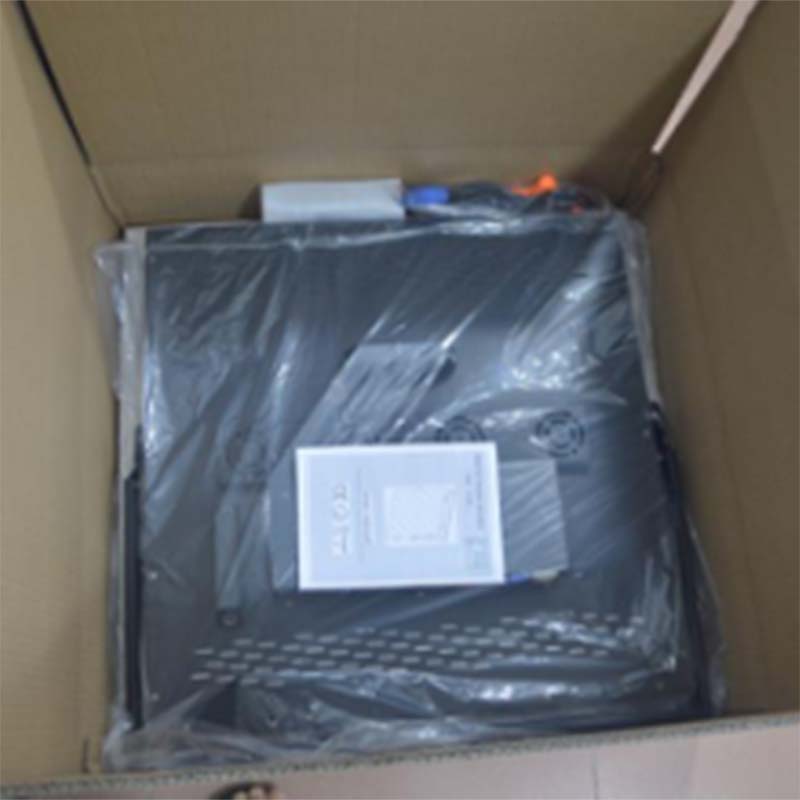

Packing
