Product Details
Product Video
Product Overviews

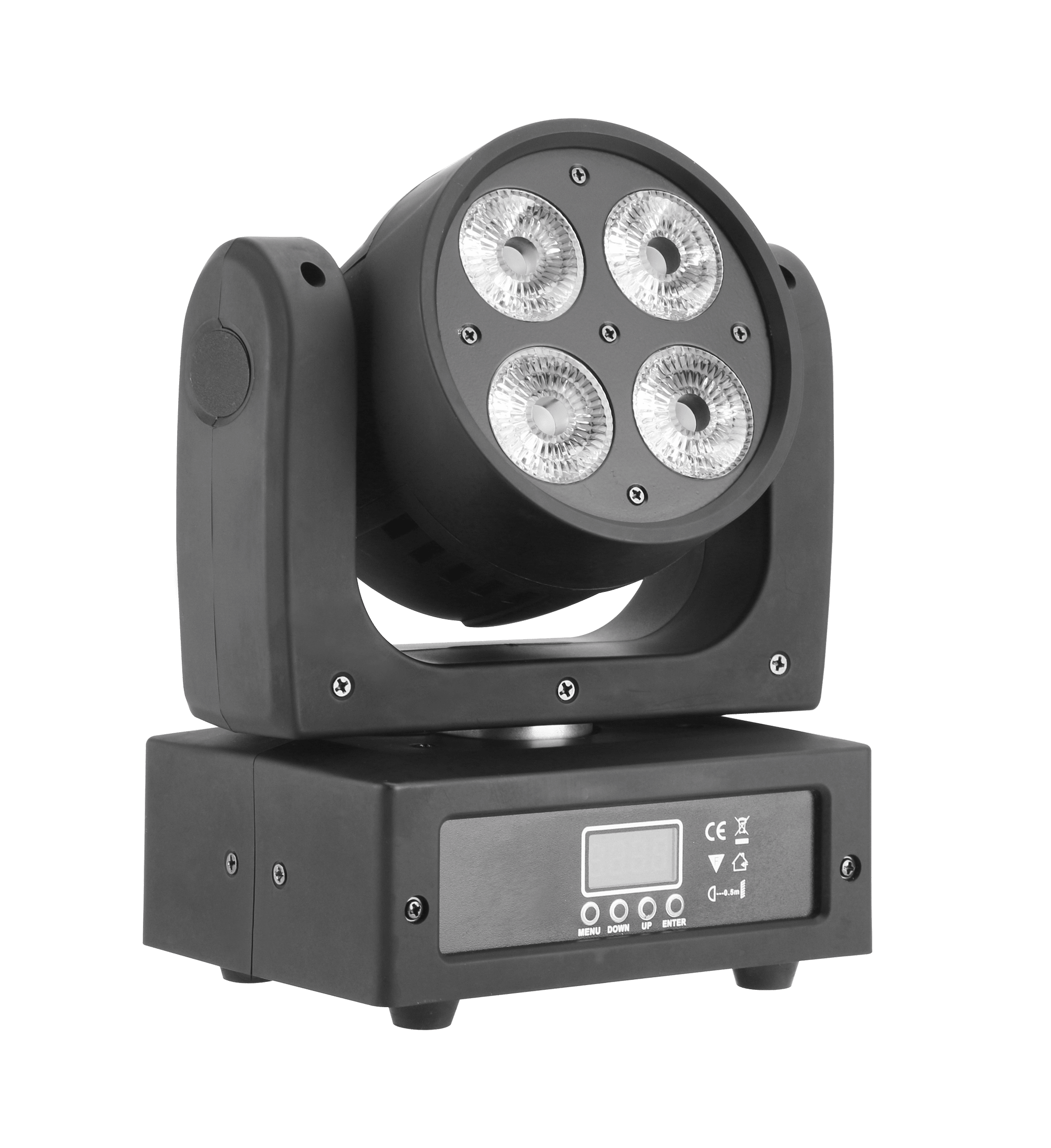

MS-CM64 4pcs 18W RGBWA+UV 6in1 leds
◪Part of MarsLite LED Moving Head Series, LED display, easy to control.
◪Perfect for those new to DMX who seek functionality and a sound active mode.
◪The unique design comes from our company's designers
◪Very good for moving dj, small nightclub, disco bars.
Technical Data
LIGHT SOURCE: | LEDs: 4pcs 18W RGBWA+UV 6in1 leds |
LEDs average lifespan: >100,000hrs | |
Drive mode: constant current | |
Drive current(mA):400 | |
POWER SUPPLY: | Power consumption: Max. 60W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 11CH and 15CH optional | |
Setting and addressing:4-digit LED | |

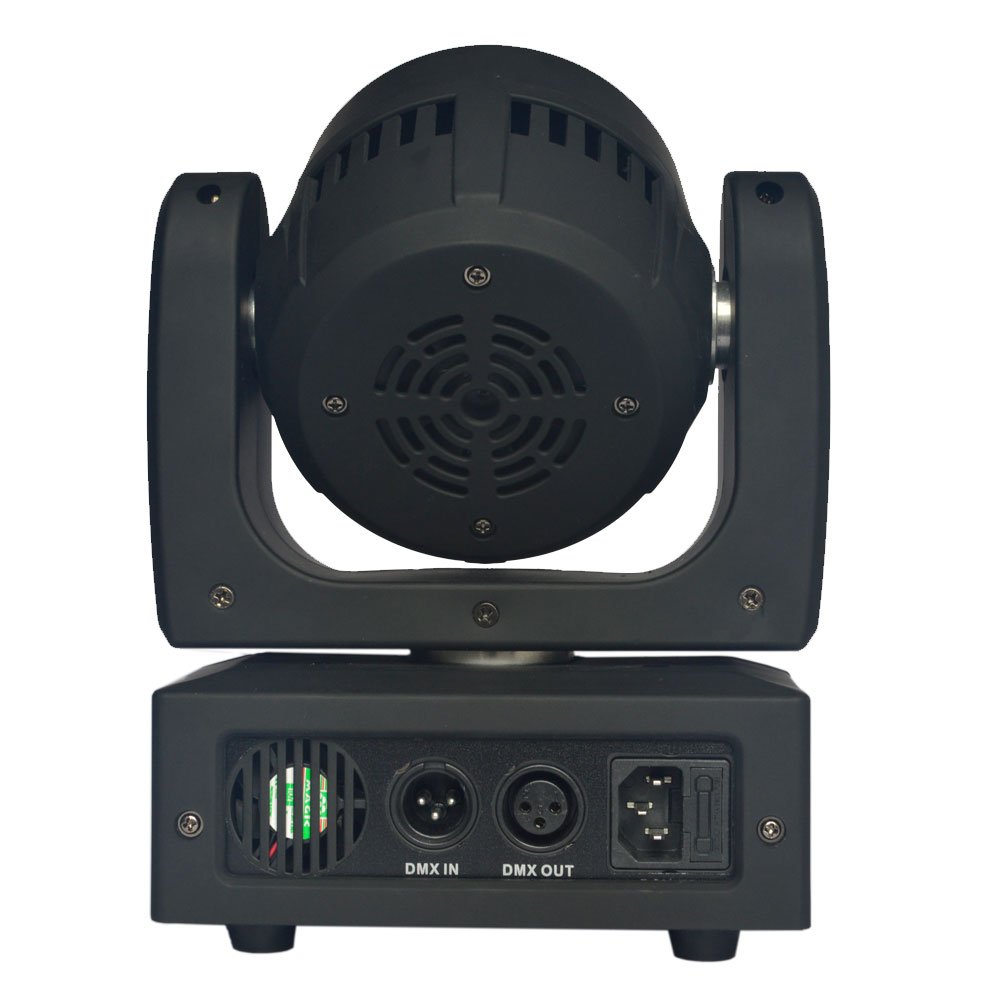

DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
OPTICS: | Beam angle: 30° (fog lens and clear lens selectable) |
Flicker free(refresh rate>4K Hz) | |
Light output(full bright): 6570LUX@1m, 1722LUX@2m, 271LUX@5m | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro and fade in & out macro | |
PAN-TILT: | Pan: 540° Tilt: 270 |
BODY: | Housing: Plastic, black and white optional, backing finished |
COOLING: | Cooling: forced air convection, with two silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light size:19.5*13.5*23.5CM | |
N.W.: 2.75kg | |
| Package size:29*22*28cm | |
Packing: Carton box or flight case optional |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

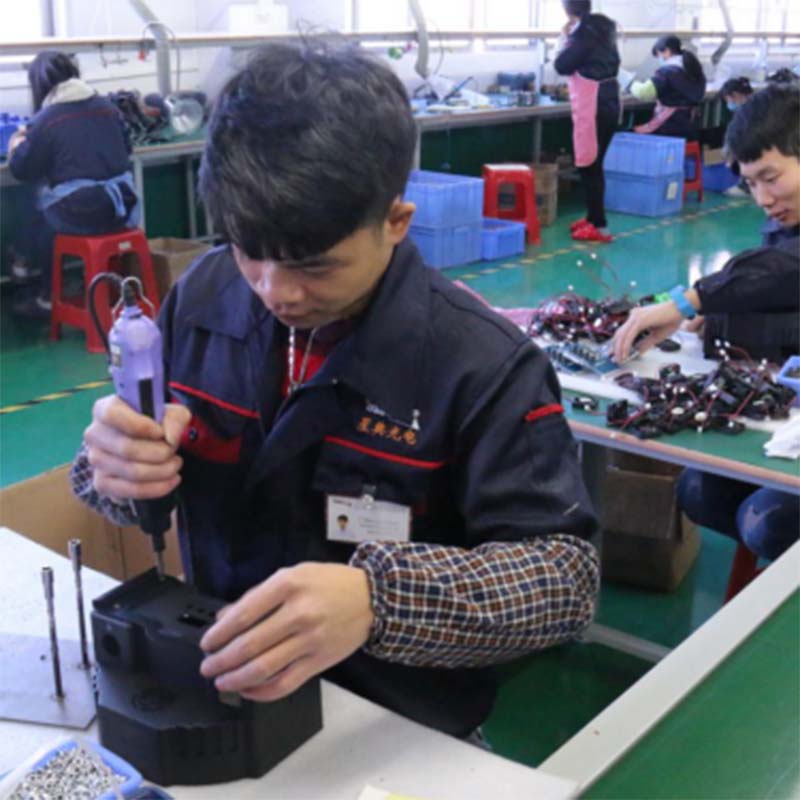

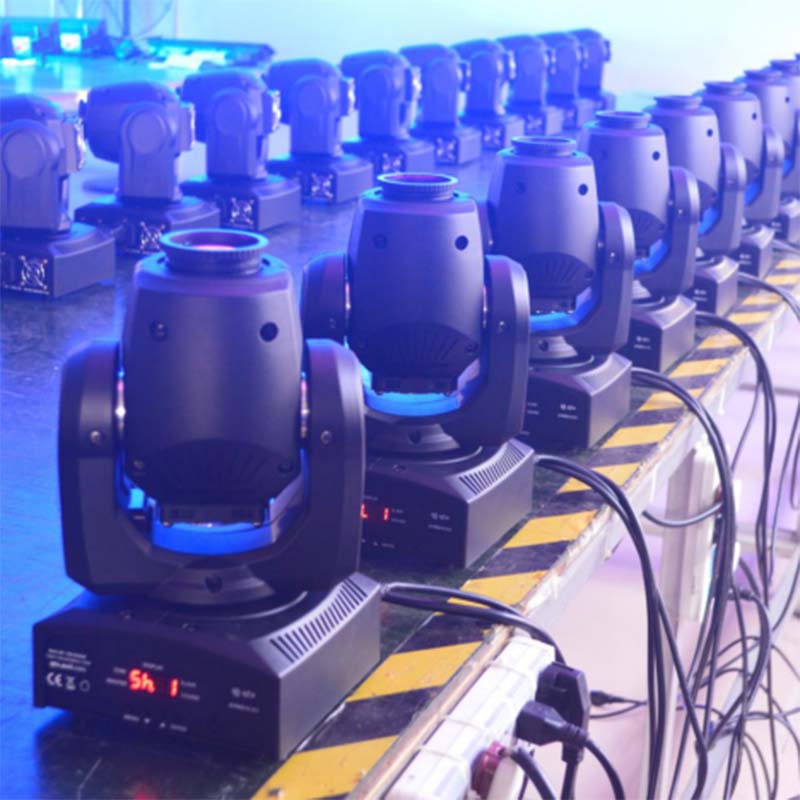

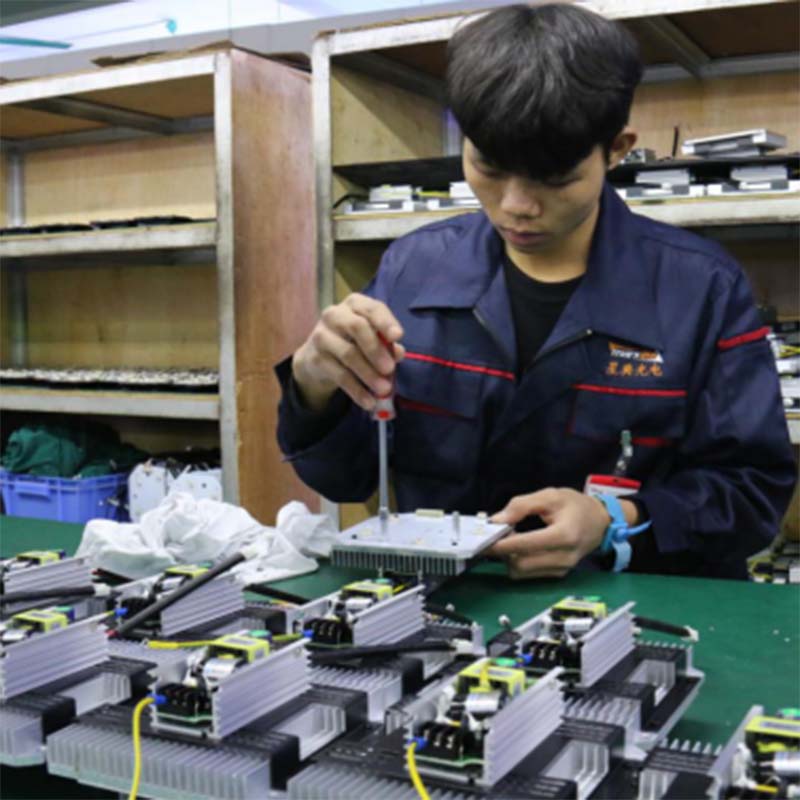

Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
Customer Reviews total 0 items
