Product Details
led dmx 3d madrix,dmx512 3d led storm tube Madrix compatible LUNA controllers
0.5m, 1m, 1.5m, 2m is available.
Feature:
1. DMX 3D Tube carries double size led light source, 4 LEDs as 1 pixel, 360°viewing angle, magical 3D effect.
2. The length of 3D tube can be customized, 0.5m,1m,1.5m,2m, to meet different design requirement.
3. DMX512 Protocol, sharing long-distance of transmission and high ability of anti-interference.
4. Madrix Software compatible, Madrix DMX led light control solution.
5. Light and audio controlled synchronously, music controllable and sound activated.
6. 3D RGB led tube is enviroment friendly. no harsh glare and buzzing noise, no flicker.
7. DMX 3D vertical tube can be used horizontally or vertically so as to meet differet demand.
Application:
Specifications:
12v, 15v, 24v is available.
Parameters | Description | |||
Model | LWS-RGB3T500-DMX-15V3208 | LWS-RGB3T1000-DMX-15V6416 | LWS-RGB3T1500-DMX-15V9624 | LWS-RGB3T2000-DMX-15V12832 |
Diameter | 30mm | 30mm | 30mm | 30mm |
Length | 500mm | 1000mm | 1500mm | 2000mm |
LED | SMD RGB 5050 | |||
LED QTY | 32pcs | 64pcs | 96pcs | 128pcs |
Pixel QTY | 8 pixels | 16pixels | 24 pixels | 32 pixels |
Voltage | DC15V | DC15V | DC15V | DC15V |
Power | 8W | 16W | 24W | 32W |
Control Mode | DMX512 | DMX512 | DMX512 | DMX512 |
Address Setting | Manually | |||
LED Source Life | 50,000hours,based on LED manufacturers’ test data | |||
Housing | Clear cover, aluminum base | |||
Temperature | -4℉ to 122℉(-20℃ to 50℃) operating temperature | |||
Humidity Range | 0 to 95% non-condensing | |||
Protection | IP65 | |||
Carton box, packed with good protection
If we have stock, the goods will be shipped within 3 days
If we have no stock, the delivery time will be about 7-12 days .

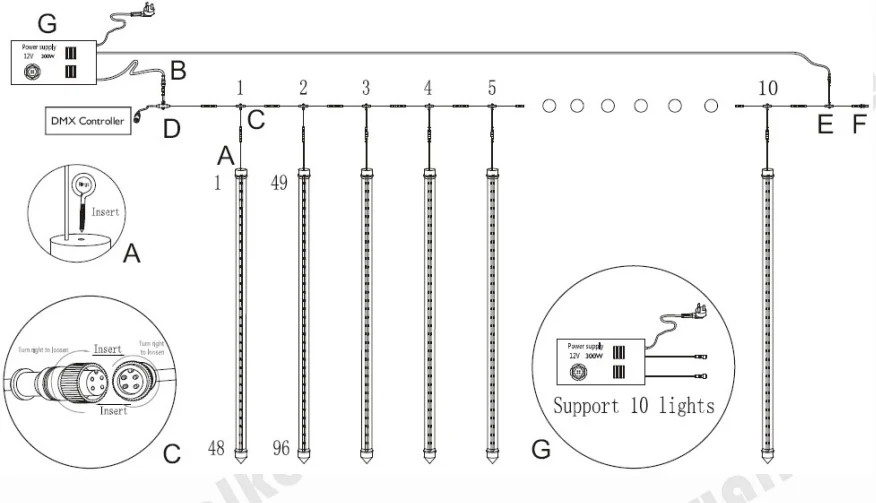

Connection guide for dmx 3D Tube :

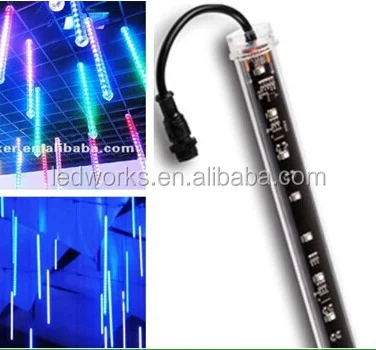

Project effects:
Recomend LED Controller (DMX ARTNET VENUS)
