◆◆ Product Information

Feature	Technological data
Item No.	8010F160A
Size	310*57.5mm
Power	100w to 160w
Net weight	1710g
Components included	light body, cable gland, light ring, silicon seal, stainless steel 304 screws ,PC cover and reflector.
Thickness of glass	4mm
Size of PCB	￠236mm
Waterproof rating	IP66
Certificate	IP66,Rohs,IK09,patent
Color	Black, white, gray, blue
Package quantity	4 units/carton
Package way	Foam board, bubble bag, carton
Carton size	34.534.530cm
MOQ	300 units
Container quantity	1x40HQ	7300 units
	1X20FT	3000 units
Sample	Free sample with freight collect
Shipping term	FOB,CNF,CIF,DDU,DDP
Loading Port	FOSHAN,SHENZHEN,GUANGZHOU

Drawing and size

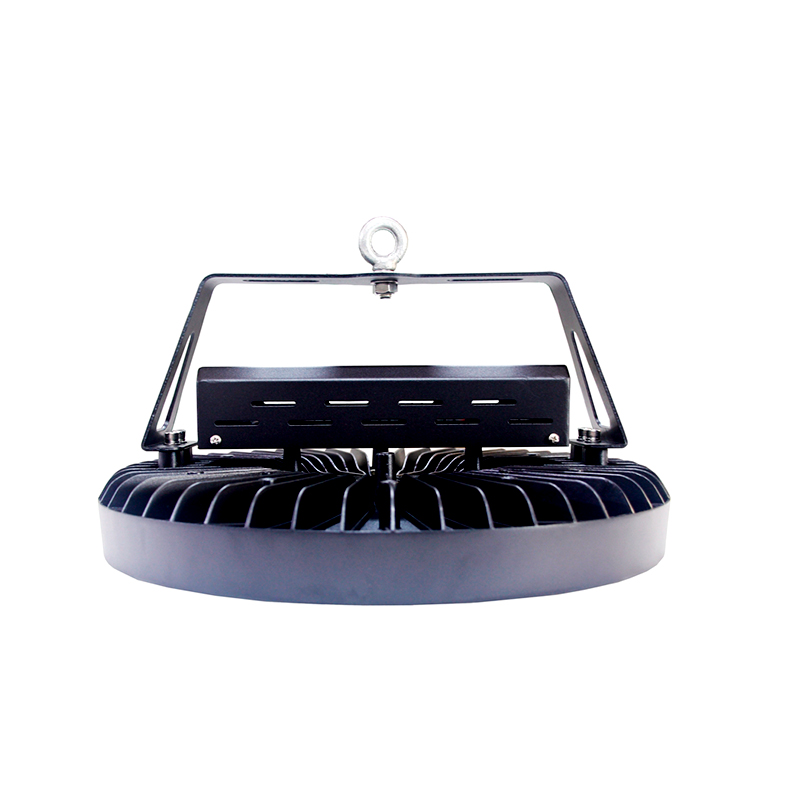

Accessories of LED High Bay Light Housing

Accessories included: light body, cable gland, light ring, silicon seal, stainless steel 304 screws ,PC cover and reflector.

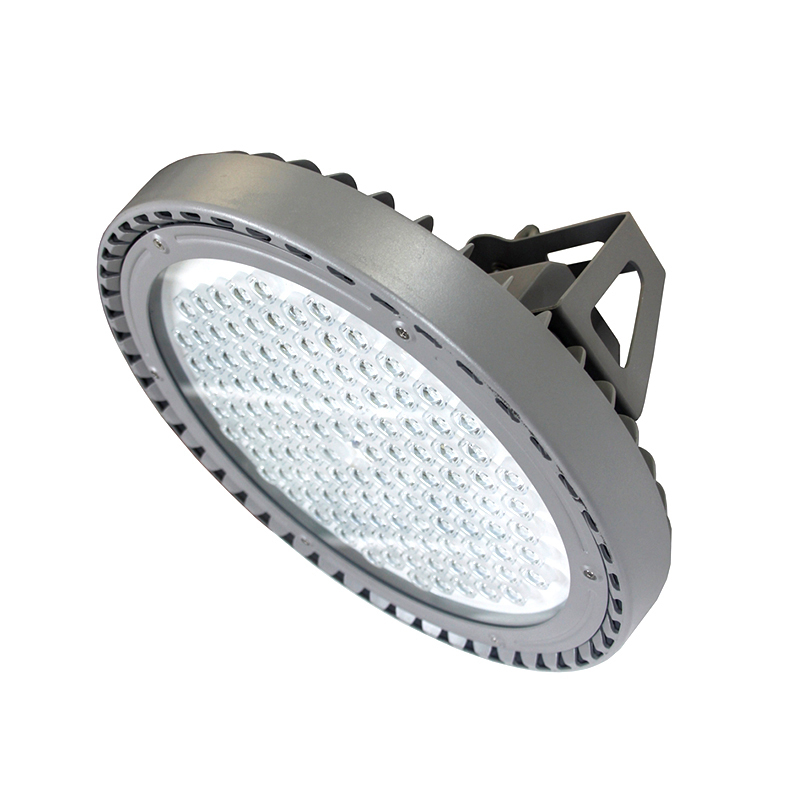

◆◆ LED High Bay Light Housing Advantage

01

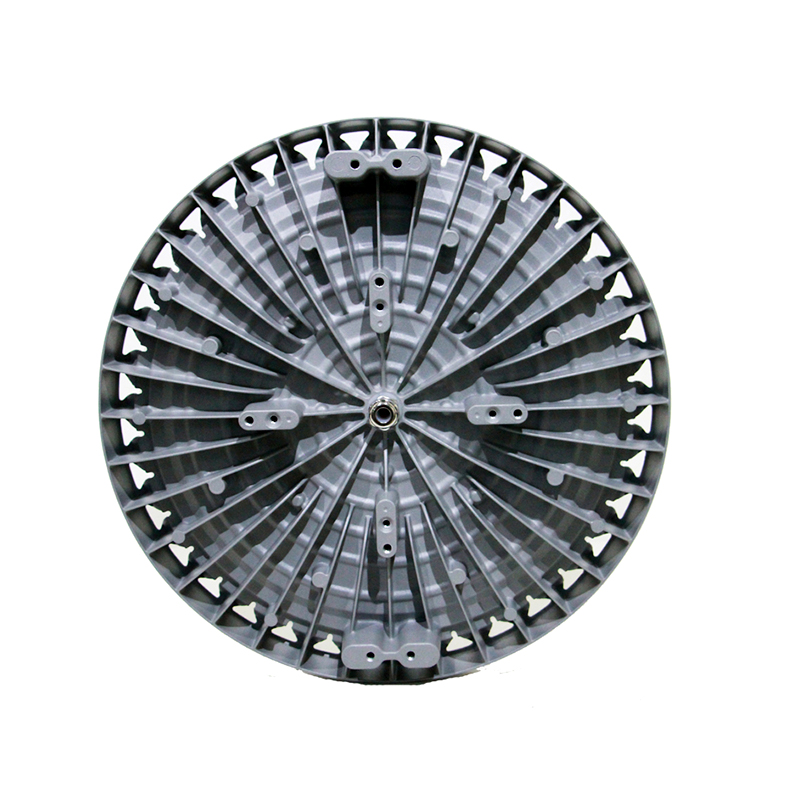

What the aluminum our LED high bay light housing using is ADC12, and the content of aluminum for ADC12 is around 85.5%,which makes the products are in excellent heat dissipation.
02

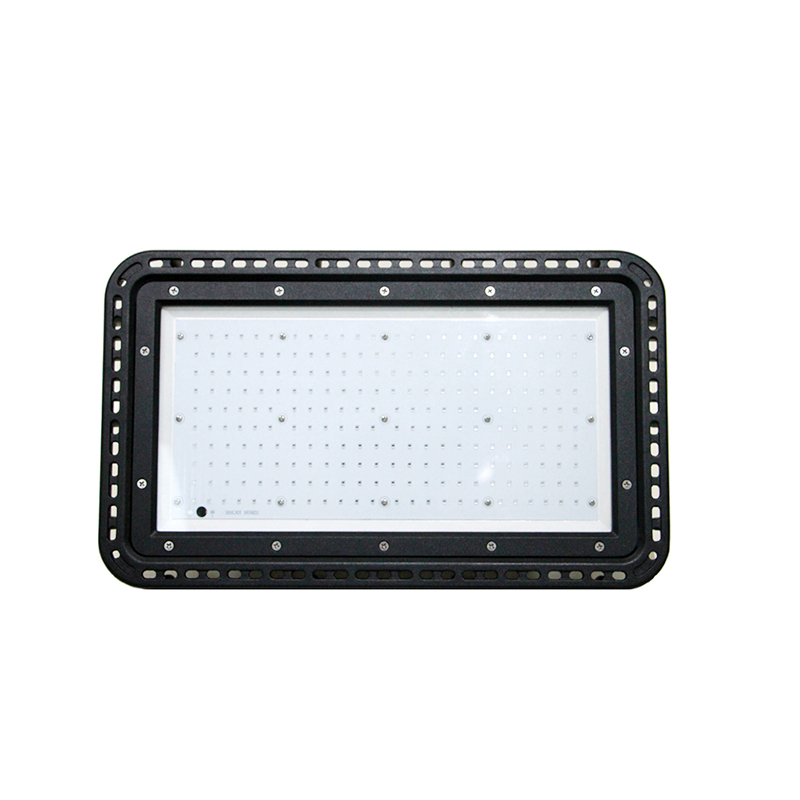

With the flexible design, our customers can choose a kind of bracket to make it to LED high bay light or LED flood light. Meanwhile, can be chosen with or without driver box, with driver box, we can match Mean Well HLG series, and without, we can match HBG series.
03
Surface treatment is anti-aging electrostatic powder coating. Strong self-cleaning, anti-corrosive.

04
Heat and rain tolerance, cold resistance, keep perfect working from -40°to 60°temperature.
05
The LED high bay light housing is wide adaptability: playground, factory, garden, mine, warehouse and so on.
06

◆◆ LED high bay light housing application

▎The LED high bay light housing is wide adaptability:playground,factory,garden, mine,warehouse, departure building and so on.
