Product Details
led linear lighting fixture t5 diffused batten light fitting CE UL CUL
2ft, 4ft
it can be assembled with LED module
CE, UL CUL
UL File Numer: E350677, E359656
PRODUCT SPECIFICATION:
Housing: 0.5mm steel sheet with white powder coated.
Diffuser: 2.6mm thickness prismatic Acrylic material.
End Caps: White ABS material
Electrical Parts: Without ballast; With T5/T8 VDE lampholders or prewired;
Installation: Ceiling or wall mounted.
PRODUCT DIMENSION:
| Model | Lamp | Lamp size | Package Size | pcs/ctn |
| HG239-Y18x1 | T8,1x18W | 642x66x98mm | 680x306x320mm | 15 |
| HG239-Y36x1 | T8,1x36W | 1250x66x98mm | 1290x306x320mm | 15 |
| HG239-Y58x1 | T8,1x58W | 1550x66x98mm | 1590x306x320mm | 15 |
| HG239-Y70x1 | T8,1x70W | 1850x66x98mm | 1890x306x320mm | 15 |
| HG239A-Y18x2 | T8,2x18W | 642x105x58mm | 680x365x297mm | 12 |
| HG239A-Y36x2 | T8,2x36W | 1250x105x58mm | 1290x365x297mm | 12 |
| HG239A-Y58x2 | T8,2x58W | 1550x105x58mm | 1590x365x297mm | 12 |
ELECTRICAL:
Standard T5 and T5HO: Program start 120/277 volt integral electronic ballast or 247V VDE electronic ballast with less than 10% THD.
Each ballast provided with disconnects to meet luminaire disconnect code requirement.
MOUNTING:
The product is designed to install into acoustical grid and inaccessible ceilings.
FINISH:
Prepainted white polyester polymer finish on expose trim;
Optional paint after fabrication available if specified.
LABELS:
UL and cUL Listed, approved for dry/damp location unless otherwise noted.
OPTIONS:
-Available for installing with the Frosted Lens
-Available for installing with LED module.
-Available for installing with sensor

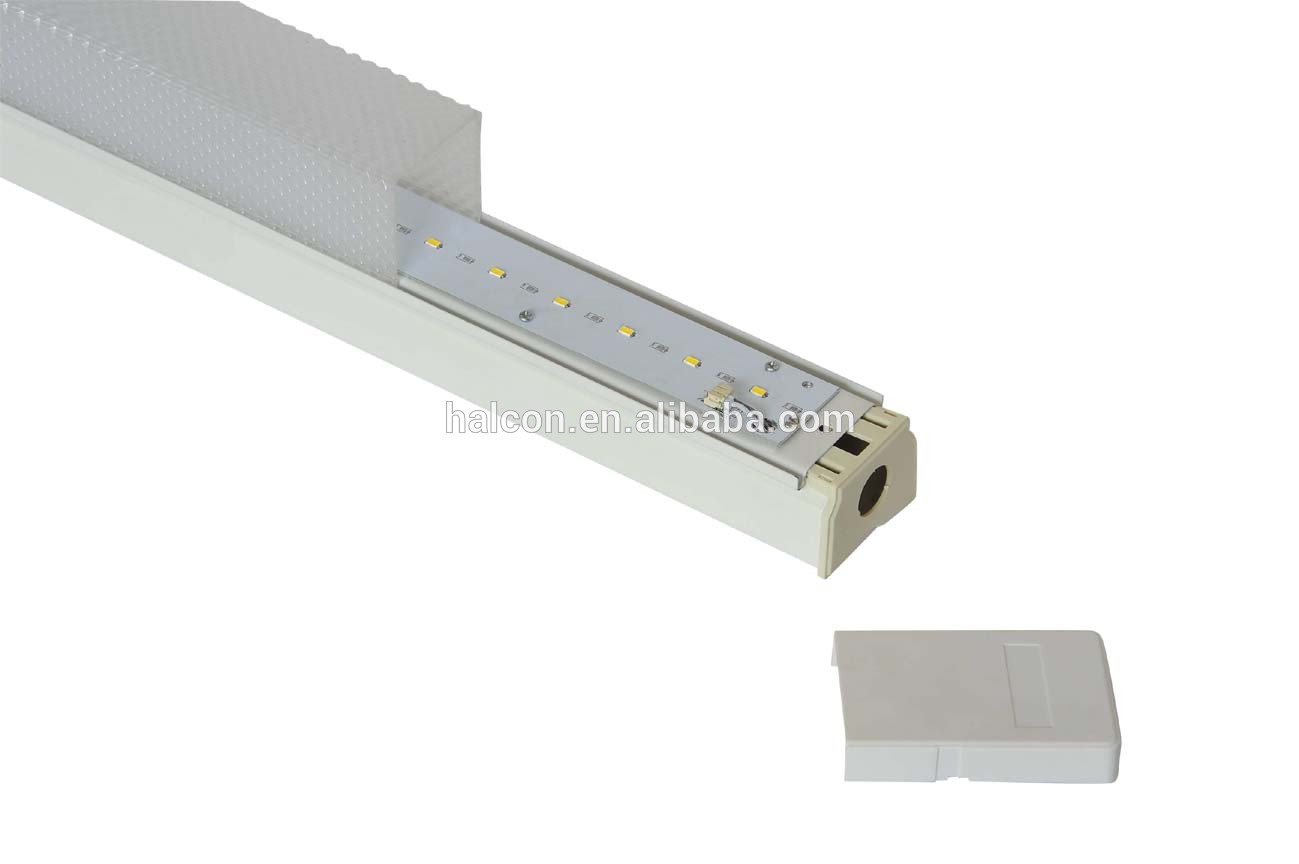

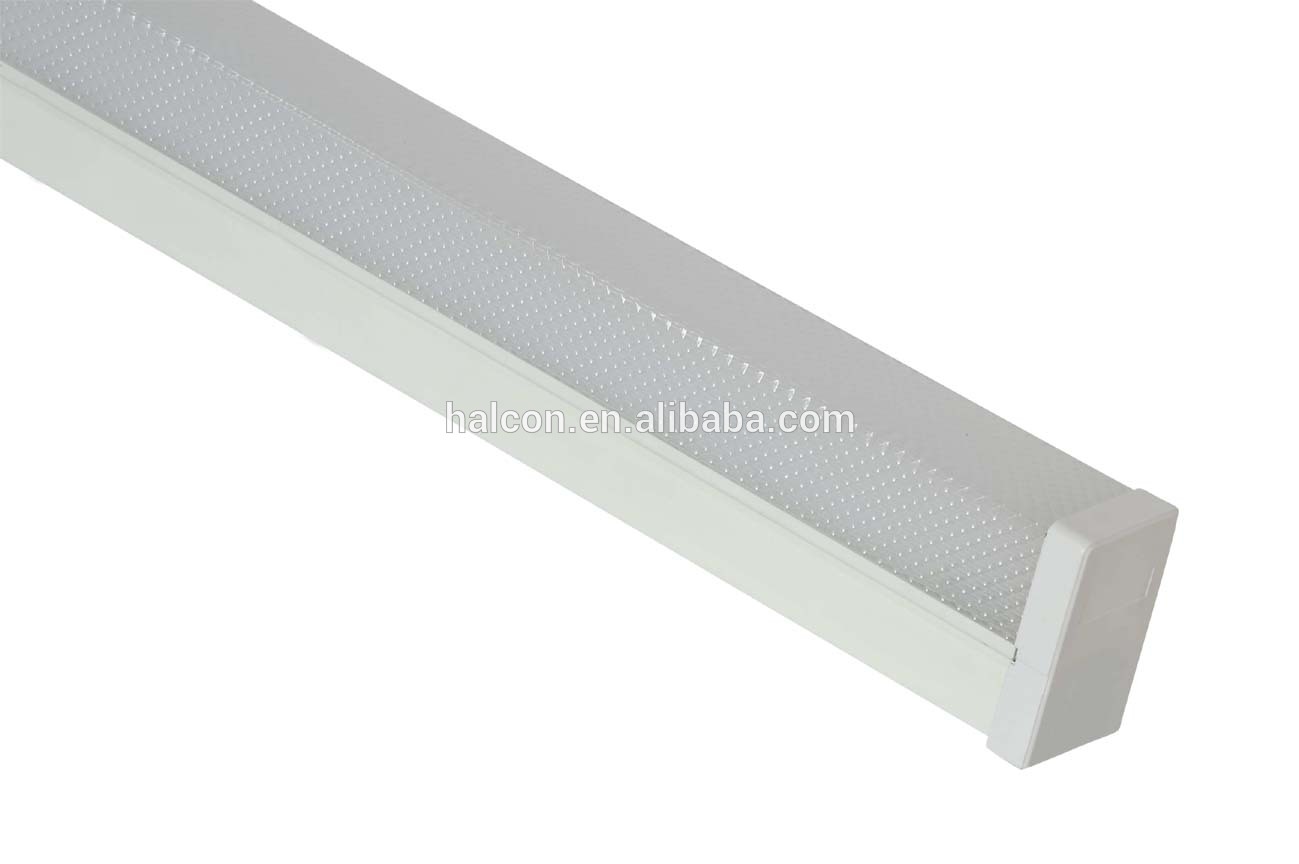

PRODUCT PHOTOS:
