Product Overviews

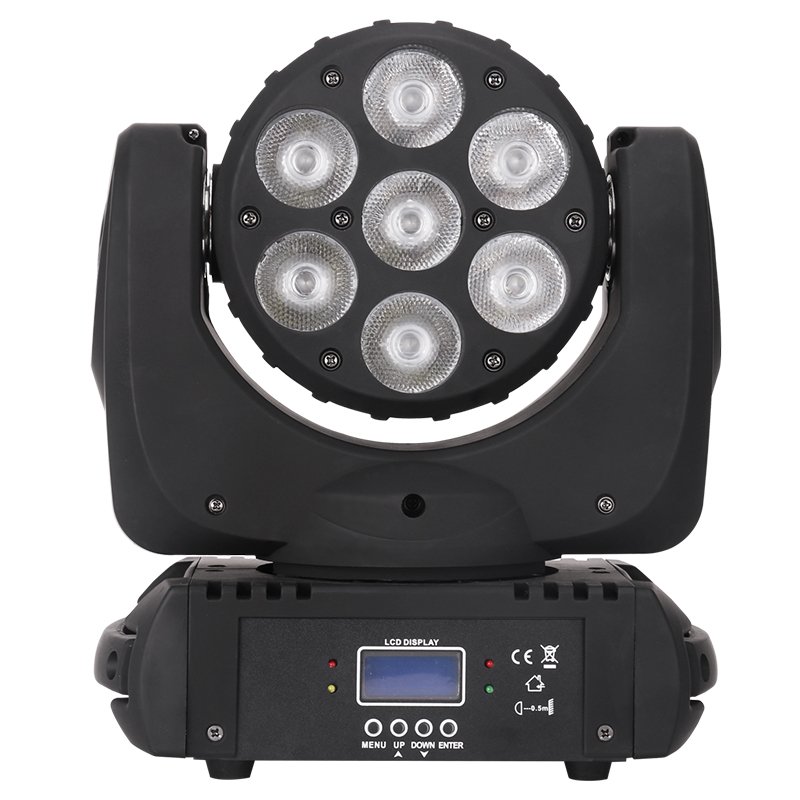

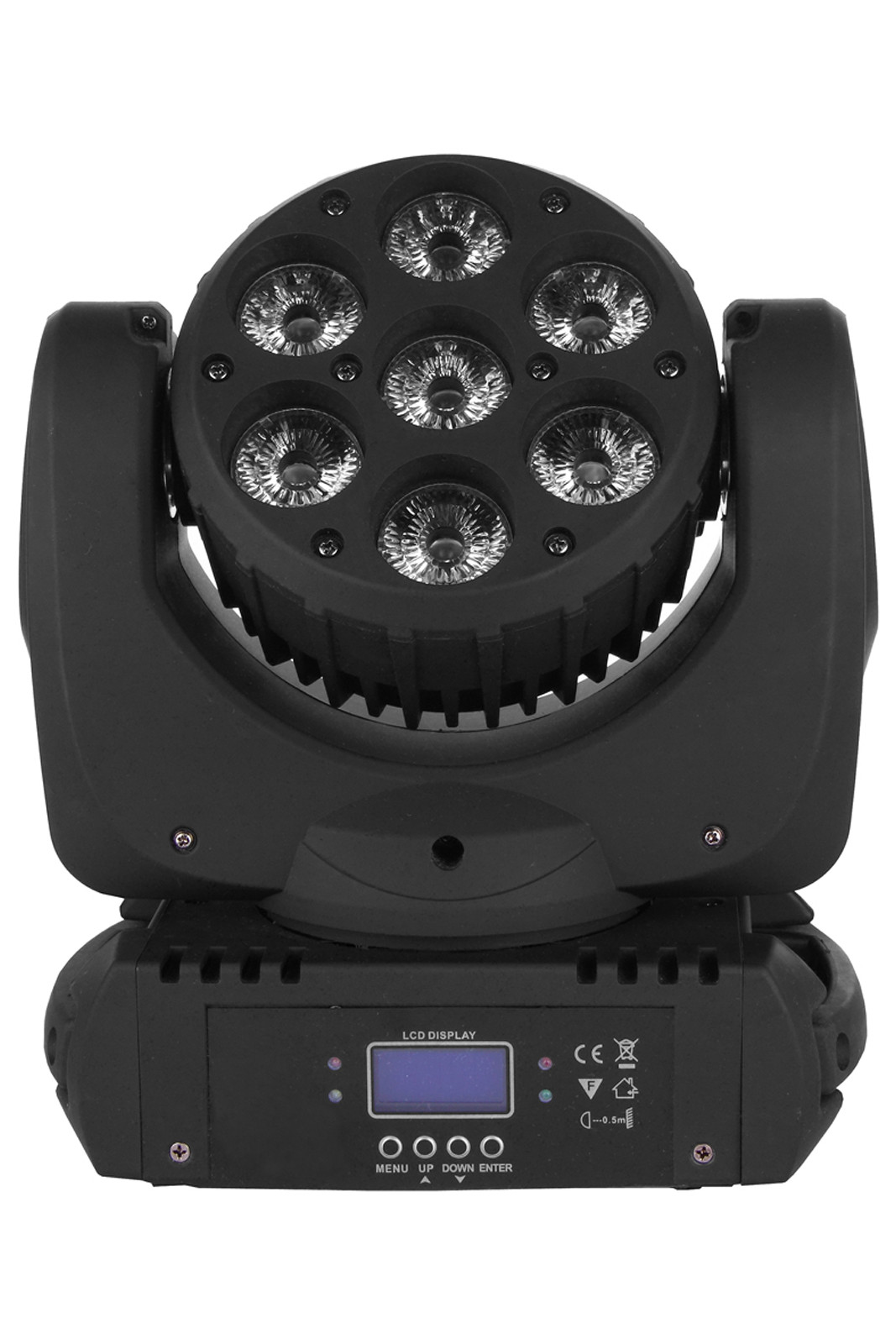

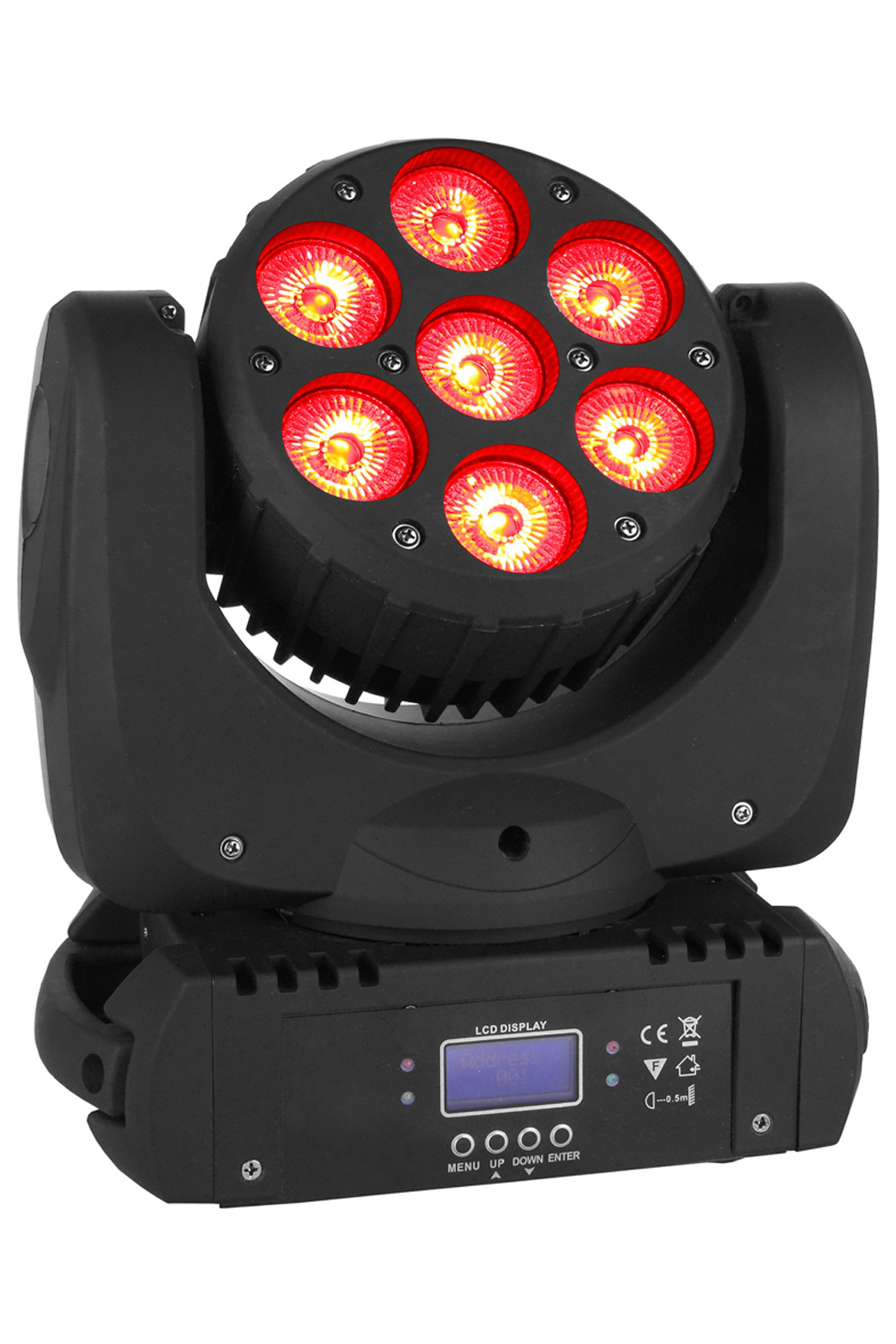

MS-CM07 7pcs 12W RGBW 4in1 LED
◪The MS-CM07 7*12w 4in1 led moving head offers a plethora of features that will take your next event to a whole new level.
◪Perfect for those new to DMX who seek functionality and a sound active mode.
◪It also offers a wide range of customization options for more advanced users, including 9CH and 13CH DMX channels.
◪Four model, wide moving degrees(Pan/Tilt:540°/270°),fast moving speed make your light shows to a new level.
◪Built-in sound active, auto run, DMX and master/slave mode.
Technical Data
LIGHT SOURCE : | LEDs: 7pcs 12W RGBW 4in1 LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): R:650mA, G/B/W:750mA | |
OPTICS: | Beam angle: 8° |
Light output(1mtr):Red:9500, Green:17000, Blue:26000, White:27000, Full bright:700000 | |
EFFECTS : | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:0-20 flashes/sec, various of strobe effect | |
| Built-in color changeing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
CONTROL AND PROGRAMMING : | Control mode: DMX,auto run,Master/Slave and Sound-active |
DMX channels: 9CH, 13CH | |
Setting and addressing:4-digit LED | |

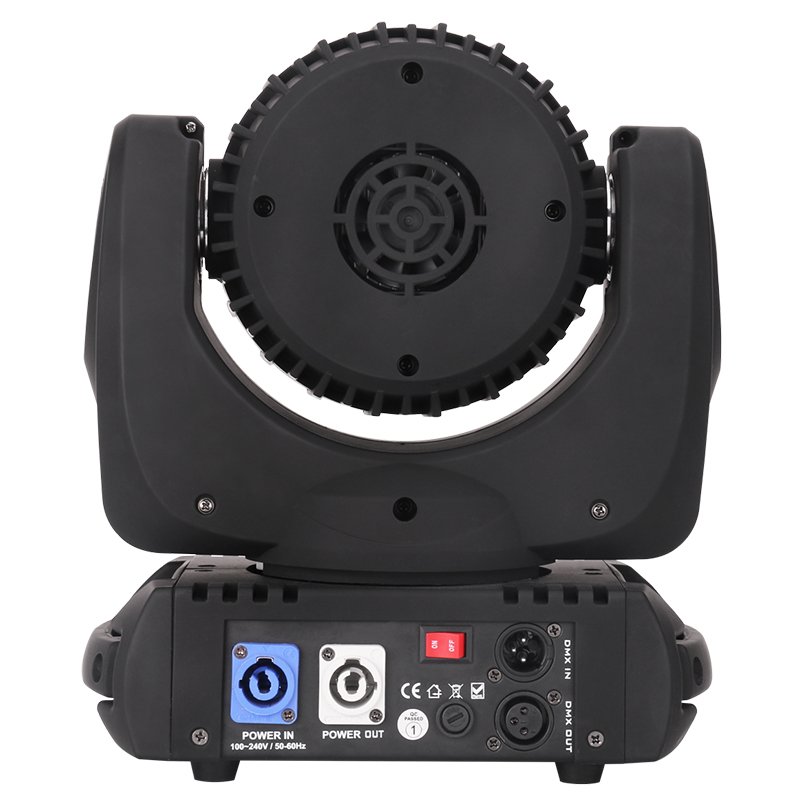

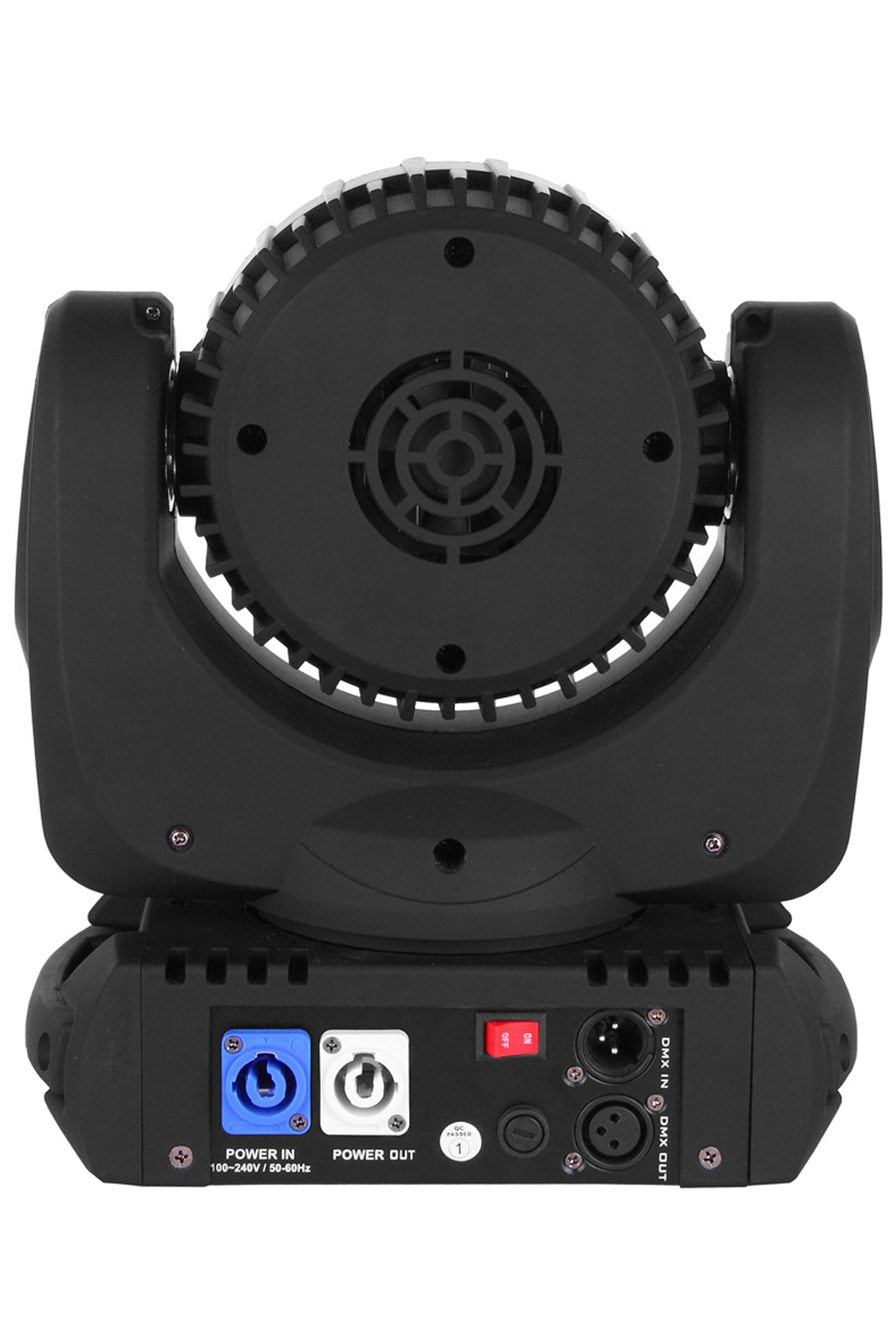

DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
PAN-TILT : | Pan/Tilt:540°/270° |
BODY : | Housing: Metal & Plastic, black. |
COOLING & THERMAL MANAGEMENT : | Thermal management system ensures long life of LEDs |
Entire casing as heat sink for LED source | |
Cooling: forced air convection, with two silent fan | |
ENVIRONMENT AND PHYSICAL : | IP rating: IP33 |
Certificate:CE,RoHs | |
Environment temp: -20℃-40℃ | |
Light size:30*15.5*26.5cm | |
N.W.:4.7kg | |
G.W.:5kg | |
Package size:37*33*23CM |
Technical Details
Effect diagram

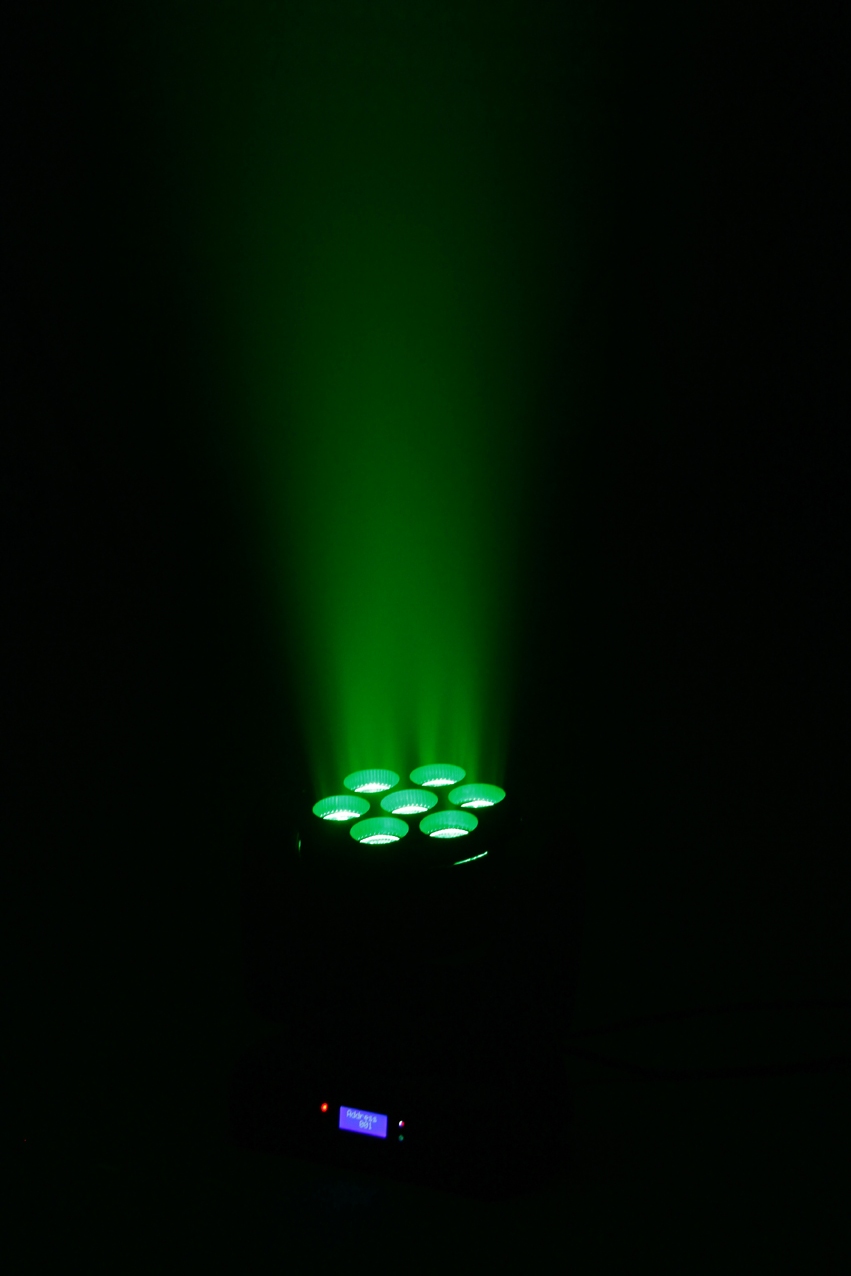

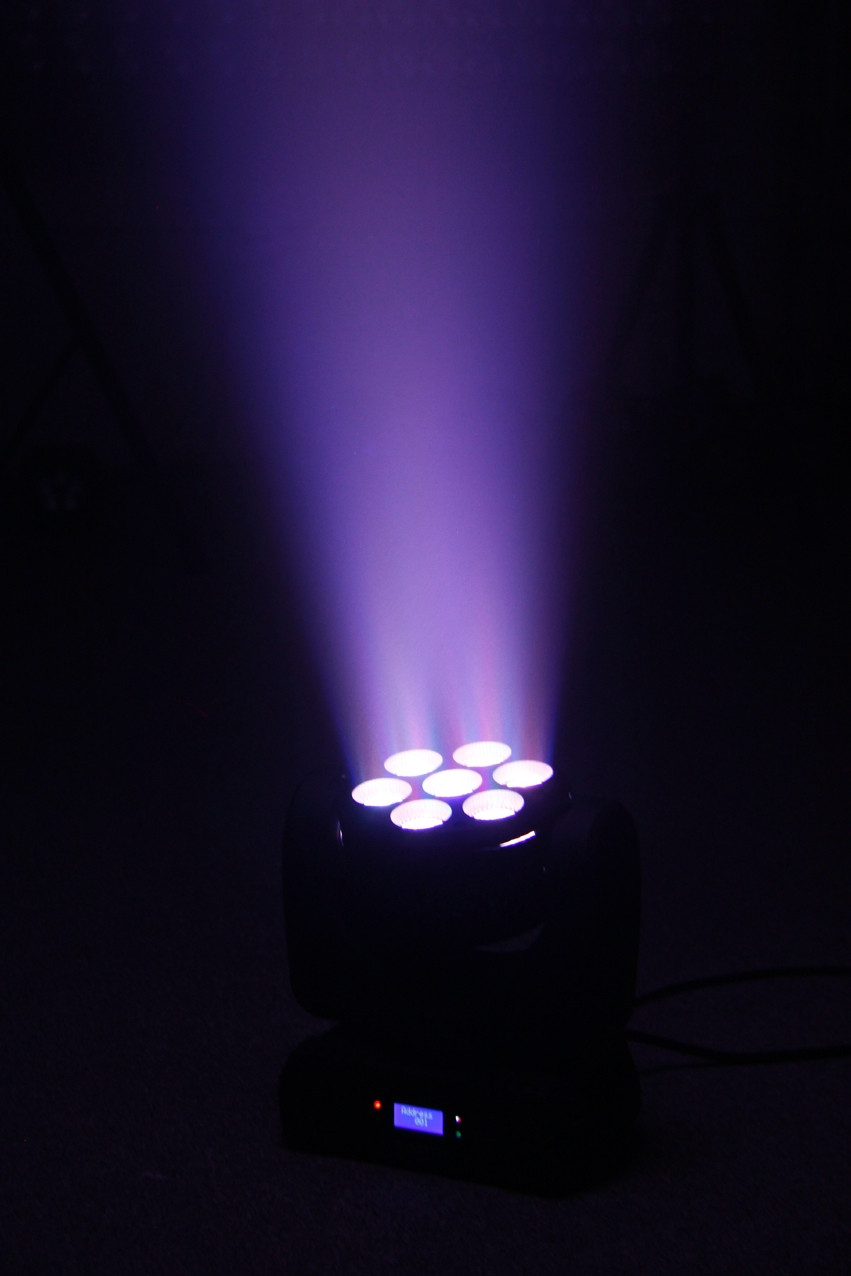

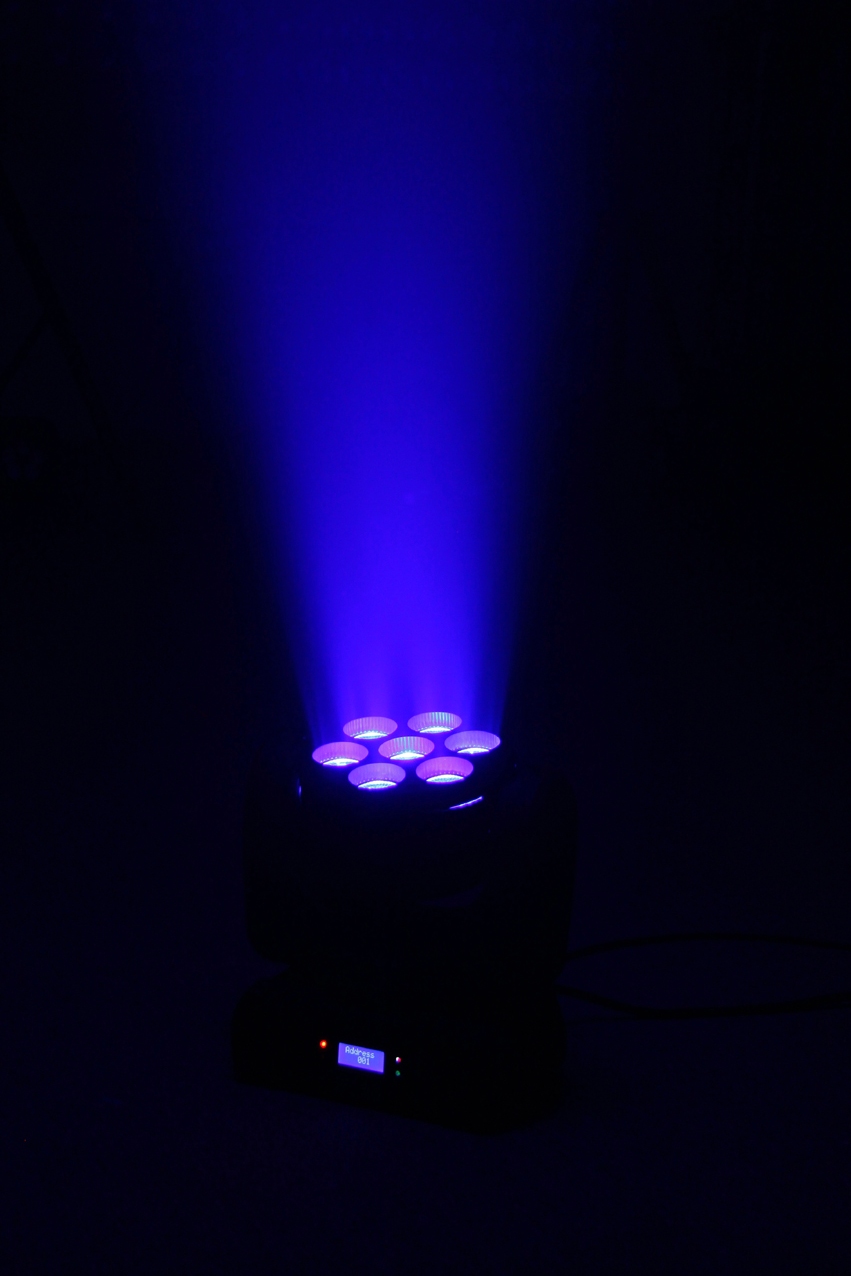

Effect picture - colorful
Different visual effects

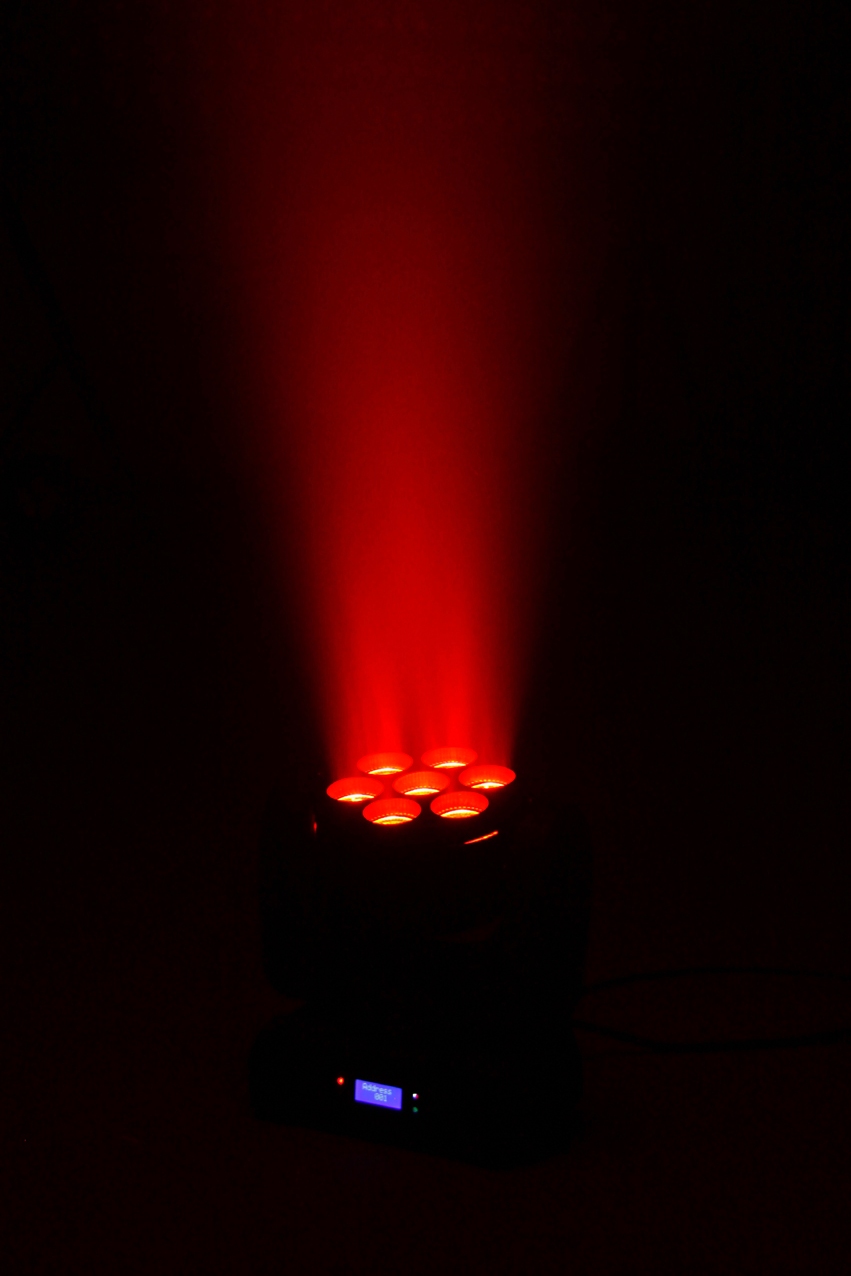

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
