Product Details
Product Video
Product Overviews

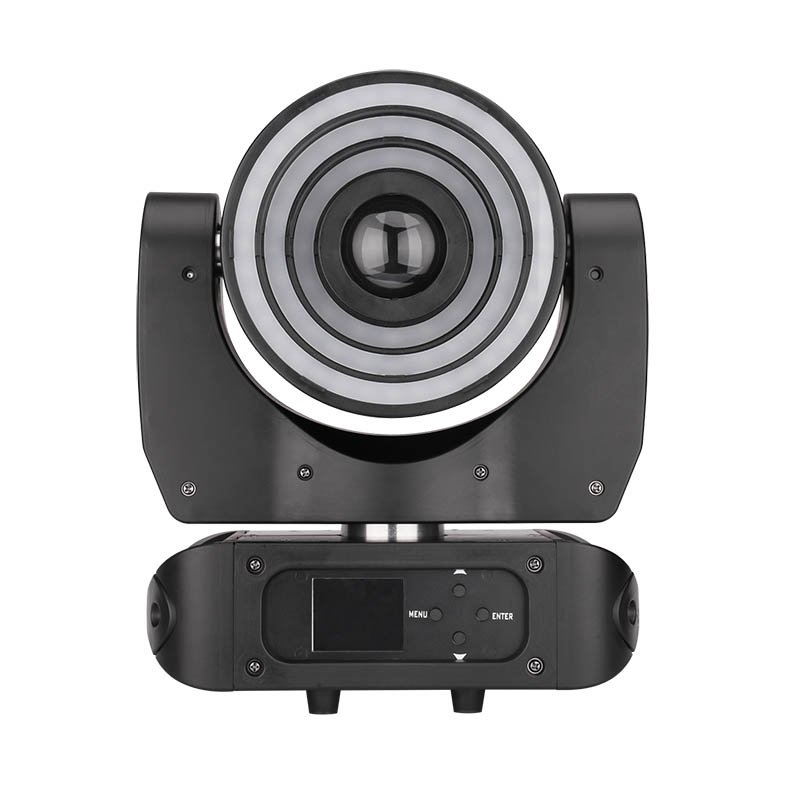

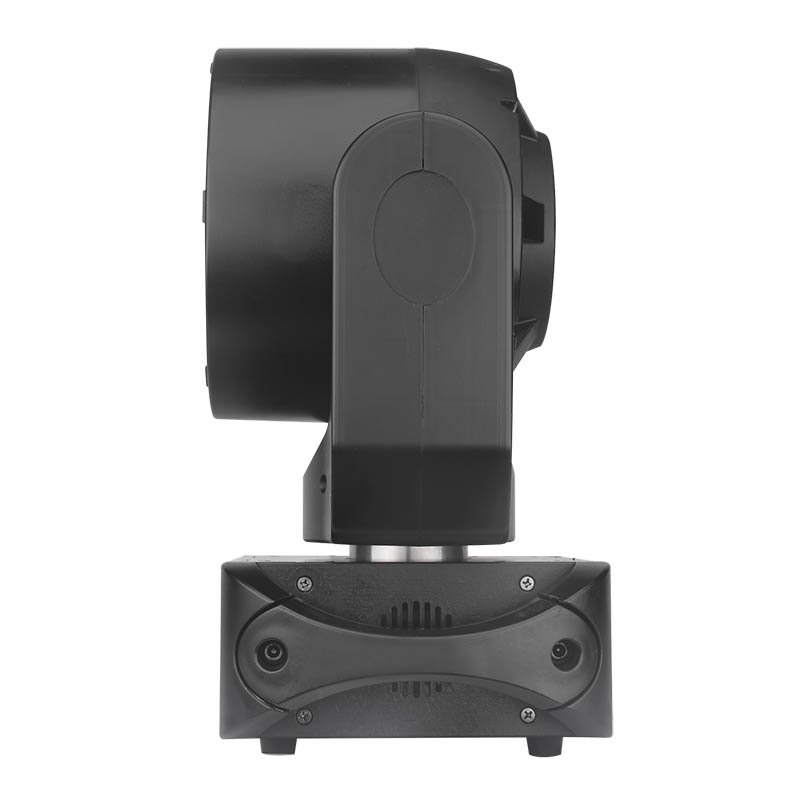

MS-MW40 1x40w RGBW 4in1 LED, 76x0.2w SMD-RGB
◪MarsLite LED CombinationSeries, consisting of one piece 40w RGBW 4in1 LED and 76 pieces 0.2w SMD RGB.
◪This unit can make two kinds of color mixing color beam effect((It has LED beam and SMD strobes effects, each featuring separate control), compared to conventional beam color to be more gentle, more beautiful((more better color mixing, more pure beam effect).
◪The center LED can be controlled individually and Built-in a 3-facet prism, the prism can rotate automatically
◪Outer ring of 76 pieces 0.2w SMD RGB works as background, buil in 18 different kinds of effects.
◪The X axis is 205 °and the Y axis is 540 °With XY axis rotation , the unit beam and SMD effect is more abundant.
◪inch TFT LCD display，easy to control.Pwercon in and out, high-end and elegant Silent fan
Technical Data
Voltage: | AC100-240V 50/60Hz |
Power Consumption: | 130W |
LED: | 1x40w RGBW 4in1 LED, 76x0.2w SMD-RGB |
Channel: | 14CH and 19CH |
X: | 205° |
Y: | 540° |
Beam: | R:9270 LUX@1M G:14370 LUX@1M B:15900 LUX@1M W:16420 LUX@1M RGBW:50000 LUX@1M |
Four operation mode: | Sound , Auto run, DMX512 and Master/slave TFT display, easy to control |
Beam angle: | beam 8° |
Display: | 2.4 inch TFT display |
Fuse: | F3A L250V |
Light Size: | 29.5*19.2*35.2cm |
N.W.: | 7.2kg |
G.W.: | 8kg |
Package Size: | 41.5*36.5*25.5CM |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
