Product Details
Product Overviews

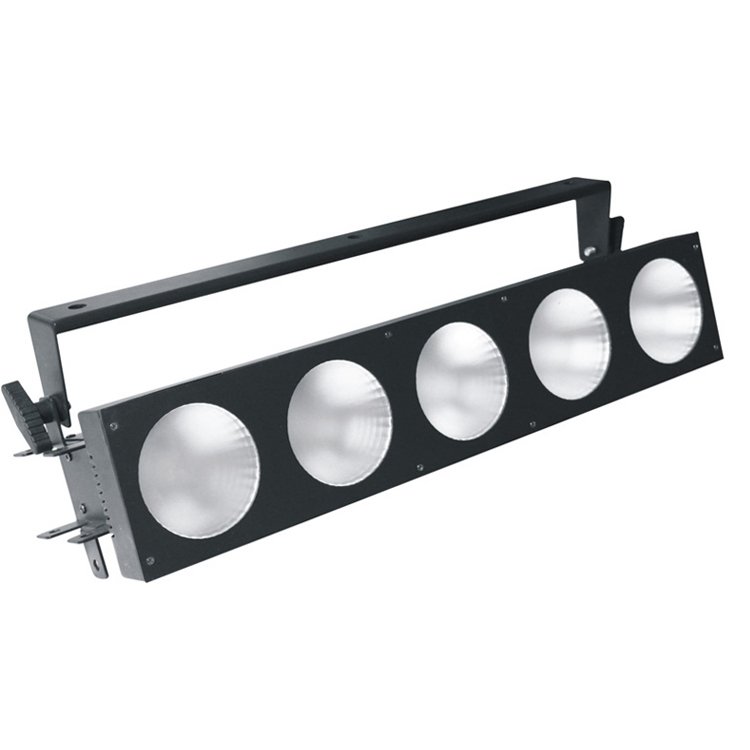

MS-CB50 5pcs 10W COB RGB 3in1 LEDs
◪The Five head LED matrix bar lgiht with RGB tri-color COB LED, could be assembly in different shape and show
◪different amazing wash effect.
◪Get ready to create the a rich display of RGB mixed color at your next event.
◪Creates smooth and rich RGB color mixing and can be used as a Wash/Bar or Pixel Mapped for stunning visual effects.
◪Built-in sound active, Auto, DMX and master/slave, Matrix software mode.
◪Great for stage lighting, bands, or night clubs.
Technical Data
LIGHT SOURCE: | LEDs: 5pcs 10W COB RGB 3in1 LEDs |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max.50W |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Flicker free(refresh rate>4K Hz) |
Light output(full bright): 630LUX@1m, 159LUX@2m, 26LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: DMX,auto run,Master/Slave, Matrix software and Sound-active |
DMX channels: 1, 3, 5,7,15, 18CH | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
Built-in auto programs and speed adjustable | |
BODY: | Housing: die-cast aluminium, black baking finished |
COOLING : | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:62*15*16cm | |
N.W.: 3.5kg | |
G.W.:4.5kg | |
Package Size:68*18*21CM |
Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Test chart
Production line
Packing
