Product Details

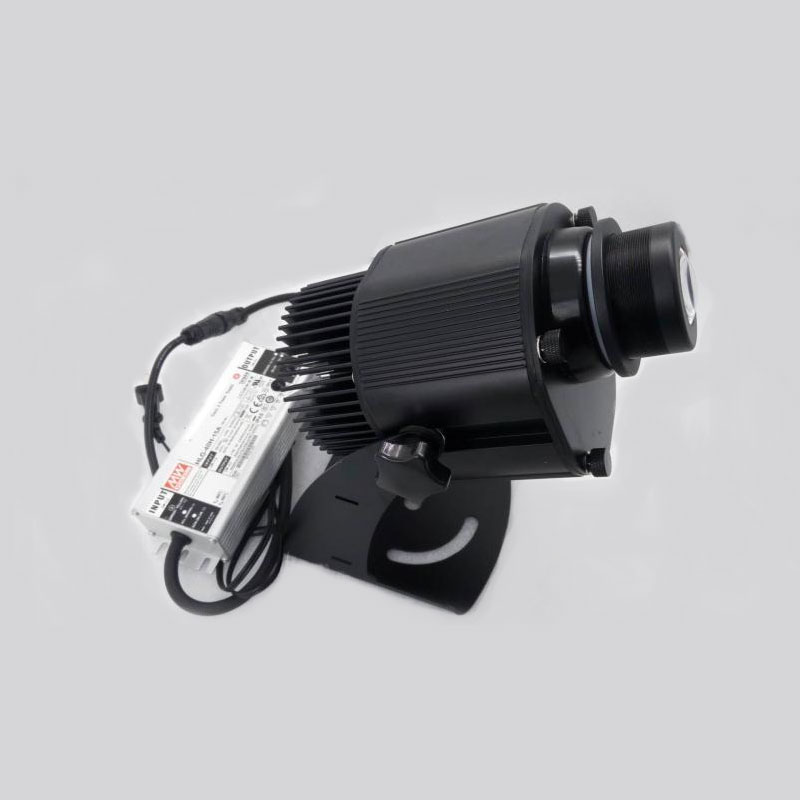

The metal shell Aluminum Alloy structure, high intensity, paint or sandblasting processing, optional black, silver and white.
CREE CREE high power LED chip.
Patterns can be rotated, there is switch control.
The lamp itself can be waterproof IP65, can be directly installed in the outdoor.
Heat pipe and air cooling technology, so that the chip to keep cool, the maximum display chip illumination, a great delay in the life of the chip.
Projection content can be customized, you can manually replace the LOGO pattern. Can do DMX512 control or self - walk procedures.

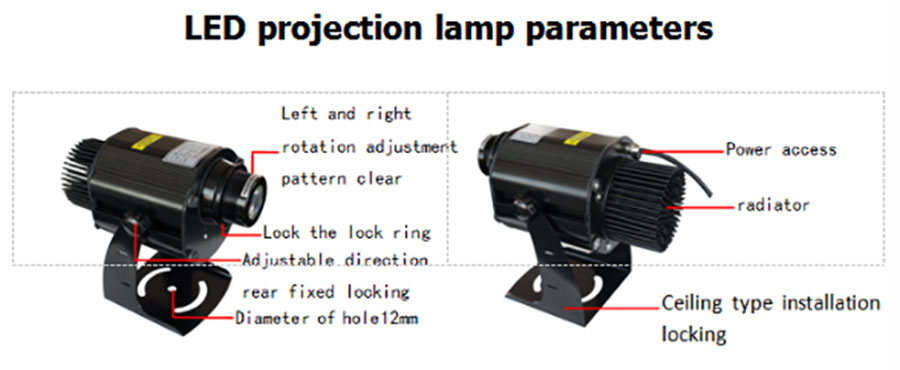

Lamp projection direction can be arbitrarily adjusted, the diameter of the support hole 12mm.
The lens distance and imaging length ratio is 1:0.3, which is 1 meters projected 0.31 meters, 3 meters and 0.93 meters of projection, and so on.
Model | YM-062 | Beam angle | 15/20/25°(Optional) |
Name | LED Single figure projection lamp | Power type | Meanwell power(optional) |
Projection distance | 5-15m(Dark environment) | Type of light source | LED(CREE)(optional) |
Rated voltage | 110V 220V (Optional) | Protection level | IP65 IP20 (Optional) |
Luminous flux | 1800Lm 2500Lm (Optional) | Rated power | 30w 40w (Optional) |
Material | Aluminum+oxidation Surface treatment | Drivers | Constant current driving |
Light source power | 20W 30W (Optional) | Weight | 3kg |
Light source life | 30000h | Lamp size | 24*19*23cm |
Color temper ature | 3200-6000K(optional) | Innerpacking box | 39*20*15cm(1pcs) |
Light specifications | 37.5mm/20mm | Outerpacking box | 39*40*30cm(4pcs) |
DMX512 control | Control the rotation speed,synchronization,transform pattern,timing,remote control,multiple channels,remote-control unit(Optional) | ||
◆When using this lamp, please pay attention to the applicable places, indoor lamps and lanterns is strictly prohibited to install outdoor.
◆When the lighting installation must ensure good ventilation,so as not to affect the service life of lamps.
◆Install, check or remove the lamp before, be sure to cut off the power supply.
◆Please do not face the lamp out of the light, so as not to damage the eyes.
◆Please do not exceed the rated voltage of power supply
