Product Overviews

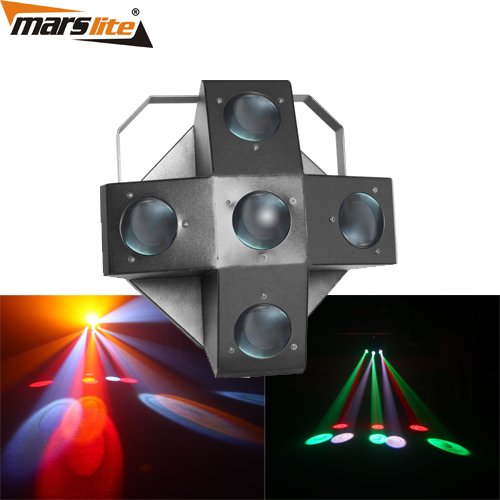

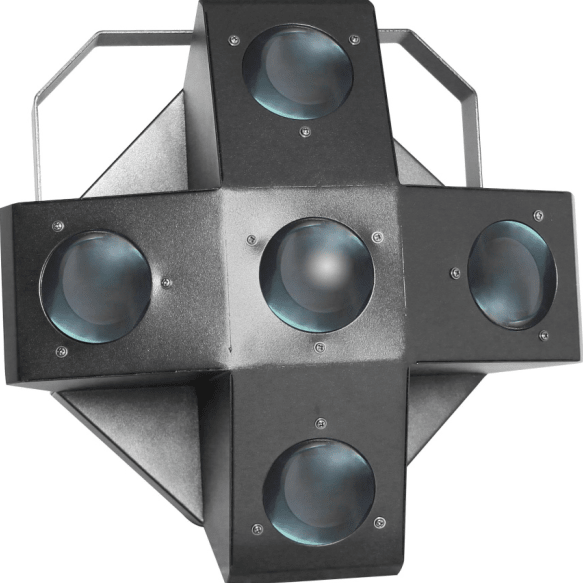

MS-515 25pcs RGBWA 3W Single color LEDs
◪The MS-515 25*3w R/G/B/W/A single color led effect light offers a plethora of features that will take your next event to a whole new level.
◪Get ready to create the a rich display of RGBWA single color at your next event.
◪Sound controlled via built-in microphone, adjustable sound sensitivity.
◪Built-in sound active, ArtNet, DMX and master/slave, foot controller mode.

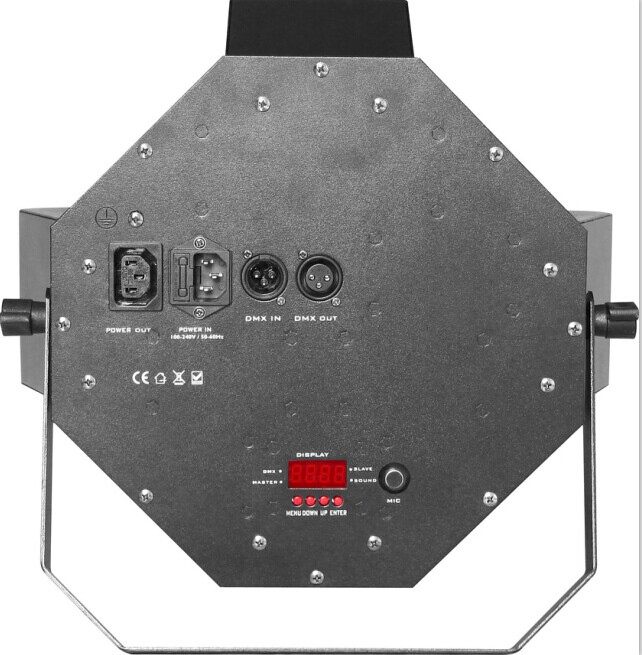

◪LED display, easy to control, Pwercon in and out, high-end and elegant Silent fan.
Technical Data
LIGHT SOURCE: | Light source: 25pcs RGBWA 3W Single color LEDs |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 667 | |
POWER SUPPLY: | Power consumption: Max. 80W |
| Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
OPTICS: | Flicker free(refresh rate>400HZ) |
CONTROL AND PROGRAMMING: | Control mode: DMX, Auto run, Master/Slave and Sound-active |
DMX channels: 1CH, 3CH, 9CH, 25CH, 29CH | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin(XLR 5pin is optional) | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
BODY: | Housing: die-cast aluminium, black baking finished |
COOLING : | Cooling: forced air convection, with noe silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:34.6*34.6*21cm | |
| N.W.:6kg | |
| Packing Size:41.5*41.5*26cm | |
Packing:Carton box or flight case optional |

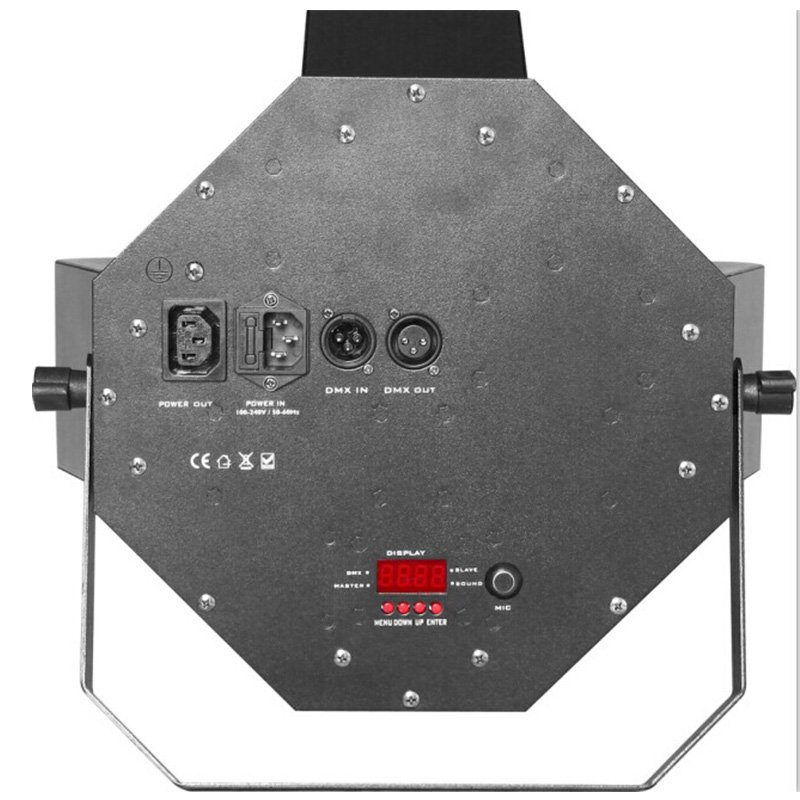

Technical Details
Effect diagram
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects

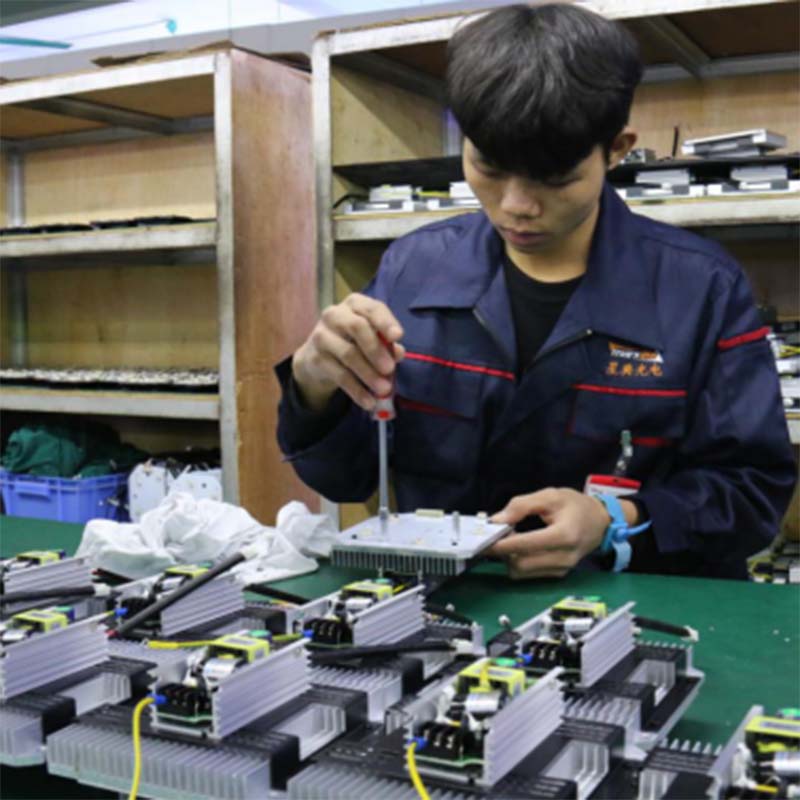

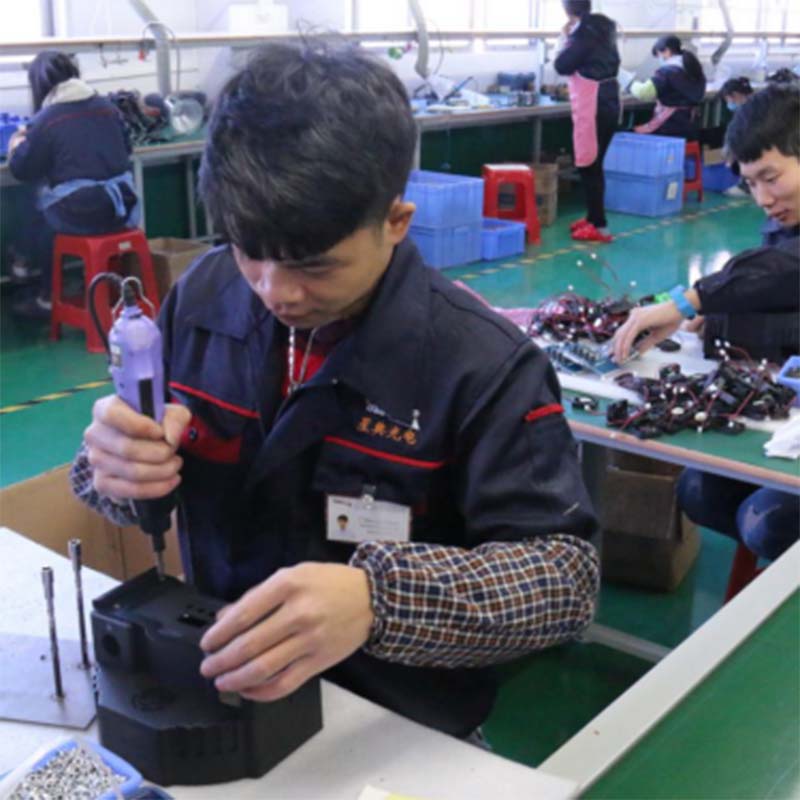

Production line

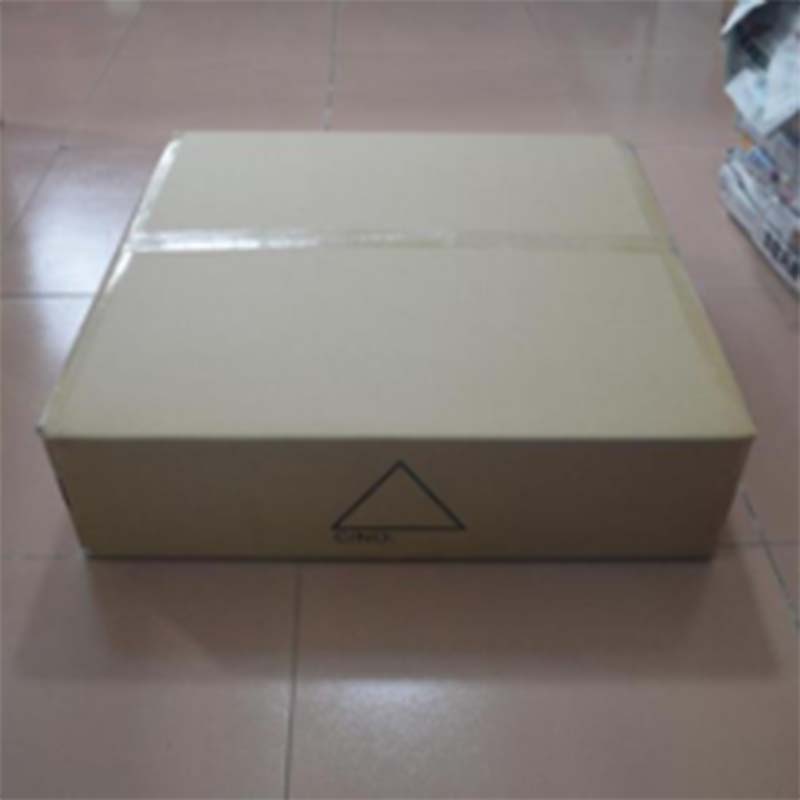

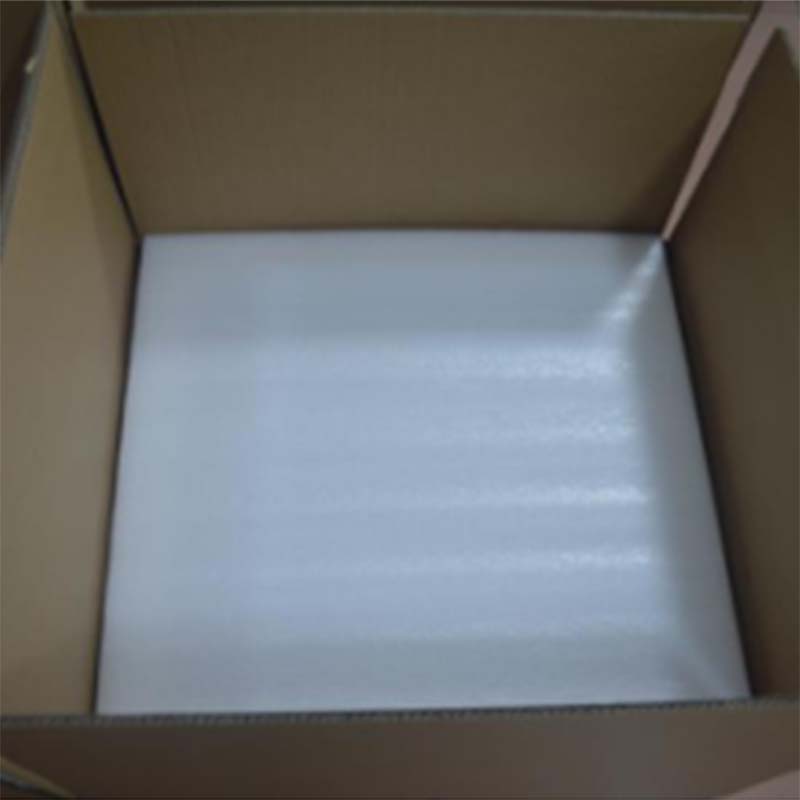

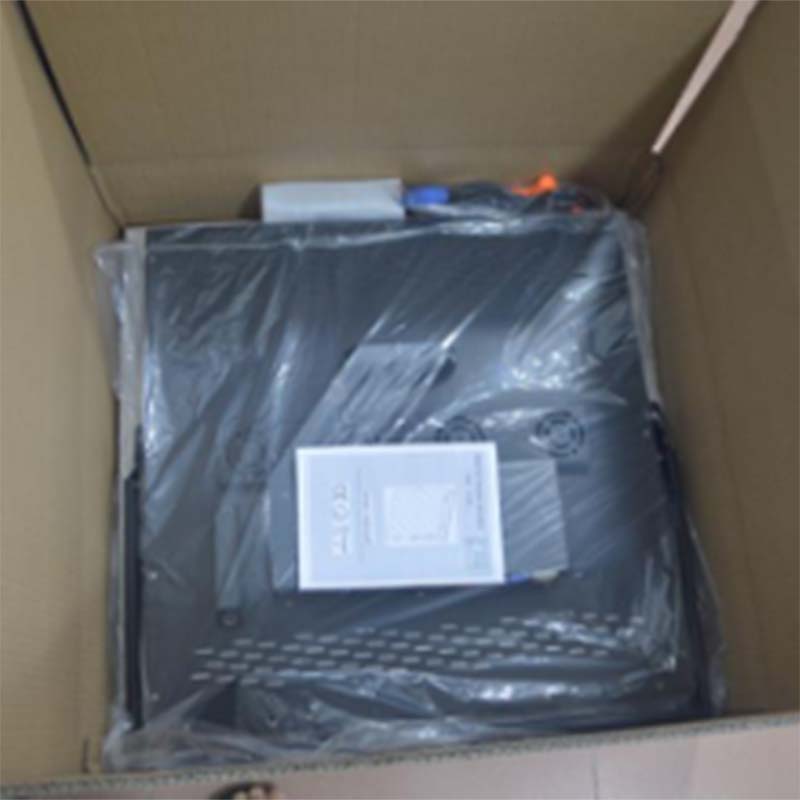

Packing
Our Services
◪ Impeccable after-sales sevice will solve all worries after you buy our products.
◪all your inquires about us or our products, we will reply you in detail within 24 hours.
1. OEM/ODM is available
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
2. every process will be checked by responsible QC which insure the products' quality.
3. Samples could be prepared for you on time
4. Guide you how to install
5. Compensate for the product if some quality problems on our side
6. If you come to our factory, pls inform us in advance,we pick you up if our driver available.
Our advantage
Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.
Custom service：Our products can be OEM, to meet your special requirements.
---Printing logo on customized products
---Customized design and material
---Customized packing for your products
---Provide your ideas, we have specialized engineers to help you design
Company strength
---We have rich experience R&D engineer and we have strong ability for OEM projects.
---We have wee-trained and professional sales&after- sale services
---ISO9001 certification enterprise.Chinese famous brand for many years.
---We are has been inspected onsite by TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
