Product Details
programmable rgb dmx stage panel video
P25mm, P45mm, P62.5mm, P75mm etc is available.

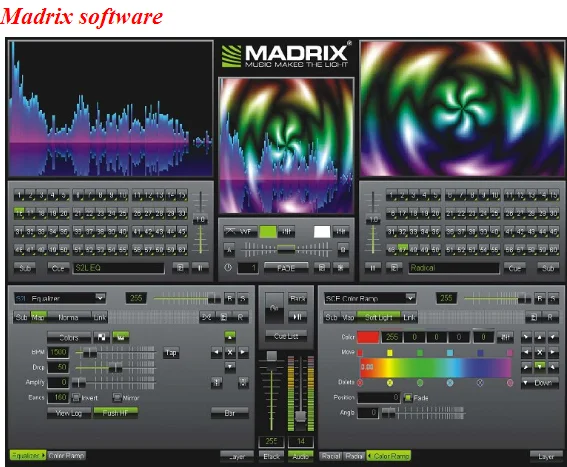

What is the features of led video wall Madrix ?
1, DC5V, or DC12-24V input
2, 1led 1 pixel, each led individual control
3, dmx control
4, music active
5, high brightness led chip
6, Different size, different pitch
What is the Specifications of led video wall Madrix ?
5v, 12-24v is available.
Parameters | Description |
Model | LWS-RGBP600600-DMX-5V144144 |
Housing size | 600*600mm |
PCB Size | 540*540mm |
LED QTY | 144leds |
Max. Power | 43W |
Input Voltage | DC 5V |
Pixel | 144 pixels |
Pitch | P45MM |
LED | RGB SMD5050 |
Address setting | Automatically |
Control Mode | DMX512 |
Lifespan | 50,000hours, based on LED manufacturers’ test data |
Temperature | -4℉ to 122℉(-20℃ to 50℃) operating temperature |
Protection | IP20 |
Parameters | Description | ||||
Model | LWS-RGBP150150-DMX-5V3636 | LWS-RGBP150150-DMX-12V3601 | LWS-RGBP250250-DMX-5V1616 | LWS-RGBP300300-DMX-5V1616 | LWS-RGBP300300-DMX-5V144144 |
Size | 150*150mm | 150*150mm | 250*250mm | 300*300mm | 300*300mm |
LED QTY | 36leds | 36leds | 16leds | 16leds | 144leds |
Power | 11W | 9W | 5W | 5W | 43W |
Voltage | DC 12-24V | DC 12V | DC 5V | DC 5V | DC 5V |
Pixel | 36 pixels | 1 pixels | 16 pixels | 16 pixels | 144 pixels |
Pitch | P25MM | P150MM | P62.5MM | P75MM | P25MM |
LED | RGB SMD5050 | ||||
Address | Automatically | ||||
Control | DMX512 | ||||
Lifespan | 50,000hours, based on LED manufacturers’ test data | ||||
Temp | -4℉ to 122℉(-20℃ to 50℃) operating temperature | ||||
Protection | IP20 | ||||
Carton box, packed with good protection
If we have stock, the goods will be shipped within 3 days
If we have no stock, the delivery time will be abut 7-14 days

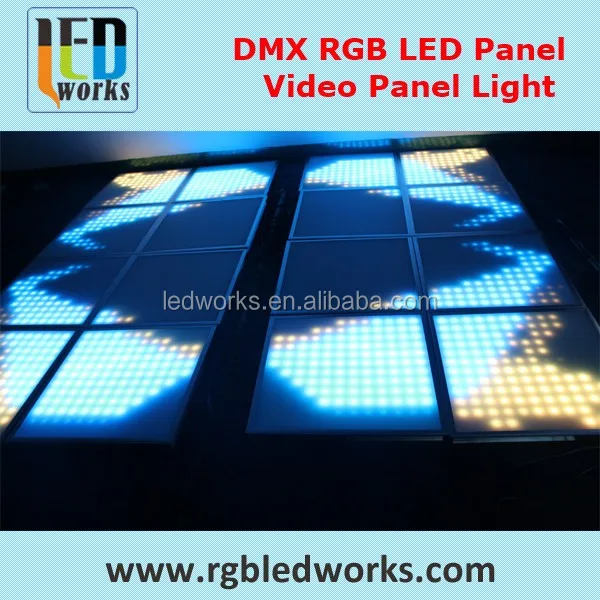

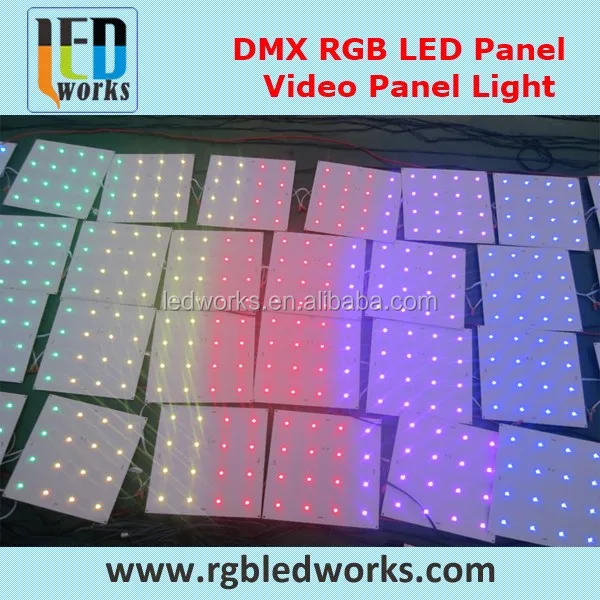

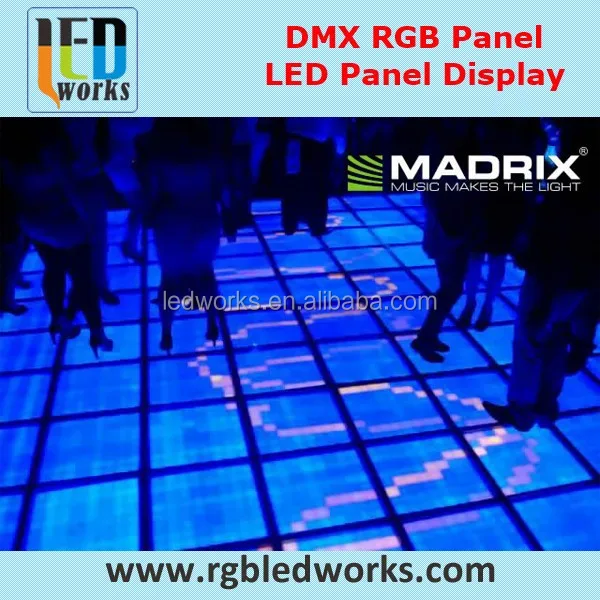

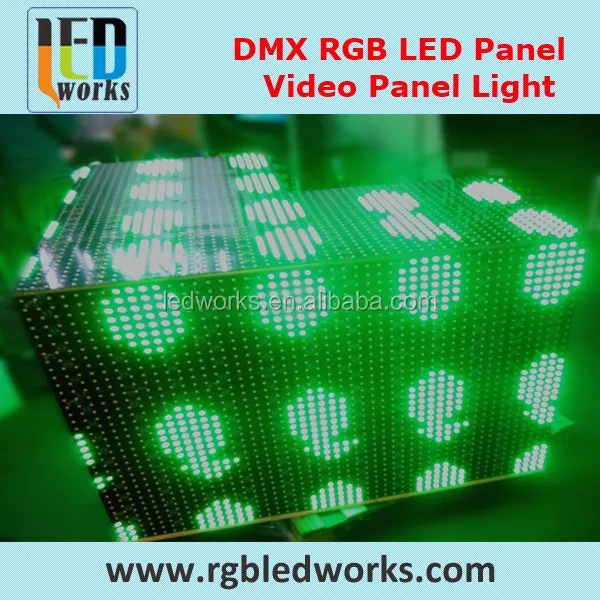

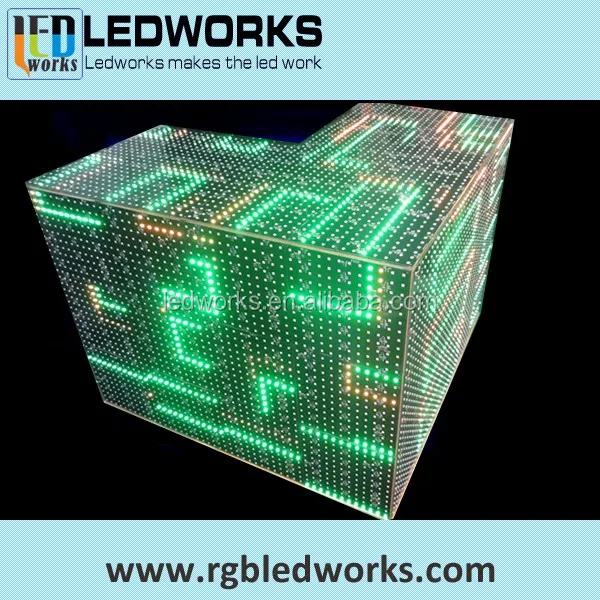

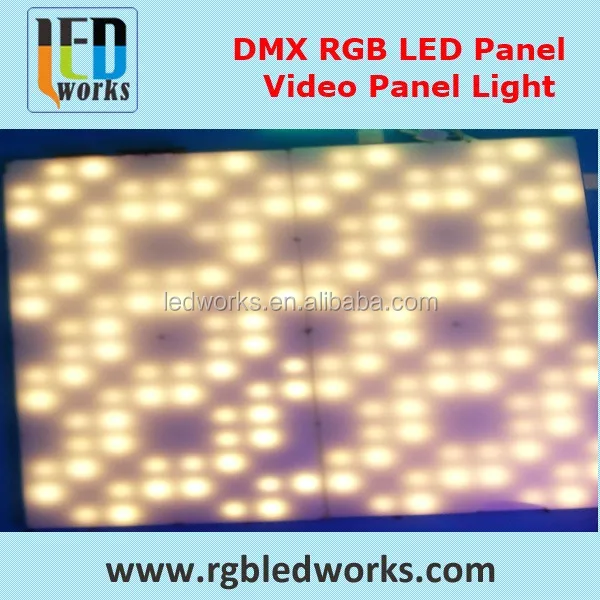

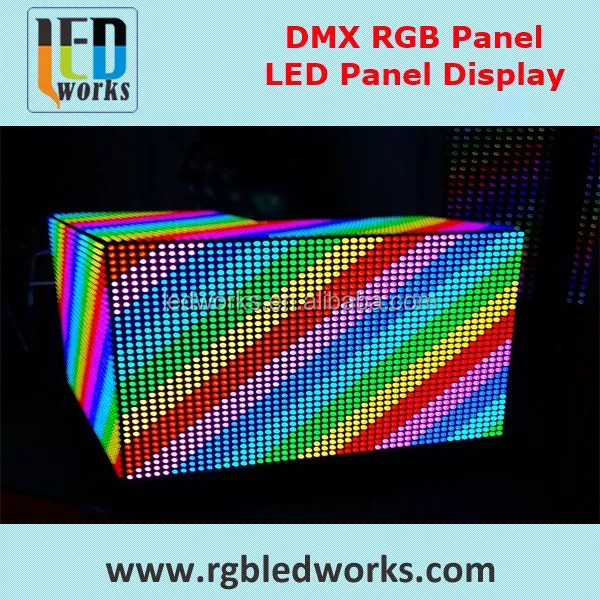

Photos led video wall Madrix

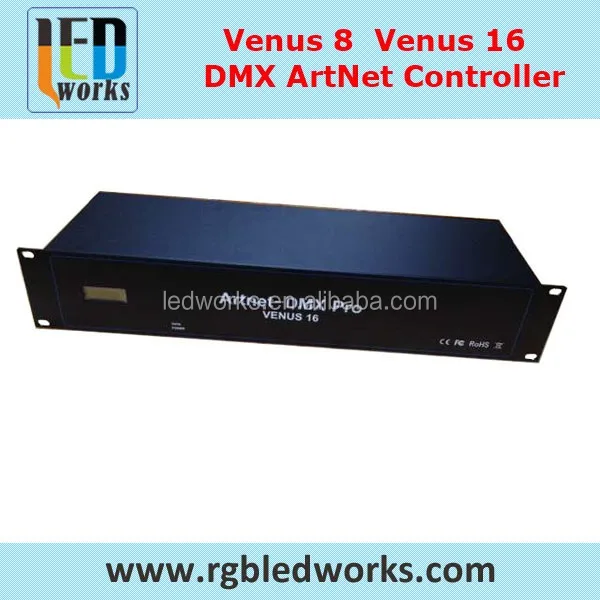

Recomend LED Controller (DMX ARTNET VENUS, SD card standalone LED Controller)
1, OEM/ODM
2, Fast response
3, Professional support
4, Good after-sales serviece
1, Factory with professional team
2, Mainly produce led light and led controller
3, OEM/ODM
Q1: Is there a minimum order value?
A1: Some items have MOQ, please contact our sales.
Q2: What's your terms of trade?
A2: We quote based on EXW. Regarding shipping cost, we can quote if you want.
Q3: How about payment terms?
A3: TT, PayPal, Western Union, MoneyGram are available.
Q4: When will my order be dispatched?
A4: We aim to send all orders within 15 working days.
Q5: I have received my delivery and some items are missing/damaged – what should I do?
A5: Please notify us in writing as soon as you notice any damaged items or missing items. You can send this information by email.
Q6: If I need technical support, what should I do?
A6: please contact your sales, he/she will help you.
