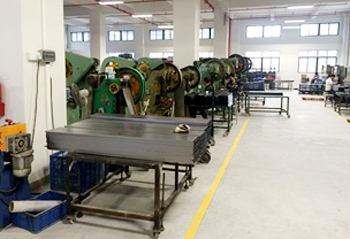

Factory workshop(real pic from Halcon factory)
Brand： |
none |
Address： |
Guangdong Zhongshan |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
4S CAR STORE/SHOPPING MALL/FACTORY/ GYMNASIUMS

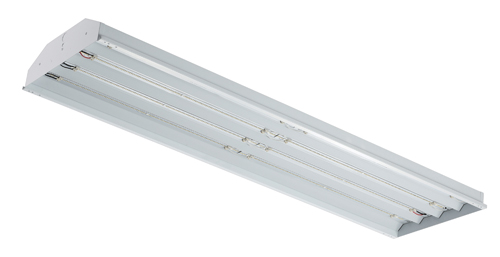

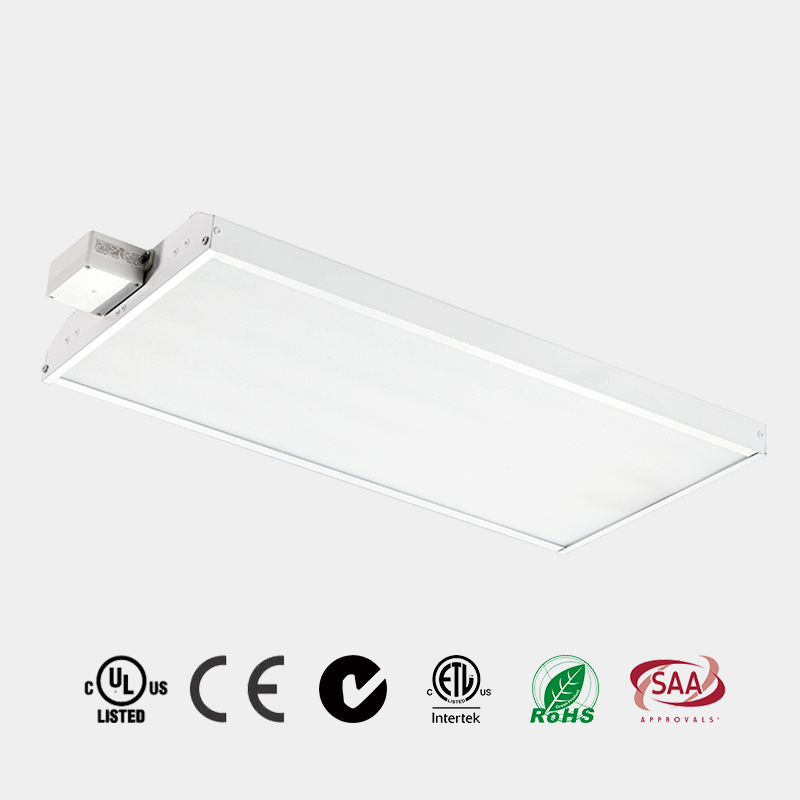

It marries our best LED technologies with our most popular high bay product.
The result is high-performance,configurable LED luminaire.
That is ideal for warehousing, manufacturing,and gymnasiums.
■ FEATURE
Narrow and wide distributions available to meet both horizontal and vertical light level requirements.
Reflectors feature precision-formed optics utilizing premium materials.■ ACCESSORY 1
Optional factory-installed emergency battery pack in the back plate.
(nominal) for a minimum of 90 minutes.■ ACCESSORY 2
Fixture can be equipped with an occupancy sensor.
Devices are factory-installed and require minimal labor to set up during fixture installation.
■ DIMMING
Drivers come standard with 1-10V dimming leads capable of variable dimming down to 10%.■ COLOR
Standard fixture is powder-coated with white color.■ GLARE CONTROL
A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed.■ OPTIONAL WIRE GUARD
Optional wire guard protects fixture from environmental hazards. Factory- or field-installed.
CHARACTERS
◪ ETL & DLC listed; With LM79 & LM80;
◪ 2ft:100W MAX, 3ft: 150W & 14ft: 225W MAX & 325W MAX available;
◪ High luminous efficacy 130lm/w;
◪ 50,000 hours warranty 0-10V UL/CUL listed LED Driver, Flicking free.
◪ PF＞0.90
◪ driver efficiency＞87%;THD<20%;
◪ Installation: chain mounting
◪ Suitablefor dry/damp location;
◪ Designedfor warehouses, gymnasiums, and industrial spaces;
◪ CCT: 4000K & 5000K;
◪ Lifetime: 5 years
PRODUCT SIZE
| Model No | A | B | C | |
| HG-L225A-100W/2ft | 26.45" | 12.32" | 3.62" | |
| HG-L225A-150W/3ft | 32.7" | 12.32" | 3.62" | |
| HG-L225A-180W/3ft | 32.7" | 12.32" | 3.62" | |
| HG-L225-160W/4ft | 46.14" | 12.32" | 3.62" | |
| HG-L225-210W/4ft | 46.14" | 17.44" | 2.68" |
Technical data
| Total Input Watt | 100W/2ft | 150W/3ft | 180W/3ft | 160W/4ft | 210W/4ft | |
| SMD LED Chips Brand | Bridgelux | |||||
| Calculated L70 | 50,000 hrs | |||||
| Delivered Lumens | 13000 LM | 13000 LM | 18200 LM | 21450 LM | 21450 LM | = |
| Luminaire Efficacy Rating | 130 LM/W | |||||
| Correlated Color Temperature | 3000K,4000K,5000K,5700K | |||||
| Color Rendering Index | >80 |

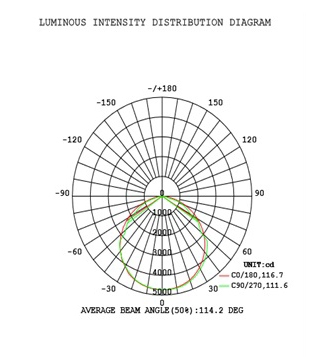

Light distribution
Installation
INSTALLATION FOR HANGIN
1-Hook the V-hook with chain on the high bay
2-Hook up the chain on the ceiling anchor
3-Turn off the power,make the wire connection to the quick connector

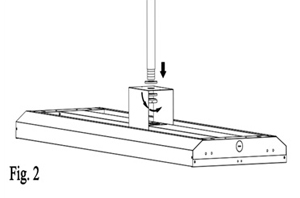

INSTALLATION FOR PIPE

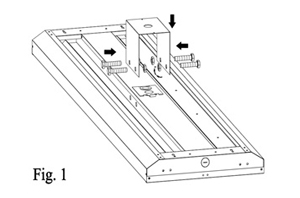

1-Fix the hanging Bracket into the high bay
2-screw up the pipe into the bracket

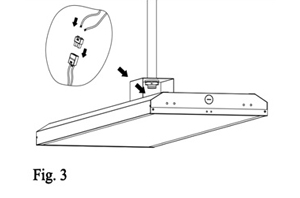

3-Turn off the power,make the wire connection to the quick connector
Warning
1
1
The installation and maintenance must be completed by electricians or professionals.
1
1
Please cut off the power before installation and maintenance.
1
1
The thermally insulating material is not allowed to cover the fixture.
1
1
Pleasekeepawayfromthecorrosivesubstance,andkeepthefixturedryandclean.
1
1
Applications
Warehouse( real pic from Halcon factory)

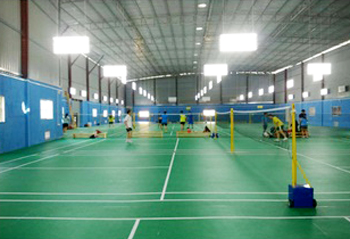

Gymnasiums
