◆ Product Description
Uniform light and low temperature rising
-high performance chips imported form us and advanced secondary optics design increase thelamp application performance and its light stability.
-rational design and low temperature risiing.long time lighting will not bring a heat-caused security problem.
-LED decreases the heat and ultraviolet ray and enhance the photoelectric conversion effciency,reducing the illuminated objects,such as jewelry,letherware and clothes,which are vulnerable to infrared ray and ultraviolet ray.
Sie-casting aluminum radiator
-LED itself and the heat removal of power module determine the led life and its performance.Led base Plate oirectly passes the heatremoval area)to achieve optimal heat removal.in addition,led design,which maxmiizes thermal resisitance,prolongs the led life.
-compact aend integrative design and high purity aluminum application optimize the lamp structure.the heat of the light source will be transmitted in a stable and effective way,which ensures the lamps inner temperature to keep stable and safe.
Exclusive lens design
-the application of led lens technology changes the design concept of traditional optics sysytem.seconday optics design not only increases the application performance of the light,but also enhances the light control,inceasing the light control,increasing the light quality.
High cri
-selecting the high cri led,it creates an comfortable lighting environment;It can be used to various application,realise the color,increase the charm of room.
Long life and high reliability
-select according to the usual settins for the full temperature range designed to ensure high reliability life,to improve the reliability of the lamp to contribute.
◆ Product Show
◆ Product Details
-Using the optical reflective cup style design, have the cut-off light effect.
-With more than 100lm/W output of luminous flux, above 85 color rendering index, included color temperature of 3000K/4000K/6000K.
-86% power supply efficiency and more than 80lm/W the whole lighting effect.
-Good indicate retention, L70 lifetime over 36000hrs, to maintain very low system cost.
-Using single PCS CXA.CH-5 COB series, simple structure, easy assembly, have good light effects & cost effectiveness, could be replaced the traditional CFL down light.
◆ Product Parameter
Luminaire efficency
-Professional design,high reflective aluminum cup,with leimove high efficiency CC driver,the whole light will be truly achieve high performance,economic and environmrnt-friendly.
Specification

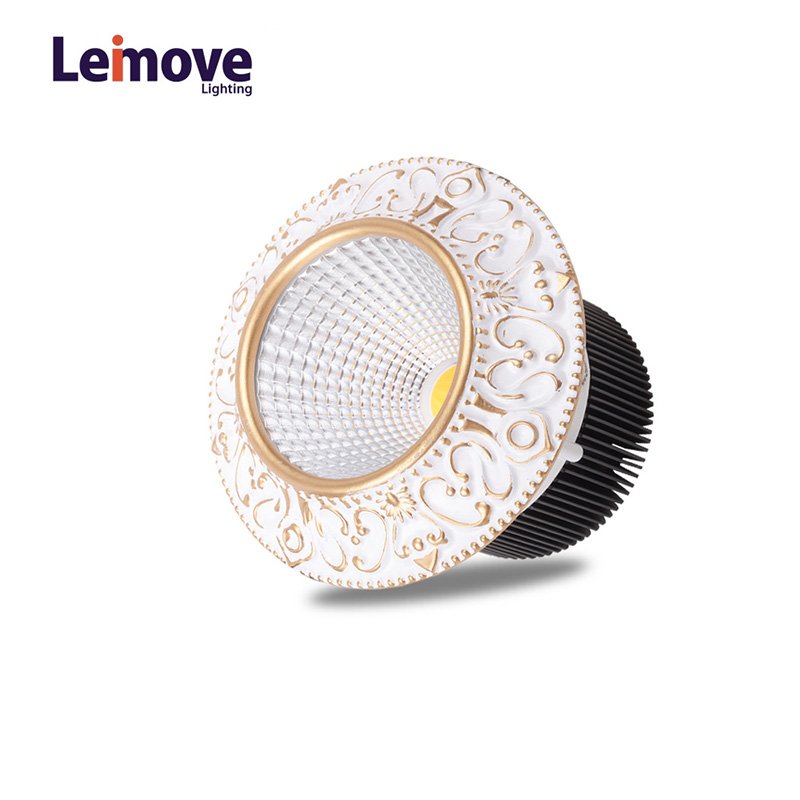

Item NO: | LM8017 |
LED chip: | Cob |
LED lamp size: | D100*H62mm , D118*h92mm |
LED lamp shape: | Round |
Finishing color: | White & Customized |
Luminous flux: | 500-1000lm |
Power: | 5W,10W, 100V-240V,50-60Hz |
Diameter: | 5W(100mm) , 10W(118mm) |
Cut size: | 5W(80mm) ,10W( 95mm) |
Color Temperature: | 3000K/4000K/6000K |
Beam angle: | 60 |
Material: | Zinc alloy |
Lamp efficiency: | 100lm/w |
warranty: | 2 years |
Brightness equivalent to conventional fixtures
-In terms of Optical System,the High-Efficient Reflector is Made of 99.9%-purity aluminums. The technological innovation for Grille Spot Lights refers mainly to the design of optical system. Leimove’s grille spot light can generate a higher lighting effect,since the reflectors are made of 99.9%-purity aluminums.Thus,our optical design is more scientific,the brightness is at least increased by 30%.
◆ Product Comparison
◆ Lighting Figure
◆ Scene Show
◆ Terms of Trade
Payment&Shipping
1.Payment: 30% advance payment by TT, 70% balance should be paid off before loading.
2.FOB and EXW all are available.
3.Production lead time:20-35 days.
4.Sample can be delivered in 3-5 days.
5.Shipping freight are quoted under your requests.
6.Loading port: Shenzhen or Guangzhou, Zhongshan etc. Mainland China.
7.Discounts are offered based on large quantities.
