Application-1
Not only can the LED strip be powered, but also other lamps.
Brand： |
none |
Address： |
Guangdong Shenzhen |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
❈ Product description
Product Features
• Universal AC input 90~305VAC
• Built-in active PFC function
• High efficiency up to 95%
• Fanless design, cooling by free air convection
• Ultra-wide operating temperature
• Meet 6kV surge immunity level
• Withstand 10G vibration test
• Operating altitude up to 5000 meters
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Multiple models for choice: A-Type: IP65 rated, Vo and Io can be adjusted through internal potentiometer;Blank-Type(option): IP68 rated, Vo and Io fixed
• Suitable for general industrial applications at high/low temperature, high dust, high moisture, high vibration, high salt or outdoor environment
• 6 years warranty
• Built-in active PFC function
• High efficiency up to 95%
• Fanless design, cooling by free air convection
• Ultra-wide operating temperature
• Meet 6kV surge immunity level
• Withstand 10G vibration test
• Operating altitude up to 5000 meters
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Multiple models for choice: A-Type: IP65 rated, Vo and Io can be adjusted through internal potentiometer;Blank-Type(option): IP68 rated, Vo and Io fixed
• Suitable for general industrial applications at high/low temperature, high dust, high moisture, high vibration, high salt or outdoor environment
• 6 years warranty
❈ Product parameters

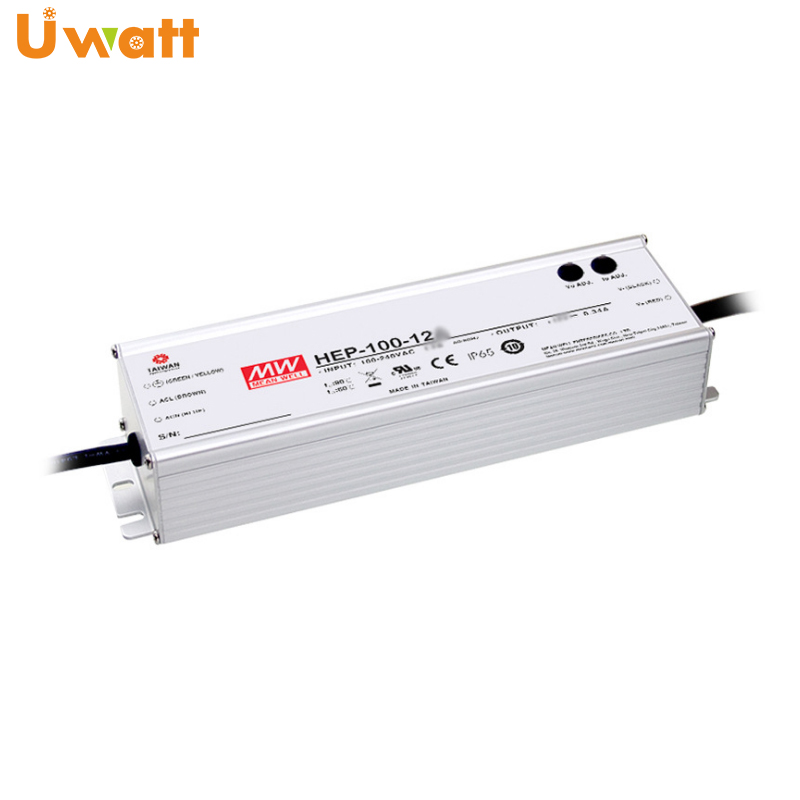

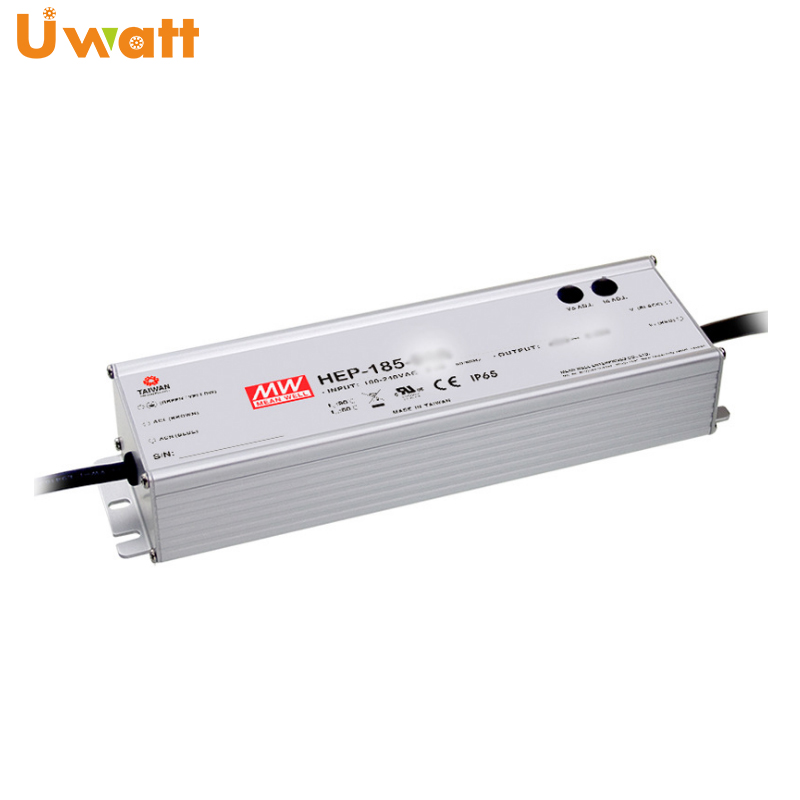

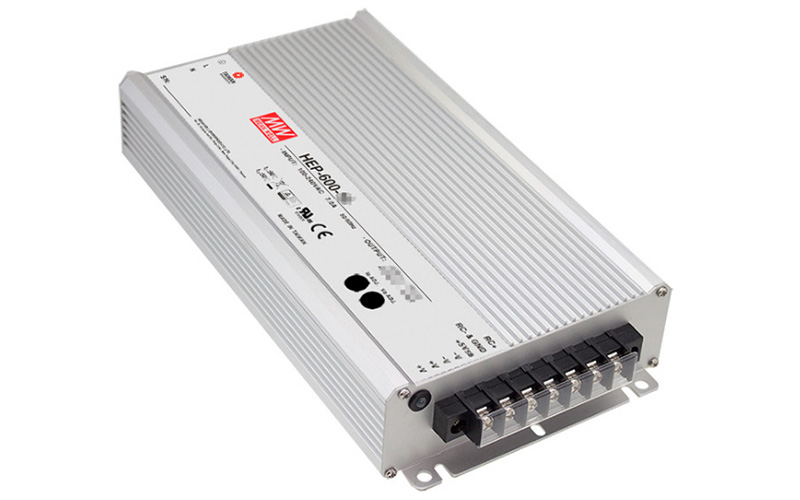

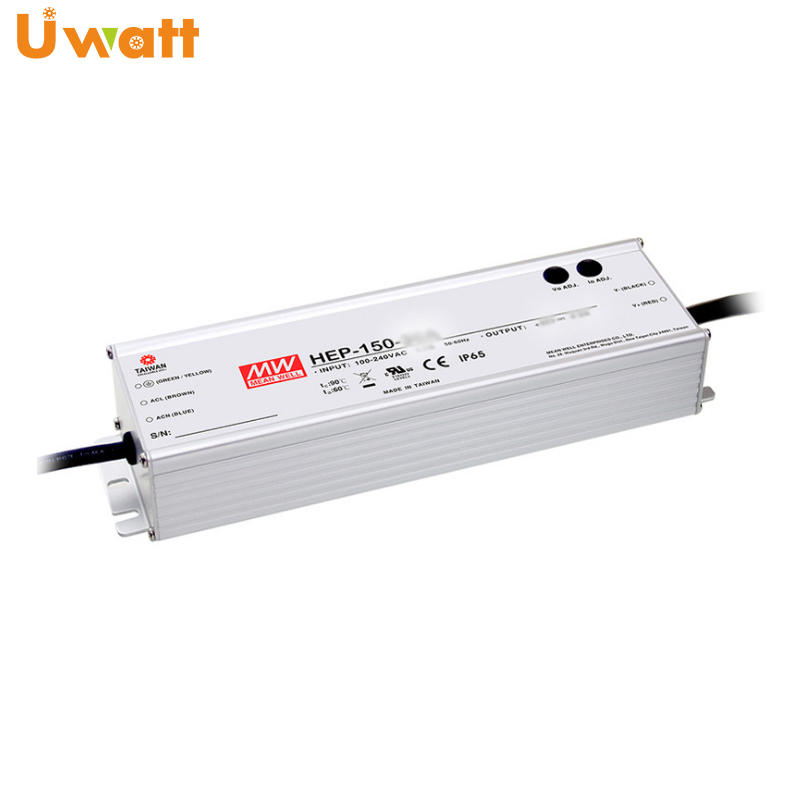

| Model No. | HEP-100 | HEP-150 | HEP-185 | HEP-240 | HEP-320 | HEP-480 | HEP-600 | |||||||
| Part No | HEP-100-12 | HEP-100-24 | HEP-150-12 | HEP-150-24 | HEP-185-12 | HEP-185-24 | HEP-24-12 | HEP-240-24 | HEP-320-12 | HEP-320-24 | HEP-480-24 | HEP-600-12 | HEP-600-24 | |
| AC input voltage range | 90~305VAC, 127~431VDC | |||||||||||||
| AC inrush current (max.) | Cold start, 60A at 230VAC | Cold start, 65A at 230VAC | Cold start, 65A at 230VAC | Cold start, 75A at 230VAC | Cold start, 70A at 230VAC | Cold start, 35A at 230VAC | Cold start, 70A at 230VAC | |||||||
| Output | 12V, 0~8.34A | 24V, 0~4A | 12V, 0~10A | 24V, 0~6.3A | 12V, 0~13A | 24V, 0~7.8A | 12V, 0~16A | 24V, 0~10A | 12V, 0~22A | 24V, 0~13.34A | 24V, 0~20A | 12V, 0~40A | 24V, 0~25A | |
| Efficiency | 92.0% | 93.0% | 91.5% | 93.0% | 93.5% | 92.0% | 90.0% | 92.5% | 91.0% | 94.0% | 94.0% | 93.0% | 95.0% | |
| Connection | Input | UL rated, SJTW 18AWGx3C(30cm) | UL rated, SJOW 17AWGx3C (30cm) | 3+7P / 11mm pitch terminal block with cover | ||||||||||
| Output | SJTW 14AWGx2C(30cm) | SJOW 17AWGx2C+17AWGx2C | ||||||||||||
| Working temperature | -55~+70°C(refer to output derating curve) | -55~+65°C (refer to output derating curve) | -40~+70°C(refer to output derating curve) | |||||||||||
| Dimension (LxWxH)(mm) | 220x 68x 38.8 | 228x 68x 38.8 | 244.2x 68x 38.8 | 252x 90x 43.8 | 262x 125x 43.8 | 280x 144x 48.5 | ||||||||
High Efficiency, Long Lifespan, IP65
❈ product details
01
Multiple models for choice
Multiple models for choice: A-Type: IP65 rated, Vo and Io can be adjusted through internal potentiometer; Blank-Type(option): IP68 rated, Vo and Io fixed
02
Efficiency
High efficiency up to 95%.
❈ product Applications
Application-2
Suitable for general industrial applications at high/low temperature, high dust, high moisture, high vibration, high salt or outdoor environment.
