Product Details
❈ Product description
Product Features
• Constant voltage mode
• Withstand 300VAC surge input for 5 seconds (LPV-20/35/60/100)
• Fully encapsulated with IP67 level
• Isolation class II, no F.G.
• Class 2 power unit / Pass LPS (LPV-20/35/60 only)
• Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires(LPV-20/35）
• Low cost, high reliability
• Suitable for LED-based decorative/architectural lighting, LED stage, theater lighting, and LED electronic displays
• Protections: Short circuit / Overload / Over voltage / Over temperature (LPV-150 only)
• 2 years warranty
• Withstand 300VAC surge input for 5 seconds (LPV-20/35/60/100)
• Fully encapsulated with IP67 level
• Isolation class II, no F.G.
• Class 2 power unit / Pass LPS (LPV-20/35/60 only)
• Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires(LPV-20/35）
• Low cost, high reliability
• Suitable for LED-based decorative/architectural lighting, LED stage, theater lighting, and LED electronic displays
• Protections: Short circuit / Overload / Over voltage / Over temperature (LPV-150 only)
• 2 years warranty
❈ Product parameters

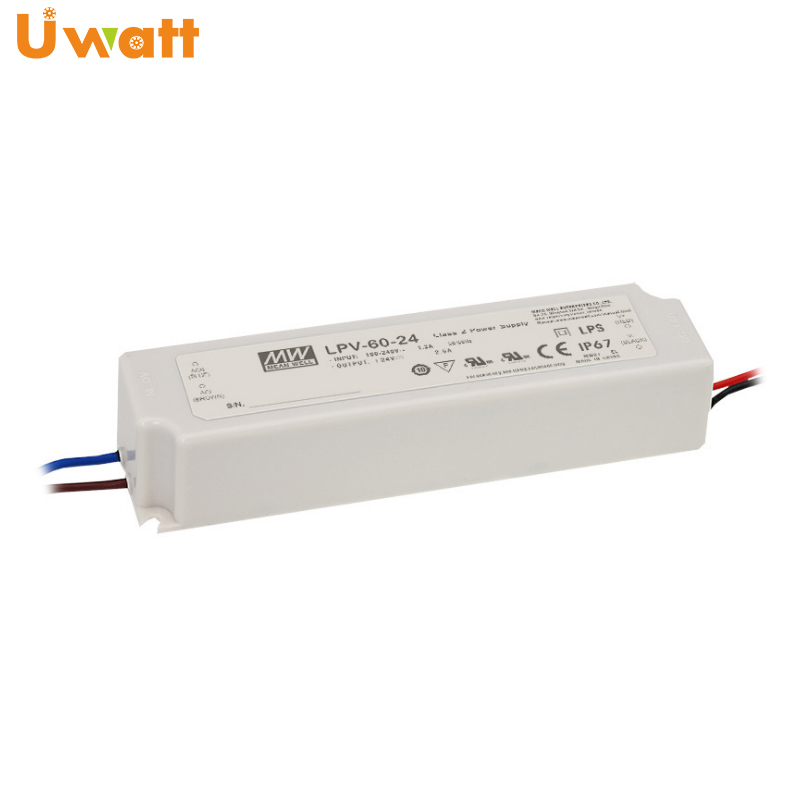

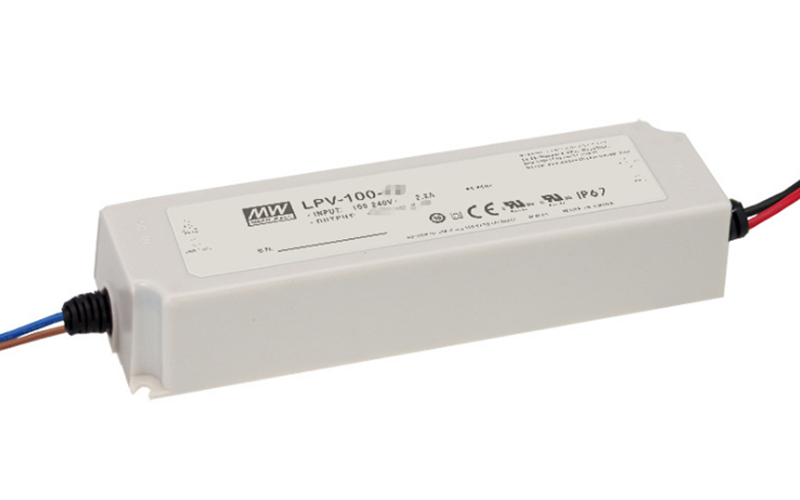

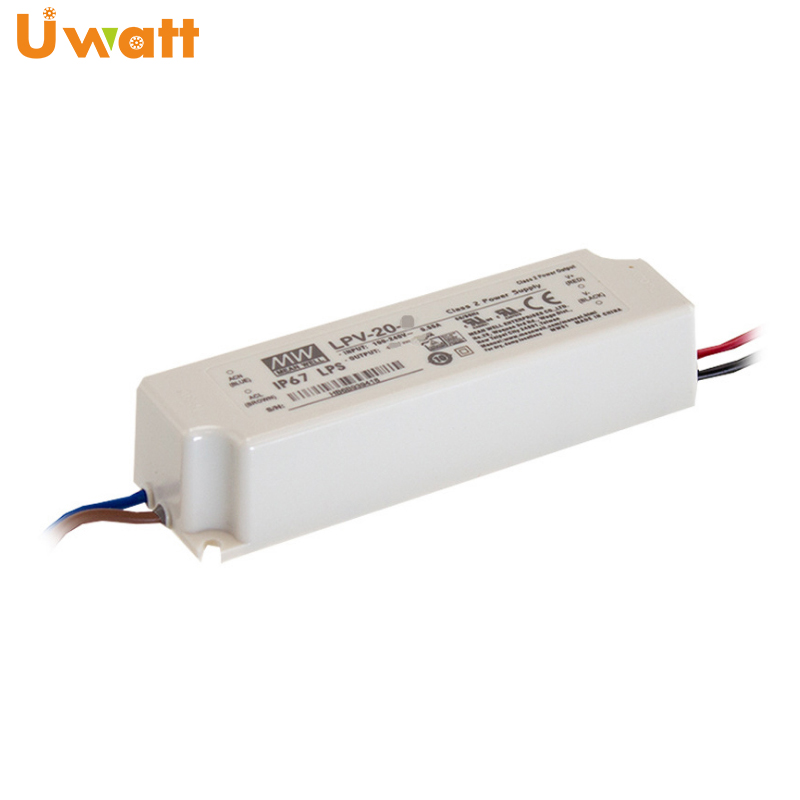

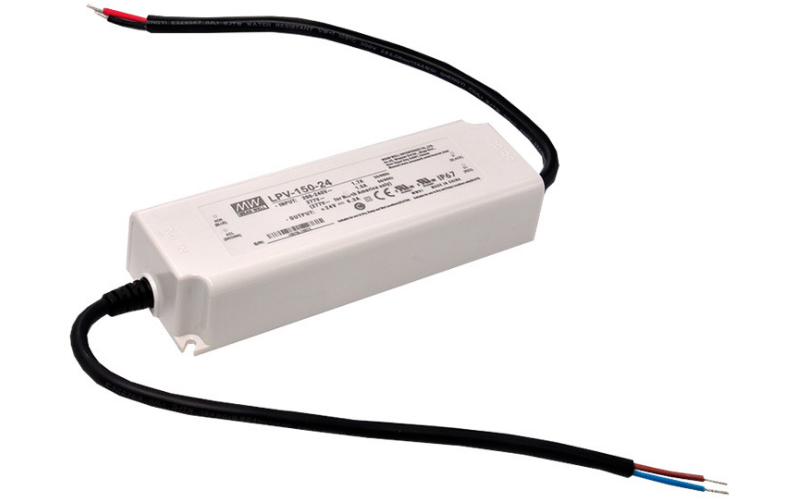

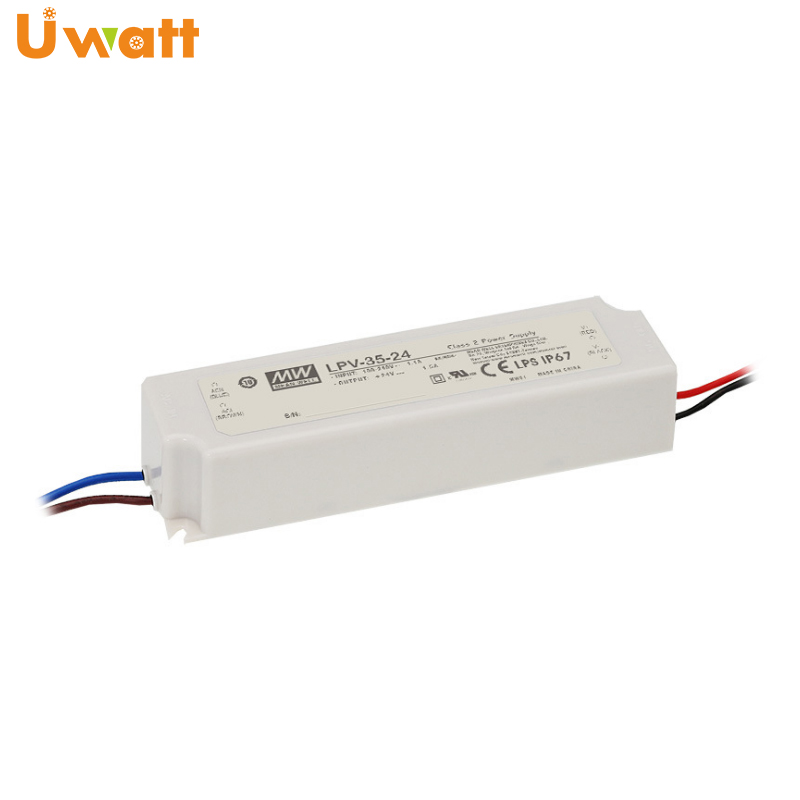

| Model No | LPV-20 | LPV-35 | LPV-60 | LPV-100 | LPV-150 | ||||||
| Part No | LPV-20-12 | LPV-20-24 | LPV-35-12 | LPV-35-24 | LPV-60-12 | LPV-60-24 | LPV-100-12 | LPV-100-24 | LPV-150-12 | LPV-150-24 | |
| AC input voltage range | 90~264VAC | 90~264VAC; 127~370VDC | 180~305VAC; 254~431VDC | ||||||||
| AC inrush current (max.) | Cold start,70A at 230VAC | Cold start,55A at 230VAC | Cold start, 60A at 230VAC | Cold start, 75A at 230VAC | Cold start, 60A at 230VAC | ||||||
| Output | 12V, 0~1.67 | 24V, 0~0.84A | 12V, 0~3A | 24V, 0~1.5A | 12V, 0~5A | 24V, 0~2.5A | 12V, 0~8.5A | 24V, 0~4.2A | 12V, 0~10A | 24V, 0~6.3A | |
| Efficiency | 81.0% | 84.0% | 83.0% | 85.0% | 83.0% | 86.0% | 85.0% | 88.0% | 87.0% | 89.0% | |
| Connection | Input | UL rated, 18AWGx2C (60cm) | UL rated, 18AWGx2C (60cm) | UL rated, 18AWGx2C (30cm) | UL rated, SJTW 18AWGx2C (30cm) | ||||||
| Output | UL rated, 16AWGx2C (60cm) | UL rated, 14AWGx2C (30cm) | UL rated, SJTW 14AWGx2C (30cm) | ||||||||
| Working temperature | -30~+70°C | -30~+65°C | -30~+70°C | -25~+70°C | -25~+65°C | ||||||
| Dimension (LxWxH)(mm) | 118x 35x 26 | 148x 40x 30 | 162.5x 42.5x 32 | 190x 52x 37 | 191x 63x 37.5 | ||||||
Low Cost，Waterproof Driver
❈ product details
01
Wide voltage, small size
02
When You Don't Need To Use It So Long, You Can Cut It To The Length You Need.
❈ product Applications
Application-2

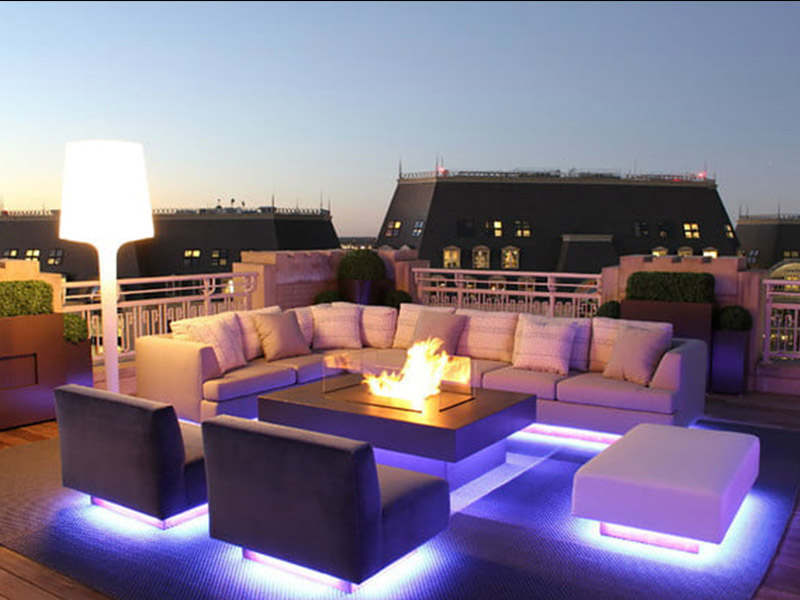

RGB LED strips can be used in hotels, in dark slots in rooms, or on walls, to design the shapes and colors you want so that the room is no longer monotonous and vibrant.
