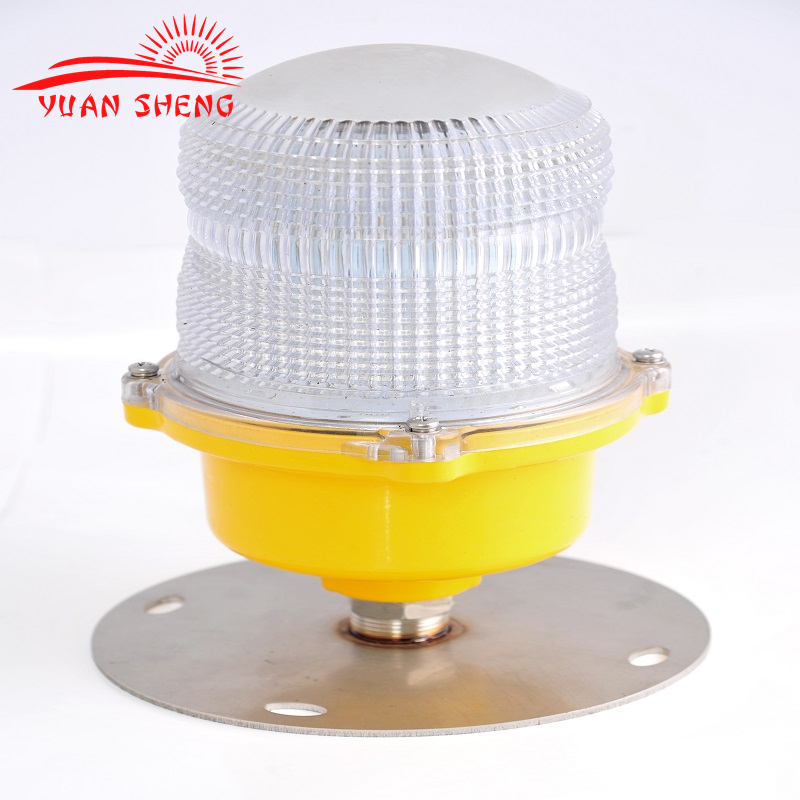

Name: Low intensity telkom steady burning or flashing aviation light/lamps/ bulbs
Availability: InStock

Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC110V~AC240V

Lamp Power(W):: 8

Lamp Luminous Flux(lm):: 100

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra):: 100

Color Temperature(CCT):: Red

Beam Angle(°):: 360 Degree

IP Rating:: IP65

Certification:: CE, EMC, RoHS

Emitting Color:: Red

Lamp Body Material:: Aluminum Alloy

Base Type:: LED

Light Source:: LED

Place of Origin:: Hunan, China

Brand Name:: YUANSHENG

Light Intensity:: 100cd

Weight:: 1.2kg

Lens:: Polycarbonate,UV Stabilized

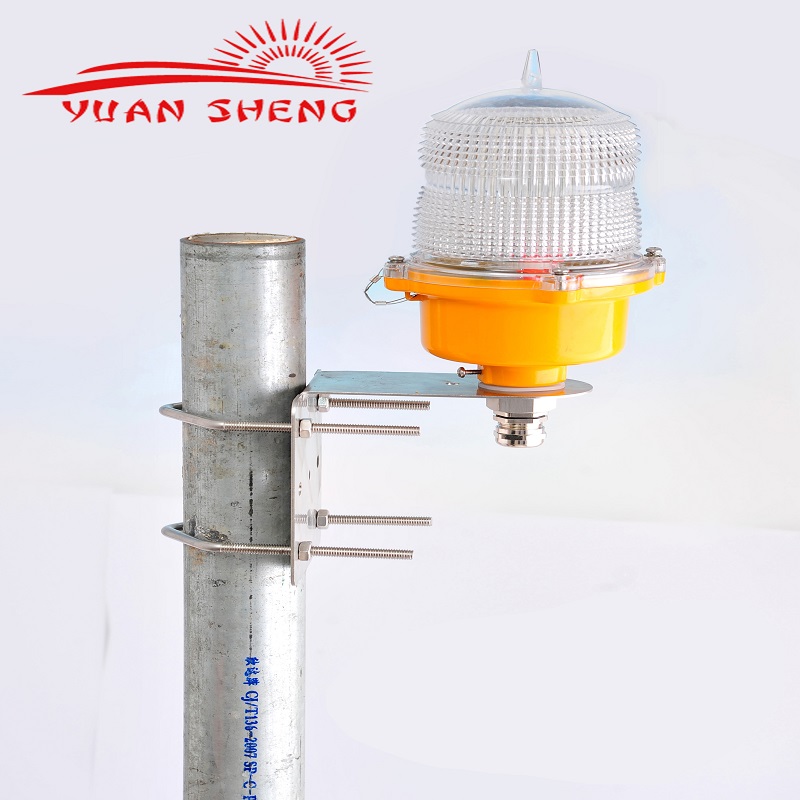

Mounting Size:: Threaded 3/4" bottom hub

Working mode:: Steady or Flashing can adj

luminous decay:: NO

Application:: Telecom tower,chimney...

Products name:: YOL100

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Cartons, Wooden cases

Port: Shenzhen/Shanghai

Specifications

Description	Parameter
Standard	Compliant to the ICAO(low intensity type A) and FAA-L810
Vertical degree	≥10 Degree
Light source	LED
Horizontal degree	360 Degree
LED color	Aviation red
Flashing rate	Steady burning or flashing(flashing rate can be selected)
Operating voltage	AC110V~AC240V(Option:DC48V)
LED life	≥100,000h
Power consumption	8W
On/off level	70Lux/100Lux
Intensity	≥100cd
Operating temperature	-30C ~ +70C
IP Protection	IP65
Relative humidity	10% ~ 95% (no condensing)
Weight	single:1.2KG Double Light:3.5KG
M aterial	Base:Die casting aluminum, housing: PC

YOL100 Low intensity telkom steady burning or flashing aviation light/lamps/ bulbs
