Product Details

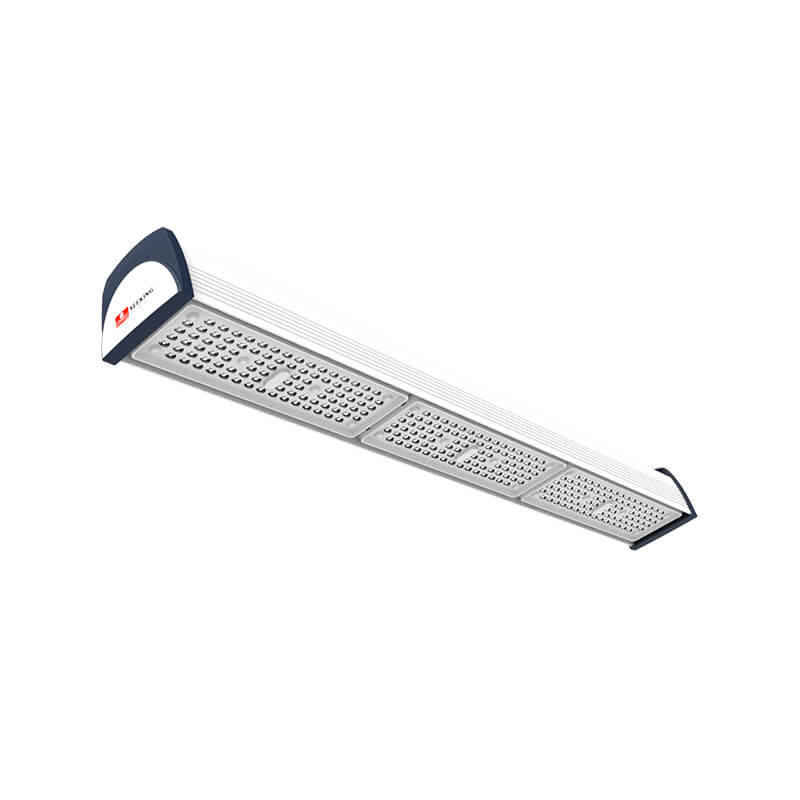

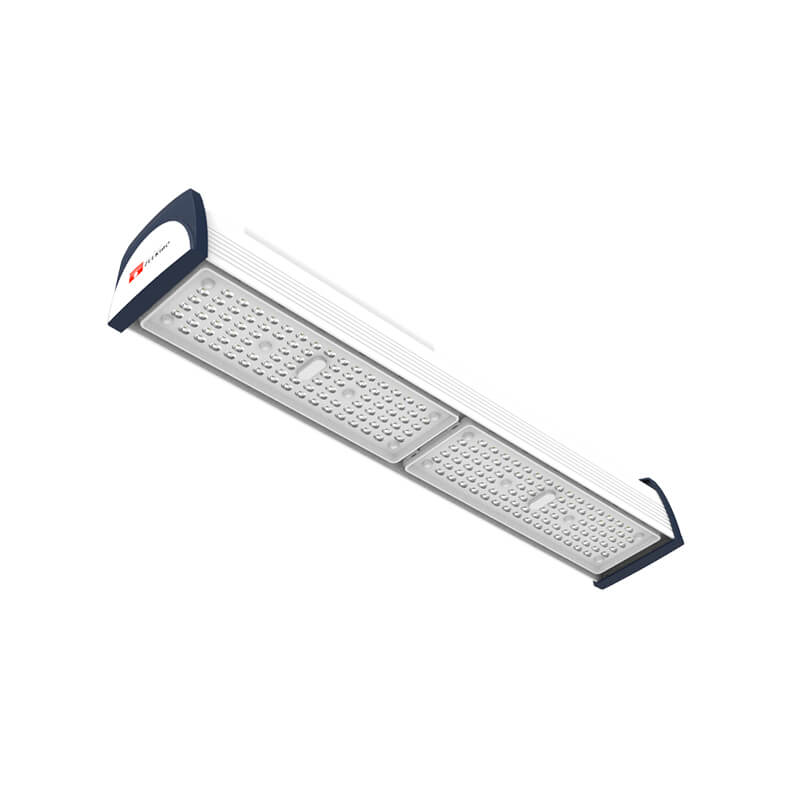

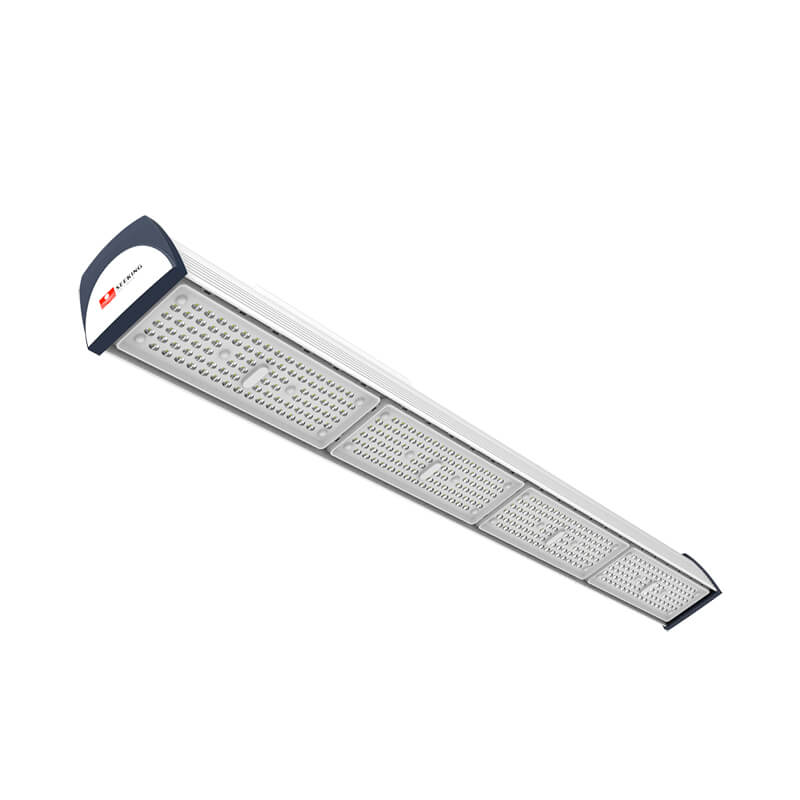

Multiple lens linear high bay,patent design,ideal for hi racks warehousing or other facilities.
◆ PRODUCT PARAMETER
| Data Specifications | HBX-2 series | ||||
| Power | 50W | 100W | 150W | 200W | 240W |
| Input Voltage | AC100-180V：35W AC200-305V：50W 50/60Hz | AC100-180V：70W AC200-305V：100W 50/60Hz | AC100-180V：105W AC200-305V：150W 50/60Hz | AC100-180V：140W AC200-305V：200W 50/60Hz | AC100-180V：170W AC200-305V：240W 50/60Hz |
| Output Voltage | DC40-45V | ||||
| color temperature | 2800-3200 /4000-4500 /5500-6000K | ||||
| CRI | Ra>70 & Ra>80 | ||||

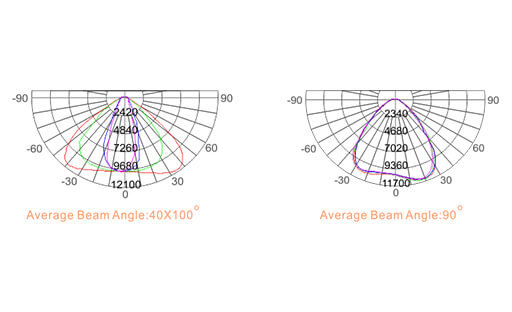

| Average Beam angle(50%) | 90°/30X70°/40X100° | ||||
| Light Efficiency | whole lamp output 130lm/w | ||||
| Lumens | 50W：6500lm | 100W：13000lm | 150W：19500lm | 200W：26000lm | 240W：31200lm |
| LED | 91( Tiandian 3030)pcs | 182( Tiandian 3030)pcs | 273( Tiandian 3030)pcs | 364( Tiandian 3030)pcs | 455( Tiandian 3030)pcs |
| Driver | MEANWELL ELG75-48A | MEANWELL ELG100-48A | MEANWELL ELG150-48A | MEANWELL ELG-240-48A | |
| UGR | 20 | ||||
| Power Factor(Typ) | ≥0.95 | ||||
| Operating Temperature | （-40～70 ℃）(Lowest operation temp -40°C, and highest 70°C) | ||||
| Ip rate | the waterproof grade IP65 ,can work outdoor under rain | ||||
| Life Span | 50000Hrs (L70B50>50,000hrs) | ||||
| Main Materials | Aluminum+LED+PC | ||||
| Operating Humidity | 20%～95% | ||||
| Storage Temperature | (-40～90 ℃) | ||||
| Lumen Maintenance | >85%（5000Hrs） | ||||
| Others | |||||
| Replace Traditional lamp | 50W≥125W；100W≥250W(HPS ,MH, HID) | 150W≥600W；200W≥800W；240W≥1000W(HPS ,MH, HID) | |||
| Energy Saving | 75% | ||||
| Lux on 5 meter | 50W=325lx； 100W=480lx (lux at ground from 5m high) | 150W=464lx；200W=604lx； 240W=1622lx (lux at ground from 5m high) | |||
| Lux on 10 meter | 50W=81.25lx；100W=120lx (lux at ground from 10m high) | 150W=116lx；200W=151lx； 240W=405.5lx(lux at ground from 10m high) | |||
| Temperature on housing Max | 50W=63.3 °C；100W=63.2°C (Test environment temperature 25 °C） | 150W=59.8°C；200W=66.3°C；240W=64 .5°C（Test environment temperature 25 °C） | |||
| Temperature on LED Max | 50W=72.8 °C；100W=73 °C (Test environment temperature 25 °C） | 150W=75.8°C；200W=73°C； 240W=73.8 °C（Test environment temperature 25 °C） | |||
| Temperature on Driver Max | 50W=62.7 °C；100W=59.5°C (Test environment temperature 25 °C） | 150W=63.3°C；200W=65.5 °C； 240W=65.9 °C（Test environment temperature 25 °C） | |||
| Net weight | 2.2 Kgs (without package) | 3.2 Kgs (without package) | 4 Kgs (without package) | 4.7Kgs (without package) | 5.5 Kgs (without package) |
| Gross Weight(Kgs) | 22 kg/carton(6 pcs) | 22 kg/carton(6 pcs) | 18 kg/carton(4 pcs) | 21 kg/carton(4 pcs) | 25 kg/carton(4 pcs) |
| Package Size | 50W=L340mm/100W=L600mm/150W=860mm/200W=1110mm/240W=L1355mm；W150mm*H140mm/carton | ||||
| Installations | Industrial Facilities,Workshops,Factories,Warehousing,any height over 4m indoor or outdoors. | ||||

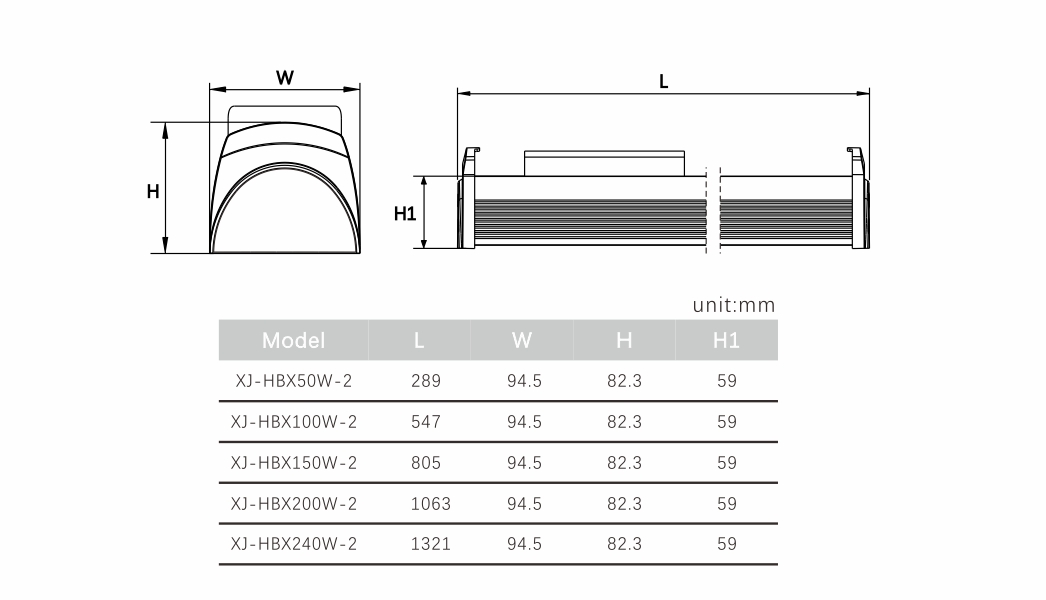

◆ PRODUCT SIZE
◆ PRODUCT DETAILS

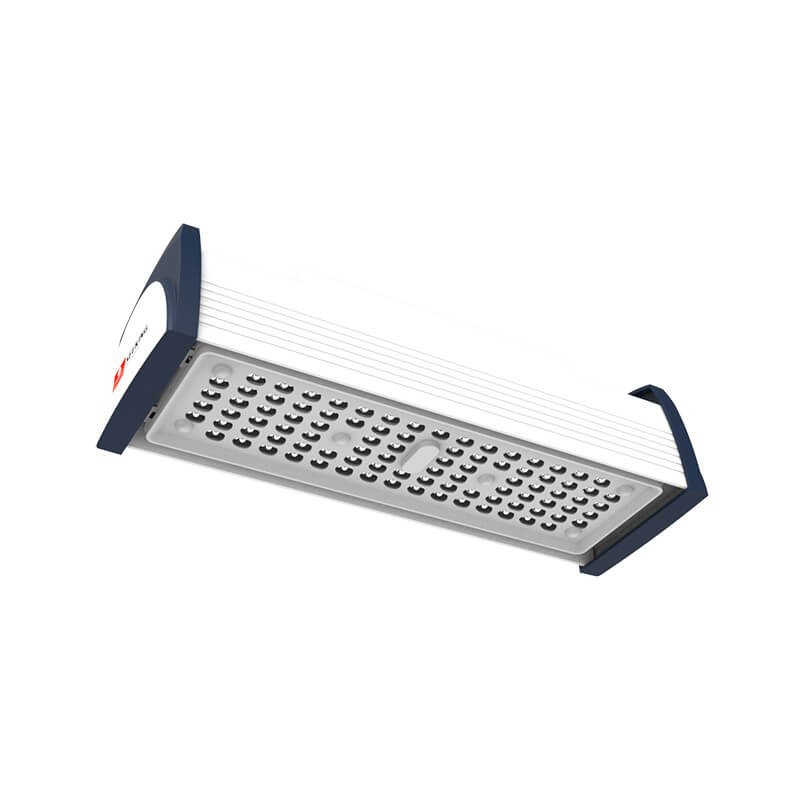

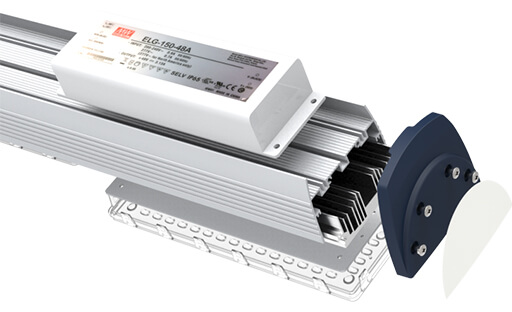

Professional cooling structure, cross ventilation design, improve heat dissipation performance. With 50-240W, a total of 5 suites available for selection.

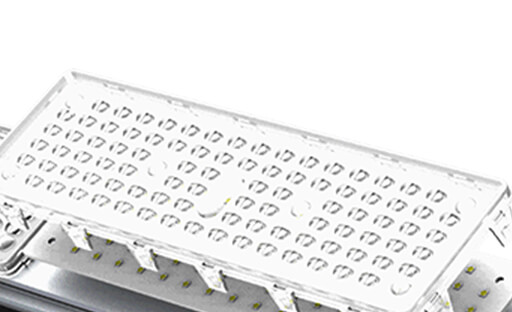

40x100 degrees and 90 degrees lenses are optional.

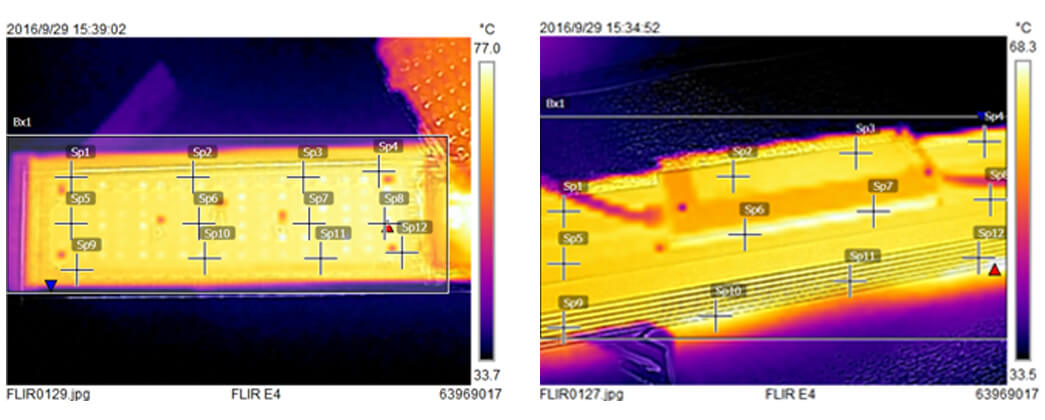

◆ THERMAL PRESENTATION
The combination of high thermal conductivity materials.The whole lamp is tested by thermal radiation: HBX-2 150W The lowest operating temperature of the radiator is 34 degrees, the highest temperature is 68 degrees, the lowest operating temperature of the LED light source is 34 degrees, the highest temperature is 77 degrees, the whole product greatly improved the life and stability.

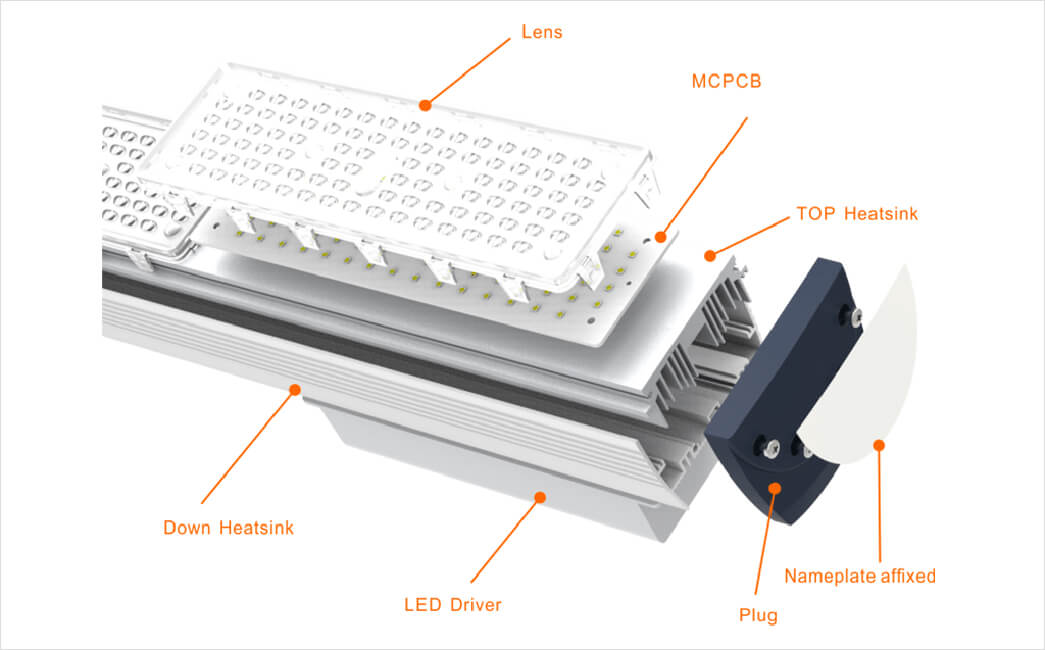

◆ PRODUCT EXPLOSIVE VIEW

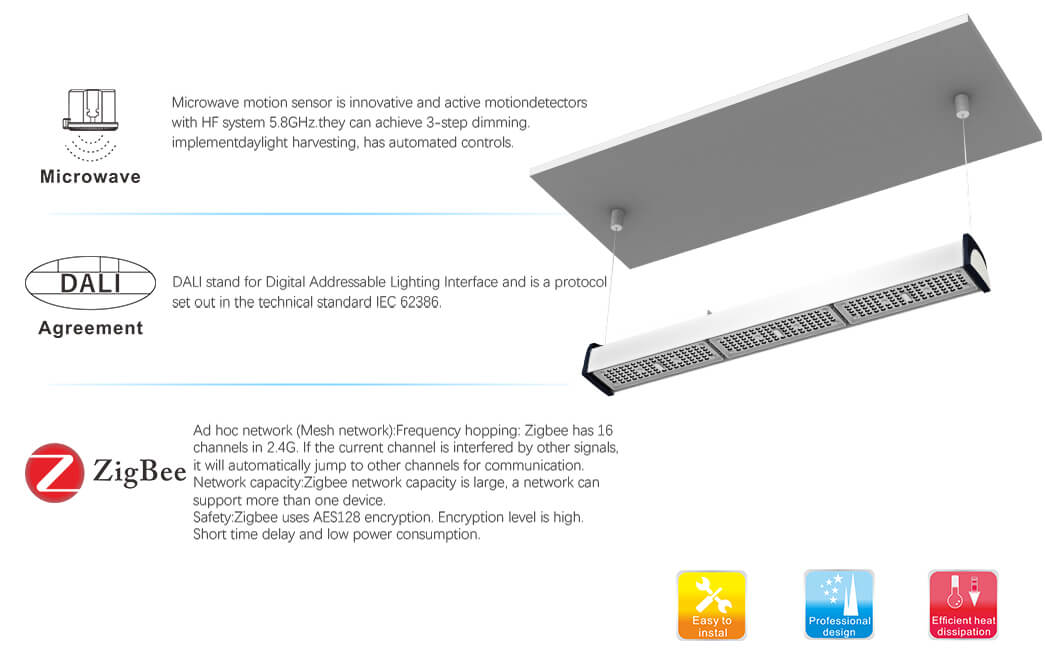

◆ PRODUCT FUNCTION APPLICATION

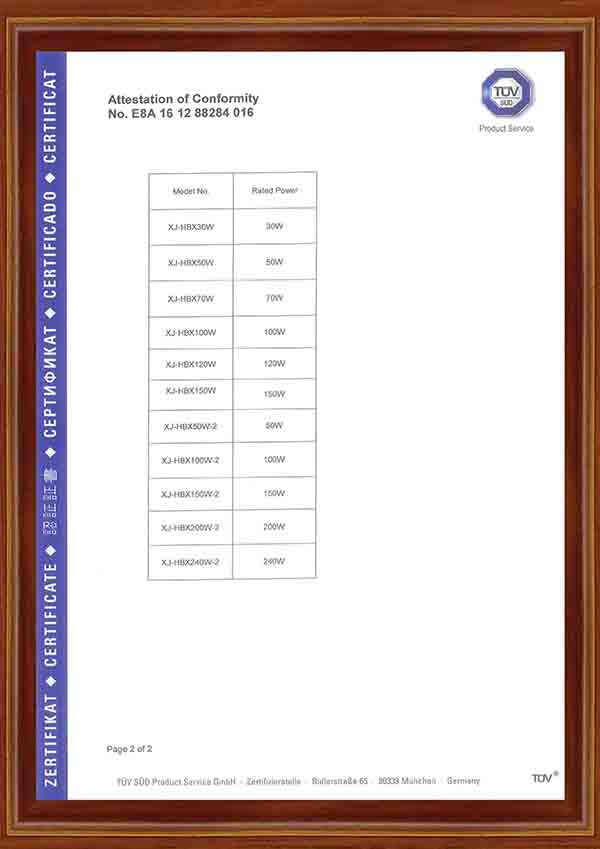

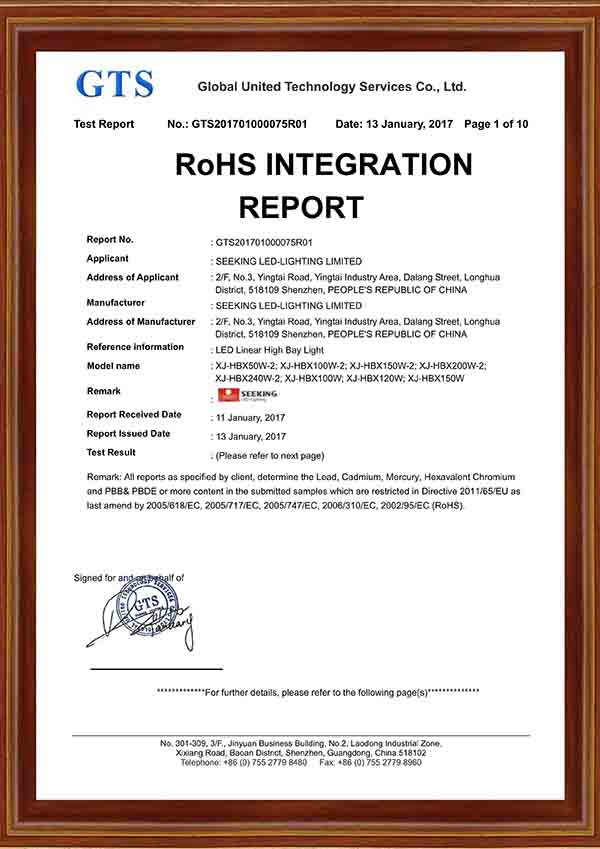

◆ CERTIFICATE
