Product Details
CS-810/D Low-intensity double aviation light is designed for Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions within 45 meters to air traffic with a steady/flashing burning red safety light. When one lamp is fail, another still operate.
Product Specifications
| Light intensity | 10cd |
| Operation mode | Steady-burning (Customized flashing 20-60fpm ) |
| Service life of LED | ≥100,000hours |
| Operating voltage | AC110V-240V, DC12V-48V, 50-60Hz |
| Power consumption | 3W |
| Vertical Beam Spread | ≥10° |
| Horizontal degree | 360° |
| Material | Housing: PC, Base: die casting aluminum |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
| Working way of two lights | Two light flashing synchronously or by Main-standby way，Two light Steady-burning synchronously or by Main-standby way |
| Overall size(mm) | 295 by 130 by 337 |
| Mounting size | 78 by 78 by 9 |
| Weight | 2Kg |
Product Features
◆ ICAO Certificate from USA Intertek. No.:102968386CRT-001TVoC
◆ IP65 waterproof rating.
◆ Low power consumption.
◆ Long life LED light source.
◆ Integrated design with built-in photocell.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV protection.

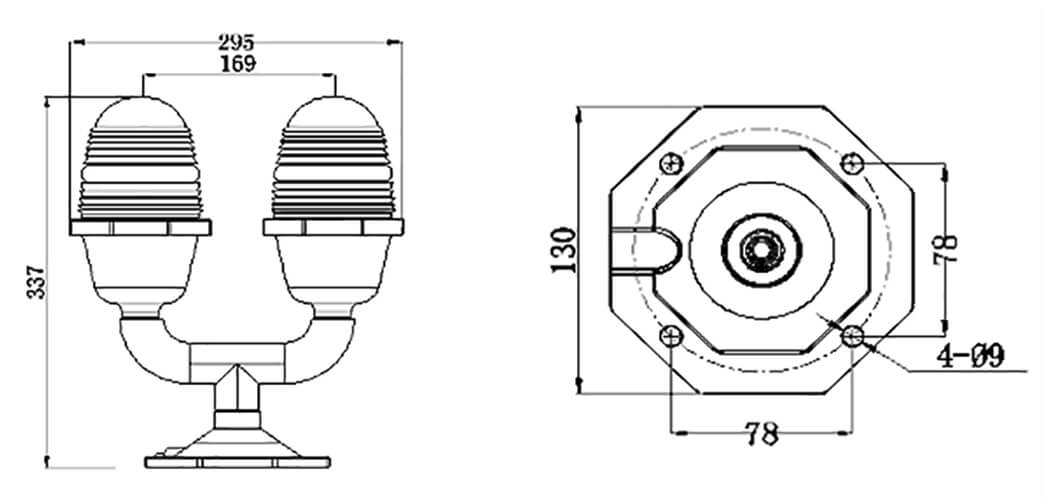

Product Dimension
Case

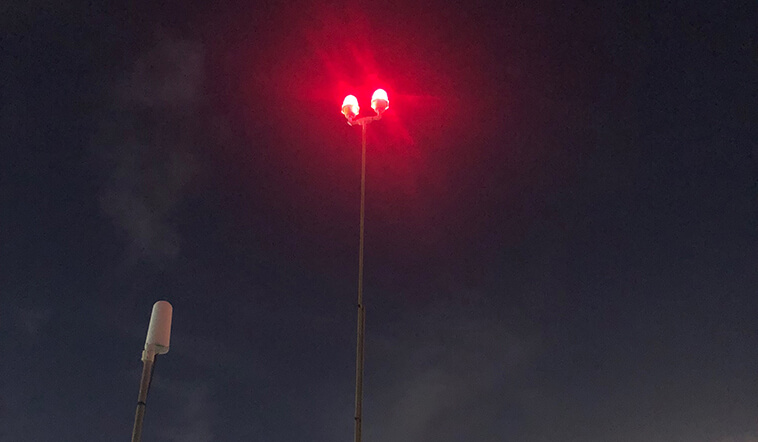

LED Aircraft Warning Light for USA High Building
CS-810/D Low-intensity Aircraft Warning are designed to outline hazardous obstructions within 45m to air traffic with a flashing red safety light. It complied with ICAO low intensity obstacle light and FAA L-810 obstacle light.

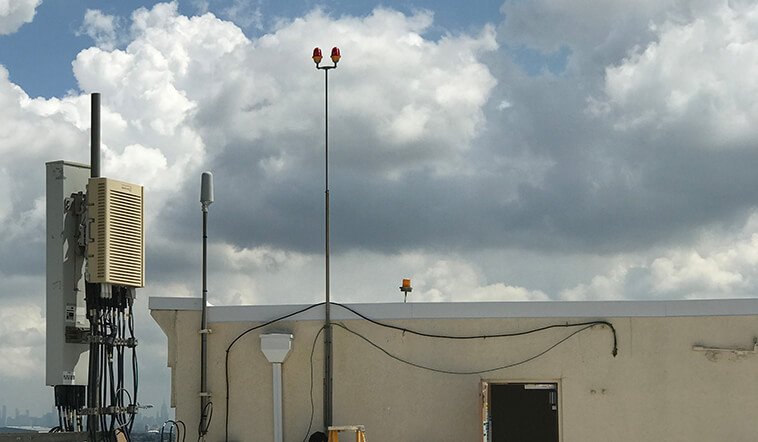

ICAO Certified Low intensity Dual Obstruction Light for USA Building
ICAO Certified Low intensity Dual Obstruction Light CS-810/D are designed for marking outline hazardous obstructions within 45m to air traffic with a flashing red safety light. Equipped with advanced LED with lifetime more than 100,000 hours.

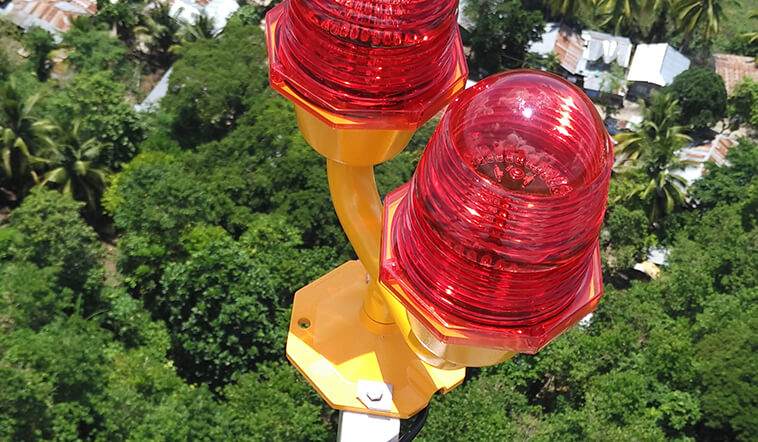

ICAO Low intensity Aviation Light for Philippines Telecommunication Tower
ICAO Low intensity Aviation Light CS-810/D are designed for marking hazardous obstructions within 45m to air traffic with a flashing red safety light. Built-in circuit protect LED, extremely reliable and cost saving.
LED Low intensity Aviation Light for Philippines Telecommunication Tower
CS-810/D LED Low intensity Aviation Light are designed to outline hazardous obstructions within 45m to air traffic with a flashing red safety light. Integrated design with built-in photocell, auto ON/OFF of lamps.

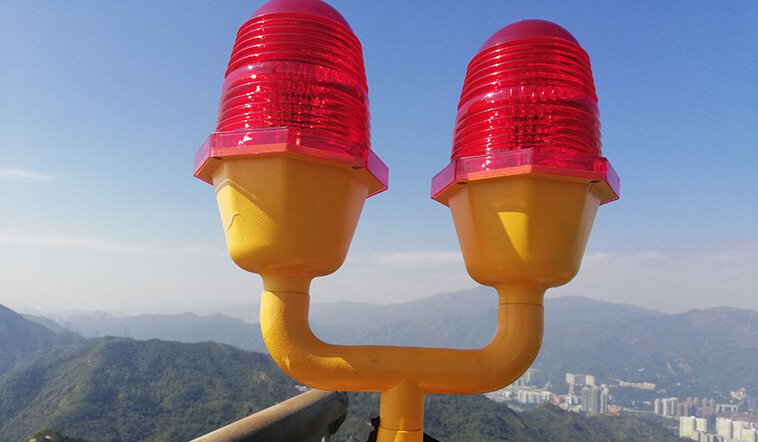

Low intensity Aircraft Warning Light for Hong Kong TVB Television Tower
Low intensity Aircraft Warning Light CS-810/D are designed for marking hazardous obstructions within 45m to air traffic with a flashing red safety light. 95% less power consumption than incandescent light.

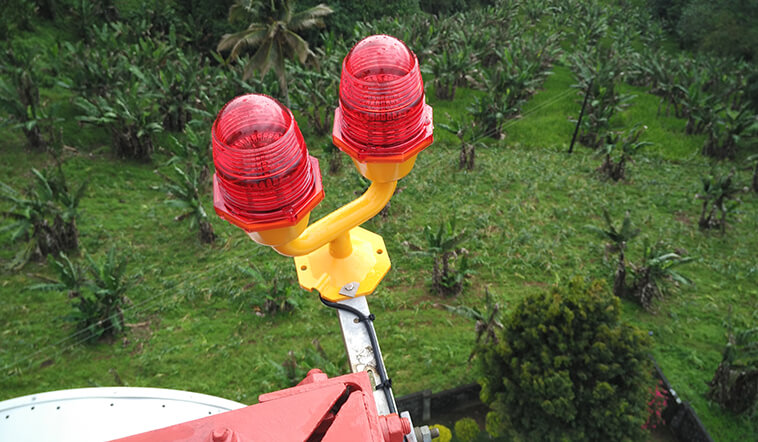

Low intensity Dual Aviation Light for Philippine Telecommunication Tower
Low intensity Dual Aviation Light CS-810/D are designed to outline hazardous obstructions within 45m to air traffic with a flashing red safety light. Aluminum alloy material keeps it a long service light.

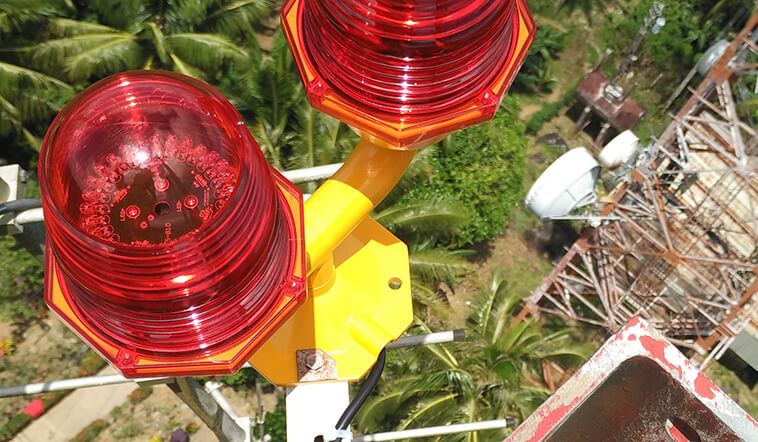

Low intensity Obstruction Light for Philippines Telecommunication Tower
CS-810/D Low intensity Obstruction Light are designed for marking hazardous obstructions within 45m to air traffic with a flashing red safety light. It is equipped with LED aviation lens with 360° Omnidirectional LED Reflector.
