Product Details
CS-810/S Low-intensity double solar-powered aviation obstruction light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations such as High-rise Building, Marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Product Specifications
| Light intensity | 10cd |
| Operation mode | Steady-burning |
| Service life of LED | ≥100,000hours |
| Battery | 12mAh, DC12V, Replaceable battery |
| Operating voltage | DC12V(Solar powered Way) |
| Power consumption | 5W |
| Overall size(mm) | 303 by 220 by 292 |
| Mounting size | Ø250 by M10 by 4 |
| Autonomy | at least 5 days |
| Material | Housing: PC, Base: die casting aluminum |
| Weight | 5Kg |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
| Working way of two lights | Two light Steady-burning synchronously or by Main-standby way |
Product Features
◆ ICAO Certificate from USA Intertek. No.:102968386CRT-001TVoC.
◆ IP65 waterproof rating.
◆ Long life LED light source.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV protection.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Built-in circuit protect LED, extremely reliable and cost saving.
◆ International advanced solar panel reaching at least 10 years service life.
Product Dimension
Production Process

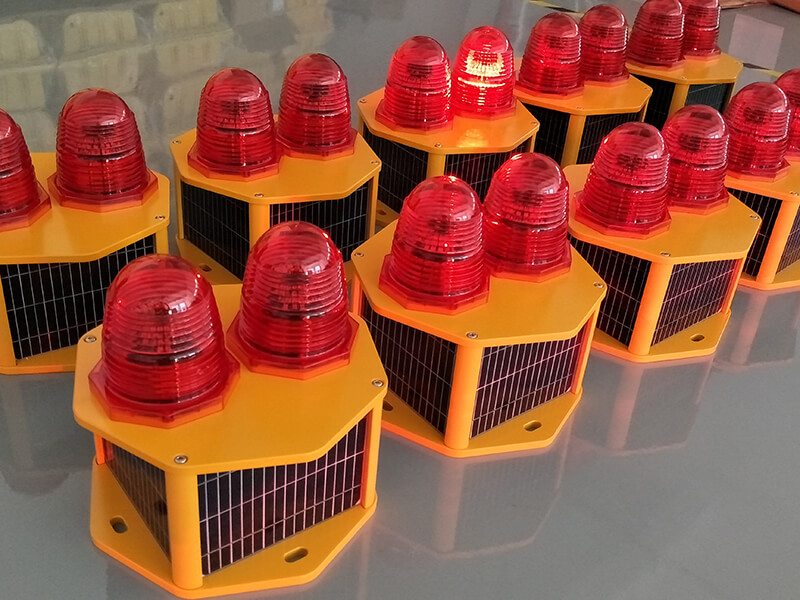

Aging Test
Electrical Test of Low intensity solar powered aviation light

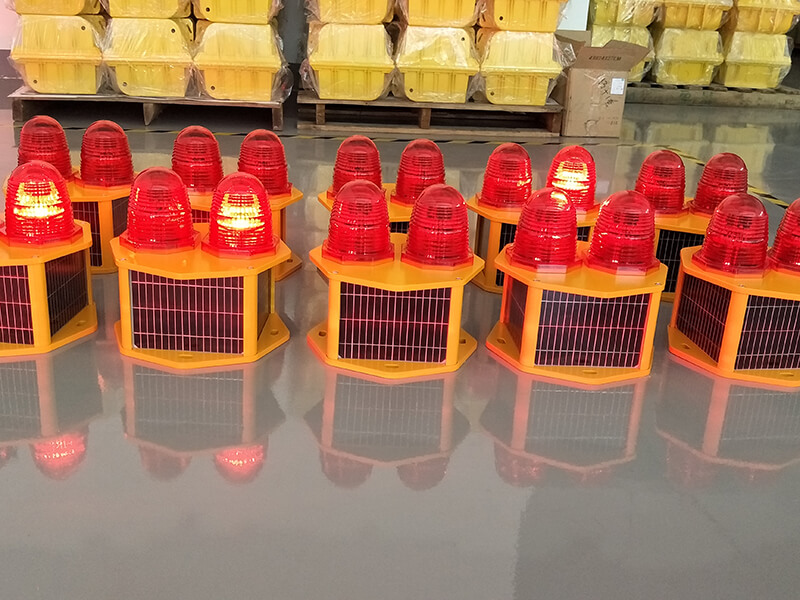

Aging Test
Aging Test of Low intensity single solar obstruction light

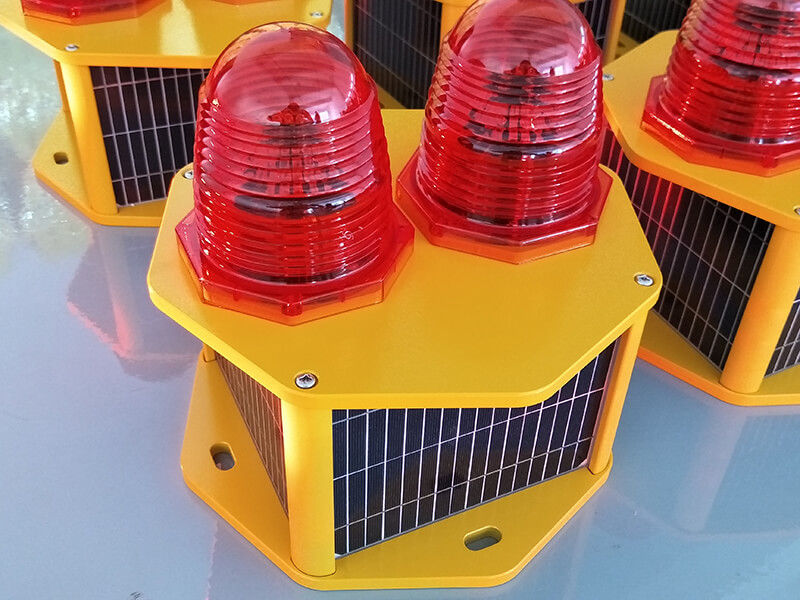

Aging Test
Electrical Test of Low intensity solar aircraft warning light
