High quality hotsell led high bay lamp 100 w
Specifications of led high bay lamp 100 w:
- Housing: 0.6mm steel sheet with high quality powder coated
- Louver:Alanod specular 320G with 86% or metal reflector with white powder coated.
- Eletrical Components:
- LED Module: UL/CUL approved LED module.
- Wattage: 80W,120W,100W,150W,180W & 210W
- Lumen: 13827 lumen~24000 lumen
- LED Life: 50,000 hours
- Color: 4000K
- CRI: 80%
- LED Dirver: UL/CUL approved LED driver
- Output Mode:Constant Current
- Voltage: 120 to 277VAC
- Installation:surface mounted or hanging
| Model | Watts | Lumen | LED Qty | LED type | CRI | Warranty |
| HB-4-80W | 80W | 8995.39 | 208 pcs | 5630 | 80% | 50000 hrs |
| HB-4-120W | 120W | 10380 | 240 pcs | 5630 | 80% | 50000 hrs |
| HB-6-100W | 100W | 13827.4 | 312 pcs | 5630 | 80% | 50000 hrs |
| HB-6-150W | 150W | 15954.6 | 360pcs | 5630 | 80% | 50000 hrs |
| HB-6-180W | 180W | 18000.1 | 360pcs | 5630 | 80% | 50000 hrs |
| HB-6-210W | 210W | 24000 | 468 pcs | 5630 | 80% | 50000 hrs |

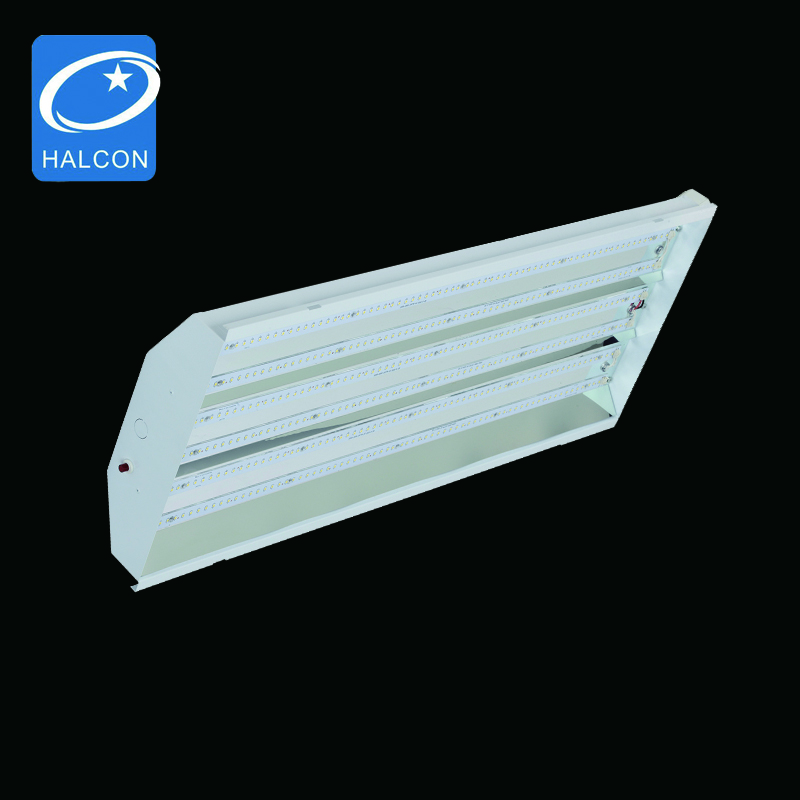

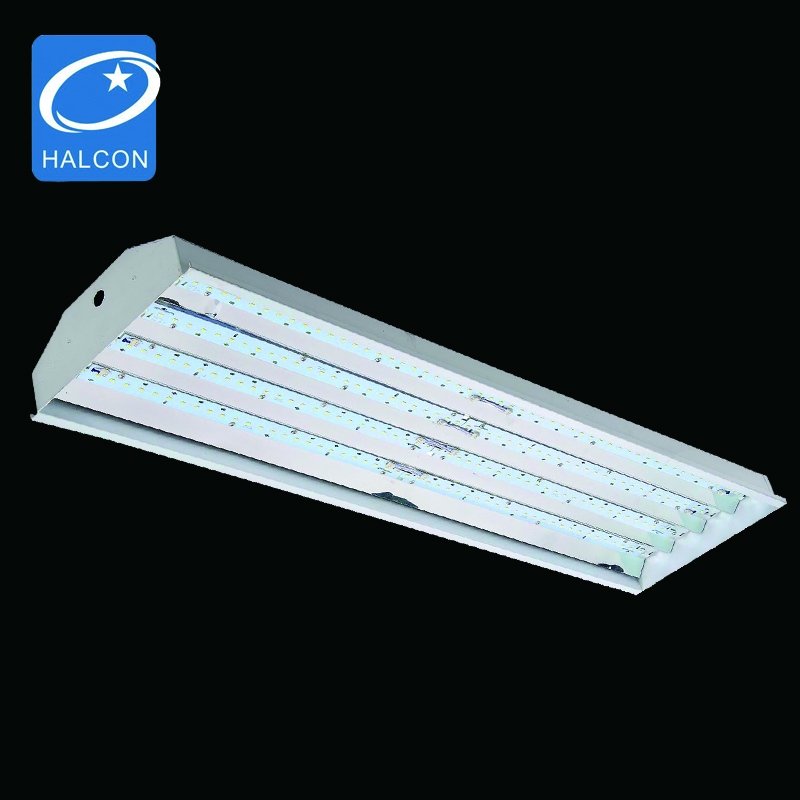

Picture of led high bay lamp 100 w:
Photometric curves:
Features of led high bay lamp 100 w:
| Applications | Warehouses/Factory/Showrooms/Display Centres |
| It marries our best LED technologies with our most popular high bay product. | |
| The result is high-performance,configurable LED luminaire. | |
| That is ideal for warehousing, manufacturing,and gymnasiums. | |
| Advanced Optics | Narrow and wide distributions available to meet both horizontal and vertical light level requirements. |
| Reflectors feature precision-formed optics utilizing premium materials. | |
| Emergency Pack | Optional factory-installed emergency battery pack in the center channel will provide 1000 lumens. |
| (nominal) for a minimum of 90 minutes. | |
| Only applies to 9000 through 24,000 lumen fixtures. | |
| Controls | Fixture can be equipped with an occupancy sensor. |
| Devices are factory-installed and require minimal labor to set up during fixture installation. | |
| Dimming | Drivers come standard with 0-10V dimming leads capable of variable dimming down to 10%. |
| Finishes | Standard fixture is two-toned with a white body. |
| Glare Control | A semi-diffuse acrylic lens is available to cover the emitters and reflectors.Factory- or field-installed. |
| Optional Wire guard | Optional wire guard protects fixture from environmental hazards. Factory- or field-installed. |
Packing & Shipping:
Working shop picture:
Assemble line display:
Warehouse view:
Showing room:
Factory picture:
Our service:
1. Your inquiry related to our products and prices will be replied in 24 hours.
2. OEM,and your customized lightings we can help you to design and put into product.
3. Update quotation monthly
4. Protection of your sales area, ideas of design and all your private information
