Share
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Branch： |
Array |
Size： |
1525X830X950 cm |
Product Details
- Place of Origin:
- Shandong, China
- Brand Name:
- LH mud pump
- Model Number:
- BW250
- Structure:
- Piston Pump
- Usage:
- pneumatic sump pump
- Application:
- mud pump, driling rig
- Power:
- Electric
- Fuel:
- Diesel
- Pressure:
- High Pressure
- Mud pump model:
- BW250
- Material:
- Steel
- Mud pump motor:
- diesel/electric
- mud pump condition:
- new
- Input speed (r/mion):
- 500
- Max suction height(m):
- 2.5
- Diameter of suction pipe (mm):
- 76
- Diameter of discharge pipe(mm):
- 51
- Weight:
- 760kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1525X830X950 cm
- Single gross weight:
- 380.0 kg
- Package Type:
- standard wooden case for Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 10 To be negotiated
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale / WhatsApp:+8613665375638

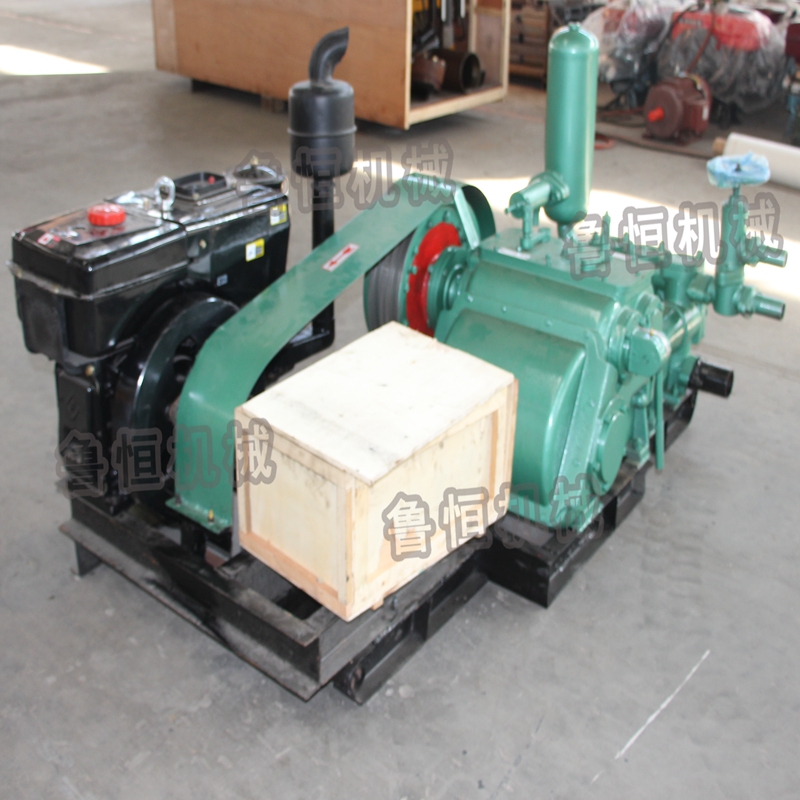

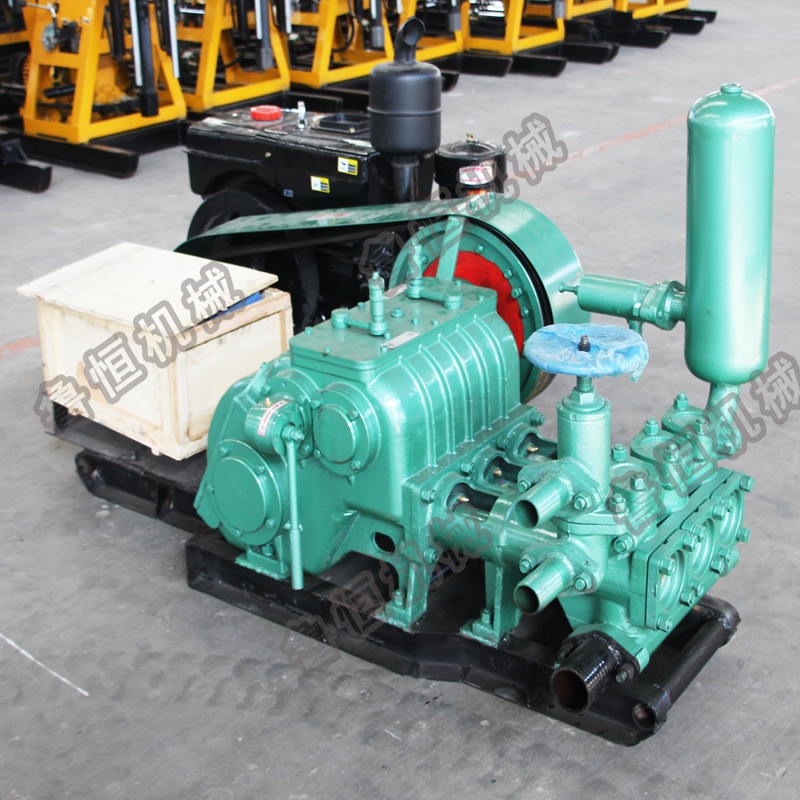

BW serious mud pump:
1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor
power and electric motor, It has simple operation, convenient, can achieve close range or remote control.
2. This mud pump is a compact structure, smooth operation, high output pressure, longer life expectancy,
stable performance, good general and so on.
3. This drilling mud pump adopts the car transmission,Can get six different discharge and pressure,Reasonable
configuration parameters selection,The construction technology can satisfy different requirements.
4. Drilling mud pump mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.
Model | BW150 | BW160 | BW250 | BW320 |
Max. flow | 150L/min | 160L/min | 250L/min | 320L/min |
Max. pressure | 7Mpa | 10Mpa | 6Mpa | 8Mpa |
Power | 7.5kw | 11kw | 15kw | 30kw |
Inlet pipe diameter | 51mm | 51mm | 76mm | 76mm |
Outlet pipe diameter | 32mm | 32mm | 51mm | 51mm |
Weight | 560kg | 480kg | 760kg | 1000kg |
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale
Manufacturing factory diesel drive BW250 mud pump for drilling rig for clearance sale / WhatsApp:+8613665375638
