Marslite Slim LED COB Matrix Panel Light 16x30W RGB Color MS-16TS

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Guangzhou

  • Categories:Stage Lights
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:44

Other Products
17R 350W LED Moving Head Light 3IN1 Beam Spot Wash With Zoom Function MS-350
¥Negotiable 37Views

17R 350W LED Moving Head Lig

Recommend
150W Moving Head Light Beam Spot Wash 3in1 With Zoom Function MS-BSZ150
¥Negotiable 35Views

150W Moving Head Light Beam

Recommend
350W Beam Moving Head Light 17R Sharpy Beam MS-B350
¥Negotiable 34Views

350W Beam Moving Head Light

Recommend
7 Heads snow petals led strobe stage light 7×40W RGBW 4in1 DJ equipment MS-OS7-FC
¥Negotiable 33Views

7 Heads snow petals led stro

Recommend
DMX LED matrix beam blinder light RGBW 4in1 MS-MTX250-FC
¥Negotiable 32Views

DMX LED matrix beam blinder

Recommend
You may like
¥Negotiable 18Views

Led 19x15w zoom moving head light

Recommend
¥Negotiable 25Views

Led Non-polar illusion 1615w SY-L1615

Recommend
¥Negotiable 24Views

75w Moving Head Light Spot LED SL-1021

Recommend
¥Negotiable 23Views

Led 150w 300w moving head light

Recommend
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Guangzhou

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Product Video

bg

Product Overviews

bg

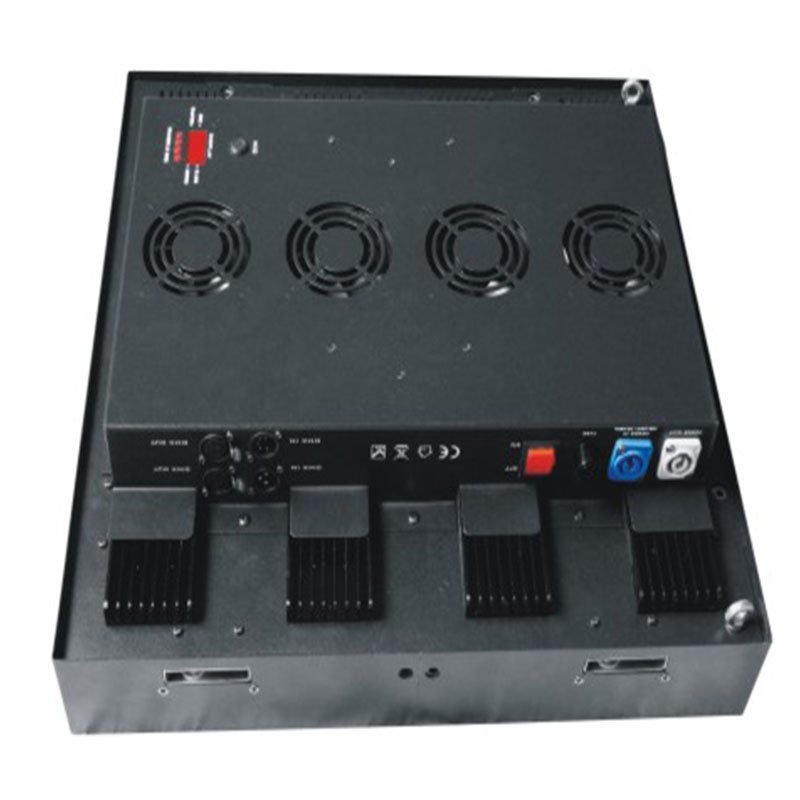

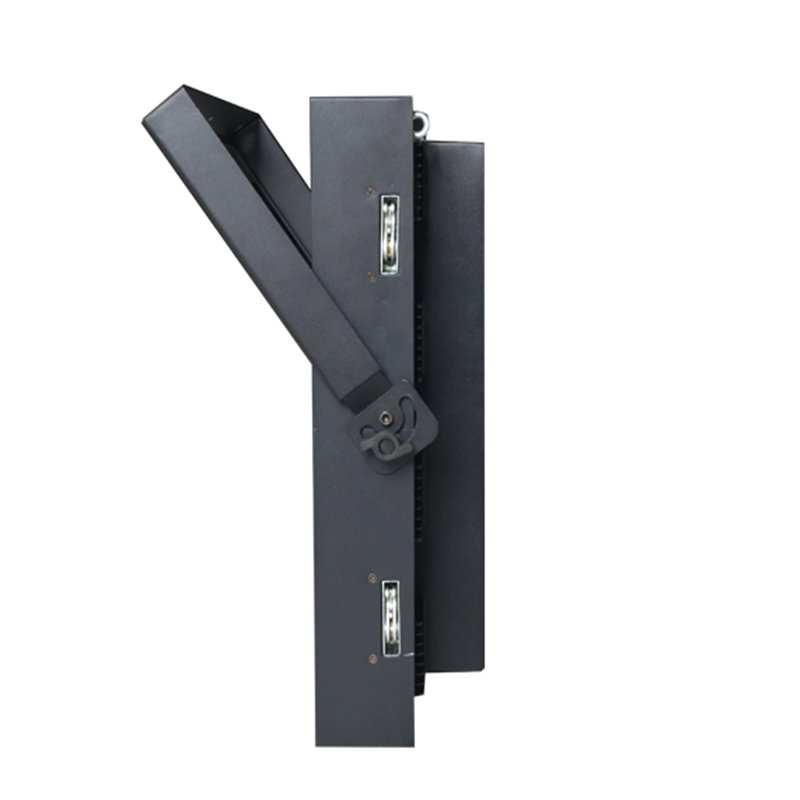

MS-16TS  16pcs 30W COB RGB 3in1 leds

  • The 4X4 head LED matrix bar lgiht with RGB tri-color COB LED, could be assembly in different shape and show

  • different amazing wash effect.

  • Get ready to create the a rich display of RGB mixed color at your next event.

  • This unit includes individual pixel control in DMX mode allowing you to fine tune your light display to suit any specific needs.

  • Built-in sound active, ArtNet, DMX and master/slave, foot controller mode.

  •  It’s suitable for disco dance hall,club,bar,party,mobile DJ and so on.


Technical Data

bg





LIGHT SOURCE:

LEDs: 16pcs 30W COB RGB 3in1 leds

LEDs average lifespan: >50,000hrs

Drive mode: constant current

Drive current(mA): 667




POWER SUPPLY:

Power consumption: Max. 500W

Auto switching power supply unit

Power supply: AC100V-240V,50/60Hzz(auto-ranging)

Power In/Out: Blue and White powercon




OPTICS:

Beam angle: 31°

Lens: Fronst lens or Clear lens optional

Flicker free(refresh rate>4K Hz)

Light output(full bright): 2310LUX@1m, 566LUX@2m,   96LUX@5m




CONTROL AND PROGRAMMING:

Control mode: DMX,ArtNet,Master/Slave and Sound-active

DMX channels:  1,3,4,6,16,18,48,49,50,51CH

Setting and addressing:4-digit LED

DMX data In/Out: XLR 3Pin(XLR 5pin is optional)





EFFECTS:

8 bit smooth dimming

Electronic dimmer:0-100% linear

Electronic strobe:1-20 flashes/sec

Built-in color changing macro, fade in & out macro

Built-in auto programs and speed adjustable

BODY:

Housing:  Aluminium, black backing finished

COOLING :

Cooling: forced air convection, with four silent fan







ENVIRONMENT AND PHYSICAL:

IP rating: IP20

Certificate: CE and RoHs

Environment temp: -20℃-40℃

Light Size:47.5*47.5*13.5cm

N.W.:11kg
G.W.:13kg

Package Size:57*57*19CM
