Product Details

Overview

Quick Details

Input Voltage(V):: AC100-305V

Lamp Luminous Flux(lm):: 13500LM

Working Temperature(℃):: 40 - 55

Working Lifetime(Hour):: 500000

Lamp Body Material:: Aluminum

IP Rating:: IP65

Certification:: CE, EMC, PSE, RoHS, UL

Place of Origin:: Guangdong, China

Brand Name:: HONGMAO

Model Number:: SL-ILHB13W150

Light Source:: LED

Product Name:: 150w led high bay light,high bay light fitting,150w led high bay

Power:: 150w

Input Voltage:: AC100-305V

LED Brand:: Epistar/BridgeluxLED

Powersupply:: CE ROHS

Reflector Bean Angle:: 60/90deg.,90/120deg. or 120 degree

Lamp Fixture Flux(LM):: 13500LM

IP Code:: IP65

Warranty:: 3Years Warranty

Item Type:: High Bay Lights

Warranty(Years):: 3

CRI (Ra>):: 80

Lamp Power(W):: 150

LED Light Source:: Epistar/Bridgelux LED

Lamp Luminous Efficiency(lm/w):: 90

Color Temperature(CCT):: Pure White,Nature White,Cool White,Warm White

Supply Ability

Supply Ability:: 25000 Piece/Pieces per Year

Packaging & Delivery

Packaging Details: N.W: 6.2KG, G.W: 6.5KG, 1pc package: 104*20*15cm

Port: Shenzhen

Lead Time:: 1-3days for sample order;5-7days for bulk order

A. Microwave induction high bay 150w LED Linear High Bay Lighting 5 years warranty

B. AC100-305V Wide Voltage

C. Epistar/Bridgelux LED

D. Color temp. can be Warm White,Nature White,Pure White,Cool White,as customers requirements
E. Bean angle: 60/90deg.;90/120deg.; 120deg.
F. 3years warranty,5years or more available
G. CE&RoHS approved
H. Low shipping freight cost but stable and ontime shipping way

Microwave induction high bay 150w LED Linear High Bay Lighting 5 years warranty Specification

Product Name		150w led high bay light,high bay light fitting,150w led high bay
Product Item		SL-ILHB13W150
Power Watts		150W
Input Voltage		AC100-305V
Output Voltage		DC48V
Freqency Range		50-60Hz
LED Chips		Epistar/Bridgelux LED
Power Supply		CE ROHS UL Listed
Power Factor		0.96
Bean Angle		60/90deg.,90/120deg. or 120 degree
LED Luminous Efficiency		130LM/W
Lamp Fixture Luminous Efficiency		83-90LM/W
Lamp Fixture Flux(LM)		12450-13500LM
Powersupply Efficiency		>87%
Material		Aluminum Alloy
Illuminance Uniformity		>0.4
Color temperature		Warm Color(WW):2700-4000K
		Nature White(NW):4500-5000K
		Pure White(WW):5500-6500K
		Cold White(CW):6500-7500K
Color Rendering Index		Ra>80
Life time		>50, 000 Hours
Operating Temperature		-45°Cto+60°C
Humidity Operating		10-80%
IP Code		IP65
Certificates		CE,ROHS
Warranty		3Years
N.W		6.2KG/PC
G.W		6.5KG/PC
Package		1pc: 1042015cm

HONGMAO 2017 new design high efficiency 130LM/W Epistar 3030 150w led linear high bay light with 3 years warranty Features

1. Adopt integrated LED chip as light source which has independent intellectual property rights,the light source design is using special integrate multi-chips a module,use high bright imported led chips,with good heat dissipation,low light depreciation, pure light color,no double-shadow etc.
2. UFO LED industrial lamp Beam Angle 60/90degree,90/120degree and 120 degree available.

3. Material: Lamp sheel adopts excellent aluminum, anodizing and anti-corrosion treatment, fancy performance, compact and beautiful structure.
4. LED industrial lamp chip: Use high brightness single semiconductor chip Epistar/Bridgelux LED as light source
5. 150w LED industrial lamp driver: Built-in-cross-flow CE ROHS Driver or Meanwell power supply, to ensure the lamp’s stability.
6. Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body’s temperature, ensure the life of light source and power.

7. The heat sink surface have conducted anodic oxidation anti-corrosive process, compact layout and beautiful,corrosion resistant,water proof and dust proof.

8. Green: Pollution-free, no lead, mercury and other pollution elements, no pollution to the enviroments, no RF interference.
9. 150w high bay light convenient to install, High universality, widely application ranges.
10. 150w led high bay light certificate: CE,RoHS
11. Industrial Light LED Warranty: 3-5 yearsfor lamp fixture with our driver. 3 years for lamp fixture with Meanwell driver.
11. Epistar/Bridgelux LED

HONGMAO 2017 new design high efficiency 130LM/W Epistar 3030 150w led linear high bay light with 3 years warrantyApplication
LED industrial lamp using for indoor and outdoor lighting
Factories, workshops, warehouse, supermarket, shop, exhibition
Toll stations, gas stations, stadiums
Commercial building, parking building

Hongmao Lighting Service and After Sale Service

1. Discout are offered based on order quantity,and price negotiable if customer’s market needed.
2. Delivery goods fastly,stable and ontime if without any accident.
3. With standard package and keep goods in good condition when shipping to customers.
4. 3-5years warranty,free of sending components and new lights at the rest of 1 or 2 years.
5. 24 hours to provide technical support.
6. OEM & ODM are welcomed, OEM brand is available.

Trade Terms of HONGMAO 2017 new design high efficiency 130LM/W Epistar 3030 150w led linear high bay light with 3 years warranty

1. Payment: T/T, Western Union,Paypal,L/C,Escrow,Money Gram available.

2. Lead time: 1-3days for sample order,7-10 working days for 100~500pcs,15 working days for 500~2000pcs,18-22days for 3000pcs.

3. Shipping freight is quoted under your requests.

4. Shipping port: Shenzhen, China mainland.
5. Discouts are offered based on order quantities.

6. MOQ: 1pc.

Drawing of HONGMAO 2017 new design high efficiency 130LM/W Epistar 3030 150w led linear high bay light with 3 years warranty

Struucture of HONGMAO 2017 new design high efficiency 130LM/W Epistar 3030 150w led linear high bay light with 3 years warranty

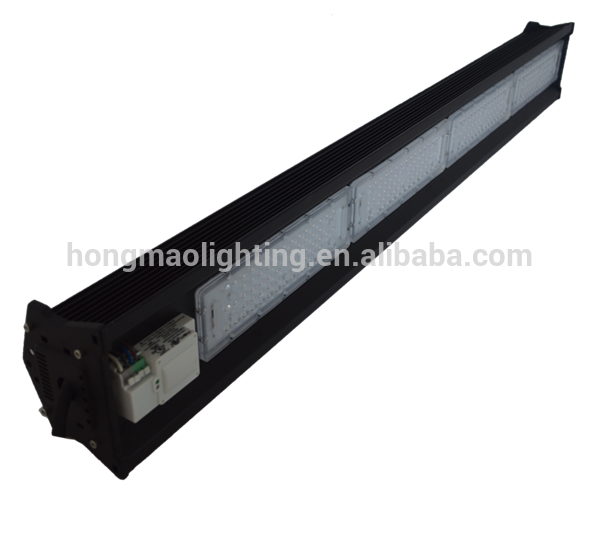

Picture show of HONGMAO 2017 new design high efficiency 130LM/W Epistar 3030 150w led linear high bay light with 3 years warranty
