Product Overviews

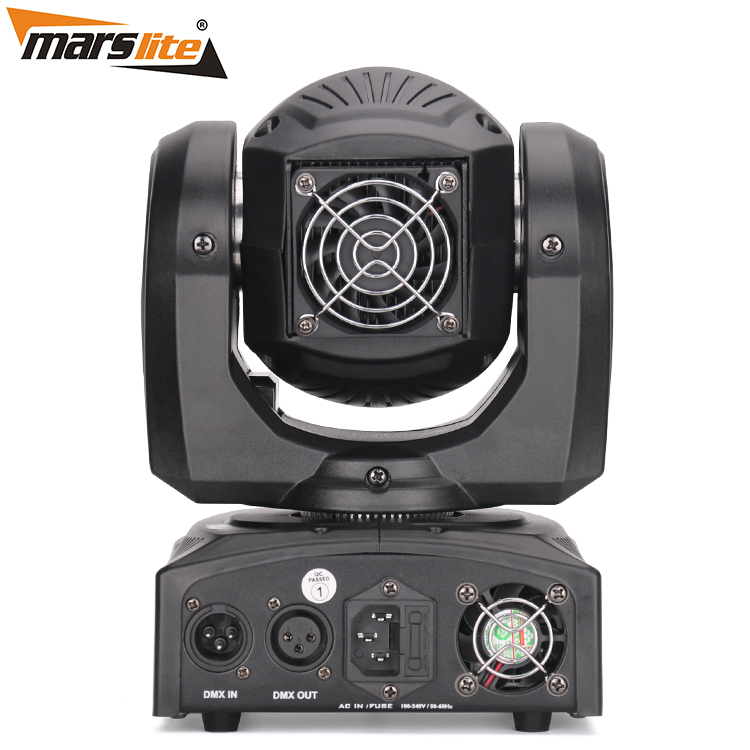

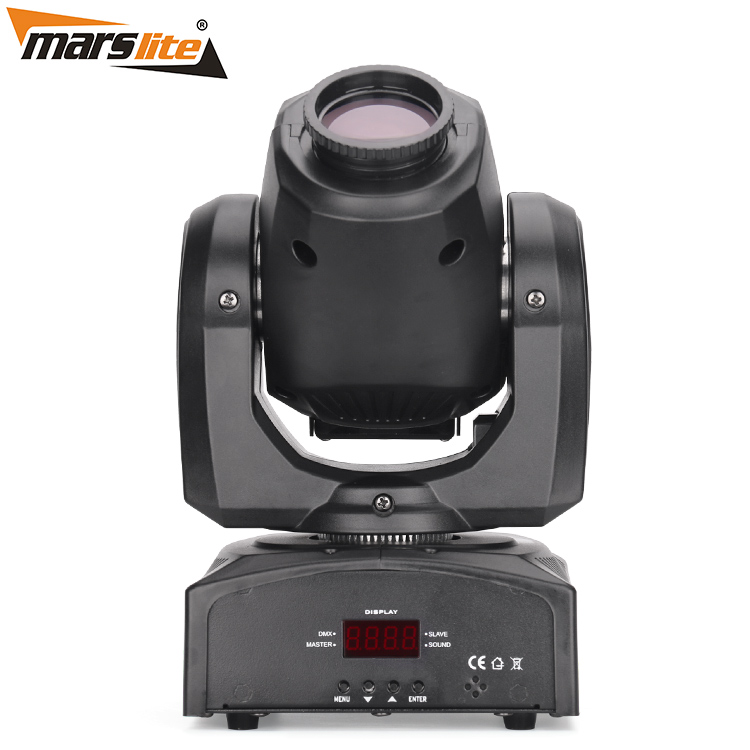

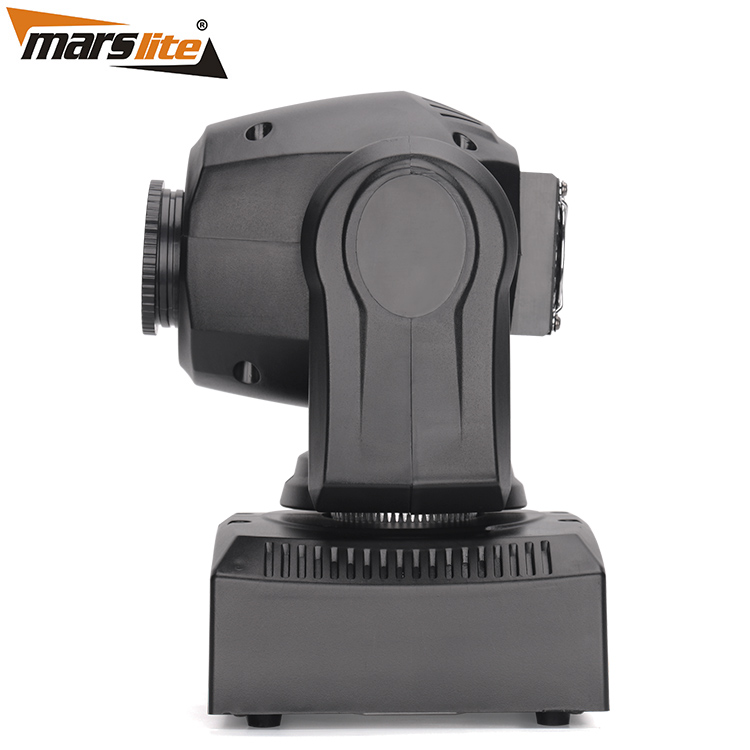

MS-MG10 1pc 10W White LED
◪MARSLITE 25W Mini LED Beam Moving Head is use 1pc 10W white LED, can rainbow effect and make super beam effect.
◪different amazing moving head effect.
◪Built-in sound active, Shoe mode, DMX and master/slave mode.
◪Very good for moving dj, small nightclub, disco bars.
Technical Data
LIGHT SOURCE: | LEDs: 1pcs 10W White color LED |
LEDs average lifespan: >50,000hrs | |
Drive mode: constant current | |
Drive current(mA): 1400 | |
POWER SUPPLY: | Power consumption: Max. 25W |
Auto switching power supply unit | |
Power supply: AC100V-240V,50/60Hzz(auto-ranging) | |
Power In/Out: Powercon, daisy chain | |
OPTICS: | Beam angle: 13 degree |
Lens: Fronst lens or Clear lens optional | |
Flicker free(refresh rate>400 Hz) | |
Light output(full bright): 7470LUX@1m, 1720LUX@2m, 293LUX@5m | |
CONTROL AND PROGRAMMING: | Control mode: Sound-active, Show mode, DMX and Master/Slave |
DMX channels: 1CH, 8CH, 10CH optional | |
Setting and addressing:4-digit LED | |
DMX data In/Out: XLR 3Pin | |
COLORS and GOBO Wheel: | Color Wheel: 7 color+white, with rainbow effect |
| Gobo Wheel: 7 gobo+open | |
EFFECTS: | 8 bit smooth dimming |
Electronic dimmer:0-100% linear | |
Electronic strobe:1-20 flashes/sec | |
Built-in color changing macro, fade in & out macro | |
PAN-TILT: | Pan:540° Tilt: 270° |
BODY: | Housing: Metals and Plastic, black and white optional |
COOLING : | Cooling: forced air convection, with one silent fan |
ENVIRONMENT AND PHYSICAL: | IP rating: IP20 |
Certificate: CE and RoHs | |
Environment temp: -20℃-40℃ | |
Light Size:17*15*27cm | |
| N.W.:2.6kg | |
| G.W.:3kg | |
Package size.:29.5*21.5*21.5CM |
Technical Details
Effect diagram

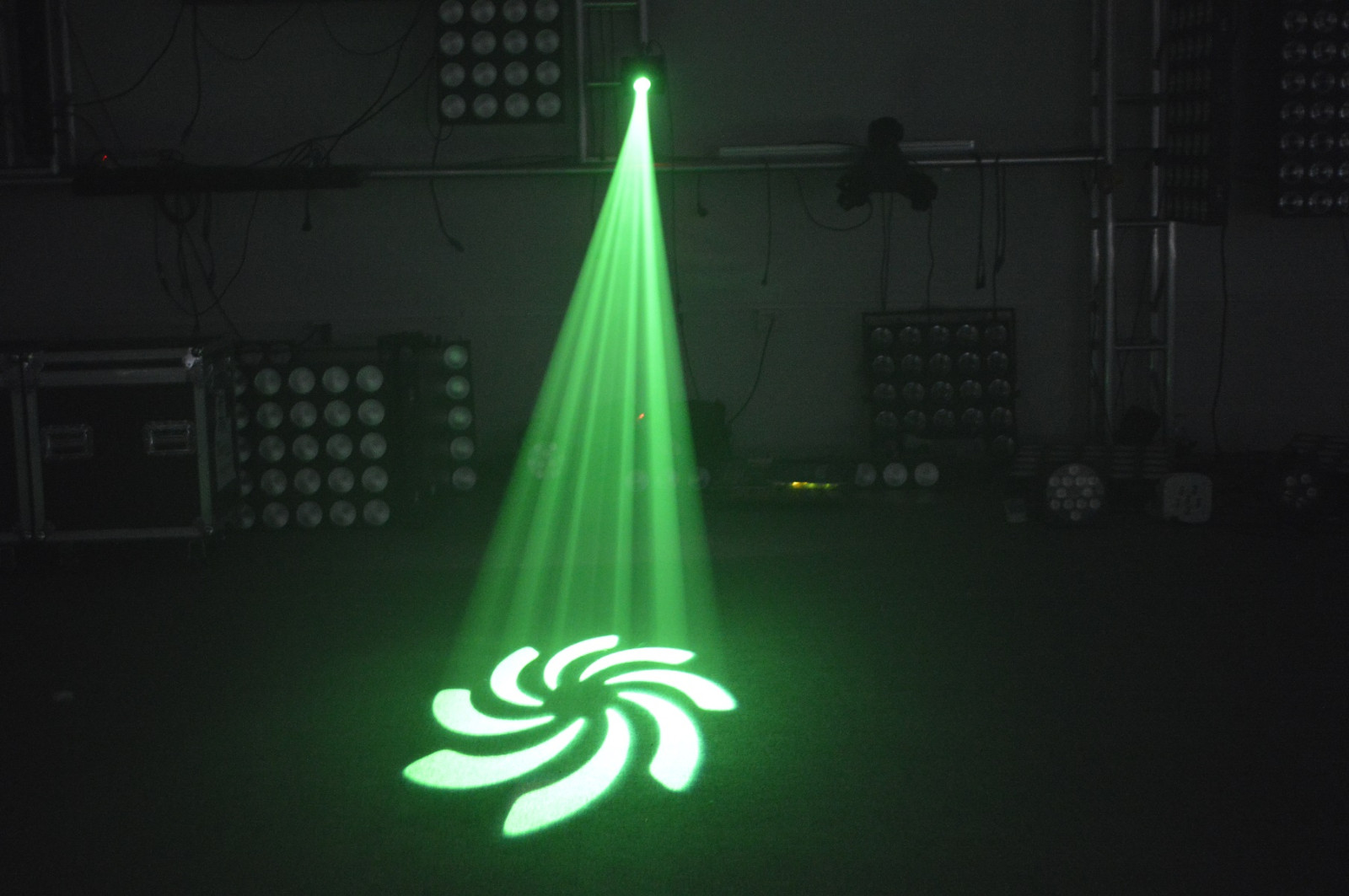

Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Effect picture - colorful
Different visual effects
Production line
Packing
