Moving Head 4*32W RGBW 4IN1 Beam Bar Light MS-MPS4-32FC

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Guangzhou

  • Categories:Stage Lights
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:44

Other Products
17R 350W LED Moving Head Light 3IN1 Beam Spot Wash With Zoom Function MS-350
¥Negotiable 37Views

17R 350W LED Moving Head Lig

Recommend
150W Moving Head Light Beam Spot Wash 3in1 With Zoom Function MS-BSZ150
¥Negotiable 35Views

150W Moving Head Light Beam

Recommend
350W Beam Moving Head Light 17R Sharpy Beam MS-B350
¥Negotiable 34Views

350W Beam Moving Head Light

Recommend
7 Heads snow petals led strobe stage light 7×40W RGBW 4in1 DJ equipment MS-OS7-FC
¥Negotiable 33Views

7 Heads snow petals led stro

Recommend
DMX LED matrix beam blinder light RGBW 4in1 MS-MTX250-FC
¥Negotiable 32Views

DMX LED matrix beam blinder

Recommend
You may like
¥Negotiable 20Views

Led 200w profile light

Recommend
¥Negotiable 33Views

LED 12*40w Beam wash wth Zoom

Recommend
¥Negotiable 21Views

Par Can Light 54PCS 3W RGBW LEDs SL-3001-54

Recommend
¥Negotiable 22Views

Led 19X15w 4in1bee eye light

Recommend
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Guangzhou

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

Product Overviews

bg

Product Overviews

bg

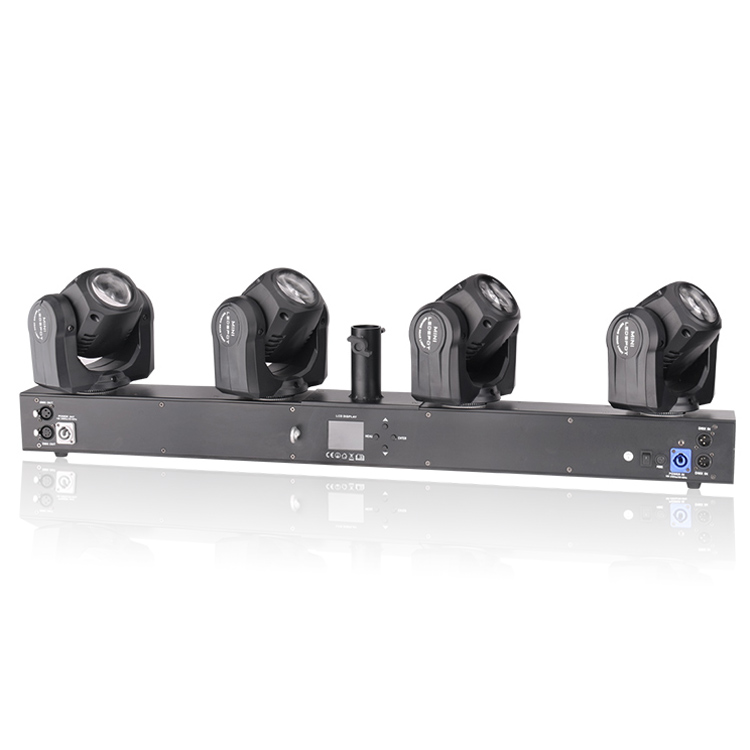

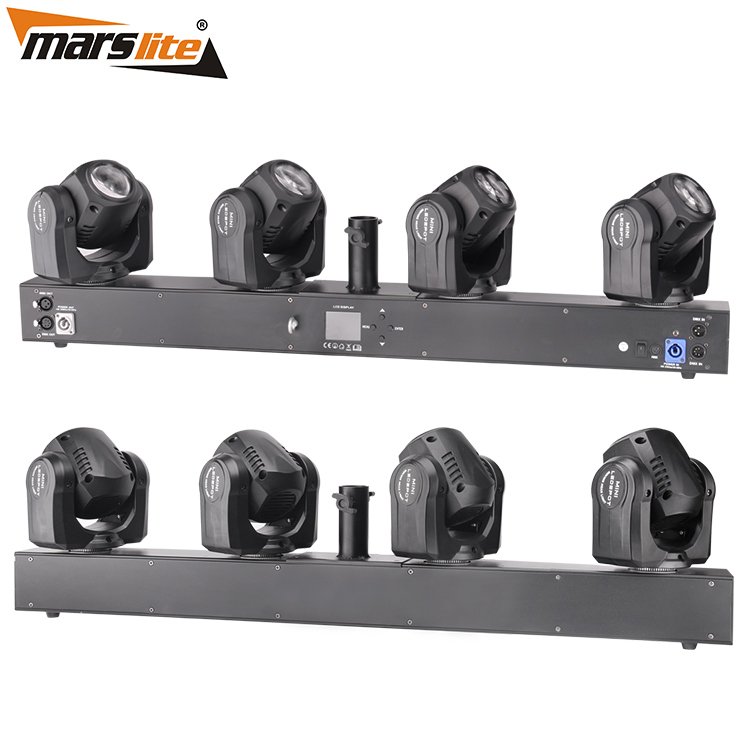

MS-MPS4-32FC  4*32W RGBW LEDs

  • The MARSLITE 4LED Beam Moving Head Light is powered by 4pcs 32W RGBW 4in1 high quality LEDs.

  • beam angle is 8 °,  pan 540°and tilt 270 °rotation speed adjustable.

  • 4LED Beam Moving Head Light is easy install.

  • sensitive sound control make super beam effect, clients also can control it by DMX512.

  • suit for disco, club, bar, party and DJ moving show,It’s mini led beam moving head light time!


Technical Data

bg





LIGHT SOURCE:

LEDs: 4*32W RGBW leds

LEDs average lifespan: >100,000hrs

Drive mode:Constant Current

Drive current(mA): 660



OPTICS:

Beam angle: 6°

Flicker free(refresh rate>4K Hz)

Light output(1mtr)@Red1:24000Lux@Green1:50000Lux@Blue1:80000Lux@White1:68000Lux

COLORS:

RGBW color mixing






EFFECTS:

8 bit smooth dimming

Electronic dimmer:0-100% linear

Electronic strobe:0-20 flashes/sec, various of strobe effect

Built-in color changing macro

Built-in color fade in & out macro

Built-in auto programs and speed adjustable



CONTROL AND PROGRAMMING:

Control mode: DMX,Auto run,Master/Slave and Sound-active

DMX channels: 6CH, 10CH, 19CH, 32CH, 56CH optional

Setting and addressing: LCD

DMX data In/Out: XLR 3Pin&XLR 5pin, Rj45


PAN-TILT:

Pan: 540°  (Speed adjustable)

Tilt: 230° (Speed adjustable)

BODY:

Housing: Metal, plastic

Housing color: black

Housing surface treatment: baking finished




POWER SUPPLY:

Power consumption: Max. 200W

Auto switching power supply unit

Power supply: AC100V-240V,50/60Hzz(auto-ranging)

Power In/Out: Powercon, daisy chain




COOLING & THERMAL MANAGEMENT:

Thermal management system ensures long life of LEDs

Entire casing as heat sink for LED source

Cooling: forced air convection, with six silent fan

Cooling fan speed auto change according to temperature

Cooling fans auto start once LED source light up



SAFETY DEVICES:

Electronic protection against short circuit

With safety chain throught holes at the rear

Rigging & Assembling






ENVIRONMENT AND PHYSICAL:

IP rating: IP20

Certificates: CE&RoHS

Environment temp: -20℃-40℃

Light size: 100×26×9cm

N.W.:11kg

G.W.:13.5kg

Package size:109*36*18cm


Technical Details

bg



Effect diagram

bg


undefined

Effect picture - colorful

Different visual effects

undefined

Effect picture - colorful

Different visual effects


undefined

Effect picture - colorful

Different visual effects

undefined

Effect picture - colorful

Different visual effects

Production line

bg


undefined
undefined
undefined

Packing

bg


undefined
undefined
undefined

Our Services

bg

Our advantage

bg
  • Experience:We are professional led stage lighting factory for ten years, It is also one of the largest stage lighting manufacturer and develop in China.Our products are exported to more than 70 countries including Western Europe, Central America, South America and southeast Asia through international sales channels.

  • Custom service:Our products can be OEM, to meet your special requirements.

  •  ---Printing logo on customized products

  •  ---Customized design and material

  •  ---Customized packing for your products

  • ---Provide your ideas, we have specialized engineers to help you design

  • Company strength

  • ---We have rich experience R&D engineer and we have strong ability for OEM projects.

  • ---We have wee-trained and professional sales&after- sale services

  • ---ISO9001 certification enterprise.Chinese famous brand for many years.

  • ---We are has been inspected onsite by  TÜV Rheinland , a third-party verification agency on alibaba. They offer Assessment Reports and Verified Videos. That gives buyers trust and authoritative information about suppliers.
