Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: heng wang

Model Number:: HW230

Usage:: Water Well

Voltage:: Customized

Power(W):: 14.7KW

Dimension(L*W*H):: 2.7*0.9*1.5m

Weight:: 6000kg

Certification:: ISO9001

Name:: Multifunction Hydraulic Drilling Rig

Product name:: DTH Drilling Machine

Application:: Water Wells

Drilling depth:: 200m

Color:: Customised

Model:: HW-230

Feature:: High Drilling Efficiency

Drilling diameter:: 75-325mm

Engine:: Diesel Power

Spindle Speed:: 64. 128. 287. 557r/min

After-sales Service Provided:: Overseas service center available

Warranty:: 1 Year

Supply Ability

Supply Ability:: 1000 Set/Sets per Month Hydraulic truck mountedwater welldrilling rigDTH drilling

Packaging & Delivery

Packaging Details: nonpackage

Port: shanghaiqingdao daslian shenzhenningbo

Lead Time:: within7 days afterreceivingyoutfullpayment

Product Description

Scope of application:

1, this drill for the high-speed drilling machine is suitable for the exploration, geophysical exploration, road and building exploration and blasting hole drilling engineering, etc.

2, can be selected according to the underlying different alloy, diamond, compact drill for drilling, etc.

Level 3, 2-9 drilling, sandy clay and rock formations, etc.

Machine parameters
Drilling depth	200m
The largest hole diameter	φ75-φ325mm
Final hole diameter	75mm
Active drill pipe	53/59*4200mm
Drill rod diameter	φ42-φ60mm
Drilling inclination	90°~75°
Supporting power (diesel engine)	14.7kW/r/min
Structure weight / size	2.70.91.5
Vertical axis
Vertical axis speed	64/128/287/557r/min
Vertical axis travel	450mm
Hoist
Single rope lift force	2500
Single rope to enhance speed	0.12-0.95m/s
Reel diameter	φ140mm
Rope diameter	φ12.5mm
Rope capacity	35m
Drilling tower
Rated load	18
Effective height	6.5m
Tower legs specifications	φ89mm
Mud pump
Model	BW145
Flow	145L/min
Greatest pressure	2Mpa
The number of reciprocations	93N/min
Suction pipe diameter	φ51mm
High pressure water outlet pipe diameter	φ32mm

Factory and Team

Customer Visit

Certifications

Our Advantage

Packaging & Shipping

FAQ

Contact Way

Miss.Nina Rao
Overseas Marketing Manager
Tel.: 0086-537-2081658 mobile phone:008613668679003
Skype:649932389at qq.com Whatsapp:+8618353787695
E-mail:hw004at hengwanggk.com

Thank you for spending so much time reading, thank you for your time,.

* Inquiry Title
* Content
* E-mail
* Security Question	[Another problem]

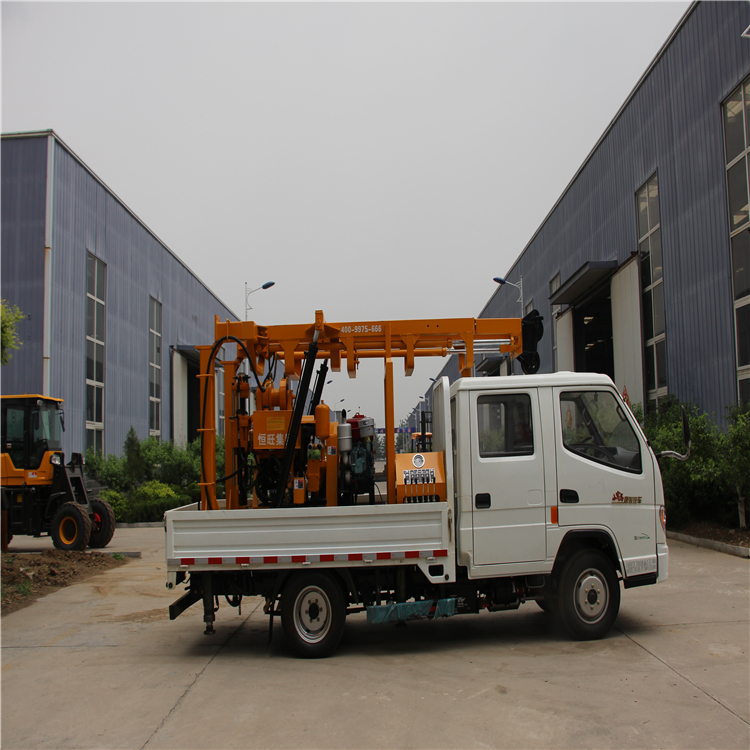

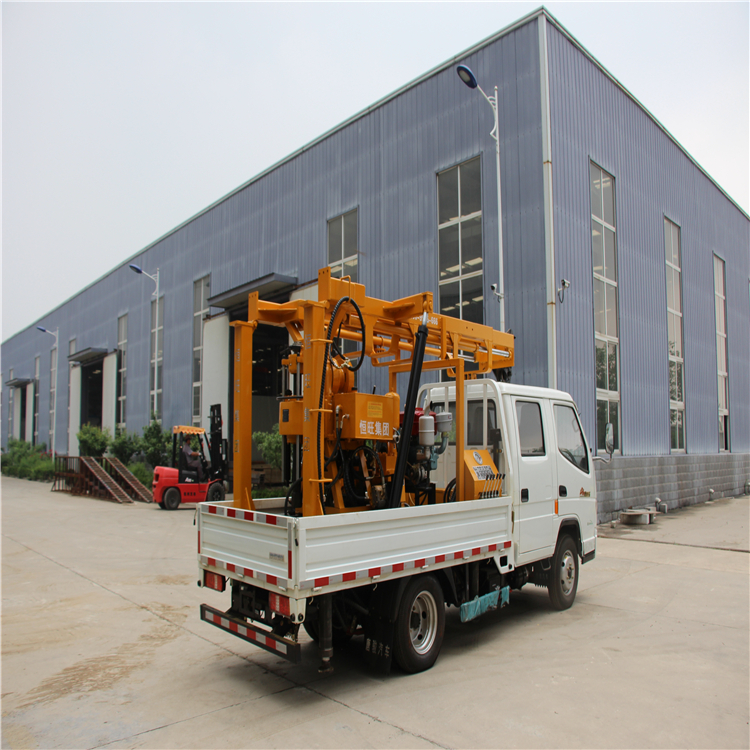

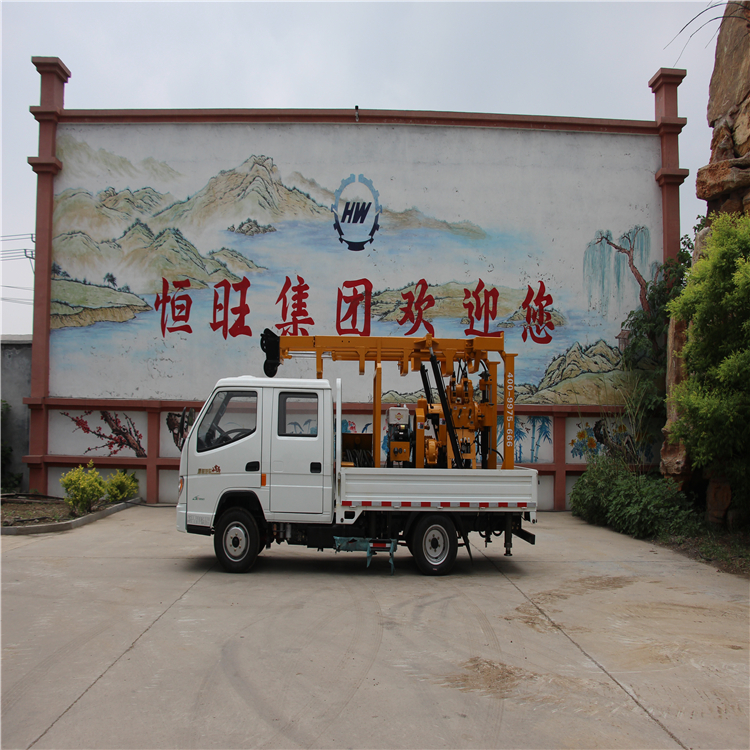

Multifunction 200m Hydraulic truck mounted water well drilling rig DTH drilling machine for sale
