Product Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- Gooday/OEM/ODM
- Bulb Type:
- LED
- Battery Type:
- 3 hour maintained in emergency with Ni-MH battery
- Material:
- PS Diffuse+ metal base(Rim color: Sliver / white / golden)
- Usage:
- stairwell, corridor, lobby, balcony
- Certification:
- CERoHs
- Specifications:
- 30w
- LED Light Source::
- 2835 SMD LED
- Input Voltage::
- AC 100~240V (50/60Hz)
- Color Temperature(CCT):
- 2700k ~ 6500k
- Operation Temperature(℃)::
- -10~40 degC
- Lamp Luminous Flux::
- 1200Lm
- Life span::
- 50000hr
- Luminous efficacy::
- 85Lm/W
- IP Rating::
- IP20
- Supply Ability:
- 50000 Piece/Pieces per Month
- Packaging Details
- Dimension:380*80mm
Box package:400 x 400 x 100mm (1 PCS)
Carton package:430 x 420 x 420mm 4 PCS/Carton
Net Weight:1.4kg/pcs
- Port
- Shenzhen/Hong Kong ports
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 50 51 - 200 201 - 2000 >2000 Est. Time(days) 3 7 15 To be negotiated

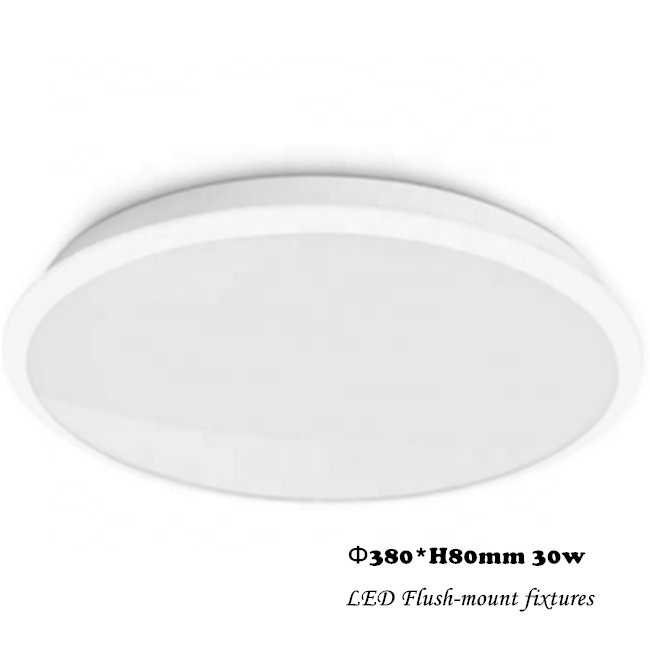

Multi-function ceilling PC diffuse metal base 380mmx80mm Led flush mount fixtures 30w
FEATURES AND BENEFITS:
Designed to replace traditional round fluorescent and incandescent flush mount fixtures
Low profile design
No maintenance
L-70 Life > 40,000hrs
3 year warranty
FUNCTION:
Standard LED drvier
Motion sensor
Emergency >3 hours NiMh or Lithium LiFePO4 Battery acceptable, self-testing acceptable
Emergency with sensor
0-10V dimming/non flicker/remote control sensor available
PARAMETER:
CRI | Ra> 80 | Luminous Flux | 2600-2700LM |
PF | >0.9 | View angle | 110° |
LED Driver output voltage | DC 36V | Housing material | PS Diffuse, metal base |
LED Driver output current | 700mA ±10mA | IP Rating | IP 20 |
Emergency: | |||
Battery(High-Temperature) | 9.6V 1.2AH Ni-MH rechargeable | Emergency duration | >3 Hours |
Emergency output | 20% nominal power | Charge time | < 12Hours |
LED indication | Red: charging; Green: fully charged;Yellow: battery fault or disconnected | Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
Microwave Sensor |
|
Sensor range | 180 degree; 0.5 - 8M |
| (adjustable) |
Sensing interval | 10s to 5min max |
| (adjustable) |
Sensing interval output | 0% or 25% of nominal power |
Emergency Function Test Button:
After installation with the mains supply powered on, push the test button to test emergency function, if the LED brightness is reduced to emergency brightness (20% of full brightness), the function is working
LED Indication:
Red – charging Green – full charged Yellow – battery faulty

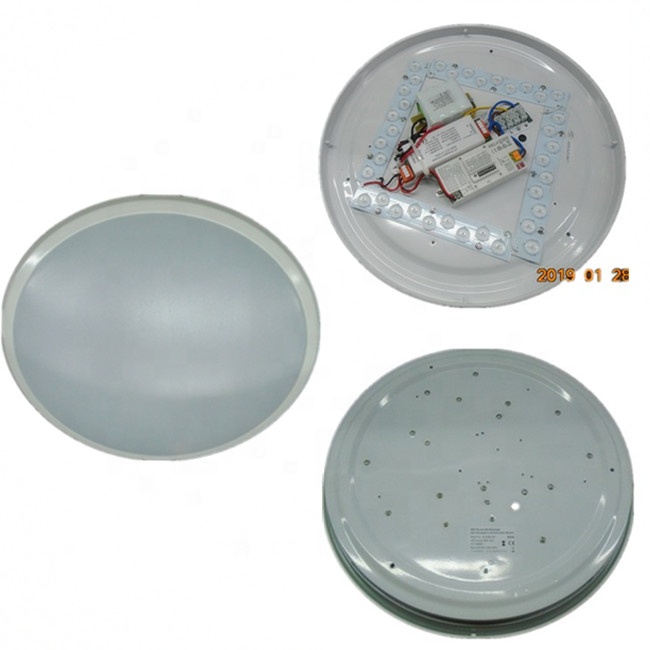

PRODUCT PICTURE:
Application: stairwell, corridor, lobby, balcony, etc.
Company Details.
Why Choose Us.
Gooday Lighting is the market leader in China for Design, Supply and Manufacturing of Emergency LED Lighting, Automated Monitoring Systems & Motion Sensor Dimming Solutions.
Services.
OEM&ODM welcome, any your customized requires, we can help you to design and manufacture.
Quality Warranty
All products passed through the stringent professional testing, the life span up to 50000h. We have 3-5 years warranty.
Shipping Warranty
We choose the fastest and most reliable forward agent to deliver our lights. Delivery terms: Ex-works/FOB and CIF.
After-sale service Warranty
We have professional team who works on after-sale service to help you solve your technical problems. We will try our best to answer all your questions and improve the defect in the meantime.
Replacement Warranty
Any quality problems will be free 1:1 replacement or 100% refund for the defective products.
