Product Details
- Type:
- Oral Light
- Brand Name:
- MT MEDICAL
- Model Number:
- LEDXV-I
- Place of Origin:
- Anhui, China
- Instrument classification:
- Class I
- Size:
- 480mm*502mm*38mm
- Visual Area:
- 360mm*422mm
- Power:
- 30W
- LED Specification:
- Super Bright SMD LED, 572pcs/bank;CCT ≥ 8000K
- LED Lifespan:
- ≥ 100000 hours
- Average Luminance:
- 0~6000cd/ m2
- Dimming Range:
- Continuously 1%-100%
- Uniformity:
- ≥90%
- Installation:
- Wall mounting, Bracket mounting
- Application Scope:
- General Film,Digital Film,Breast Mammography Film
- Supply Ability:
- 5000 Unit/Units per Month x-ray film scanner
- Packaging Details
- carton case
- Port
- Shanghai
- Lead Time:
Quantity(Units) 1 - 1 2 - 50 51 - 500 >500 Est. Time(days) 10 15 30 To be negotiated

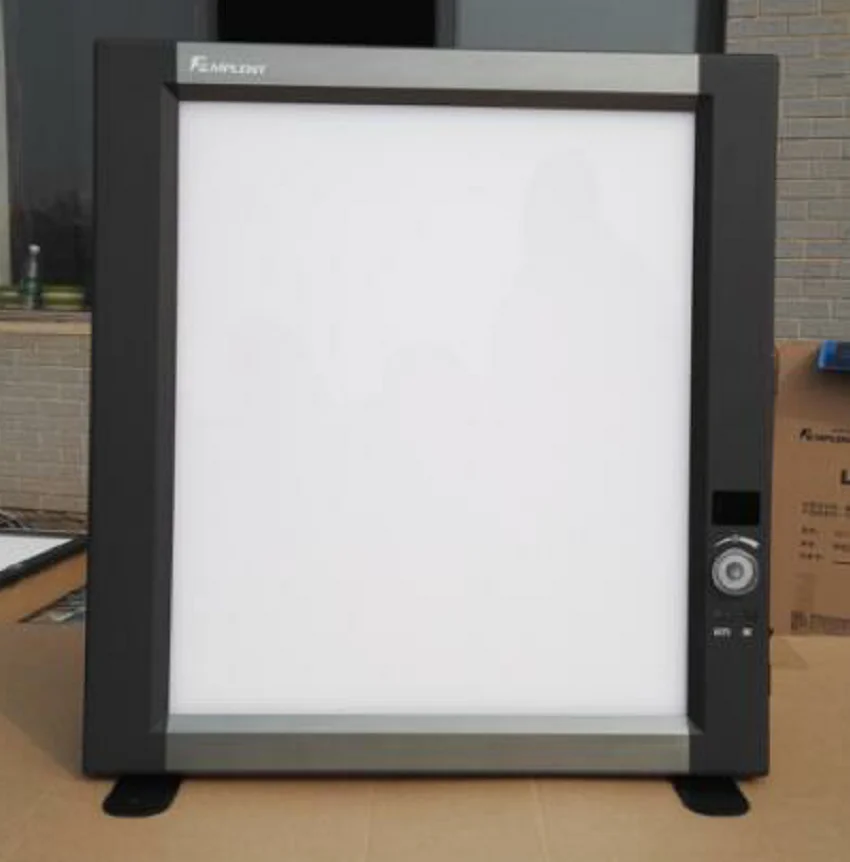

Negatoscope Dental X-ray Film Viwer LED Price for Sale
You are finding a singe LED X-ray film viewer with CE/ISO/FDA?
You are finding a good manufacturer not a trade company saving you cost?
You are needing a high quality x-ray film viewer, but finding there are so many companys from alibaba, you can not make a better decision?
Okay, How about a person help you solve with all these problems and make you sit down and relax?
1. Full Digital Control
Compared to the analog control, it works more stable, flexible, accuracy, easier to use as well as longer lifespan.
2.Imported Acrylic View Panel
Better light transmission and scattering diffusion, durable, never out of shape or discolored.
3. Super Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips
Side lighting cold light illuminator, high density SMD LED matrix(144 pc/bank), the luminance up to 4800 cd/m2, and uniformity up to 90%, ensured the high brightness and great uniformity, guaranteed the accurate observation.
4. Film Sensor
The panel will light up automatically when film inserted and off when moved away, and the panels in each bank works separately, can avoid the light influence from other panels while observing.
5. PWM Low-Voltage Digital Continuous Dimming System
Luminance can be modulated range from 1% to 100% continuously.
6. LED Constant Current Drive Power
Guaranteed the LED light works consistently, and makes the viewer longer lifespan, energy saving and safety to users.
7. Eye Protective Feature
The color temperature is up to 8000K, no harmful to human eyes, suit for long time observation.
8. Separated Control
Each bank can light up and dimming separately, every bank can be worked as a single viewer.
9. Improved Fixture
Instead of the clip+ball fixture, a new needle roller fixture was adopted, it is more durable and easier to use.
LED-XV Series | Single | Double | Triple | Quadruple |
Size(L×W×H mm) | 480×502×38 | 840×502×38 | 1200×505×38 | 1555×505×25 |
Visual Area(L×W mm) | 360×422 | 720×422 | 1080×422 | 1440×422 |
Power(W) | 30W | 60W | 90W | 120W |
LED Specification&Lifespan | Super Bright SMD LED, 572pcs/bank; CCT ≥ 8000K;Lifespan ≥ 100000 hours | |||
Adaptor | Global Adaptive Power;AC90V-240V ,50/60Hz | |||
View Panel Luminance | PWM Dimming System, can be modulated range from 1% to 100% continuously, 3 inch LCD displayer, average Luminance :0~6000cd/ m2 | |||
Sensor function | The panel will light up automatically when film inserted and off when moved away | |||
≥90% | ||||
Fixture | SS roller oblique compression type Fixture | |||
Installation | ||||
Application Scope | General Film,Digital Film,Breast Mammography Film | |||
Application Condition | ||||
Features | · Full Digital Control · Advanced Ultra Bright LED Light Source with Quality Lead-frame and Big-size Epitaxial Chips · Imported Acrylic View Panel · Eye Protective Feature · PWM Low-Voltage Digital Continuous Dimming System · LED Constant Current Drive Power · Automatic film activation · Improved film clip |
