Product Details
Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- FAT
- Bulb Type:
- LED
- Battery Type:
- Lithium-ion
- Material:
- Plastic
- Usage:
- Emergency Power For LED Lightings
- Certification:
- CB CE EMC RoSH
- Warranty(Year):
- 3 Years
- Output Power:
- 2.4-4W
- Output Frequency:
- 50 Hz
- Output Current:
- 100 mah
- Model:
- FAT-LED-F1A-CB
- Battery:
- Lithium ion 3.7V 2400 mAH
- Dimension:
- 141*63*23mm
- Emergency Time:
- 3 Hours
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 40.5X32.5X27.5 cm
- Single gross weight:
- 25.5 kg
- Package Type:
- 1 piece/box.100 pieces/CTN G.W.25.5 KG

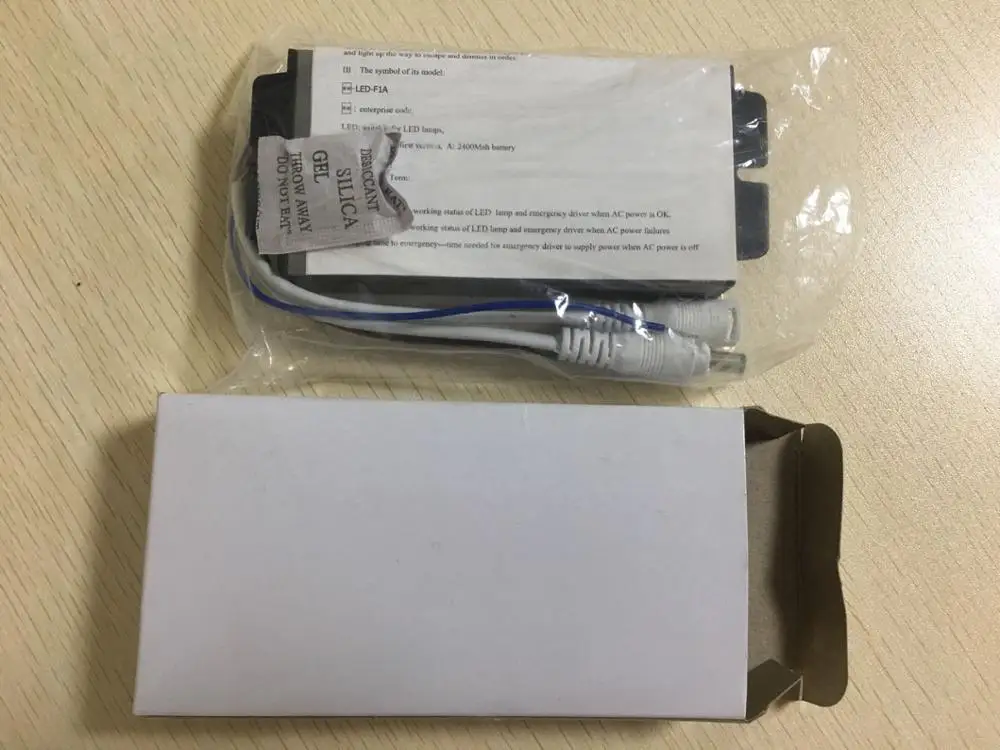

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000 Est. Time(days) 1 3 5 To be negotiated
Details Images
CB Approved Electrical appliances Components Emergency LED Supplies
Operating principle: the emergency driver is being charged when AC power works, when fully charged, the circuit will protect the battery from over being-charged, and the emergency is standing by as soon as the battery is fully charged. The battery will be changed to supply power while the AC power fails and make the LED lights work and light up the way for people to escape and dismiss in order.
Product Description
Wire input output
There three wires as shown. DC Input, DC output and power. White is DC input, black is DC output to Led light. Other wire (Blue Brown) is AC power supply for Emergency drive.
Wiring Connections
White male plug is DC Input from LED Drive, Black female plug is DC output to LED Light. Other is power wire for Led emergency light.
Indicating lights & Test Button
When connecting to AC power, LED light works normally, at the time, green indicating light turn on. At the same time, red indicating light would be on too, until the battery is fully charged. Press the test button, the emergency driver enters the status of simulation of power failure.
