Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CZ

Model Number:: LR601

Material:: Plastic

Type:: Traditional, Equipment Indicator Lights

Light Source:: Energy Saving, LED

Application:: WAREHOUSE

Color:: Red

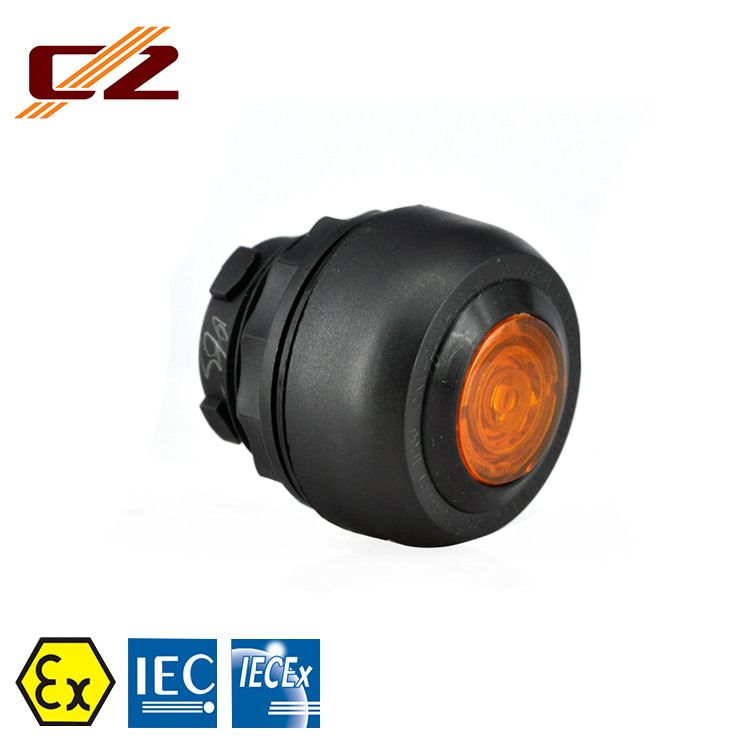

Product name:: Full plastic Indicator LED signal light.

Item No:: LR601

Intended use:: zone 1&2

Degree of protection:: IP20

Ambient temperature use:: -55°C≤Ta ≤ 60°C

Power consumpton:: Pmax ≤ 1W

Lamp Body Material:: Plastic

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Week For Emergency orders, we can give priority to production.

Packaging & Delivery

Packaging Details: Standard Carton,we will do according to your requirement.

Port: FOB Shanghai

all our certifications is REAL ONE.

NOT FAKE , NOT FAKE , NOT FAKE !!!

PLEASE CONTACT US TO SHOW YOU!!!

Certification	Ex mark
IECEx	Ex de IIC Gb, Ex tb IIIC Db
ATEX	ExII 2GD Ex e IIC Gb, Ex tb IIC Db

Intended use	zone1 and zone2 zone21 and zone22
Ambient temperature	-55°C≤Ta≤60°C -40°C≤Ta≤55°C
Degree of protection	IP66 for operation head, IP20 for module
Operation head material	Polyamide
Rated voltage	20V - 250V AC/DC 10V - 28V AC/DC
mechanical life	1000000 times
Conformity	CE 0575

Descriptions:
The standard diameter of front operation head of board front mounting rail type, board back type is 30mm, which is mounted on the board of I up to 6mm. The explosion—proof component of board front type is mounted on the standard rail of 35mm or fixed by bolt. The explosion—proof component of board back type are connected to the pre—mounted front operation head part with a clamp. The component of board front mounting rail type and board back type are attached by the terminals. The explosion—proof component of board front mounting rail type and board back type shall be mounted in the enclosure of increased safety "e" which the protection degree is up to IP54.
The various kinds of type of explosion—proof button components and explosion—proof switch components can be combined when the different operation heads are equipped with the explosion—proof switch module of board front mounting rail type and board back type.

Order specifications:
