Product Details

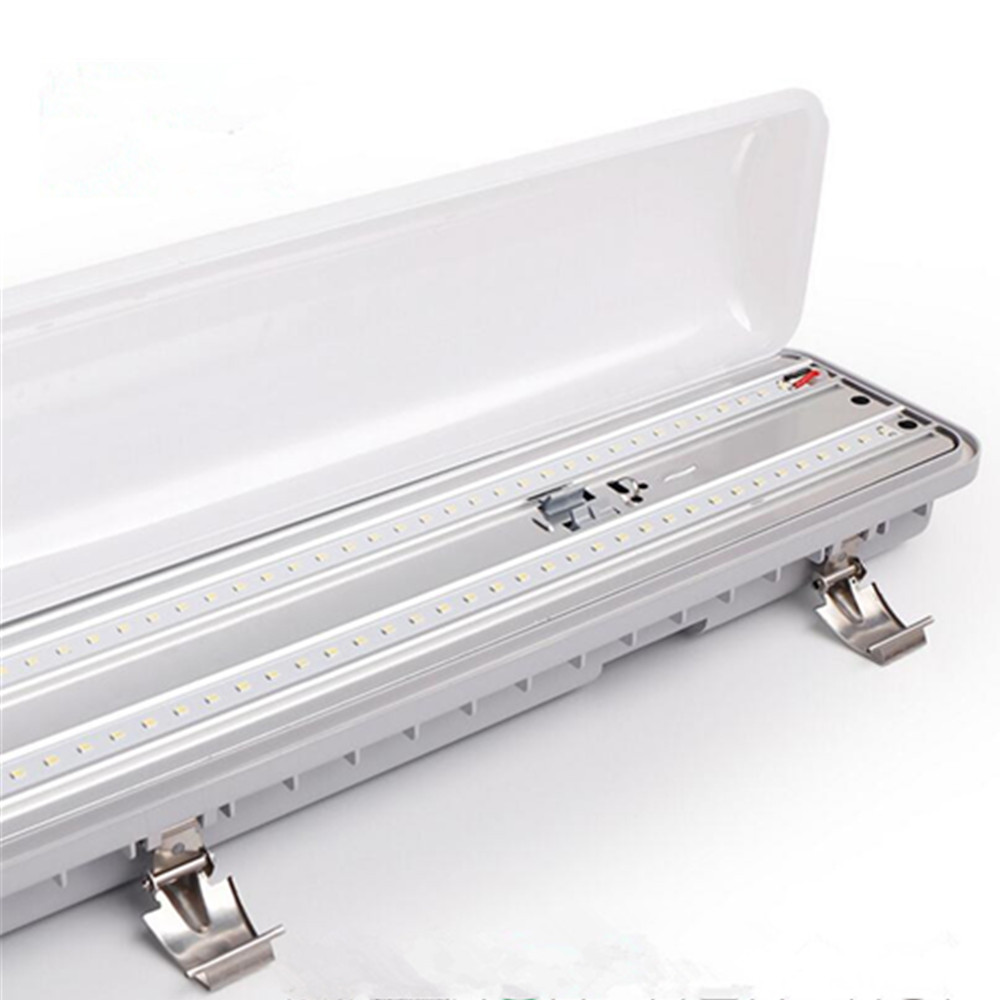

New Shenzhen factory price 0.6m/1.2m/1.5m led tube batten surface mount led for carparking with automatic emergency lights
- LED lighting source, green and energy saving;
- IP65, available for outdoor use;
- PC base and Opal PC diffuser;
- 3 hours emergency (option available);
- c/w M20 x 1.5 IP65 Gland;
- Microwave/ Motion sensor;
--Automatic dims when detected area is unattended
--Adjustable range (1-8m)
- Anti-glare design: against from the dizzy light;
- No UV, no infrared, no other Hazardous Substances;
- No noise, no flicker, resistance from vibration;
- CE&ROHS compliant;
- 2~5 years warranty.
| Standard Version: | |
LED Driver output voltage | DC 36V |
| LED Driver output current | 1200mA ±10mA |
| Flux luminous | 4800Lm |
Luminous efficacy | 105Lm/W |
View angle | 110° |
Housing material | PC base and Opal PC diffuser |
IP Rating | IP 65 |
Life Span | Up to 36,000 hours |
Operation temperature | -10 deg C to 40 deg C |
Dimension | 600mm/1200mm/1500mm |
Package | |
Net Weight | 3.95 kg (approx) |
| |
Emergency Version: | |
Type | Maintained |
Battery(High-Temperature) | 9.6V 3.2AH Ni-MH rechargeable |
Emergency output | 30% nominal power |
Emergency duration | >3 Hours |
Charge time | < 12Hours |
LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
Test button | AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
Sensor Version: | |
Sensor Range |
180 degree; 0.5~8m (adjustable) |
Sensing Interval |
10s to 5min max (adjustable) |
Sensing Interval Output |
25% of nominal power |
The product can be applied in any area where corrosion may happen, such as basement parking, backyard, garden or some outdoor places.
OEM&ODM welcome, any your customized requirements, we can help you to design and manufacture.
Quality Warranty
All products have passed through the stringent professional testing, the life span up to 50000h. We have 3-5 years warranty.
Shipping Warranty
We choose the fastest and most reliable forward agent to deliver our lights. Delivery terms: Ex-works/FOB and CIF.
After-sale service Warranty
We have professional team who works on after-sale service to help you solve your technical problems. We will try our best to answer all your questions and improve the defect in the meantime.
Replacement Warranty
Any quality problems will be free 1:1 replacement or 100% refund for the defective products.
