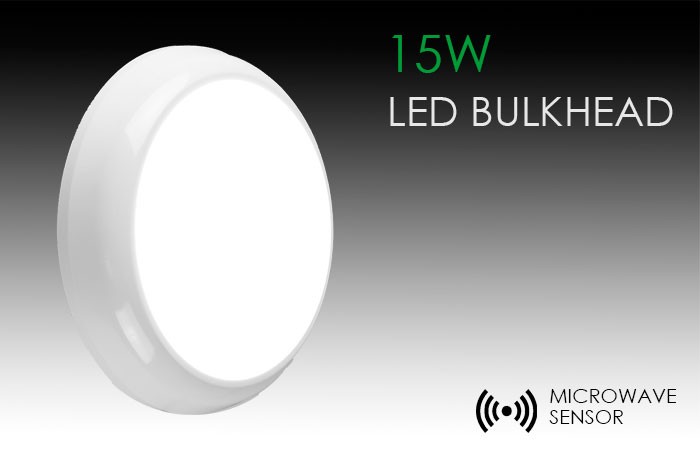

new shenzhen factory price 15w ceiling mount led light fixtures 3 hours emergency battery backup

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Lights & Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-10-17 05:08

Other Products
Cost saving ip65 weatherproof led batten lights 1200mm 40w battery backup led emergency lights
¥Negotiable 41Views

Cost saving ip65 weatherproo

Recommend
SAA approved 40w 1200mm ip65 cost saving led microwave motion sensor and emergency lights
¥Negotiable 32Views

SAA approved 40w 1200mm ip65

Recommend
Integrated LED Batten Slimline IP65 Vico LED Batten with Motion Sensor
¥Negotiable 39Views

Integrated LED Batten Slimli

Recommend
WP led strip batten with pir randar microwave motion sensor car park lights
¥Negotiable 30Views

WP led strip batten with pir

Recommend
Explosion proof led lights battens Ip65 20W 25W 36W 40W 50W 4000K 6000K LED Batten Light
¥Negotiable 35Views

Explosion proof led lights b

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Branch:

Array

Size:

33X33X11 cm

Product Details

Overview
Quick Details
Item Type:
Ceiling Lights
Light Source:
LED
Install Style:
Surface Mounted
Input Voltage(V):
220-240V
Lamp Luminous Flux(lm):
1200
CRI (Ra>):
85
Working Temperature(℃):
-10 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
PC
IP Rating:
IP65
Certification:
CE, EMC, RoHS, SAA
Place of Origin:
Shenzhen, China
Brand Name:
Gooday Lighting
Model Number:
GL1501CA/SA/EA/ESA
Application:
Residential
Warranty(Year):
5
Shape:
Round Shape
Size:
325*100mm
CCT:
3000K/4000K/5000K/6000K
Function:
Stardand/sensor/emergency
PF:
0.9

Packaging & Delivery

Selling Units:
Single item
Single package size:
33X33X11 cm
Single gross weight:
13.0 kg
Lead Time:
Quantity(Piece)1 - 500>500
Est. Time(days)7To be negotiated
Detailed Images
Detailed Images





Product Description



Series NoDescriptionFinish
GL1501CA15W Standard LED Bulkheadwhite
GL1501SA15W LED Bulkhead c/w Microwave Sensorwhite
GL1501EA15W LED Bulkhead c/w 3 hours emergencywhite
GL1501ESA12W LED Bulkhead c/w Microwave Sensor & 3 hours emergencywhite



Product Features:
LED lighting source, green and energy saving;
IP65 bulkhead, available to replace 2D fitting;
PC housing and PC diffuser;
3 Hours emergency(option available);
Microwave/ Motion sensor:
--Automatic dims when detected area is unattended
--Adjustable range (1-8m)
c/w M20 x 1.5 IP65 Gland;
Anti-glare design: against dizzy light;
No UV, no infrared, no other hazardous substances;
No noise, no flicker, resistance from vibration;
CE&ROHS compliant;.
Three years warranty;.



Electrical parameters:

Input voltage ( 50/60Hz)AC 100-240V
Power consumption12W (14W for emergency versions)
PF>0.9
LED Driver output voltageDC 36V
LED Driver output current300mA ±15mA
Light sourceSMD LED
Color Temperature (CCT)3000K /4000K/ 6000K (optional)
CRIRa>80
Luminous Flux1000-1200Lm
Luminous efficacy110Lm /W for GL1201CA
110Lm /W for GL1201SA
100Lm /W for GL1201EA
100Lm /W for GL1201ESA
View angle110°
Housing materialPC housing , PC diffuser
IP RatingIP 65
Life SpanUp to 50,000 hours
Operation temperature-20degC to 45degC
DimensionΦ325*100mm
Package330*330*110mm
Net Weight1.8KG(approx)
Emergency:
TypeMaintained
Battery(High-Temperature)9.6V 1600MAH Ni-MH rechargeable
Emergency output30% nominal power
Emergency duration>3 Hours
Charge time< 12Hours
LED indicationRed: charging; Green: fully charged;
Yellow: battery fault or disconnected
Test buttonAC power on: Push and hold the button to enter
emergency mode; release button to come back AC power
mode
Microwave Sensor:
Sensor range180 degree; 0.5 - 8M(adjustable)
Sensing interval10s to 5min max (adjustable)
Sensing interval output25% of nominal power



FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than .

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
