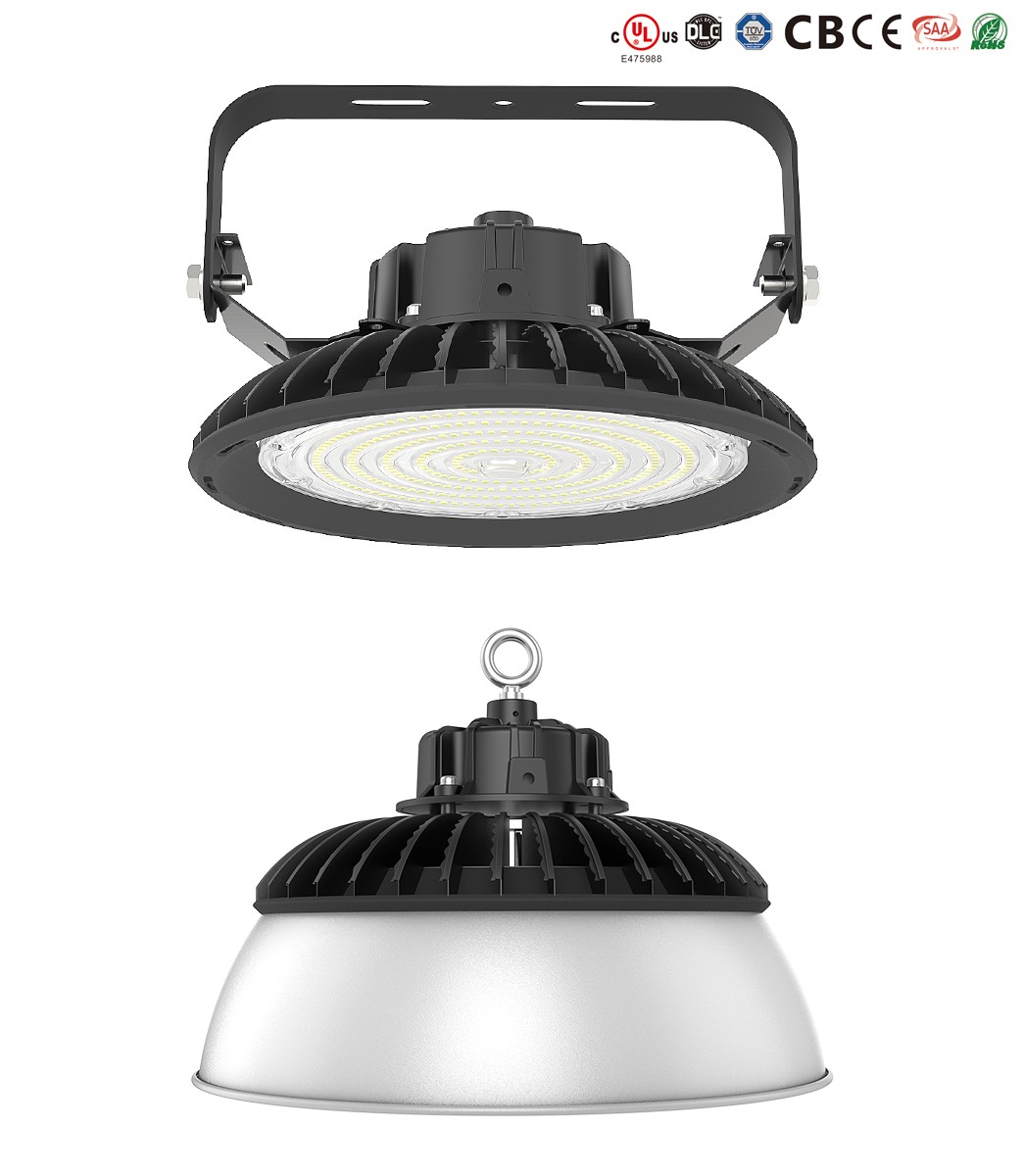

New UFO High Bay 150LM/W HBT-H Series

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Shenzhen

  • Categories:Professional Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:45

Other Products

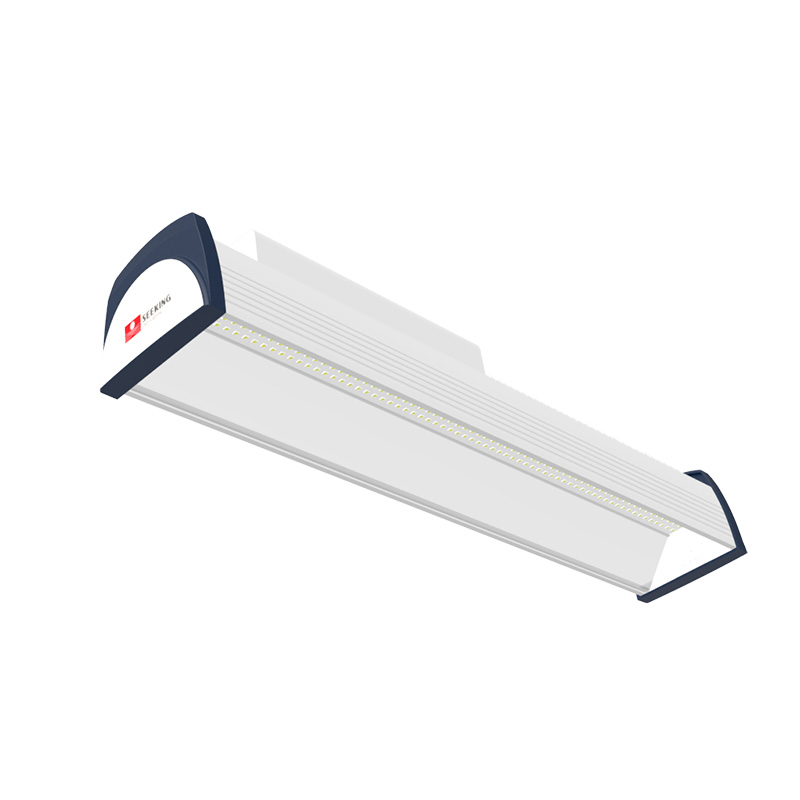

Soft light LED High Bay Light With Shading design- HBX Sereis
¥Negotiable 47Views

Soft light LED High Bay Ligh

Recommend

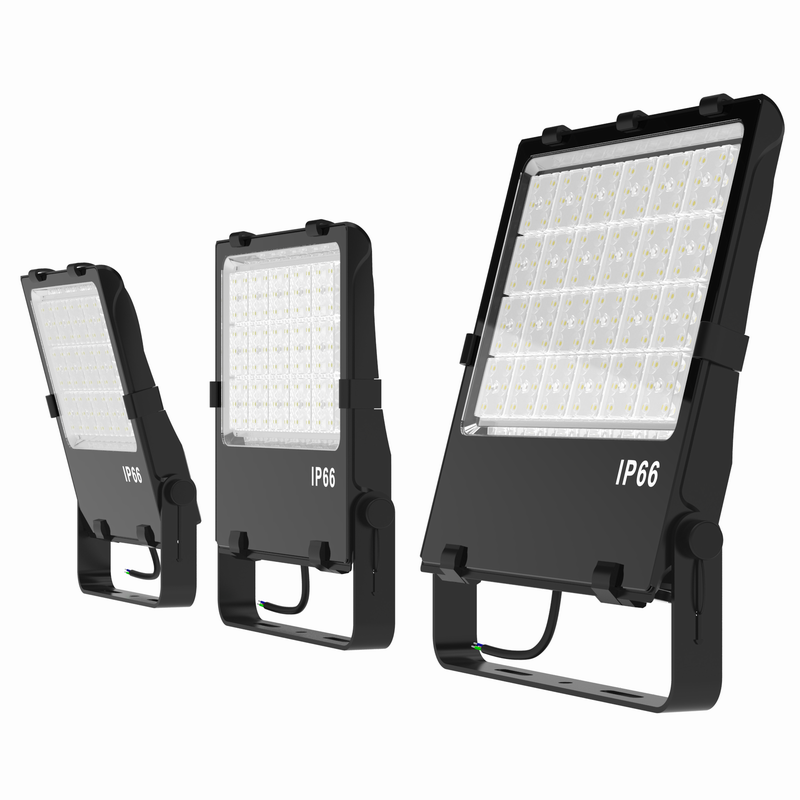

FLX LED Flood Light
¥Negotiable 22Views

FLX LED Flood Light

Recommend

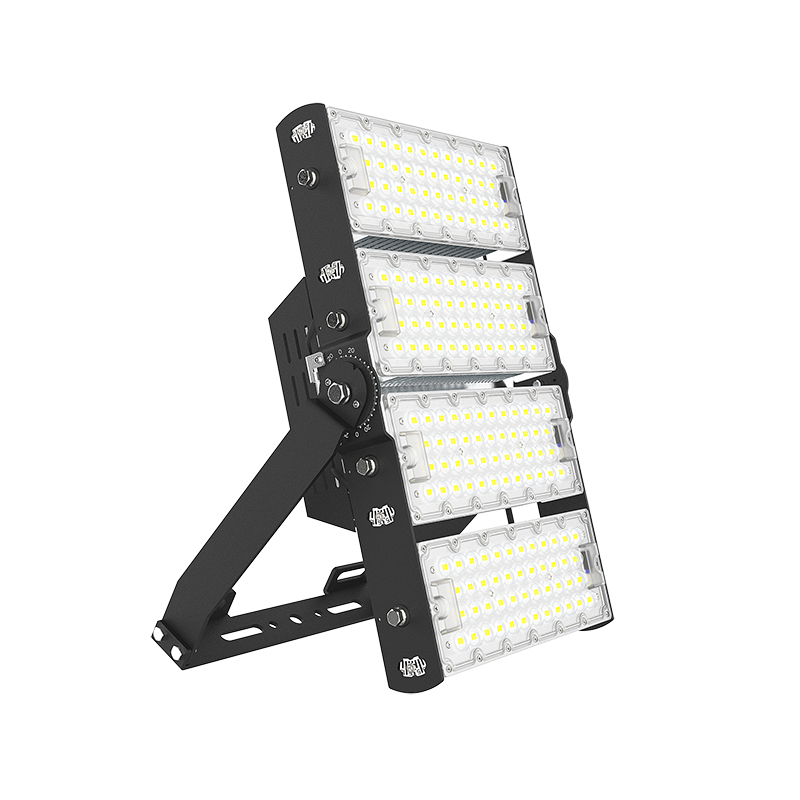

LED Stadium Light-XJ-TFL480W
¥Negotiable 45Views

LED Stadium Light-XJ-TFL480W

Recommend
New UFO High Bay 150LM/W HBT-L Series
¥Negotiable 18Views

New UFO High Bay 150LM/W HBT

Recommend
New UFO High Bay 150LM/W HBT-H Series
¥Negotiable 21Views

New UFO High Bay 150LM/W HBT

Recommend
You may like
¥Negotiable 17Views

LED tracking light housing 9102-TJ25W

Recommend
¥Negotiable 23Views

AIDI-C14 Rechargeable Lighted Dog Collars

Recommend
¥Negotiable 19Views

AIDI-C2 New Style Bright Light Nylon Led Dog Collar

Recommend
¥Negotiable 17Views

LED Underground light housing 6003T9

Recommend
¥Negotiable 17Views

LED fountain light housing 5002Q18

Recommend
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Shenzhen

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details


MM deisgn--Power,efficiency maximum,lamp volume Minimum.fins cooling and more led chips keep XJ-HBT always work in a high efficiency.various lens and bracket make it can fit any industry application.Also, the MM design makes XJ-LBT the most cost-effective.

PRODUCT PARAMETER



Data SpecificationsHBT-H  series
Power80W/100W130W/150W180W/200W
Input VoltageAC90-305V 50/60Hz
Output VoltageDC117-120V
color temperature2800-3200 /4000-4500 /5500-6000K
CRIRa>70 & Ra>80Ra>70 & Ra>80Ra>70 & Ra>80
Average Beam angle(50%)60°/90°60°/90°60°/90°
Light Efficiencywhole lamp output 165lm/wwhole lamp output 165lm/wwhole lamp output 165lm/w
Lumenswhole lamp output 13200LMwhole lamp output 13200LMwhole lamp output 13200LM
LED208 ( Tiandian 2835) pcs312 ( Tiandian 2835) pcs416PCS ( Tiandian 2835) pcs
Driver100W(SOSEN)150W(SOSEN)200W(SOSEN)
UGR20
Power Factor(Typ)≥0.95
Operating Temperature(-40~60 ℃)(Lowest operation temp -40°C, and highest 60°C)

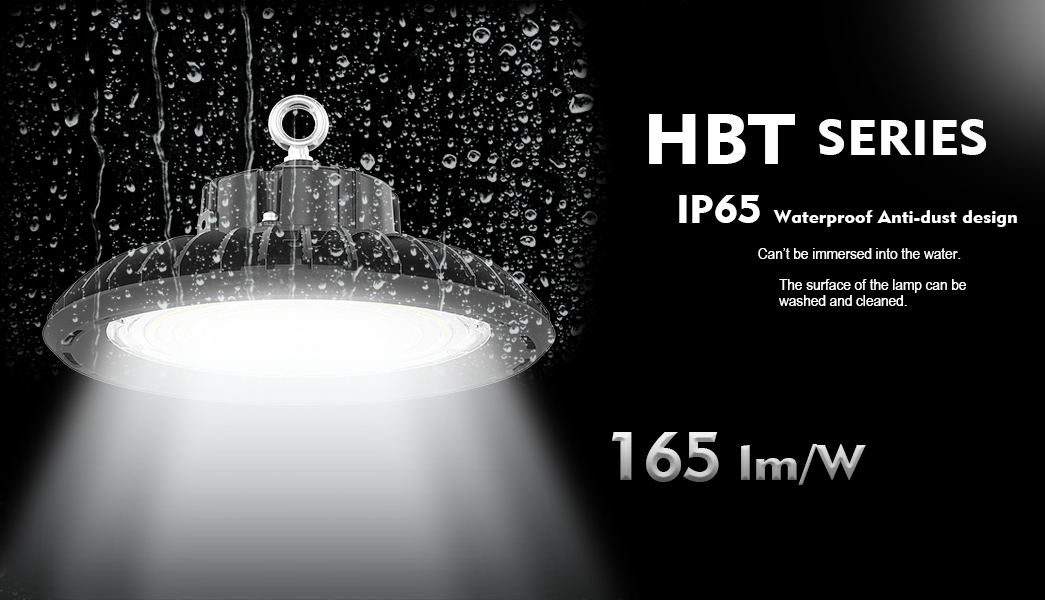

Ip ratethe waterproof grade IP65 ,can work outdoor under rain
Life Span50000Hrs (L70B50>50,000hrs)
Main MaterialsAluminum, LED,Plastic
Operating Humidity20%~90%
Storage Temperature(-40~80 ℃)
Lumen Maintenance>85%(5000Hrs)
Others
Replace Traditional lamp

80W≥200W;100W≥250

W(HPS ,MH, HID)

130W≥200W;150W≥250

W(HPS ,MH, HID)

180W≥200W;200W≥250

W(HPS ,MH, HID)

Energy Saving60%
Lux on 5 meter

80W=320.6lx;100W=402lx

 (lux at ground from 5m high)

130W=894.5lx;150W=972.9lx

(lux at ground from 5m high)

180W=957.8lx;200W=1045lx

(lux at ground from 5m high)

Lux on 10 meter

80W=80.15lx;100W=100.5lx

(lux at ground from 10m high)

130W=223.6lx;150W=243.2lx

(lux at ground from 10m high)

180W=239.4lx;200W=261.2lx

(lux at ground from 10m high)

Temperature on housing Max

80W=59.4 °C;100W=61.4°C

(Test environment temperature 25 °C)

130W=68.7 °C;150W=70.7 °C

(Test environment temperature 25 °C)

180W=75.7 °C;200W=76.8 °C

(Test environment temperature 25 °C)

Temperature on LED Max

80W=61.9 °C;100W=64.9 °C

(Test environment temperature 25 °C)

130W=83.4 °C;150W=83.4 °C

Test environment temperature 25 °C)

180W=78.8°C;200W=79.8 °C

(Test environment temperature 25 °C)

Temperature on Driver Max

80W=51.4 °C;100W=55.4°C

(Test environment temperature 25 °C)

130W=61 °C;150W=64 °C

(Test environment temperature 25 °C)

180W=64.6 °C;200W=67.6 °C

(Test environment temperature 25 °C)

Net weight2.5 Kgs (without package)3 Kgs (without package)3.5 Kgs (without package)
Gross Weight(Kgs)3.7 Kgs (with package)4.2 Kgs (with package)4.8 Kgs (with package)
Package Size345x345x210mm345x345x210mm405x405x215mm

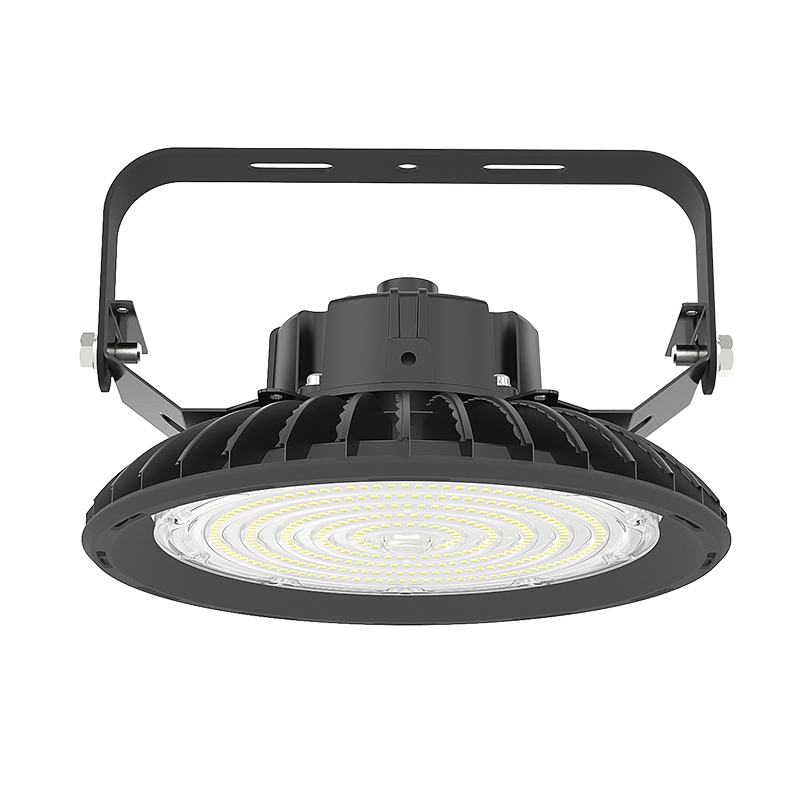

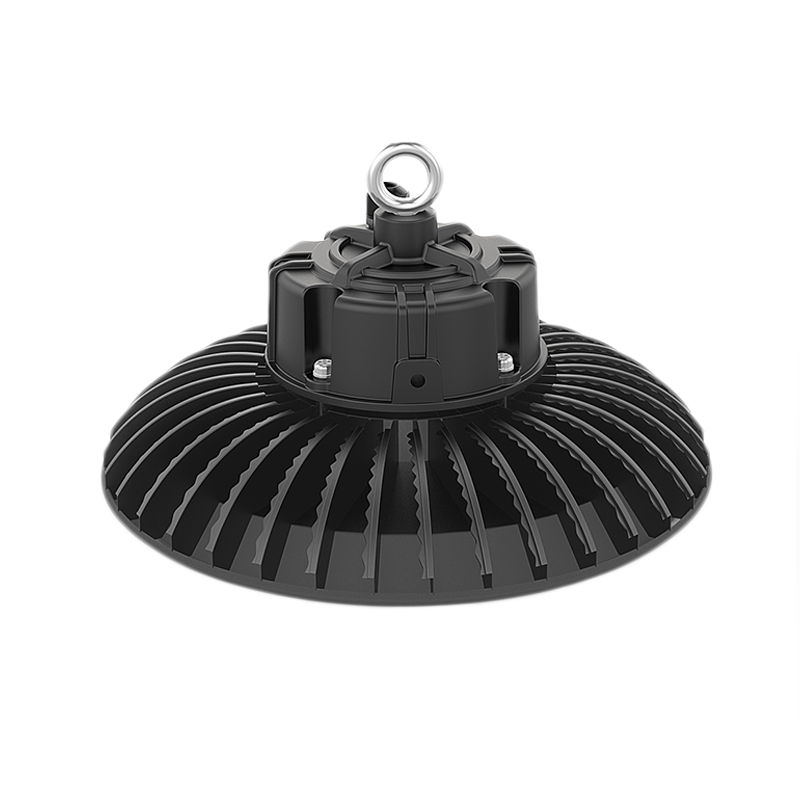

InstallationsAdjustable bracket,Hook

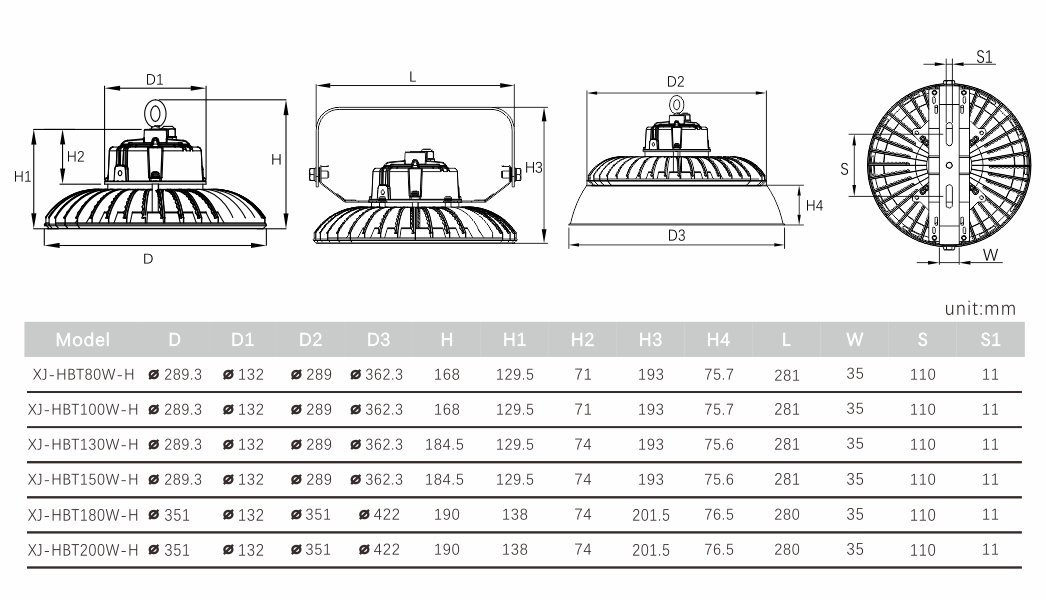

 PRODUCT SIZE

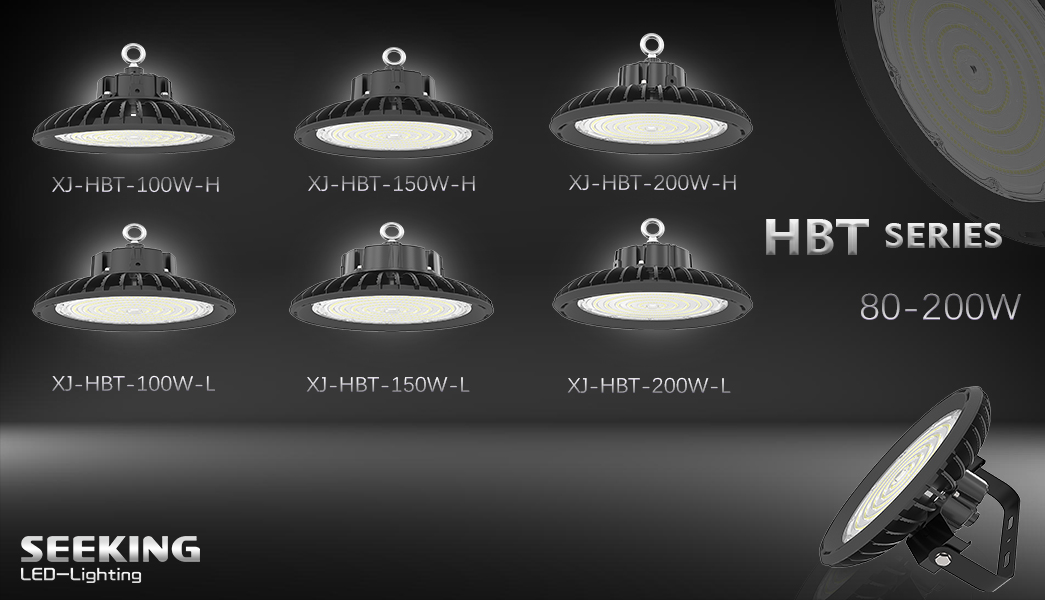

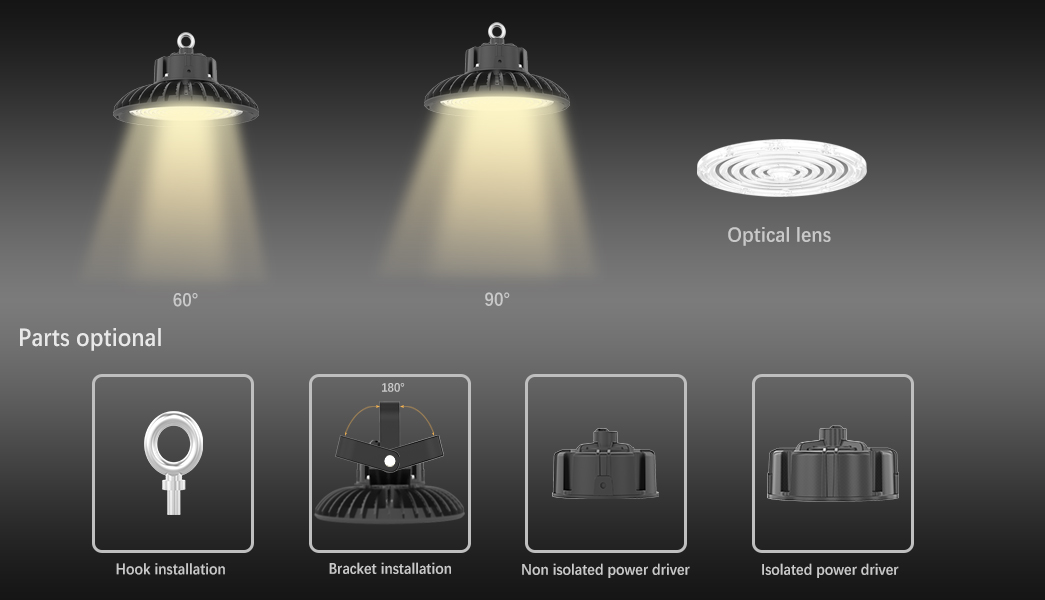

PRODUCT DETAILS

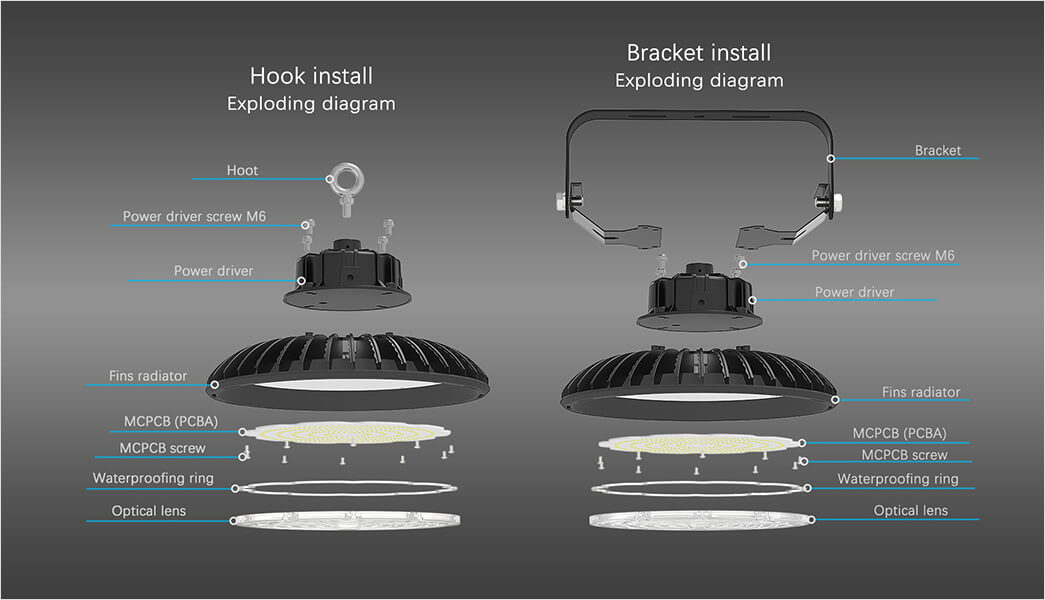

PRODUCT EXPLOSIVE VIEW

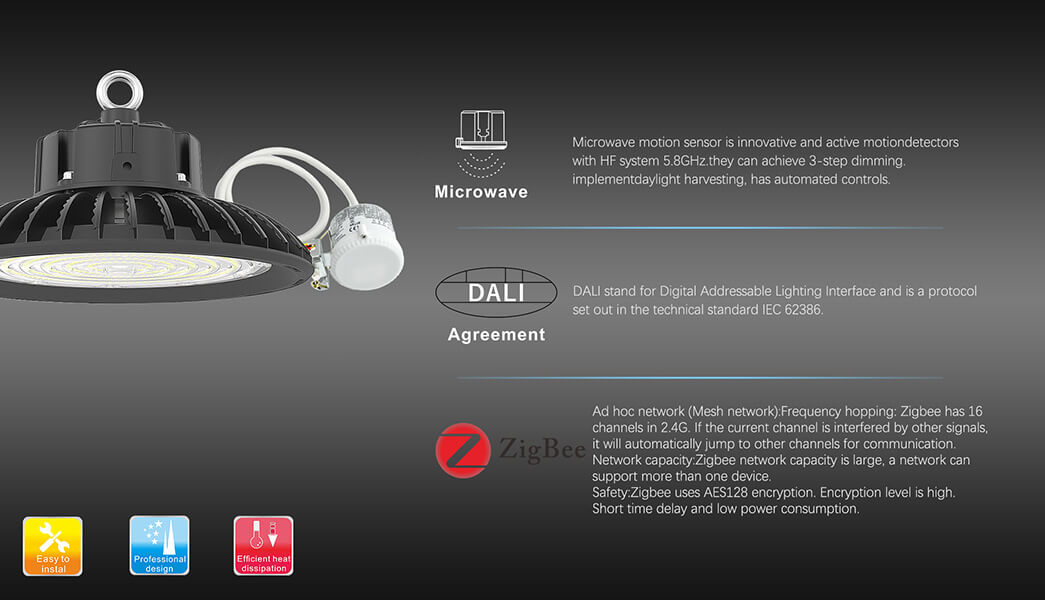

PRODUCT FUNCTION APPLICATION

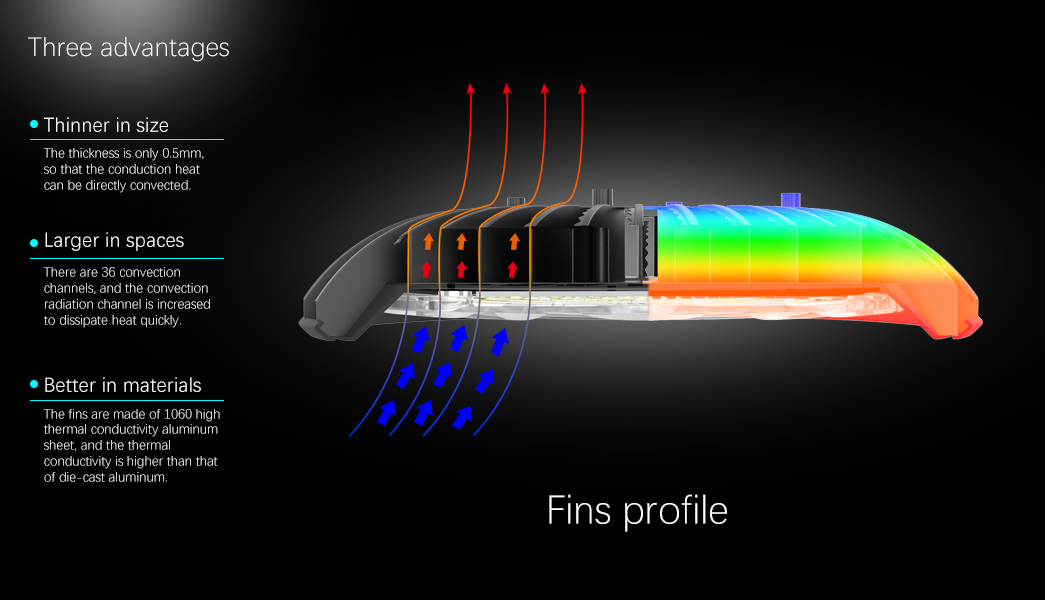

 THERMAL PRESENATION

FREE LIGHTING DESIGN



SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.
