Product Details
MM deisgn--Power,efficiency maximum,lamp volume Minimum.fins cooling and more led chips keep XJ-HBT always work in a high efficiency.various lens and bracket make it can fit any industry application.Also, the MM design makes XJ-HBT the most cost-effective.
◆ PRODUCT PARAMETER
| Data Specifications | HBT series |
| Power | 130W |
| Input Voltage | AC90-305V 50/60Hz |
| Output Voltage | DC117-120V (H- TYPE)；DC45-47V (L TYPE) |
| color temperature | 2700-3200 /4000-4500 /5500-6000K |
| CRI | Ra>70 & Ra>80 |
| Average Beam angle(50%) | 60°/90° |
| Ip rate | the waterproof grade IP65 ,can work outdoor under rain |
| Light Efficiency | whole lamp output 165lm/w |
| Lumens | whole lamp output 21450LM |
| LED | 312( Tiandian 2835 H TYPE) pcs；320( Tiandian 2835 L TYPE) pcs |
| Driver | 130W(SOSEN) |
| UGR | 20 |
| Power Factor(Typ) | 0.95 |
| Operating Temperature | （-40～60 ℃）(Lowest operation temp -40°C, and highest 60°C) |
| Life Span | 50000Hrs (L70B50>50,000hrs) |
| Main Materials | Aluminum, LED,Plastic |
| Operating Humidity | 20%～90% |
| Storage Temperature | (-40～80 ℃) |
| Lumen Maintenance | >85%（5000Hrs） |
| Others | |
| Replace Traditional lamp | 325W HPS ,MH, HID |
| Energy Saving | 60% |
| Lux on 5 meter | 512.9lx (lux at ground from 5m high) |
| Lux on 10 meter | 128.2lx (lux at ground from 10m high) |
| Temperature on housing Max | 68.7 °C |
| Temperature on LED Max | 83.4°C |
| Temperature on Driver Max | 61°C |
| Net weight | 3Kgs (without package) |
| Gross Weight(Kgs) | 4.2Kgs (with package) |
| Package Size | D 289*193mm |
| Installations | Adjustable bracket,Hook |

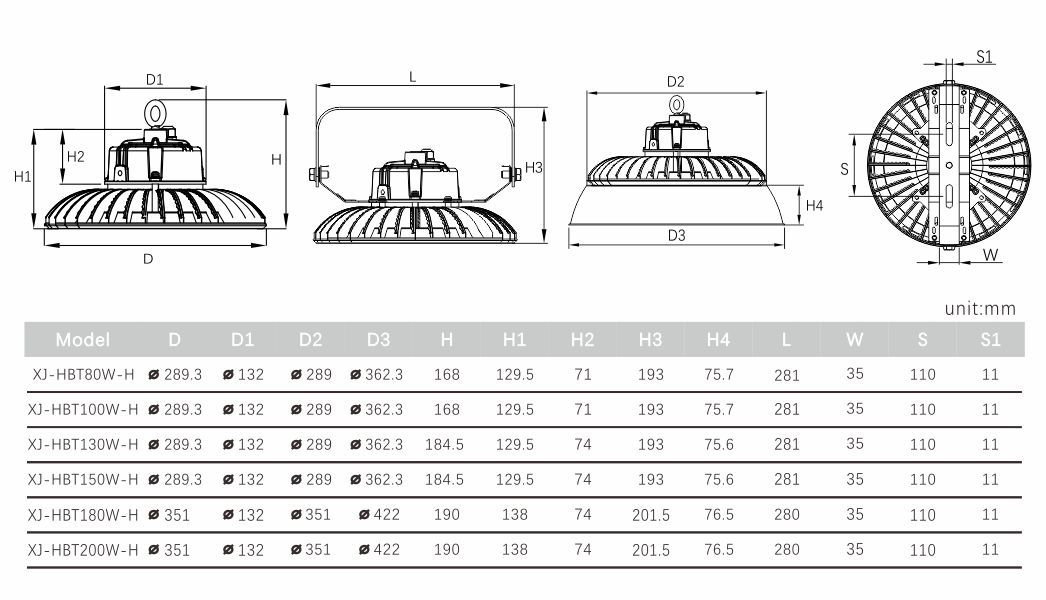

◆ PRODUCT SIZE

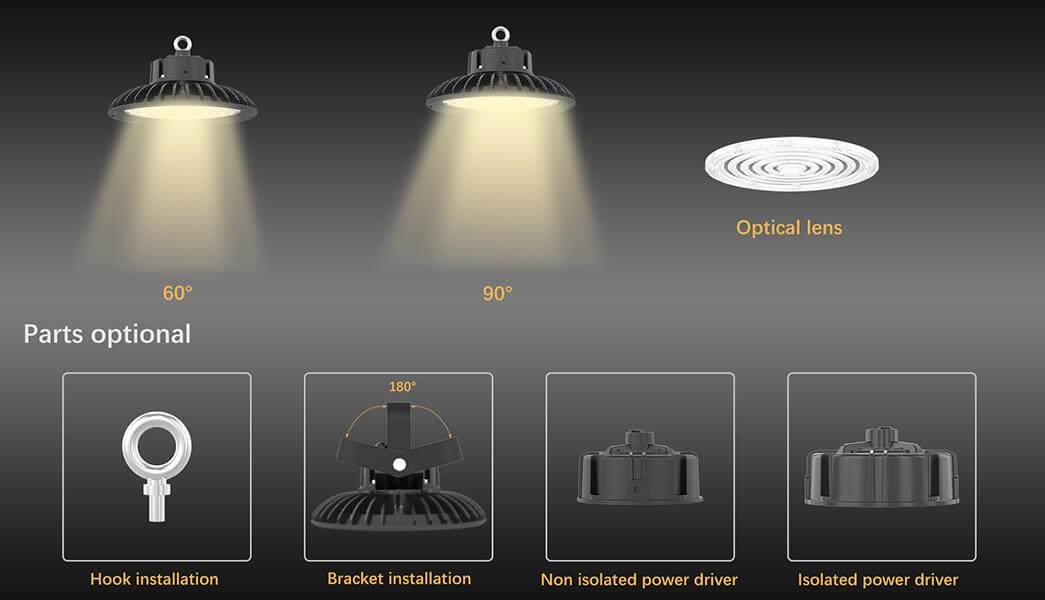

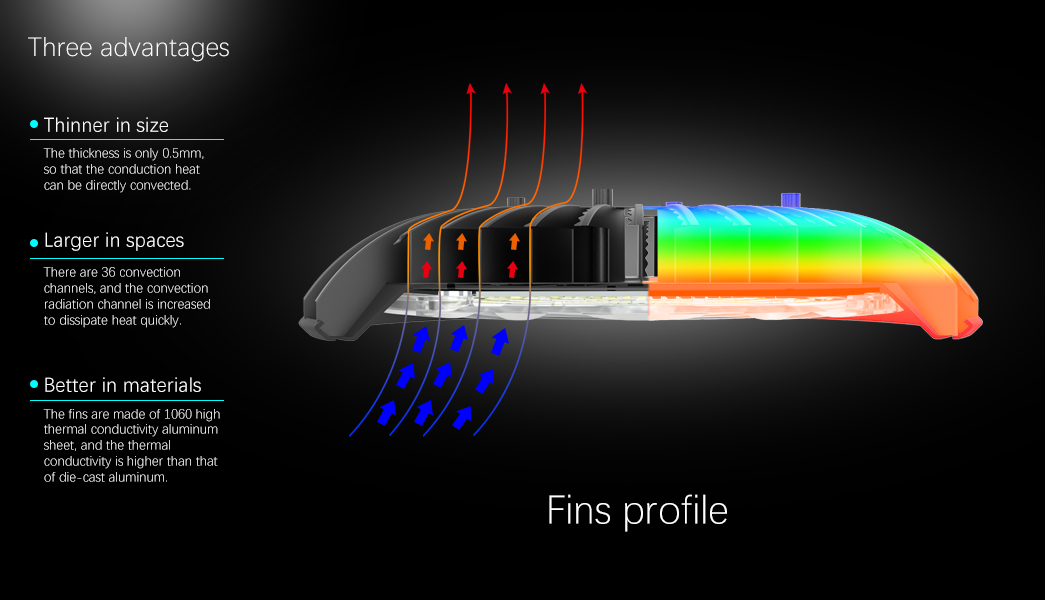

◆ PRODUCT DETAILS

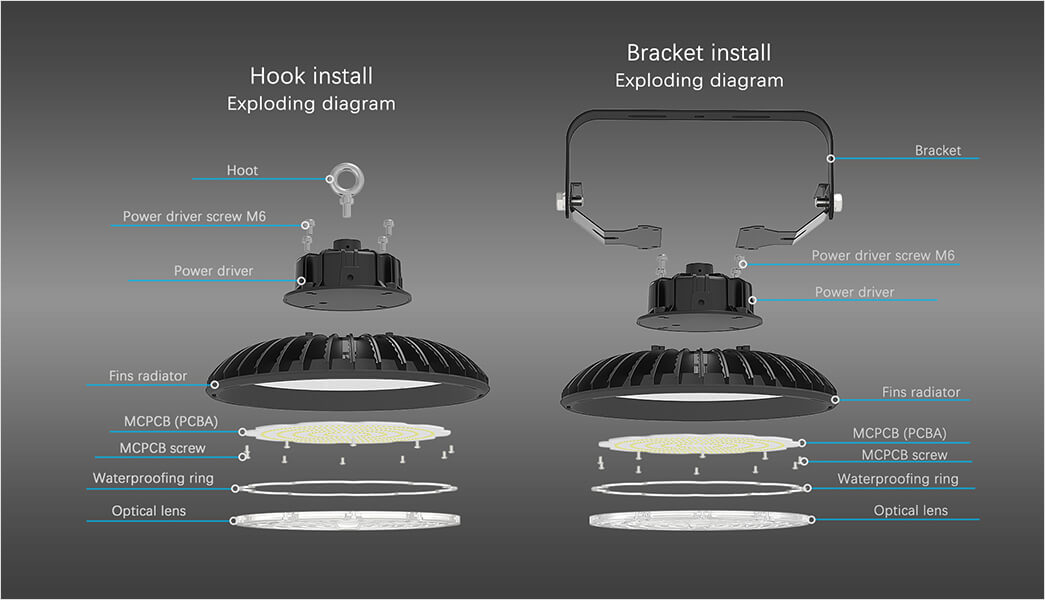

◆ PRODUCT EXPLOSIVE VIEW

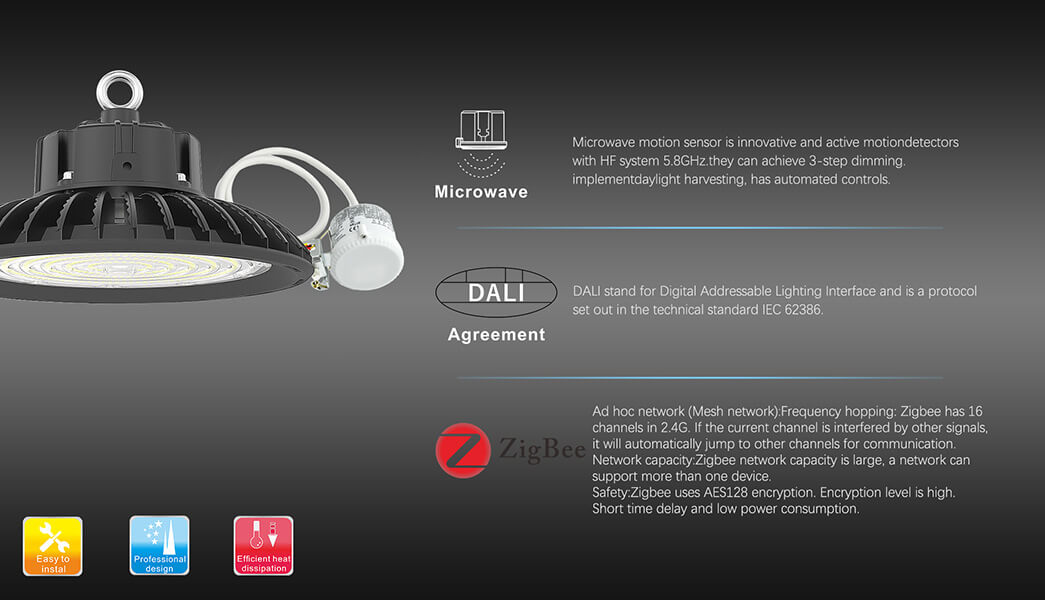

◆ PRODUCT FUNCTION APPLICATION
◆ FREE LIGHTING DESIGN
SIMULATION AND 3D RENDERING DESIGN FOR FREE
SEEKING offers free lighting design simulation service, including various indoor and outdoor designs. A series of parameters, like the practical solutions, the layout of lights and the light distributions etc, could be offered after the simulations. We can also answer your questions timely, optimize designs continuously and provide the best lighting solutions for you.
