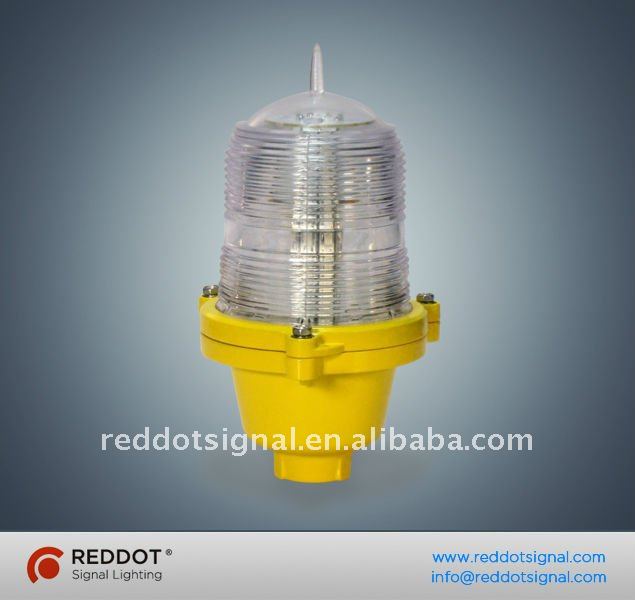

OL32 LED Based Low Intensity Aviation Obstruction Light
Description:
Reddot Signal"s OL32 single aviation obstruction light is a 32cd (candela) LED light designed for fixed obstacle marking application, such as telecommunication&transmission towers, high-rise building, wind-turbine, crane etc.
Features:
-Special optical design provides better light distribution
- LED light source ensures long lifetime, maintenance free
- Low power consumption
- Shock and vibration resistant
- Corrosion resistant and UV stable polycarbonate housing
- Ease of mount, mount accessories available
- Available both in single and double type.
Compliant with:
-ICAO Annex 14, 4th Edition, Low intensity type B
-FAA AC No.150/5345-43F,2006, type L-810
-DGAC Mexico
Specification
SPECIFICATIONS |
LIGHT OUT-PUT |
Effective Intensity | 32 Candela |
Vertical Divergence | 10 Degree |
Horizontal out-put | 360 Degree |
LED Color | Red |
LED Lifespan | 100,000 Hours |
OPERATION |
Flash Pattern | Steady-burning(Default) |
POWER SUPPLY |
Operating voltage | 12VDC, 24VDC, 48VDC; 110VAC, 220VAC, 50/60Hz |
Power consumption | 6W |
MECHANICAL STRUCTURE |
Lens | Polycarbonate, UV Stabilize |
Body | Die-casting Aluminum |
Water-proof | IP65 |
Weight | 0.9 KG |
Dimensions | 159mm H, 245mm Diameter |
Mounting Size | Threaded 3/4’’ bottom hub |
Temperature Range | -40°C ~ +55°C |
Relative humidity | 100% with condensation |
Wind Speed | Up to 150mph(240kph) |
|
Warranty | 5 years |
Optional | Available in flashing pattern (40FPM default)
Available with built-in photo sensor Available with built-in alarm relay contacts |
Ordering Code
Series | Single/Double | AC/DC | Voltage | Flashing | Photosensor | Alarm relay | Pattern(For double light only) |
OL32 | S | A | 12 | F | P | R | ST |
| D | D | 24 | | | | SS |
| | | 48 | | | | |
| | | 110 | | | | |
| | | 220 | | | | |
For example, OL32SA220P means OL32 single light, AC220V power supply, red steady burning, with built-in photocell
