Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ONN

Product Name:: Warehouse Lighting Fixtures IP65 Led Tri-proof Light

Voltage:: 100-240V

Power Rating:: 20W / 40W / 55W

Length:: 600 / 1200 / 1500mm

Luminous:: 95-105 Lum/W

View angle:: 160 degree

CCT:: 4500-5000K / 5500-6000K

Installation:: Fixed by Clips

IP Grade:: IP65

Features:: Tri--proof , easy mouting , super bright

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Warehouse Lighting Fixtures IP65 Led Tri-proof Light

Packaging & Delivery

Packaging Details: Inner box PE bag & outer box
According to customr's requests

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 200	>200
Est. Time(days)	7	To be negotiated

ONN-J02 Warehouse Lighting Fixtures IP65 Led Tri-proof Light CE & FCC 100-240v

Application :

Semi-Outdoor using : Flyover, Car Park, Garden, Highway Lighting, Pooling Lighting, Sport Lighting, Tunnel Lighting, parking lot, Airport, Train station, Bus station, Subway, Metro station, Petrol Station etc,.

Indoor freezer /humidity/ moisture /dust place :Factory, Workshops, Production line, Warehouse, Mining area, Basement, Storage etc,.

Product Features :

1. Adopt Integrated light body extrusion process and high performance PC diffuser . Even in humid or dusty environments acid can also be long-term and effective work; while ordinary waterproof lamps using injection molding process, clamshell casing design, prolonged use of sealing will drop, easy to produce leakage problems, while ordinary metal pendant corrosive aging;

2. Super energy efficient, under the same illumination, up to 50% energy saving, cost-beneficial to your program;

3. Light-terminal ends of the body to achieve a watertight seal; cover PC thermally stable material selection; with excellent waterproof sealant;

4. CE certification IP68 waterproof connector to avoid leakage risks; rather ordinary lamps waterproof rubber ring, easy to aging, prolonged work easily aging rubber ring; improper prone lid gap; prolonged use ordinary wiring is difficult to avoid leakage risks;

5. High performance led lamp beads, 50000hrs long life, providing the equivalent of 10 years of worry-free illumination;

6. The use of stainless steel corrosion-proof bracket kit, greatly improving the applicability in harsh environments; Ordinary metal pendant occurs security risks because of aging;

7. A quick and easy way to link installation: integrated waterproof lamps, without removing the luminaire wiring, simply plug IP68 waterproof push aviation lighting can be easily completed in series;

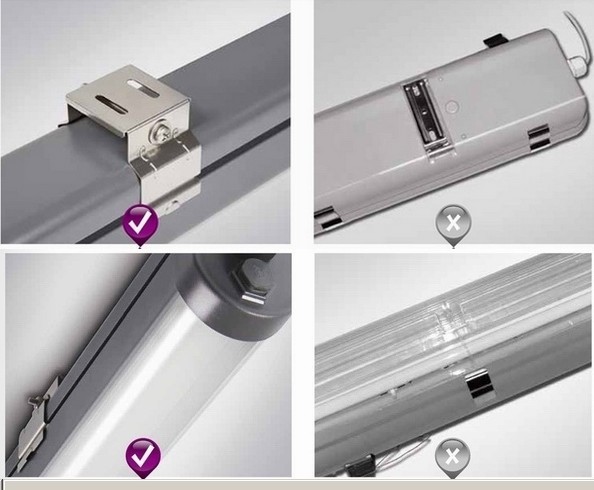

8. Adopt side sliding slot design, installation position of the stand can be adjusted; Compare with the width and height of the lamp ONN-J02 is reduced by half compared to traditional, greatly increasing the flexibility of installation; ordinary waterproof luminaire mounting holes have been fixed back in the lamp body injection the shell, resulting in a fixed position while the stent can not be changed, low installation flexibility .

9. Our J02 has a respirator, only into the air, water does not enter the light body, in order to achieve IP65 or higher IP67 protection rating, lamp inside is completely isolated , good heat dissipation , no high-temperature stress.

10. ONN offer 3 years of quality warranty,exempt your afte-sales service.

The Value-added services which ONN can supply to you :

1.ONN can supply LED lighting solutions of Specific projects to you;

2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers

Technical Parameters :

Model	Voltage	Power	CRI	Lumen	View angle	Sizes	Color	IP rating
ONN-J02-600	AC100-240V	20w	>80	1900-2100Lm	160 degree	60065.677.8mm	4000-4500K 5500-6000K	IP65
ONN-J02-1200	AC100-240V	40w	>80	4000-4200Lm	160 degree	120065.677.8mm	4000-4500K 5500-6000K	IP65
ONN-J02-1500	AC100-240V	55w	>80	5000-5500Lm	160 degree	150065.677.8mm	4000-4500K 5500-6000K	IP65

Product Structure :

More Detail :

Related Products Link for CNC Machine :

ONN-J01 Updated LED Cleanroom Light

ONN J06 Update Double Tube Cleanroom Light :

ONN J09 Dust-proof tube Light :

ONN Cleanroom Light Series :

Project Case :

Warehouse lighting:

Company Information :

Brief Introduction :

Shenzhen ONN Semoconductor Lighting Co., Ltd, We are manufacutre in Shenzhen which foucsing On Led Cleanroom Light Since 2005 .

With 10 years development, ONN has become the leader of producing and supplying led industrial lights in China. We passed IOS 9001 , CE , FCC , CCC , Rohs , IP protection and a series certificate .We have gained a 60% domestic market, and also cooperated with many famous brand from Germany, France, Amercia, Japan, South Korea, Australia and so on. Our goal is to become the biggest and best supplier of led industrial lights from China to the world . We will always try our best to offer our customer high cost perfomance products and always cooperated fully with all of you .

ONN Service :

Samples Policy:

Samples will be charged according to our quotation and delivered at our factory or warehouse.

Warranty Policy:

1. If the product have a failure occurs under normal usage within warranty period, we will provide free new products based on the proof-documents

2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid maintance within warranty period.

Certificates :

Contact Us :

Fiona.Liu

Skype : Fiona.liufei

QQ : 2880560270

Tel : +86-755-36631967

Mob : + 86 18312450422

Mob/WhatsApp : +86 18268698736

Web : www.onnled.net / www.onnled.en.alibaba.com
