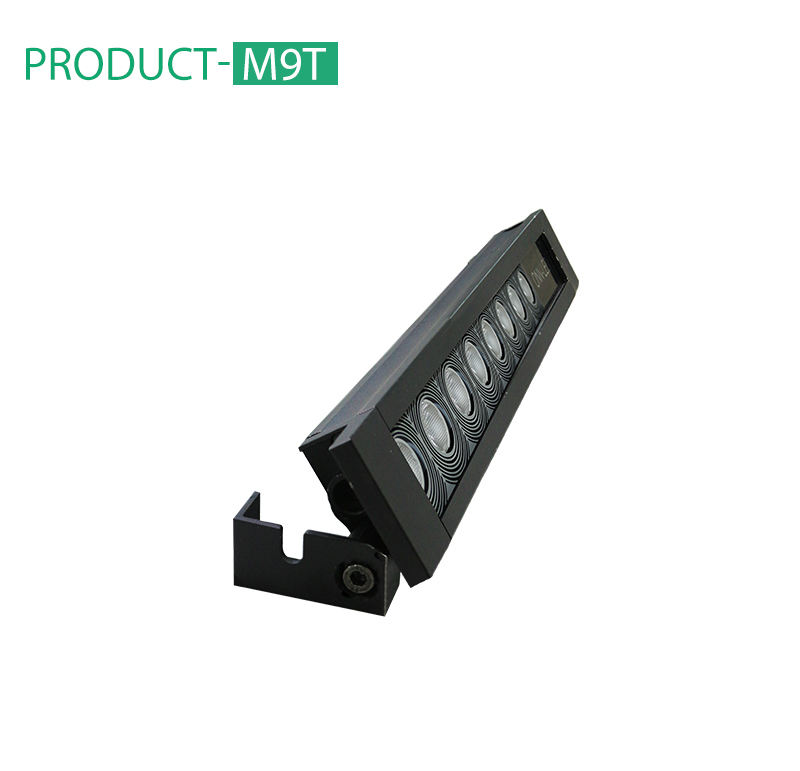

ONN-M9T IP65 machine tools working lamp /led lighting fixtures for machines
Products information:
Model | Input standard voltage | Input voltage range | CCT | |||||||||||||||||||||||||||||
ONN-M9T-B1 | AC/DC 24V | AC/DC 24±2V | 5500-6000K | |||||||||||||||||||||||||||||
ONN-M9T-B2 | AC/DC 24V | AC/DC 24±2V | 4000-4500K | |||||||||||||||||||||||||||||
Power wire length | About 0.55M(Standard) | |||||||||||||||||||||||||||||||
Lamp length | 280 mm | 380 mm | 480 mm | 580 mm | ||||||||||||||||||||||||||||
Power dissipation | 8W | 12 W | 16 W | 20 W | ||||||||||||||||||||||||||||
Input current | 320mA | 500mA | 680mA | 840mA | ||||||||||||||||||||||||||||
Light flux | 635Lm | 1000 Lm | 1330 Lm | 1500 Lm | ||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
Application
Mold maintenance lighting , workbench lighting , laser machinery , ceramic machinery and equipment, medical equipment , automated production lines , engraving equipment , stamping equipment lighting , local lighting which needs moving needs and so on .
Products introduce:
1.ONN-M9T series of products using die-cast structure, waterproof tape, waterproof silicone, glass and other components combine;
2. lighting the overall thermal performance, simple and elegant appearance, exquisite beauty;
3. protection class IP65, suitable for harsh working conditions, high price performance;
4. Adapt 3030 Taiwan imported lamp beads, the light, small size, low thermal resistance, good thermal conductivity, low light is the best choice for lighting;
5.using the anchor screws, can adjust 90 ° lighting illumination angle;
Packing:
Packing material | Carton | |||
Size of products(MM) | 280 | 380 | 480 | 580 |
N/W of one light (Kg) | 0.35 | 0.48 | 0.61 | 0.74 |
G/W of total cartons (Kg) | 9 | 12 | 15 | 18 |
Quantity/CTN (PCS) | 20 | 20 | 20 | 20 |
Carton size(L*W*H)mm | 435*240*210 | 435*240*210 | 635*230*205 | 635*230*205 |
Inner box(L*W*H)mm | 420*55*38 | 420*55*38 | 620*55*38 | 620*55*38 |
Special Recommendation
Environmental Requirements:
Working temperature: | -20~45℃ |
Save temperature: | -40~70℃ |
Working humidity: | 10~90% |
Save humidity: | 10~90% |
Product installation method:
Fixed by screws:
1) At a specified fixed point to open the M4 screw holes, as shown in FIG pitch;
2)screwed mounts, installed, loosen the nut, lamps and 90 ° irradiation angle can be, adjusted as needed to the desired angle, and finally tighten the nut.
Repair list:
1,The warranty of the products is 18 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2,The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.
