Product Details

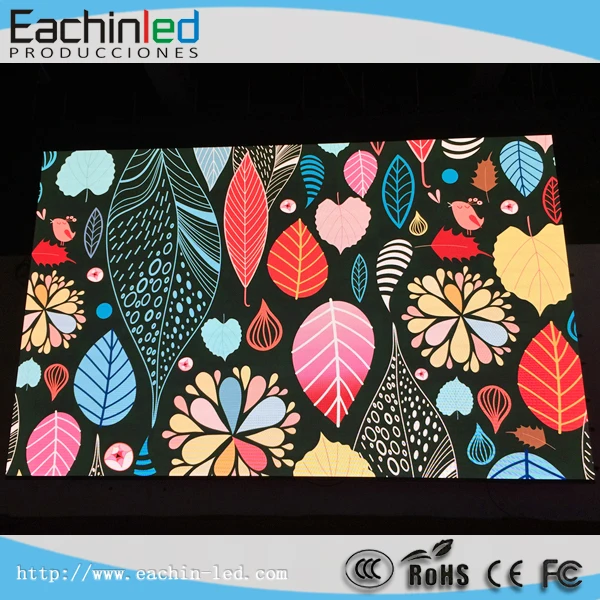

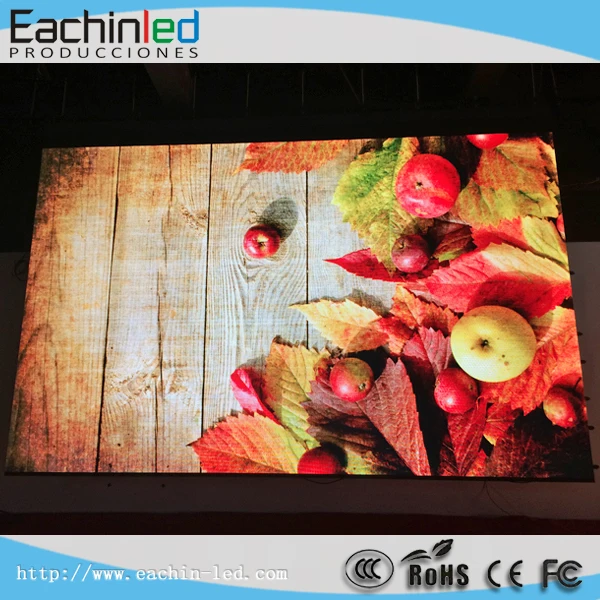

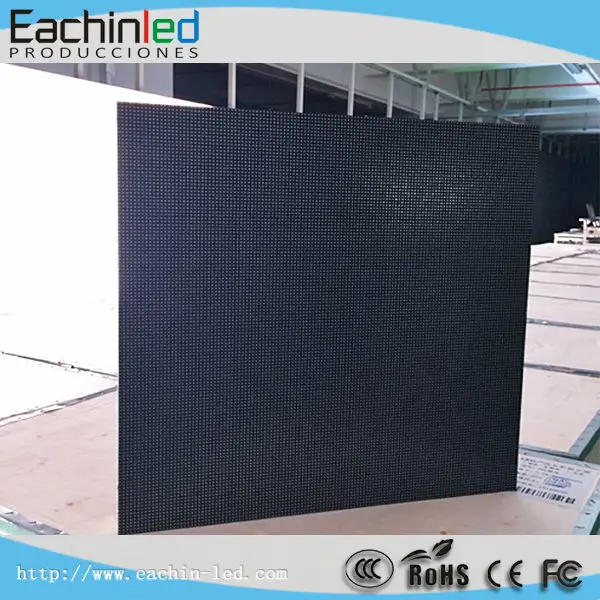

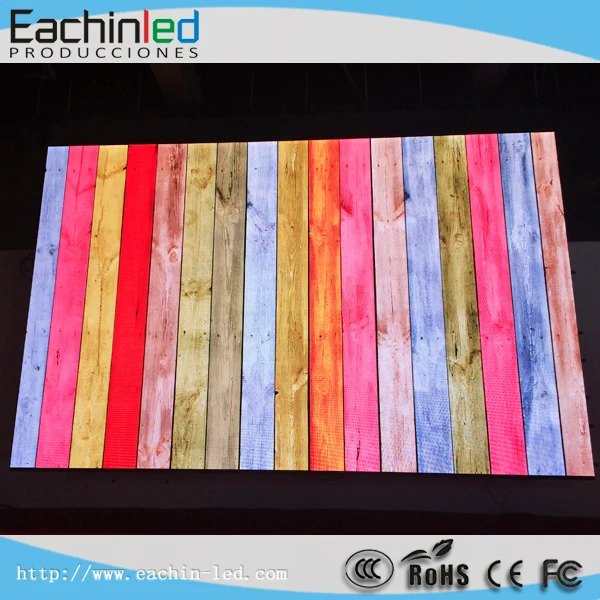

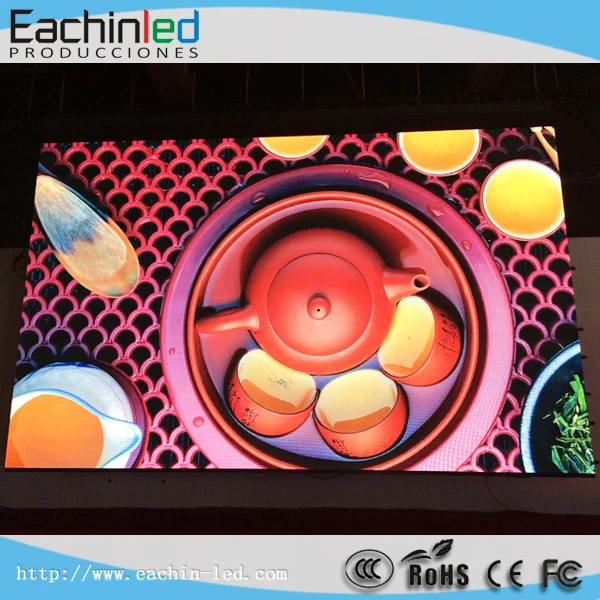

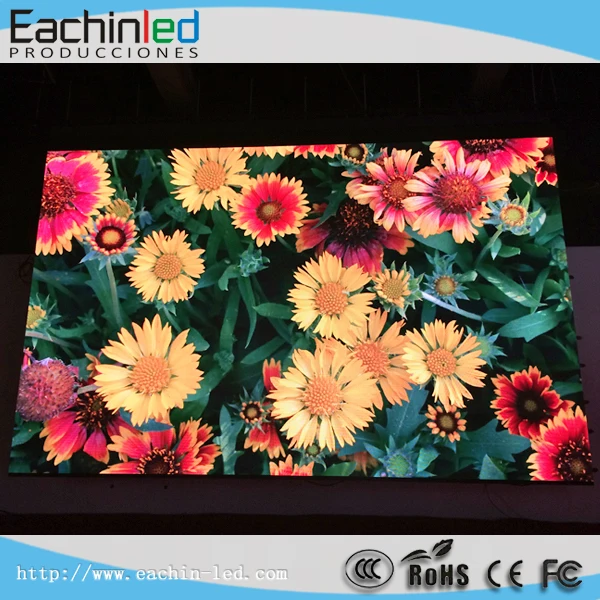

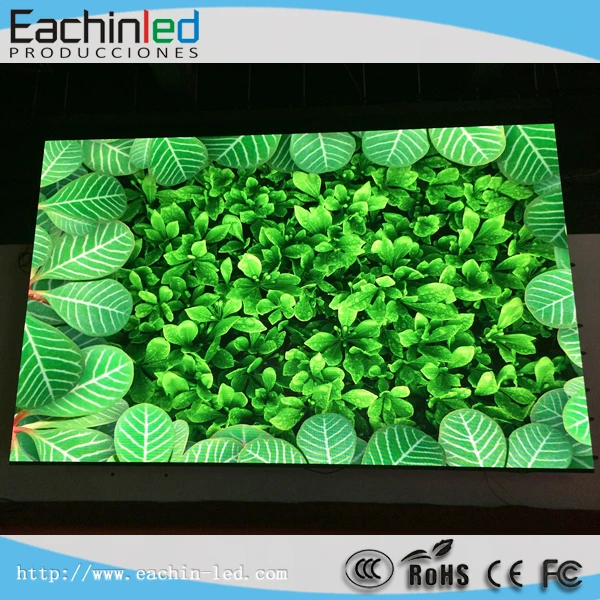

P3 high quality LED video wall panel china supplier/aliexpress/led curtain/decaorative wall panel

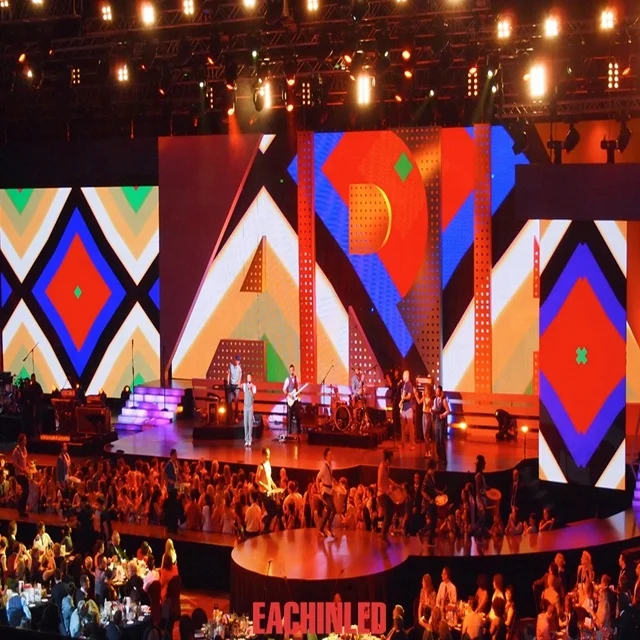

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Technical Specification:
Items | Parameter | ||||
Pixel Pitch | PH3.75mm | PH4mm | PH4.615mm | PH5mm | PH6mm |
Module Resolution(W*H) | 128(W)*128(H) | 120(W)*120(H) | 104(W)*104(H) | 96(W)*96(H) | 80(W)*80(H) |
Pixel Configuration | 1R1G1B(in 3 n 1) | ||||
LED Encapsulation | Black SMD 2121 | Black SMD 2724 | Black SMD 2724 | Black SMD 3528 | Black SMD 3528 |
Pixel Density | 71111/ Pixel m2 | 62500 Pixel /m2 | 46944/ Pixel m2 | 40000/ Pixel m2 | 27778/ Pixel m2 |
Driving Method | 1/16 Scan | 1/15 Scan | 1/13 Scan | 1/12 Scan | 1/10 Scan |
Refresh Frequency | ≥2880Hz | ≥2880Hz | ≥2880Hz | ≥2880Hz | ≥2880Hz |
Driver IC | Special constant current IC with high refresh rate & high grey scale | ||||
Grey Scale | 14Bit(depending on zhe system and IC configuration) | ||||
Cabinet Size | 480*480mm | ||||
White balance Brightness | ≥900cd/ m2 | ≥900cd/ m2 | ≥900cd/ m2 | ≥1500cd/ m2 | ≥1500cd/ m2 |
Color Temperature | 8000K±500 (adjustable) | ||||
Viewing Angle | Horizontal 140°Vetical 120° | ||||
Optimal Viewing Distance | >4m | >4m | >5m | >5m | >6m |
Working Voltage | AC 220V/110V ±10% | ||||
Module voltage | DC4.2V | ||||
Max Power Consumption | 100W/PCS | 100W/PCS | 110W/PCS | 100W/PCS | 80W/PCS |
Avg.Power Consumption | 60W/PCS | 60W/PCS | 60W/PCS | 50W/PCS | 40W/PCS |
Lifetime | 50000hours | ||||
Operating Temperature | –10℃ ~ 65℃ | ||||
Net weight | 8.5Kg/pcs | 8.5Kg/pcs | 8.5Kg/pcs | 8.5Kg/pcs | 8.5Kg/pcs |

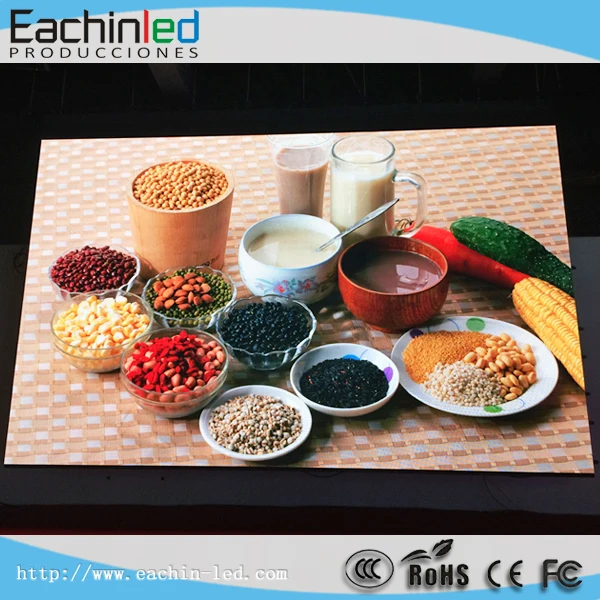

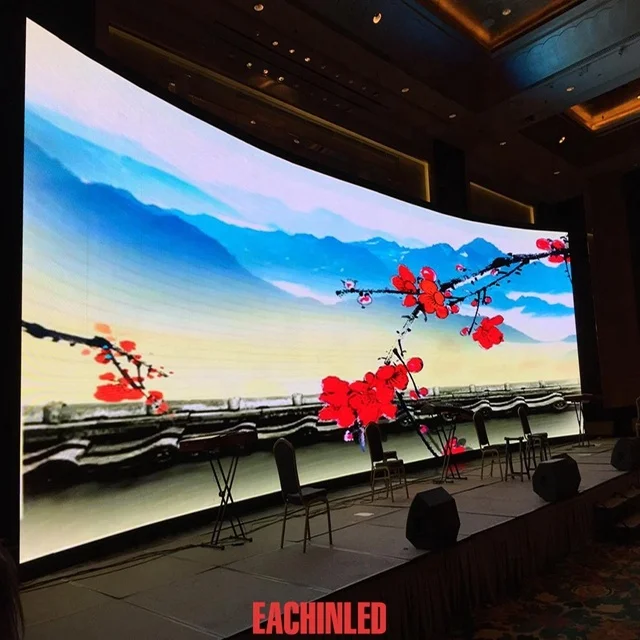

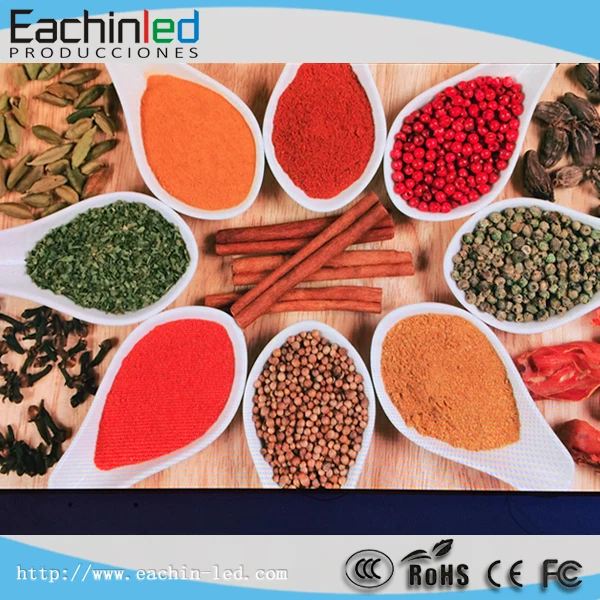

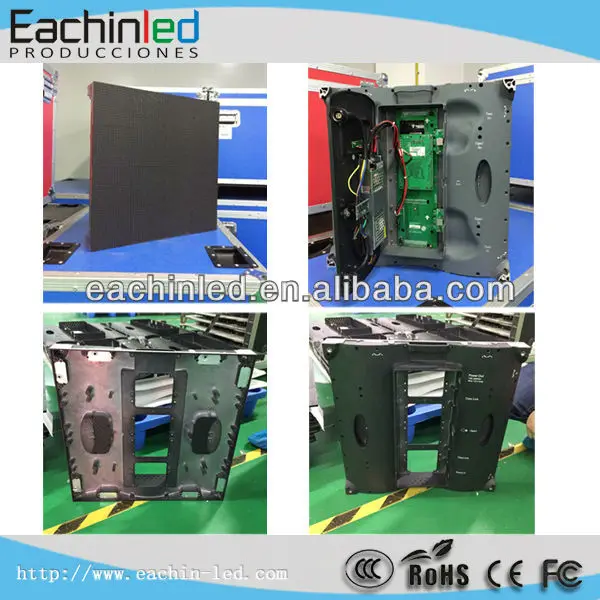

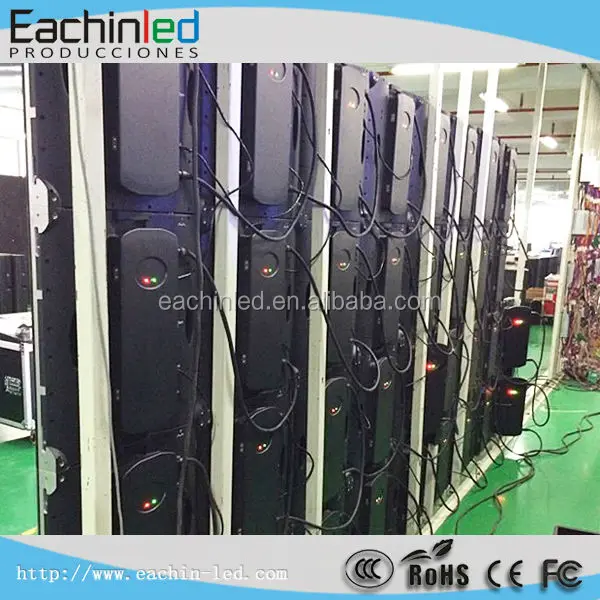

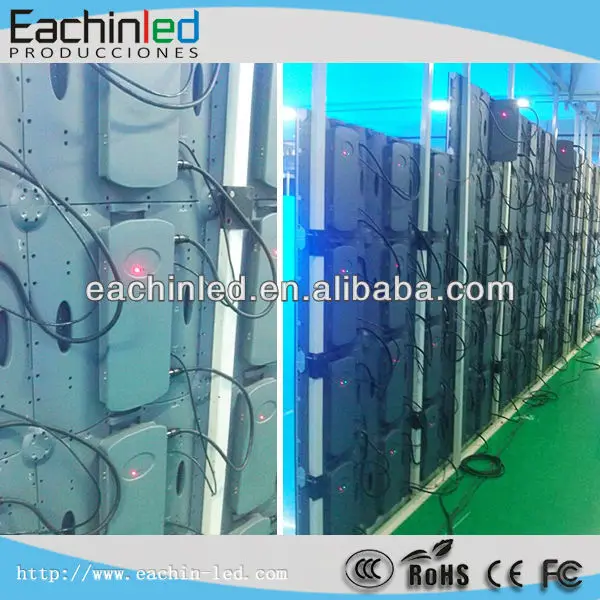

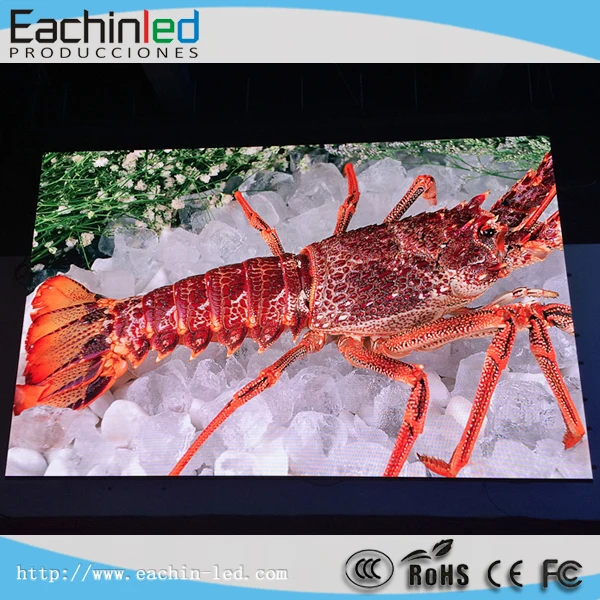

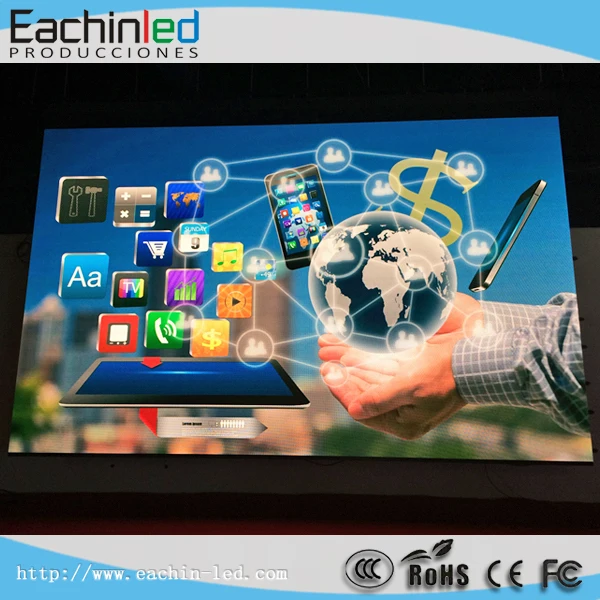

Gallery:
