Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Type：	Array

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DAIER

Model Number:: PBS-24-302

Protection Level:: IP40

Max. Current:: 4A

Max. Voltage:: 250V

Product type:: PBS-24-302 3PDT 9 Pin Foot Push Button Switch

Type:: Push Button Switch

Product name:: PBS-24-302

Rating:: 2A 250V

Function:: Latching

Switch Color:: Black/Red/Blue/Brown/Green

Terminal:: Solder Terminal

Certificate:: CE, Rohs

OEM&ODM:: YES

Packing:: 50pcs/box

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 20X20X10 cm

Gross weight per batch:: 1.0 kg

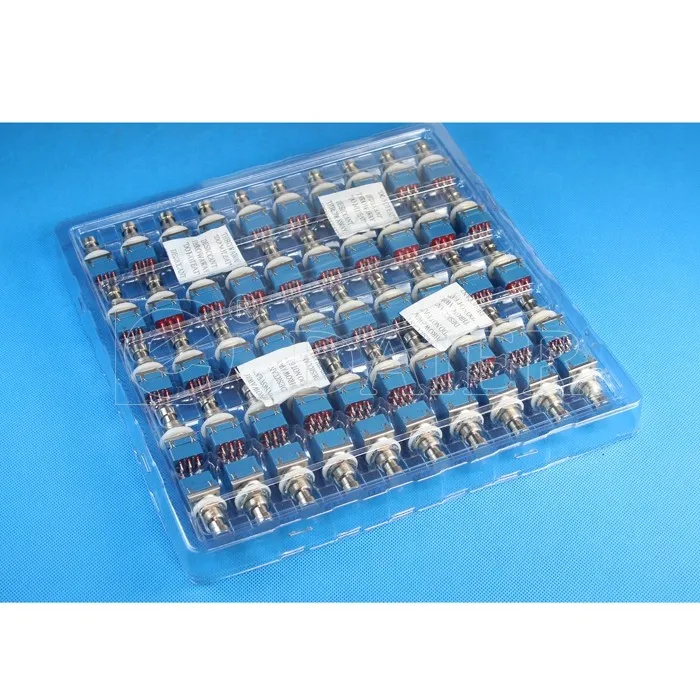

Package Type:: 50pcs/box of PBS-24-302 3PDT 9 Pin Foot Push Button Switch

Picture Example:

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	7	To be negotiated

Product Description

Model	PBS-24-302
Type	PBS-24-302 3PDT 9 Pin Foot Push Button Switch
Rating	2A 250V
Function	ON-ON
Terminal	9 Pin, Solder Terminal
Degree of Protection	IP40
Switch Color Avaliable	Black/Red/Blue/Brown/Green
Operating Temperature	-25°C ~+85°C
Contact Resistance	50mΩ max.
Insulation Resistance	100MΩmin. 500V DC
Dielectric Strength	AC 1500V 1 minute
Electrical Life	10,000 cycles min

Product Show

PBS-24-302

PBS-24-302 3PDT 9 Pin Foot Push Button Switch

Specifications:
1. Rating: 2A 250VAC
2. Electrical Life: 10,000 Cycles

3.Contact Resistance: 50mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Strength:1500V AC 1min

6. Operating Temperature:-25°C~+85°C
7. Function: Latching Push Button Switch

8. Operating Force: 5N Max

Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
