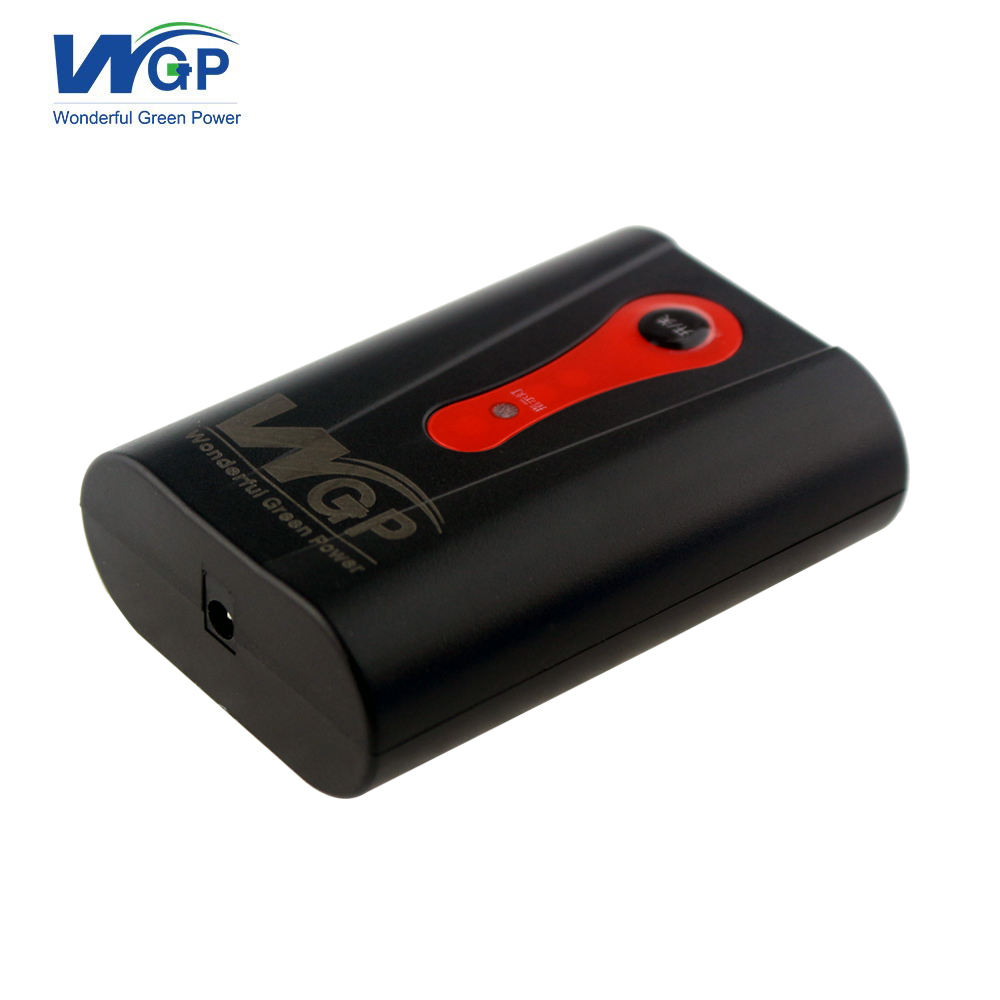

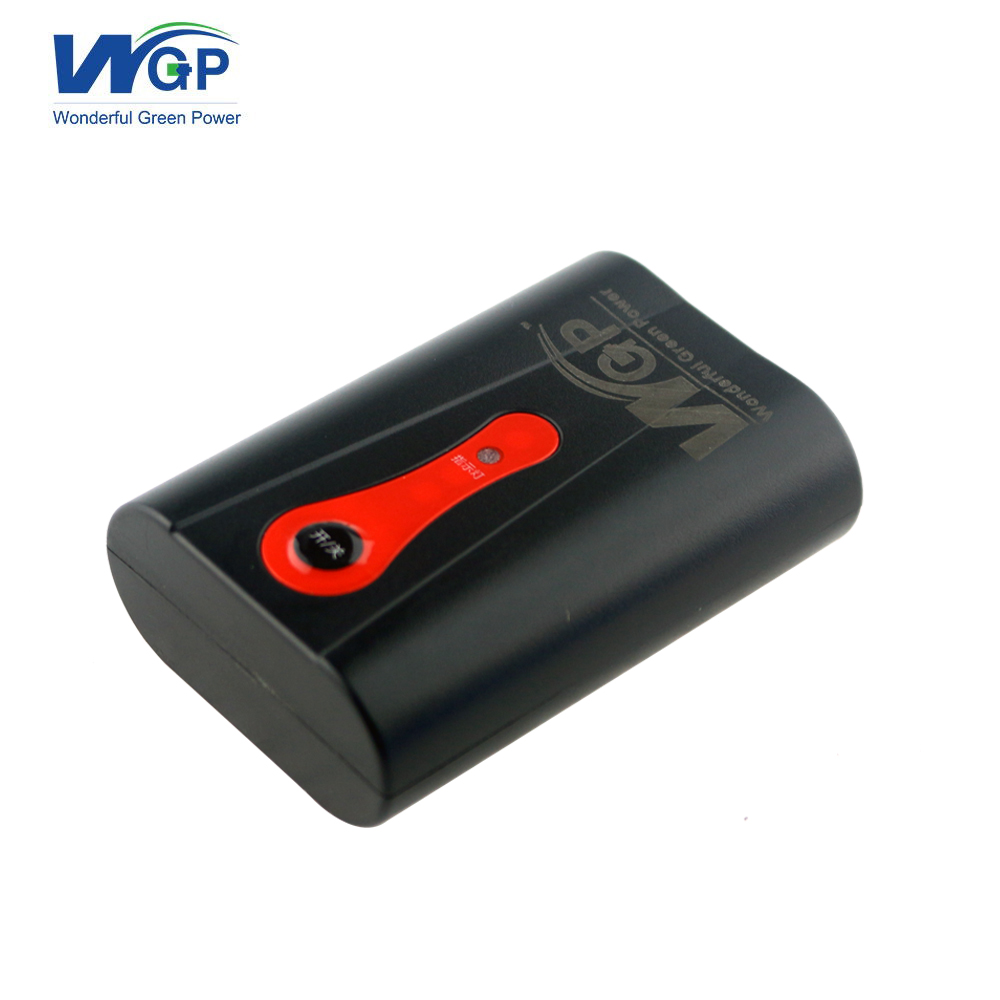

RTC704A is a kind of smart lithium battery pack with capacity of 7.4V 2000mAh 14.8wh.

It can support a power supply which export large current and adjust power output.

It’s made of 2 bunches lithium battery professional protective circuit and MCU control circuit.

Output with features of over-current protection,no load auto poweroff and can  memorise last time power level when power off.

The lithium battery has professional over-charged, overdischarged, overcurrent and short circuit protection.

With the double protection of lithium and MCU,the battery has features of long life time and reliable quality.

How to charge:
1.Plug the charger into the wall and the DC plug into the battery

2.The light of the charger will be red when charging

3.The indictor of charger will become green and battery LED indicators will light on once the battery was fully charged

4.The battery must be charged at the ambient temperature range of 0°C~45°C

operation instructions:

1.After connection with device,shortly press the power button,led indicators are all light,the battery starts working

2.When the battery is working,the led indicator is always light and tell the remainling power status

3.After long press the power button,the battery stops working

4.Shortly press the power button,the led indicator will be moved between 100%~25% with flash 5" for different power output

5.The battery must be discharged at the ambient temperature range of -20°C to 55°C

Storage:

Please store the battery in a clean,dry and ventilated room with the ambient temperature of -20°C to 45°C

When not using the battery for a long time,please make the  battery be fully charged,and suggest to charge it every 3 month for extend the battery"s life

CAUTION:

Use only specified charger

Do not short-circuit the battery

Do not throw the battery into fire or heat it

Do not disassemble and break up battery
