Product Details

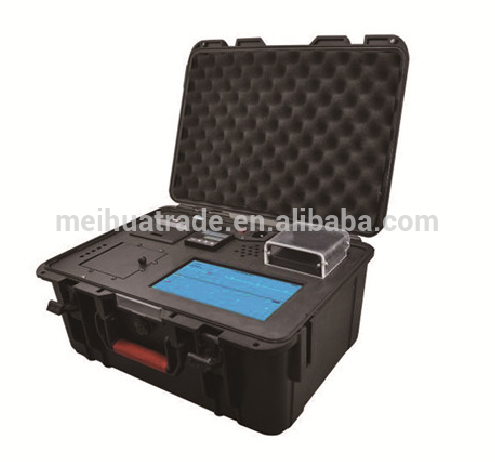

Portable Multi-Parameter Water Quality Analyzer
Multi-parameter water quality analyzer is suitable for large, medium and small water factories and mining enterprises, swing pool CDC, in order to control chroma, turbidity, residual chlorine chlorine, total chlorine, combined chlorine, chlorine dioxide, ammonia introgen, nickel, solids, copper, phosphate, DPDchlorine, dissolved ocygen, nitrite, chromium, iron, manganese, TDS, water temperature, PH, hardness, COD, reach to the required water quality standards.
Features:
1. Suitcase detector integrated design, easy to carry, fast measurements for water quality testing in the fieldwork and liquidity site.
2. Adapting the latest hardware and software technology to achieve a integration of photometric, electrode and titration method, a single instrument can detect 35/66/99 parameters of water quality indicators, giving users a great convenience
3. With long-life light-emitting diodes, pulse power supply, the service life can up to 100,000 hours;
4. Colorimetric system using integrated photoelectric sensor, no moving parts, stronger resistance of seismic and moisture.
5. Built in spectrophotometric curve and titration calculation program, without standard solution configuration, can be directly and quickly detect water samples;
6. High-end full-color touch screen, full English display directly show measured items, absorbance value, concentration value, comprehensive information;
7. Icon function keys, touched human-machine interaction operation, friendly simple interface, fast and easy to operate;
8. Square sample cell, avoids the error caused by the unevenness of the round colorimetric tube, higher measurement accuracy, suitable for various kinds of cuvettes, user can choose freely according to experimental requirements or operating practices.
9. Using specific detection reagent kit to test water samples, greatly reducing reagent preparation time, higher detection efficiency, easier operation;
10. Precision clock memory chip, can set the system time, 50000 data can be saved;
11. With 230 curves space, support manually modification, auto-calibration or auto-fitting, user-friendly expansion test items;
12. Built-in high-end brand miniature thermal line printer can print test results fast, convenient data retention;
13. Equipped with data interface, randomly professional online software presented, you can enter testing sample name, testing organizations and other information, support exporting TXT or EXCEL format report, through the external printer printing report.
Measurable items
NO. | Parameter Name | Measuring Range | NO. | Parameter Name | Measuring Range |
1 | Residual chlorine | 0.05~5.00mg/L | 51 | Nickel | 0.05~0.5mg/L |
2 | Total chlorine | 0.05~5.00mg/L | 52 | Tin | 0.01~0.50mg/L |
3 | Ozone | 0.05~2.50mg/L | 53 | Acidity / phenolphthalein-D | 10.0~1000mg/L |
4 | Nitrate-N | 0.01~0.40mg/L | 54 | Carbonate-D | 10.0~1500mg/L |
5 | Ammonia nitrogen | 0.05~10.0mg/L | 55 | Bicarbonate-D | 10.0~1500mg/L |
6 | low turbidity | 0.5~60.0NTU | 56 | Selenium | 0.10~1.00mg/L |
7 | Total phosphorus | 0.01~1.00mg/L | 57 | Temperature -J | (-50~300)℃ |
8 | Hexavalent chromium | 0.01~1.00mg/L | 58 | Salinity-J | (0.0~28)% |
9 | Sulfide | 0.02~1.00mg/L | 59 | Potassium | 30.0~100mg/L |
10 | COD | 10~1000mg/L | 60 | Cadmium | 0.10~5.0mg/L |
11 | Fluoride | 0.02~2.00mg/L | 61 | Arsenic | 0.006~0.5mg/L |
12 | Dissolvedoxygen | 0.1~10.0mg/L | 62 | Barium | 1.0~10.0mg/L |
13 | Mn | 0.05~5.00mg/L | 63 | Beryllium | 0.01~0.30mg/L |
14 | Fe | 0.10~3.00mg/L | 64 | TDS-J | 0-9990ppm |
15 | Calcium-D | 2~200mg/L | 65 | Molybdenum | 0.01~0.30mg/L |
16 | Corine dioxide | 0.10~3.00mg/L | 66 | Silver | 0.05~1.00mg/L |
17 | Nitrate-N | 0.5~20.0mg/L | 67 | Residual chlorine-1 | 0.5~10.0mg/L |
18 | High turbidity | 5~400NTU | 68 | Total chlorine-1 | 0.5~10.0mg/L |
19 | Chroma | 5~200PCU | 69 | Ozone-1 | 0.5~5.00mg/L |
20 | Total chromium | 0.01~1.00mg/L | 70 | Ammonia-1 | 1.0-50.0mg/L |
21 | Phosphate | 0.1~1.0mg/L | 71 | COD-1 | 500~5000mg/L |
22 | Sulfate | 5.0~250.0mg/L | 72 | Total phosphorus - 1 | 0.5~10.0mg/L |
23 | CODmn-D | 0.50~8.00mg/L | 73 | Total hardness | 12.5~450mg/L |
24 | Total hardness-D | 1.0~500.0mg/L | 74 | PH | 5.5~9.5 |
25 | Formaldehyde | 0.05~1.50mg/L | 75 | Calcium | 0.1~2.00mg/L |
26 | Volatile Phenol | 0.10~5.00mg/L | 76 | Manganese-1 | 0.5~10.00mg/L |
27 | PH-J | 2.0~14.0 | 77 | Copper-1 | 0.5~5.00mg/L |
28 | Chloride-D | 20.0~500mg/L | 78 | Iron-1 | 0.5~10.00mg/L |
29 | Cyanide | 0.03~1.00mg/L | 79 | Hexavalent chromium -1 | 0.5~10.00mg/L |
30 | Aluminum | 0.01~0.50mg/L | 80 | Total chrome | 0.5~10.00mg/L |
31 | Cu | 0.05~1.00mg/L | 81 | Aniline | 0.03~50mg/L |
32 | Zn | 0.05~3.00mg/L | 82 | Nitrobenzene | 0.1~70mg/L |
33 | Free chlorine | 0.05~5.00mg/L | 83 | Thiocyanate | 0.15~1.5mg/L |
34 | Mg-D | 2~200.0mg/L | 84 | Cobalt | 0.01~0.50mg/L |
35 | Total Alkalinity D | 10.0~1000mg/L | 85 | Boron | 0.20~8.00mg/L |
36 | Nitrates | 5.0~150.0mg/L | 86 | Cyanide chloride | 0.03~1.00mg/L |
37 | Nitrite | 0.05~2.00mg/L | 87 | Plumbum | 0.01~1.00mg/L |
38 | Orthophosphate | 0.1~1.0mg/L | 88 | HG | 2.00~40.0μg/L |
39 | Chlorite | 0.05~2.0mg/L | 89 | Conductivity -J | 0~1999us/cm |
40 | Sodium hypochlorite | 100~5000mg/L | 90 | Iodine | 0.00~2.00mg/L |
41 | Sodium chromate | 0.01~1.00mg/L | 91 | Chloride | 0.5~4.0mg/L |
42 | Peracetic acid | 0.0~10.0mg/L | 92 | Vanadium | 0.02~10.0mg/L |
43 | Hydrogen peroxide | 1.0~100.0mg/L | 93 | Antimony | 0.05~1.2mg/L |
44 | Hydrogen sulfide | 0.01~1.00mg/L | 94 | Thorium | 0.008~3.0mg/L |
45 | Silica | 1.0~20.0mg/L | 95 | Monomethyl hydrazine | 0.02~0.8mg/L |
46 | Urea | 0.5~10.0mg/L | 96 | Triethylamine | 0.5~3.5mg/L |
47 | Sulfite | 0.1~20.0mg/L | 97 | Trichloroacetaldehyde | 0.10~2.00mg/L |
48 | Detergent | 0.1~3.0mg/L | 98 | Diethylenetriamine | 0.40~3.20mg/L |
49 | Hydrazine | 0.01~0.10mg/L | 99 | Unsymmetrical Dimethylhydrazine | 0.01~1.00mg/L |
50 | Free ammonia | 0.1~5.0mg/L | Note: The suffix-J is a pen-type ion meter | ||
Technical Parameters
Model | BK-WQA35 | BK-WQA66 | BK-WQA99 |
Measurable items | 35 Parameters (1-35) | 66 Parameters (1-66) | 99 Parameters (all) |
Light Source | ≥100000h | ||
Stability | ≤0.005A / h | ||
Detection System | multi-channel independent detection system | ||
Detection Circuit | high-precision constant test circuit | ||
Display Model | large screen display absorbance value (A), light transmittance value (T), concentration value (C) | ||
Measurement Error | ≤ ±5% or±10% F.S | ||
Repeatability Error | ≤ ±3% | ||
Storage Space | detection data 50000 group | ||
Number ofCurves | 230 | ||
Print Method | thermal line printing | ||
DigestionTemperature | RT~ 500℃ | ||
DigestionTime | 1 ~ 9999s | ||
Processing Capacity | 4 water samples (9,16 or more is optional) | ||
Temperature Accuracy | <±1℃ | ||
Temperature Uniform | <±1℃ | ||
Interface | standard RS232 (USB optional) | ||
Power supply | 220V, car power or lithium battery | ||
Standard Accessory | Kits for 100 parameters, 4 holes digestion device (except model BK-WQA99) | ||
External Size(L*W*H) | 355*275*165 | 355*275*165 | 360*265*105(main body) |
Net Weight | 4.45kg | 4.45kg | 2.9 |
Package Size(L*W*H) | 405*325*215 | 405*325*215 | 410*315*155(main body) |
Gross Weight | 7kg | 7kg | 5.5kg |
