Product Details
Product Overviews
Product Overviews

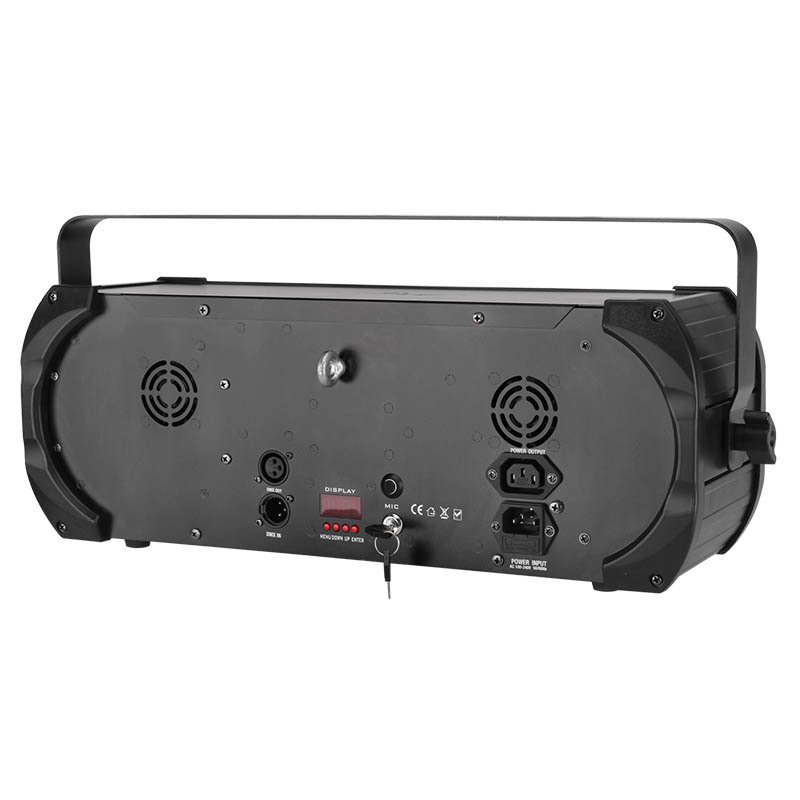

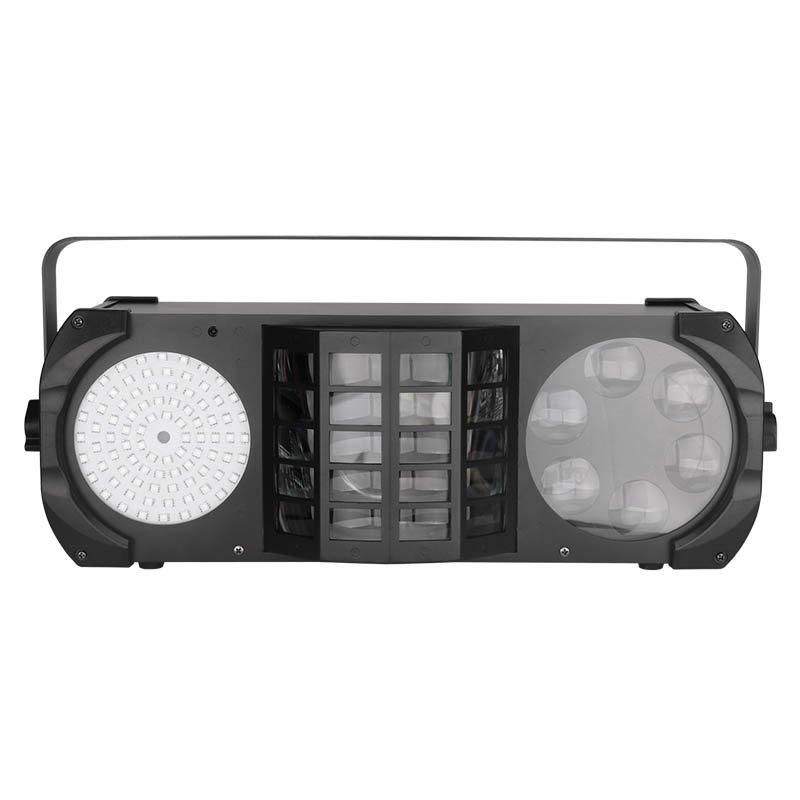

MS-CB08 SMD: 87x0.2w RGB 3in1 +Derby : 2x8w RGBW 4in1 +Laser: R=150MW ,G=50MW+Gobo effect:6*3w R/G/B CREE single color
◪SMD on the left built in various transformed effects as the background. The middle little hole can play red and green pattern laser effect.
◪The middle derby light can play a wide range of beam effect. RGBW 4in1 LED can be individually controlled.
◪The pattern light is able to play six different patterns on the right.
◪The built-in effect of the machine is very rich. Different lights make combination effects.
◪LED display, IR, easy to control.
Technical Data
Voltage: | AC100-240V 50/60Hz |
Power Consumption: | 76W |
SMD: | R:33LUX@1M G:79.3LUX@1M B:68LUX@1M RGB:168.4LUX@1M |
Derby: | R:787LUX@1M G:1318LUX@1M B:1520LUX@1M W:1833LUX@1M |
Gobo light: | R:718LUX@1M G:720LUX@1M B:1144LUX@1M RGB:1786LUX@1M |
Channel: | 3CH and 23CH |
Four operation mode: | DMX512, Sound, Auto run, Master-slave,IR LED display, easy to control |
Beam angle: | Derby 6°,SMD 136°,Gobo light:17° |
Display: | LED display |
Fuse: | F3A L250V |
Light Size: | 54.4*22.9*18.5cm |
N.W.: | 5.55kg |
G.W.: | 6.5kg |
Package Size: | 56.5*24.5*23.5CM |
Technical Details
Effect diagram
Effect picture
Different visual effects
Effect picture
Different visual effects
Effect picture
Different visual effects
Effect picture
Different visual effects
Production line
Packing
