Brand：	none
Address：	Guangdong Dongguan
Min.Order：	none
Supply：	none
Valid until：	Long Term
brand：	Array
size：	Array
color temperature：	2700K/3000K/4000K/5000K

Product Details

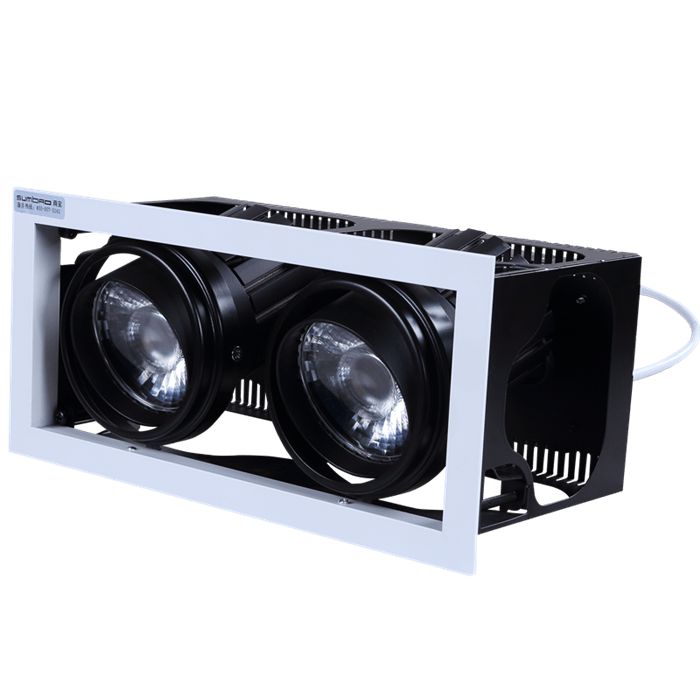

2015 China manufacturer Electric Commercial Recessed led spotlights DW028-2

Type	Wattage	Temperature	Beam	Voltage	CRI	Light source	Life(H)	Size
DW028-2	□10W*2	□2700K □3000K □3500K □4200K □5700K	□10° □15° □20°	AC220V	≧80	SHARP/CREE	30000	293X139X184mm
	□18W*2		□15° □20°

Applications


Furniture shop	Clothing shop	Supermarket	Hotel

Furniture shop	Clothing store

Product details

Lens
High luminous efficacy makes the light soft and uniform.

CREE-LED
It’s a global brand with high efficiency, high CRI and long service life.

Driver
It’s made of the intelligent IC, the constant current control and several protections.

Lens hood
It is made of engineering plastic make fully block the light. This design make full use of the light.

Anti dazzle
The most advanced light technology，make the anti dazzle achieve the best.

Electric appliance box
It’s made of hardware, high strength, fire retardant, and more safety.

Product shows

It attractive in simple and fashion appearance. Hardware lamp box make the fixture durable.

Spraying powder on the surface, it’s gentle and smooth, make it more fashionable.

Side
The integral spring clamp and the latest upgrade structure, it’s convenient to install and adjust.

Designed for universal, the light can 360°around to easily meet the variable scenes.

It’s made of industrial Al, the cooling area is large, the fast air flow speed, excellent heating radiation effect, make the perfect control of decay.

Electric appliance box
Electric appliance box It’s made of hardware, high strength, fire retardant, and more safety.

Optical parameters of product

Light distribution curve

Angle

Graph
12°
15°

Luminance scatter gram

The average of effective luminous

Facular color temperature contrast

The 3000K warm white is suitable for deep color furniture exhibition.
The 4000K anature white is appropriate for light color furniture, supermarket, clothing store etc.
The 5000K cool white is apply for modern furniture, upscale market, exclusive shop.

Applications

The installation instruction


On the carrier (ceiling) according to the above size square shaped hole	To the above picture, make the driving connected to the grid. (Electrical should turn off the power switch)The lamp body is arranged in the square holes, And along the arrow direction to promote and tightly.

Using a screwdriver or other tools, make the lamp box to the right and locking.	The left shown, as the screws tightened, the spring clamp will be stuck in the ceiling surface, so to achieve the purpose of fixing the lamp.

Here the installation is completed. When you want to regulation, please use hand hold the lamp, and push it up to complete the adjustment of need angle.
