Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

Overview

Quick Details

Item Type:: Ceiling Lights

Light Source:: LED

Install Style:: Surface Mounted

Input Voltage(V):: AC 220-240V , 110-277V

Lamp Luminous Flux(lm):: 2000

CRI (Ra>):: 80

Working Temperature(℃):: -10 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: PC

IP Rating:: IP65

Certification:: CE, C-tick, EMC, LVD, RoHS, SAA

Place of Origin:: Guangdong, China

Brand Name:: Gooday lighting

Model Number:: GL2003CA/SA/EA/ESA

Application:: corridor, stairs, car parking

Color Temperature(CCT):: 2700-6500K

LED Light Source:: SMD2835

Lamp Luminous Efficiency(lm/w):: 100

Supply Ability

Supply Ability:: 8000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Box Package:330 x 330 x 110mm (1 PCS)
Carton package:550 x 350 x 360mm 4 PCS/Carton
Net Weight:Net Weight

Port: ShenZhen

Lead Time:

Quantity(Pieces)	1 - 50	51 - 3000	>3000
Est. Time(days)	3	20	To be negotiated

Specification

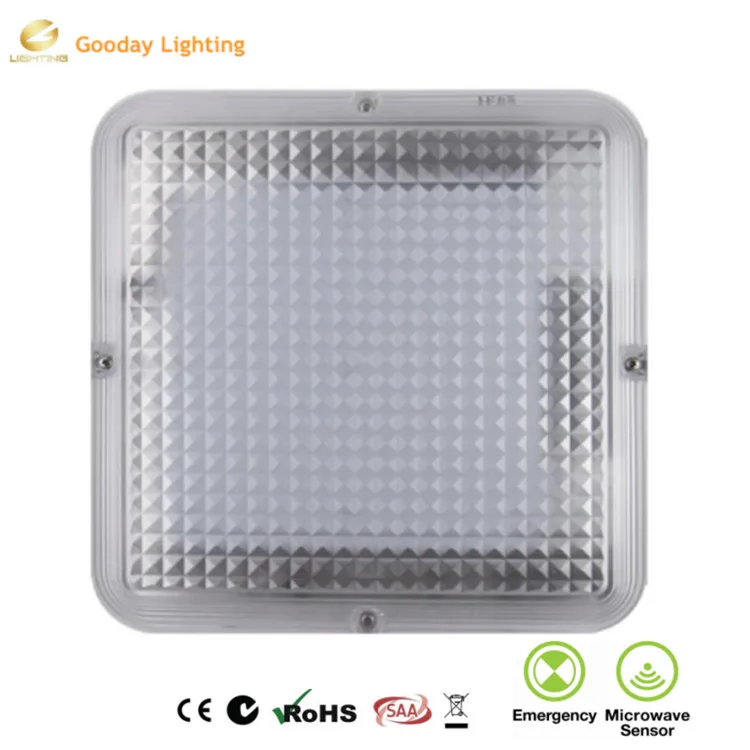

SAA 20w led emergency battery powered bulkhead lights with motion sensor

Features

Emergency light mode (180 mins backup), Monthly battery self test capability for emergency models

Integrated microwave motion sensor triggers gradual transition between full & standby light output

High performance led microwave sensor with range of up to 10m

Ability to adjust standby and full light output to provide a customised solution for each site

High performance LUMILEDS LEDs rated @L70 to over 100,000 hours

Daylight sensor enabled, ensures the light is not activated by the motion sensor when daylight is detected but instead remains on standby mode.

Benefits

SAA , Ctick , CE -LVD / EMC, IP65 IK10 ceiling mount ceiling bulkhead

Designed for Australian Building Code & AS 2293 compliance

Automatic battery testing verification via indicator light

Flexibility to adjust light levels to suit the area

Streamlined product range for easier specification

Fit Fire Stairs, Undercover Car parks, Garbage Rooms, Service Corridors, Internal and External Hallways.

Basic information
Voltage ( 50/60Hz)	220-240V AC
Power consumption	25W
PF	>0.9
Light source	Lumileds 3020 LEDs
Color Temperature (CCT)	4000K 6000K
View angle	120°
Dimension	Ø315 x 100mm
Warranty	5 years
